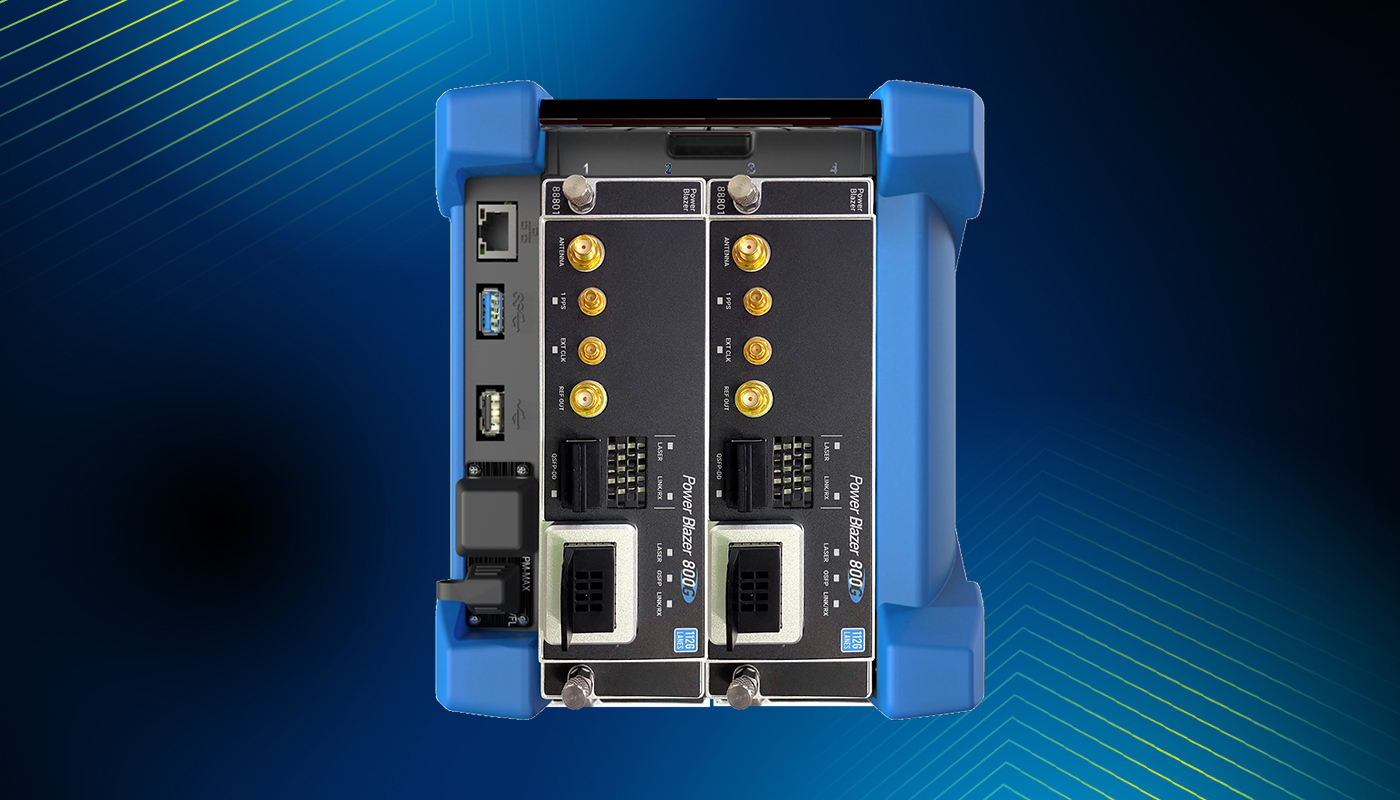

FTBx-88800 实验室用800G测试解决方案
重量 FTBx-88800: 0.85 kg (1.87… · 尺寸 51 mm × 159 mm × 182 mm (… · Compliance testing IEEE 802.3ba, IEEE 802.3b…
产品简介
结构紧凑、功能强大的800G流量生成与监测解决方案。业内首款便携式800G测试解决方案。
核心参数
• 重量：FTBx-88800: 0.85 kg (1.87 lb); FTBx-88801: 0.88 kg (1.94 lb)
• 尺寸（高×宽×深）：51 mm × 159 mm × 182 mm (2 in × 6 1/4 in × 7 3/16 in)
• Compliance testing：IEEE 802.3ba, IEEE 802.3bs, 802.3ck and 802.3df standards
• Transceiver validation：QSFP-DD800, OSFP800, QSFP-DD and OSFP
• Power measurement per lane：Optical channel power measurement with color indicators
• Frequency measurements：Provides per lane frequency measurement of the received signal (in Hz)
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface,and monitoring
•Error injection mode：Manual, rate and continuous (maximum rate)
功能与特点
•Unique single-port test configuration:supports QSFP optics including 800G,400G and 200G rates

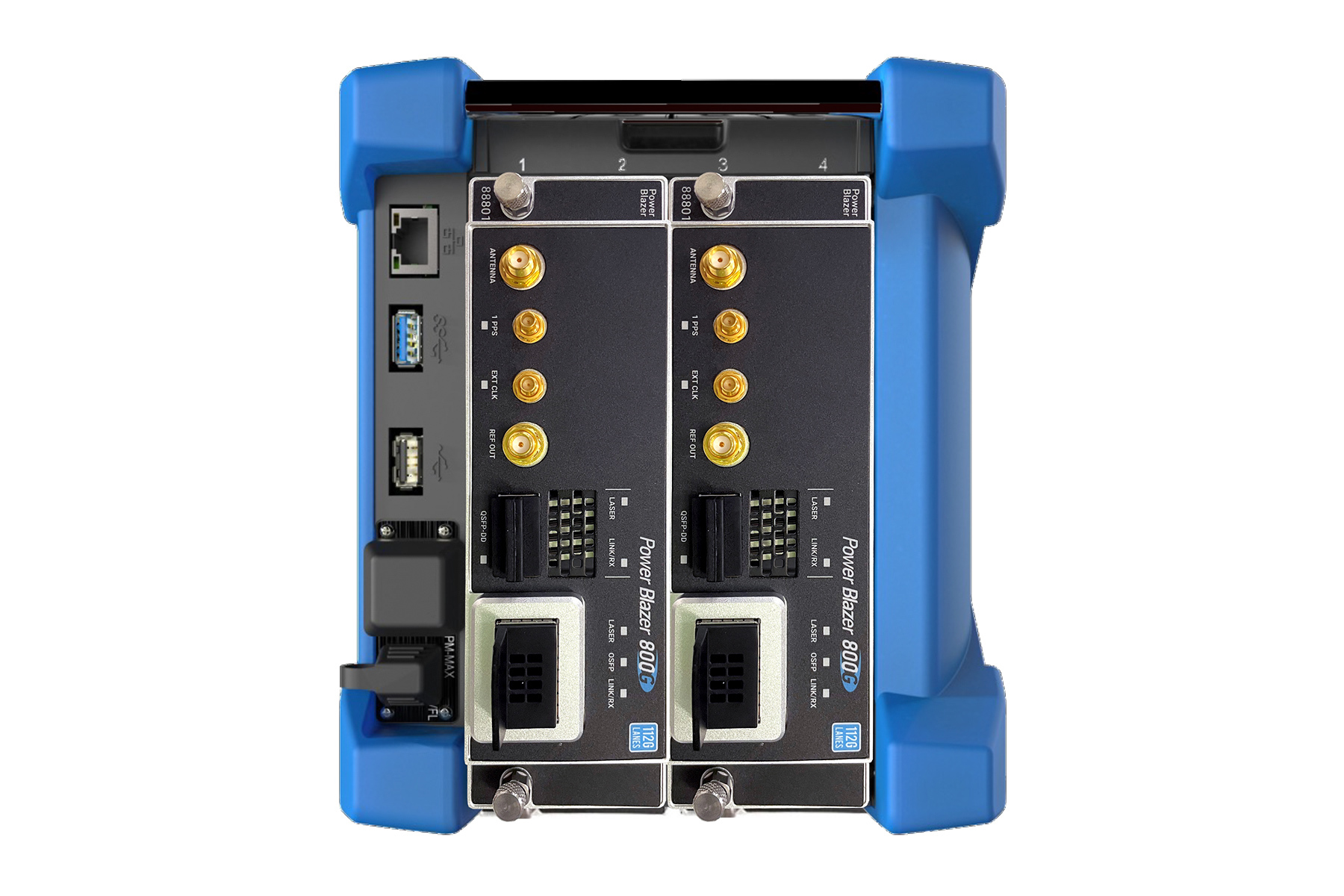

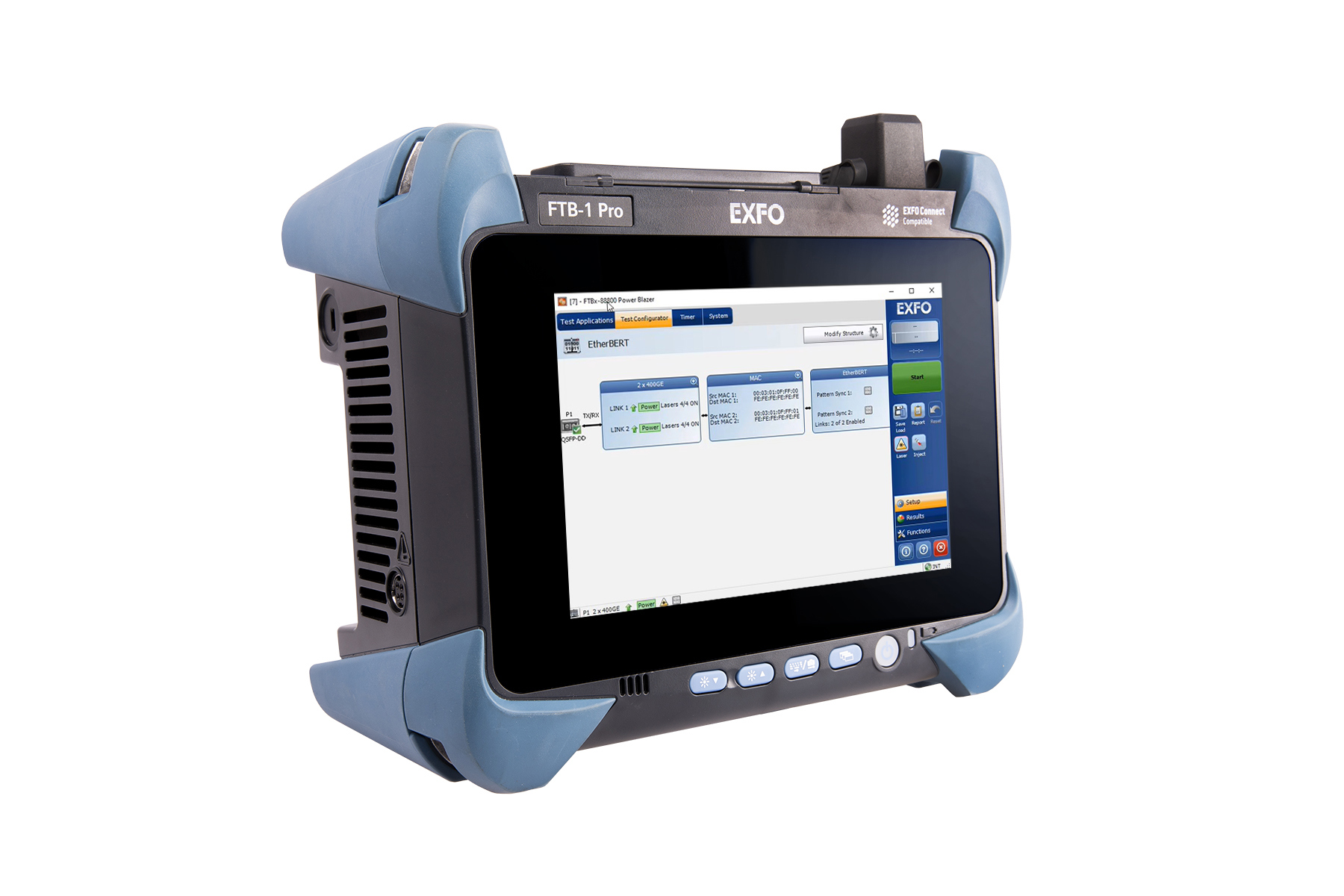

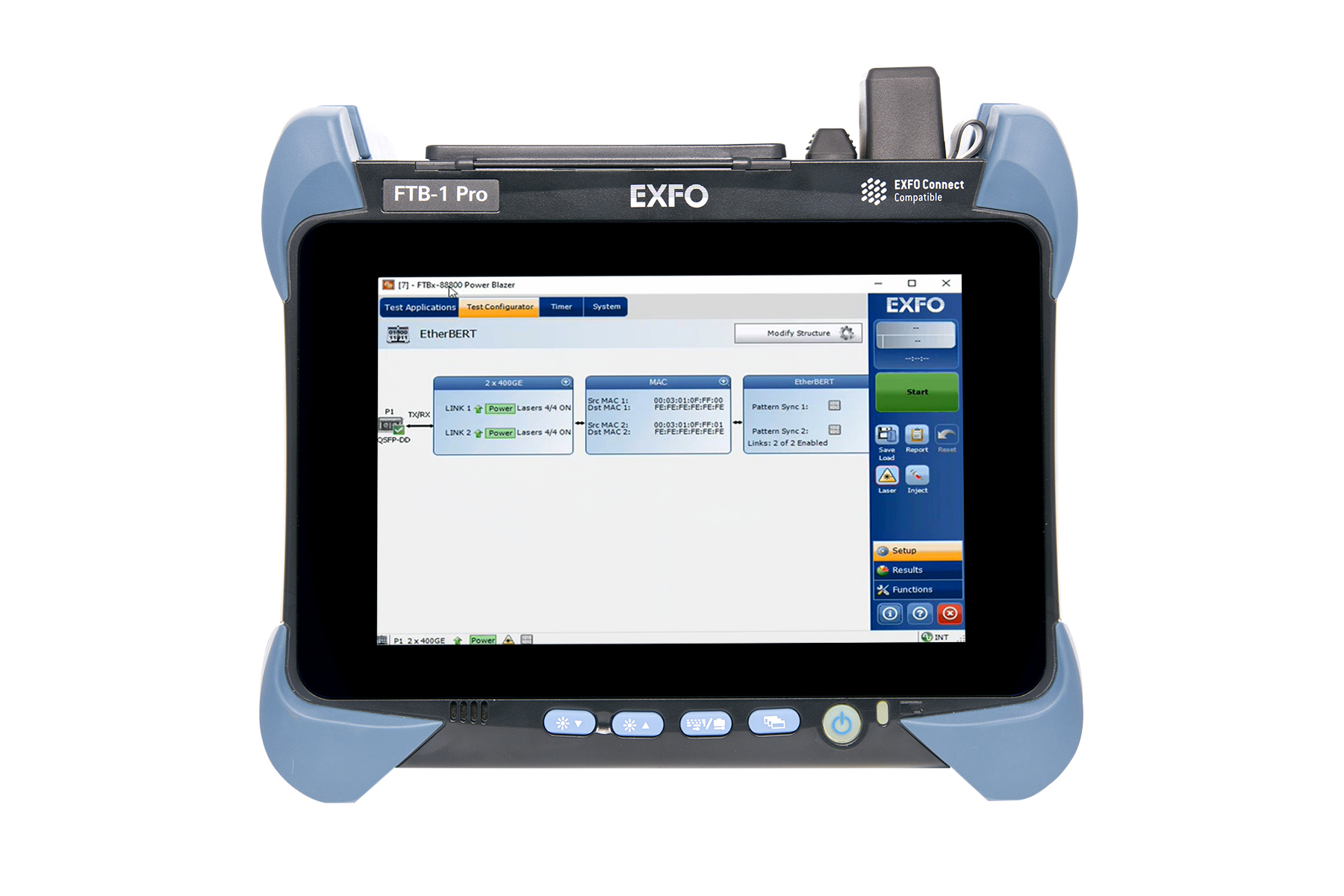

• Compatible with FTB-1-Pro platform for the industry’s first compact, portable 800G test solution that move anywhere in the lab

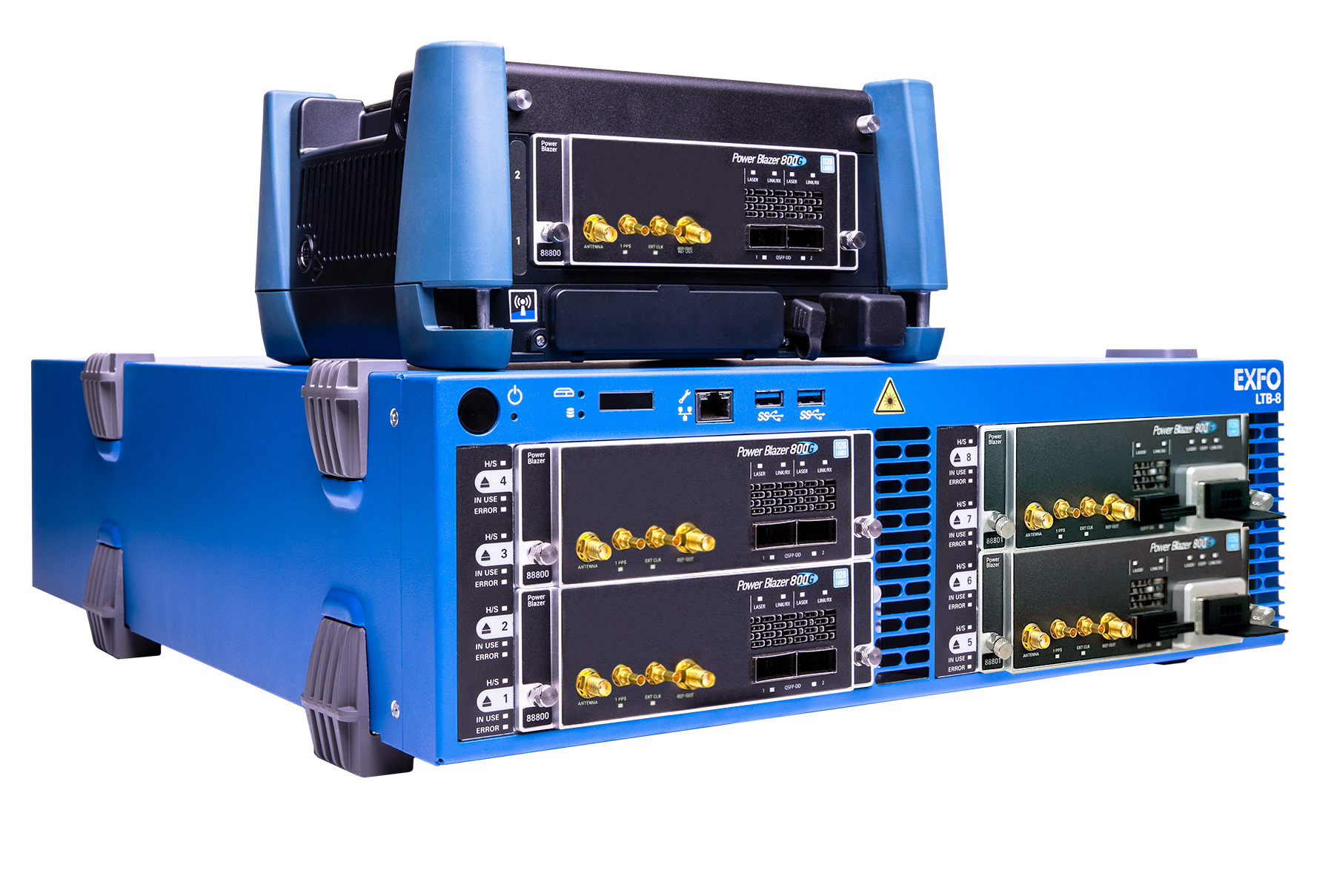

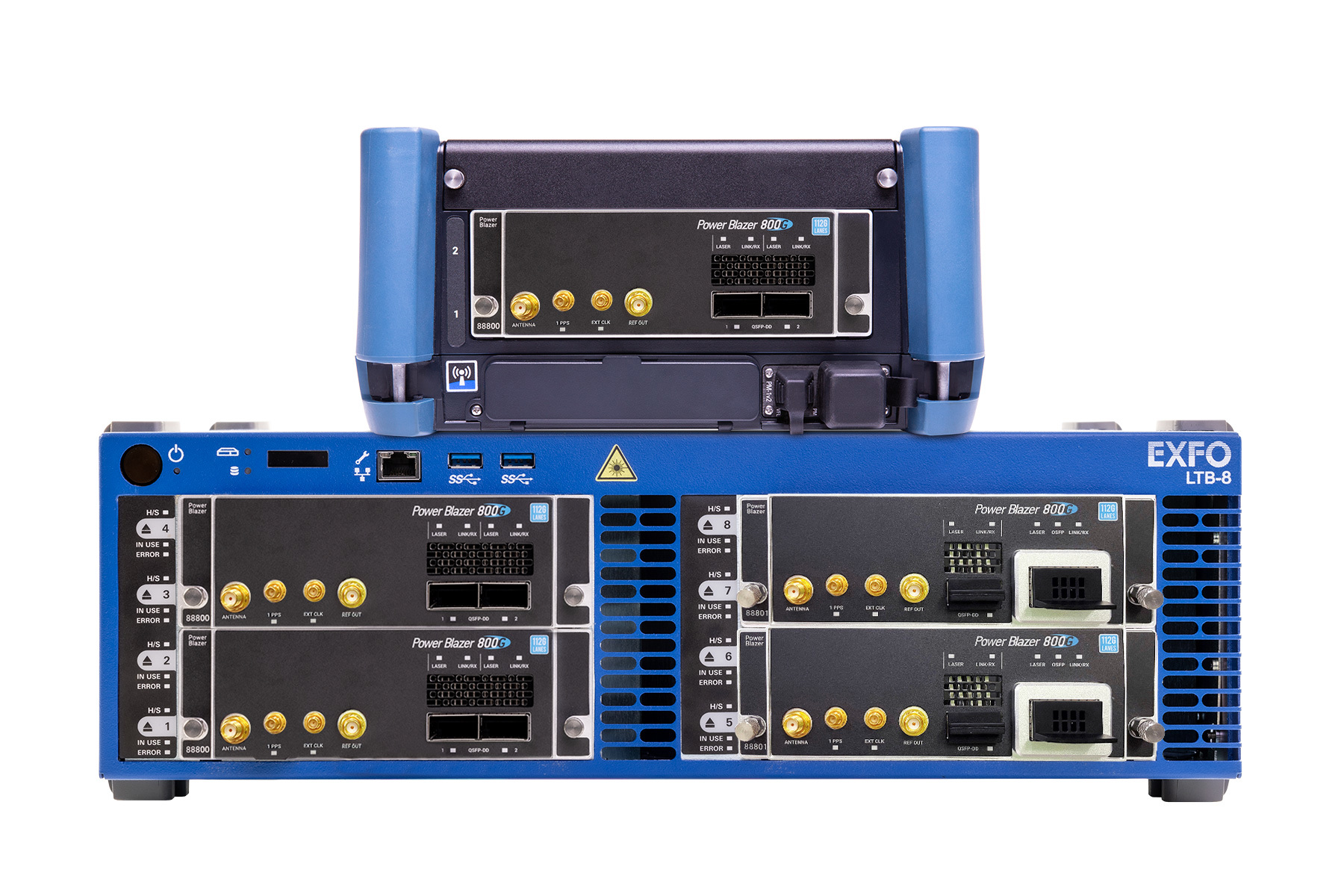

•Achieve 3.2 TB by combining four FTBx-88800 Series modules into EXFO’s LTB-8 3RU rackmount platform
• Compliant with 800G ETC standard
•Test 800GE,400GE and 200GE links using a single FTBx-88800 Series module
• Integrate modules into EXFO’s end-to-end optical transceiver test solution
典型应用
资源下载
•详细指标：全部技术指标已单独整理，详见 FTBx-88800 实验室用800G测试解决方案 详细指标页
onetest仪器资源库 · EXFO FTBx-88800 实验室用800G测试解决方案
EXFO · EXFO Inc.
FTBx-88800 实验室用800G测试解决方案 · 详细指标
重量 FTBx-88800: 0.85 kg (1.87… · 尺寸 51 mm × 159 mm × 182 mm (… · Compliance testing IEEE 802.3ba, IEEE 802.3b…
产品简介
结构紧凑、功能强大的800G流量生成与监测解决方案。业内首款便携式800G测试解决方案。
本页按官方规格资料分组收录 FTBx-88800 实验室用800G测试解决方案 的全部关键技术指标；产品定位、特性与应用场景请见 FTBx-88800 产品介绍页。
技术指标
技术规格
• Compliance testing：IEEE 802.3ba, IEEE 802.3bs, 802.3ck and 802.3df standards
• Multi-interface support：QSFP-DD MSA revision 4.0, OSFP MSA revision 2.0, 4×200G, 2×400G and 8×100G and 1×800G QSFP-DD MSA revision 6.3, 2×200G and 4×100G 800G, 400G AOC and DAC cables support
• Line rate：850, 425/212.5/106.25 (single lambda) and 103.125, OIF DCO Coherent OSFP, QSFP-DD and OpenZR+
• Physical-layer validation：PCS lane mapping and monitoring capability Per-lane skew generation and measurement PCS error generation and monitoring per lane Full MDIO/I2C read/write access
• Transceiver validation：QSFP-DD800, OSFP800, QSFP-DD and OSFP
• Breakout cable support：Verification of 2×400G, 4×200G, 8×100GE, 4×100GE and 2×200GE breakout cables providing optical Tx/Rx power, L2/L3 traffic and BERT statistics per link
• Power measurement per lane：Optical channel power measurement with color indicators
• Frequency measurements：Provides per lane frequency measurement of the received signal (in Hz)
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface, and monitoring
• BERT：BERT framed and unframed testing using different parameters different frame sizes, including EMIX
• Service disruption time（SDT）：Service disruption time measurements based on no-traffic mode, with statistics including longest disruption time, shortest, last, average, count, total and pass/fail thresholds
• Latency measurements in BERT：High-resolution delay measurements integrated in the BER with statistics including current, average, maximum, minimum, count, total and pass/fail thresholds
• Error injection mode：Manual, rate and continuous (maximum rate)
• Layer：MAC address and Ether type edition available Q-in-Q capability with the ability 至 go up 至 three layers of stacked VLANs
• Layer 3/4：Source and destination IP address configuration available, IP TOS/DSP configuration available, UDP source and destination port configuration available
• Smart loopback：Return 800G Ethernet traffic 至 the local unit by swapping packet overhead up 至 layer 4
• Rx frame-size analysis：64, 65 - 127, 128 - 255, 256 - 511, 512 - 1023, 1024-1518 and > 1518
• Rx rate：Line utilization (%), Ethernet bandwidth (Mbit/s), frame rate (frame/s), and frame count
• Ethernet alarms：Link down, local fault detected, local fault received, remote fault, LOA
• Ethernet errors：FCS, jabber, runt, undersize and oversize
• PCS lane alarms and errors：LOS, LOC-lane, LOAML, excessive skew, Inv. Marker, Pre-FEC SYMB and Pre-FEC-bit
• PCS logical lane mapping：Manual and random
• Pre-emphasis：Pre-/main-/post-cursor options 至 improve electrical waveform including gray encoding
• FEC：Generation and analysis of FEC correctable and uncorrectable errors, local and remote degraded SER monitoring (error-free and uncorrectable) and percentage
• FEC statistics：Number of symbol errors per correctable codeword, number of pre-FEC symbol errors and bit statistics, codeword count
• Autonegotiation support：Advertise local interface parameters and identify negotiated capabilities with the remote link partner
• Autonegotiation status：Monitors and displays the status of the autonegotiation process, providing information on its various states
• Link training support：Provide the capability 至 enable or disable the link training process support for copper cable assemblies as defined by IEEE 802.3df (Clause 162.8.11) and the 800G-ETC-R standard
• Link training status：Monitors and displays the status of the link training process, providing information on its various states
• Link training debugging：Report local and remote Tx coefficient update and exception counts and support the export of a detailed log of all link training status and control messages 至 aide in debugging
• Remote access：Supported via EXFO Remote ToolBox, Remote Desktop, VNC and EXFO Multilink for multiuser support
• LLDP：The Ethernet BERT application also allows LLDP neighbor validation which displays the most important information forwarded by the LLDP protocol
• Automation：Wide range of commands available per application 至 allow test automation
• Reporting：Test results are included in a report that can be generated in different formats: pdf, html and json
• Compliance：OIF 800ZR, 400ZR, OpenZR+, 100GBASE-ZR
• TX power：Optical power TX transceiver configuration
• Interface rate：800ZR (2×400GE, 4×200GE, 8×100GE and 800GE), 400ZR DWDM amplified, 400ZR unamplified, 400ZR+, 200ZR+ (2×100G and 1×200G clients), 100ZR+, 300ZR+ and 100GBASE-ZR
• 波长：Tranceiver grid configuration
• Optical metrics：Test set displays the following optical metrics: CD (ps/nm), CFO(MHz), DGD(ps), OSNR(dB), PDL(dB), SOPCR (Krad/s), SOPMD (ps2)
• Client configuration：Ethernet client L2/3 and L4 configuration
• Ethernet frame：Client Ethernet frame size configuration: fixed or EMIX
• Ethernet client BERT：Bit error analysis using PRBS31 supporting alarm/error monitoring and injection
• FED：User can enable FEC Excessive Degrade alarm monitoring
• FDD：User can enable FEC Detected Degrade alarm monitoring
• FEC alarms：FED and FDD alarms monitoring
• FEC error monitoring：FEC-UNCOR-FR and FEC-COR-BITS monitoring
• Ethernet alarms：Link down, L Fault Det, L Fault Rcd, Remote fault LOA alarms
• Ethernet errors：66b Block, FEC-UNCOR-FR, FEC-COR-BITS, FCS, Jabber, runt and undersize errors
• Error and alarm injection：User can inject Interface, Ethernet, PCS and BERT errors and alarms
• DCO TX alarms：Tx LOA, Tx OOA, Tx CMU LOL, Tx RefClk LOL, Tx Deskew LOL, Tx FIFO
• DCO RX alarms：Rx LOF, Rx LOM, Rx Demod LOL, Rx CDC LOL, Rx LOA, Rx OOA, Rx Deskew LOL, Rx FIFO
通用规格
• Module：FTBx-88800; FTBx-88801
• 重量：FTBx-88800: 0.85 kg (1.87 lb); FTBx-88801: 0.88 kg (1.94 lb)
• 尺寸（高×宽×深）：51 mm × 159 mm × 182 mm (2 in × 6 1/4 in × 7 3/16 in)
• 温度（Operating）：0 ℃ 至 40 ℃ (32 ℉ 至 104 ℉)
• 温度（Storage）：–40 ℃ 至 70 ℃ (–40 ℉ 至 158 ℉)
• 激光安全：Module: The host unit that you use with your module may have different laser classes. Refer 至 the host unit documentation for exact information.
注：以上指标摘自 EXFO 官网公开产品规格资料，未特别说明均为典型值；指标可能随硬件与软件版本变化，恕不另行通知。官方规格书中以字母标注的脚注（测试条件）未在本页展开，完整条件请以原规格书为准。
