松田精密|Matsusada Precision Inc.

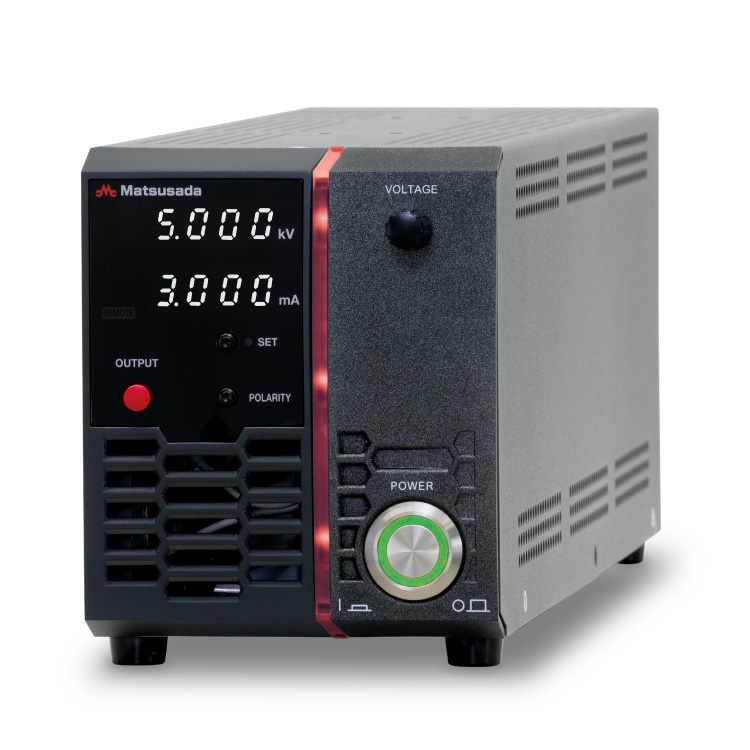

HJPSS-1.5P2 直流电源
High Voltage Power Supply 1.5V / 2mA / 3W
产品简介
HJPSS-1.5P2 是松田精密（Matsusada Precision）HJPSS 系列的一款直流电源，最大输出电压 1.5V，最大输出电流 2mA，最大输出功率 3W。
The HJPSS series is a benchtop size, high-performance, high-voltage power supply that combines space-saving and superior performance. Despite its compact width of 4.13-inch (105 mm), it can output high voltages of up to 5 kV with low noise. In addition, simple operation and extensive protection circuits make it easy and safe to use. Moreover, a LAN interface is included as standard equipment, making it easy to integrate into the system. It can be used for many applications, from high-precision applications such as Photomultiplier Tubes (PMTs) to small experiments at schools.
核心参数
• 输出电压：0 to 1.5 kV
• 输出电流：2 mA
• Output power：3 W
• 纹波：5 mVp-p
• 输入电压：100 to 240 Vac, 50/60 Hz, Single-phase
• 输出电压控制：[Local] Rotary encoder on front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
功能特性
• PANEL DESCRIPTION：(1) POWER ON/OFF switch (2) OUTPUT switch (3) OUTPUT indicator light (4) Output voltage setting rotary encoder (5) SET switch (6) Polarity change switch (7) High voltage output connector BNC-HV(SHV) receptacle (8) GND terminal M6 (9) Fuse (10) AC inlet (11) LAN port
• Remote control connector D-sub 15-pin, female：• Switching REMOTE/LOCAL • External-inhibit • Output voltage control • Polarity change • Output monitor • External output ON/OFF • Output of status
• (1) POWER ON/OFF switch：(1) POWER ON/OFF switch
• (2) OUTPUT switch：(2) OUTPUT switch
• (3) OUTPUT indicator light：(3) OUTPUT indicator light
• (4) Output voltage setting rotary encoder：(4) Output voltage setting rotary encoder
• (5) SET switch：(5) SET switch
• (6) Polarity change switch：(6) Polarity change switch
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
HJPSS-1.5P2 直流电源 详细指标
High Voltage Power Supply 1.5V / 2mA / 3W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 HJPSS 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• 输出电压：0 to 1.5 kV
• 输出电流：2 mA
• Output power：3 W
• 纹波：5 mVp-p
系列共用规格
• 输入电压：100 to 240 Vac, 50/60 Hz, Single-phase
• 输出电压控制：[Local] Rotary encoder on front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
选件 / 附件
• -LGob：Optical interface port * Standard LAN port is not provided when -LGob option is selected.
This option changes the standard interfaces to a built-in optical interface port. By combining this option with an adapter for optical connection (sold separately) , communication between the control device and the power supply can be controlled in an isolated state.
-LGob: Optical interface port + optical cable 2 meters
-LGob(Fc5): Optical interface port + optical cable 5 meters
-LGob(Fc10): Optical interface port + optical cable 10 meters
-LGob(Fc20): Optical interface port + optical cable 20 meters
-LGob(Fc40): Optical interface port + optical cable 40 meters
Select the optional optical interface port (-LGob) when using this DC power supply under the following conditions.
Noisy environments such as factories (example: when motors or coils are used near loads or power sources).
If this power supply and your controller (PC or PLC) cannot be installed within 2 meters.
When there is a possibility of arcing or output short-circuit.
• -L(3m)：The length of the shielded high voltage output cable is changed to 3 meters.
(Please contact us for other cable lengths.)
• -L(5m)：The length of the shielded high voltage output cable is changed to 5 meters.
(If you require a length other than this, please contact our sales representative.)
• -L(7m)：The length of the shielded high voltage output cable is changed to 7 meters.
(If you require a length other than this, please contact our sales representative.)
• 光隔离适配器：To use the optical interface, you need to prepare an optical interface adapter separately. The following interface adapters are available according to your controller port.
CO-E32 : LAN to optical interface adapter
USB-OPT : USB to optical interface adapter
CO-OPT2-9 : RS-232C (9 pin) to optical interface adapter
CO-OPT2-25 : RS-232C (25 pin) to optical interface adapter
CO-OPT4-25 : RS-485 (25 pin) to optical interface adapter
CO-G32 : GPIB to optical interface adapter (Scheduled for discontinuation in December 2028)
Example of communication with optical fiber
For details, refer to CO/USB series
• 输入电缆：Standard
CABLE TYPE1
Power input end
Input plug
125 V/10 A
2.5 meters Fixed length
Sold separately
(available for 200 V input)
CABLE TYPE3
Power input end
Input plug
250 V/10 A
2.5 meters Fixed length
Sold separately
(available for 200 V input)
CABLE TYPE4
Power input end
Input plug
250 V/10 A
2.5 meters Fixed length
Sold separately
(available for 200 V input)
CABLE TYPE13
Power input end
Input plug
250 V/15 A
2.5 meters
Sold separately
(available for 200 V input)
CABLE TYPE20
Power input end
Input plug
250 V/10 A
2.5 meters
• 输出电缆：Standard
CN-SHV-HVP
2.5 meters
(Specified length available)
• 机架式 shelf：model: RMO-133H-HJPSS
Rack mount shelf for storing power supply units together in a 19-inch rack. For details, please refer to the datasheet of "RMO series" 19-inch rack mount shelf.
• 应用软件：DigiCon-PBR: Remote control, Test workflow design, and Data logging
DigiCon is an application software that remotely controls Matsusada Precision's DC power supplies connected via LAN. The software can control multiple power supplies simultaneously or individually.
资源下载
以上规格取自松田精密（Matsusada Precision）官网 HJPSS 系列产品页（https://www.matsusada.com/product/high-voltage-power-supplies/benchtop/hjpss/）。
