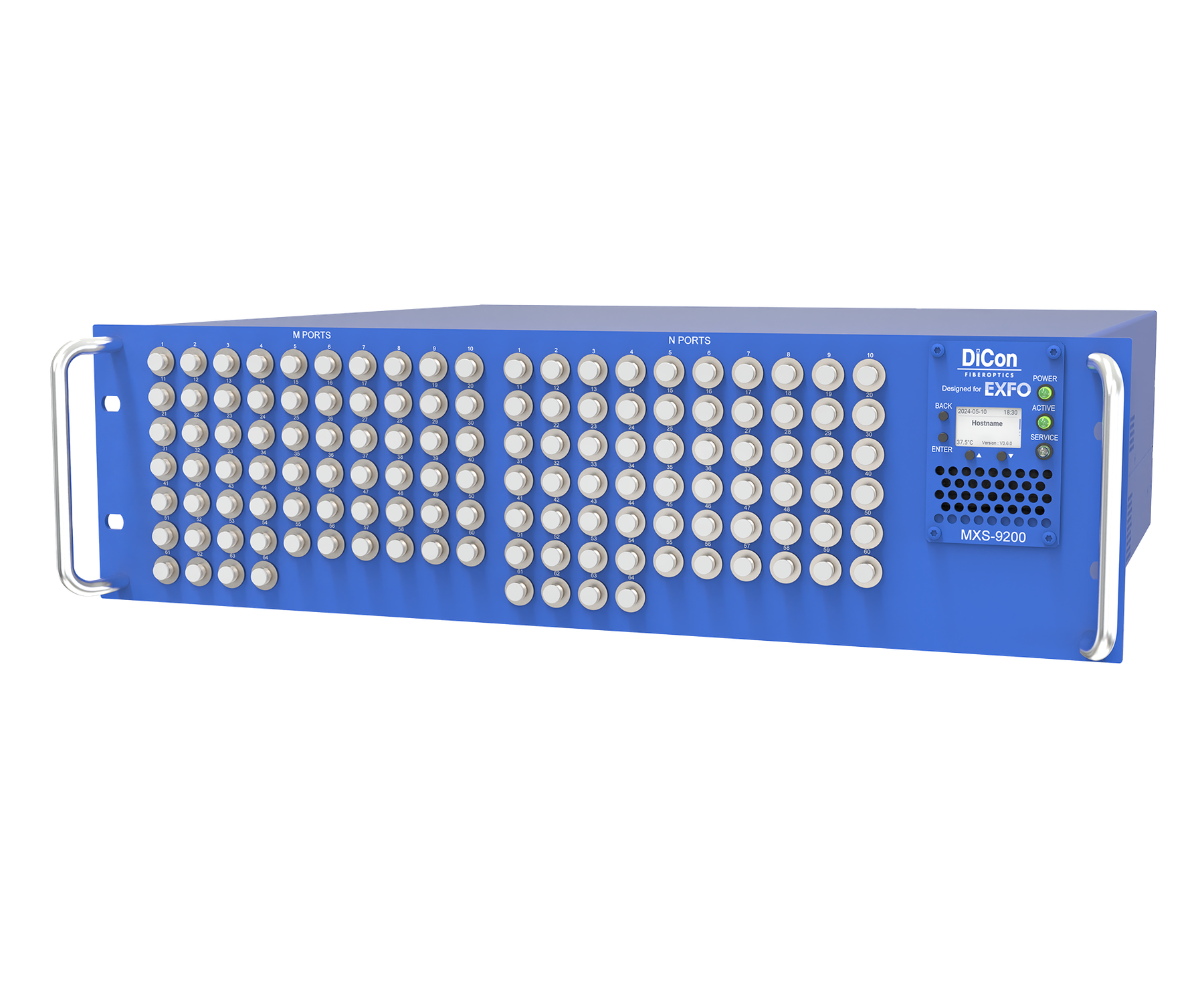

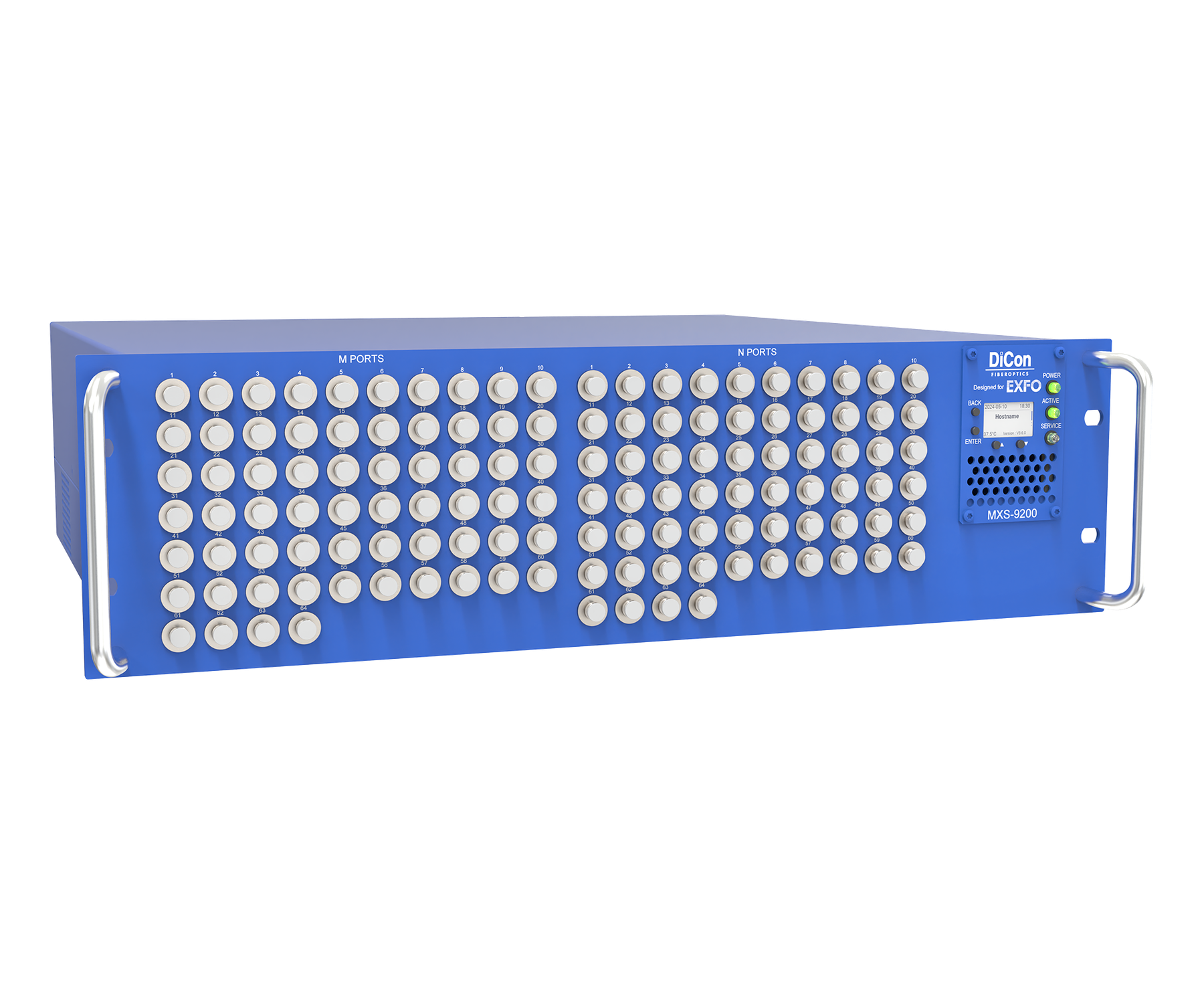

MXS-9200 光矩阵开关 · 详细指标

工作波长范围 850 & 1310 nm · 光纤类型 9/125 um singlemode · 插损 0.8 dB typical 1.4 dB max.

产品简介

Jointly developed with DiCon Fiberoptics, this laboratory-grade, high performance optical switch is optimized for use with EXFO LTB solutions and with software control via SCPI over Ethernet.

本页按官方规格资料分组收录 MXS-9200 光矩阵开关 的全部关键技术指标；产品定位、特性与应用场景请见 MXS-9200 产品介绍页。

技术指标

技术规格

Singlemode MxN matrix, MXS-9200 — Optical specifications

• 插损：0.8 dB typical 1.4 dB max.

• 稳定度：0.02 dB typical 0.05 dB max.

• 串扰：-85 dB typical -60 dB max.

• 回波反射：-55 dB typical -45 dB max.

• 切换时间：15 ms typical 25 ms max.

• 波长相关损耗（WDL）：0.3 dB max. for 2x8 至 16x16 0.4 dB max. for 24x24 至 192x192

• 偏振相关损耗（PDL）：0.08 dB typical 0.1 dB max.

• 可重复性：0.01 dB typical 0.06 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：9/125 um singlemode

PM MxN matrix, MXS-9200 — Optical specifications

• 插损：0.8 dB typical 1.4 dB max.

• 稳定度：0.02 dB typical 0.05 dB max.

• 串扰：-85 dB typical -60 dB max.

• 回波反射：-55 dB typical -45 dB max.

• 切换时间：15 ms typical 25 ms max.

• 波长相关损耗（WDL）：0.3 dB max.

• 偏振消光比（PER）：22 dB typical 18 dB min.

• 可重复性：0.01 dB typical 0.06 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：Polarization Maintaining

Multimode MxN matrix, MXS-9200 — Optical specifications

• 插损：0.8 dB typical 1.4 dB max.

• 稳定度：0.02 dB typical 0.05 dB max.

• 串扰：-70 dB typical -65 dB max.

• 回波反射：-25 dB typical -20 dB max.

• 切换时间：15 ms typical 25 ms max.

• 可重复性：0.01 dB typical 0.06 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：50/125 um multimode

• 工作波长范围：850 & 1310 nm

Singlemode 1xN array, MXS-9200 — Optical specifications

• 插损：0.7 dB max

• 串扰：-50 dB max.

• 回波反射：-50 dB max.

• 切换时间：30 ms max.

• 波长相关损耗（WDL）：0.5 dB max.

• 偏振相关损耗（PDL）：0.15 dB max.

• 可重复性：0.02 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：9/125 um singlemode

PM 1x4 array, MXS-9200 — Optical specifications

• 插损：0.7 dB max

• 串扰：-50 dB max.

• 回波反射：-50 dB max.

• 切换时间：30 ms max.

• 波长相关损耗（WDL）：0.5 dB max.

• 偏振消光比（PER）：18 dB min.

• 可重复性：0.02 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：Polarization Maintaining

Multimode 1xN array, MXS-9200 — Optical specifications

• 插损：1x4: 1.0 dB max. 1x8: 1.0 dB max. 1x12: 1.2 dB max.

• 串扰：50 um -25 dB max. 62.5 um -20 dB max.

• 回波反射：-20 dB max.

• 切换时间：30 ms max.

• 可重复性：0.02 dB max.

• 耐久性：10 9 Cycles

• 光功率：500 mW max.

• 工作温度：0 至 50 oC

• 存储温度：-20 至 60 oC

• 相对湿度：0% 至 80% non-condensing

• 光纤类型：50/125 um multimode, or 62.5/125 um multimode

Singlemode MxN matrix notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. 2. Specifications valid when wavelength is set to the wavelength range in use (O, C, L or U band). Note: Each wavelength band has its own wavelength band index, which can be set to optimize the optical performance for that band. Only one wavelength band index can be selected at a time. The provided wavelength band index will be 1310nm, 1550nm & 1625nm for the full band version. Set a nearby wavelength band index to have the best performance if the selected band has no wavelength band index. 3. Insertion Loss (IL) specification is defined at 1550 nm (C band). Operation at 1310 nm (O band) adds 0.1 dB typical, 0.2 dB max. Operation at 1590 nm (L band) adds 0.1 dB typical, 0.2 dB max. Operation at 1625 nm (U band) adds 0.2 dB typical, 0.4 dB max. 4. Stability is defined as the difference between highest and lowest insertion loss for a given connection, over a given period. 5. Defined over 10 second period using 10 kHz sample rate. 6. WDL is measured in a +/- 20 nm range centered at the set wavelength (1310, 1550, 1590 or 1625 nm). Operation in U band adds 0.1 dB to the max. 7. Repeatability is defined within 100 cycles. PM MxN matrix notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. 2. Specifications valid when wavelength is set to the wavelength range in use (O, C, L or U band). Note: Each wavelength band has its own wavelength band index, which can be set to optimize the optical performance for that band. Only one wavelength band index can be selected at a time. The provided wavelength band index will be 1310nm, 1550nm & 1625nm for the full band version. Set a nearby wavelength band index to have the best performance if the selected band has no wavelength band index. 3. Insertion Loss (IL) specification is defined at 1550 nm (C band). Operation at 1310 nm (O band) adds 0.1 dB typical, 0.2 dB max. Operation at 1590 nm (L band) adds 0.1 dB typical, 0.2 dB max. Operation at 1625 nm (U band) adds 0.2 dB typical, 0.4 dB max. 4. Stability is defined as the difference between highest and lowest insertion loss for a given connection, over a given period. 5. Defined over 10 second period using 10 kHz sample rate. 6. WDL is measured in a +/- 20 nm range centered at the set wavelength (1310, 1550, 1590 or 1625 nm). Operation in U band adds 0.1 dB to the max. 7. PER 14dB with connector. 8. Repeatability is defined within 100 cycles. PM matrix ordering notes shown with specs: 3. Connector key orientation is default to be slow axis. 1. PER specification covers 1270nm to 1510nm. 2. PER specification covers 1440nm to 1640nm. Multimode MxN matrix notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. 2. Specifications valid when wavelength is set to the wavelength band. 3. IL is measured with a reference mode condition, CPR=15 dB. 4. Stability is defined as the difference between highest and lowest insertion loss for a given connection, over a given period. 5. Defined over 10 second period using 10 kHz sample rate. 6. Optical off state isolation is the same as the crosstalk specification. 7. Repeatability is defined within 100 cycles. Singlemode 1xN array notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. Note: Each wavelength band has its own wavelength band index, which can be set to optimize the optical performance for that band. Only one wavelength band index can be selected at a time. The provided wavelength band index will be 1310nm, 1550nm & 1625nm for the full band version. Set a nearby wavelength band index to have the best performance if the selected band has no wavelength band index. 2. Insertion Loss (IL) specification is defined at 1550 nm & 1625 nm. Operation at 1310 nm adds 0.2 dB max. 3. WDL is defined within a wavelength band, and is measured over 1290 - 1330 nm, 1530 - 1570 nm, and 1605 - 1641 nm. 4. Repeatability is defined within 100 cycles. PM 1x4 array notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. Note: Each wavelength band has its own wavelength band index, which can be set to optimize the optical performance for that band. Only one wavelength band index can be selected at a time. The provided wavelength band index will be 1310nm, 1550nm & 1625nm for the full band version. Set a nearby wavelength band index to have the best performance if the selected band has no wavelength band index. 2. Insertion Loss (IL) specification is defined at 1550 nm & 1625 nm. Operation at 1310 nm adds 0.2 dB max. 3. WDL is defined within a wavelength band, and is measured over 1290 - 1330 nm, 1530 - 1570 nm, and 1605 - 1641 nm. 4. PER 14dB with connector. 5. Repeatability is defined within 100 cycles. Multimode 1xN array notes: 1. Specifications referenced without connectors at 23 ± 5 oC. Add 0.4 dB for connector loss. 2. Specifications valid when wavelength is set to the wavelength band. 3. IL is measured with a reference mode condition, CPR=15 dB. 4. Optical off state isolation is the same as the crosstalk specification. 5. Repeatability is defined within 100 cycles.

通用规格

Key product highlights

• Availability：Available exclusively from EXFO

• Performance：Research-grade optical performance with excellent crosstalk, repeatability and stability

• Design：High density design in many fiber types (SM, PM, MM)

• 远程控制：High speed SCPI over ethernet and REST API remote control

• Front panel：Front panel display and controls

• Web interface：Powerful WEB GUI for local control and administration

• Service：Field serviceable software upgrade

• Networking：Dual ethernet ports for redundant network interface

• Modules：Removable control unit and power unit

Available configurations

• 1：MxN Matrix; switch size min 2x8, max 192x192; fiber type: Singlemode

• 2：MxN Matrix; switch size min 2x8, max 32x32; fiber type: SM Polarization Maintaining

• 3：MxN Matrix; switch size min 2x8, max 64x64; fiber type: Multimode

• 4：1xN Array; switch size min 1x4, max 1x8; fiber type: Singlemode

• 5：1xN Array; switch size min 1x4, max 1x4; fiber type: SM Polarization Maintaining

Electrical specifications (platform)

• 自锁类型：Non-latching

• 控制类型：Ethernet Interface with SCPI Command Set and REST API

• 供电电压：AC 100 - 240 V, 50/60 Hz

MxN matrix — Electrical configurations

• Singlemode MxN（examples）：2-8 (2 inputs and 8 outputs) 2-16 (2 inputs and 16 outputs) 4-4 (4 inputs and 4 outputs) 4-8 (4 inputs and 8 outputs) 4-12 (4 inputs and 12 outputs) 4-16 (4 inputs and 16 outputs) 8-8 (8 inputs and 8 outputs) 8-16 (8 inputs and 16 outputs) 16-16 (16 inputs and 16 outputs) 24-24 (24 inputs and 24 outputs) 32-32 (32 inputs and 32 outputs) 48-48 (48 inputs and 48 outputs) 64-64 (64 inputs and 64 outputs) 96-96 (96 inputs and 96 outputs) 192-192 (192 inputs and 192 outputs) Other configurations available upon request.

• PM MxN（examples）：2-8 (2 inputs and 8 outputs) 2-16 (2 inputs and 16 outputs) 2-32 (2 inputs and 32 outputs) 4-8 (4 inputs and 8 outputs) 4-16 (4 inputs and 16 outputs) 4-32 (4 inputs and 32 outputs) 8-8 (8 inputs and 8 outputs) 16-16 (16 inputs and 16 outputs) 16-32 (16 inputs and 32 outputs) 32-32 (32 inputs and 32 outputs) Other configurations available upon request.

• Multimode MxN（examples）：2-8 (2 inputs and 8 outputs) 2-16 (2 inputs and 16 outputs) 2-32 (2 inputs and 32 outputs) 4-8 (4 inputs and 8 outputs) 4-32 (4 inputs and 32 outputs) 16-16 (16 inputs and 16 outputs) 16-32 (16 inputs and 32 outputs) 32-32 (32 inputs and 32 outputs) 64-64 (64 inputs and 64 outputs) Other configurations available upon request.

MxN matrix — Chassis size (by switch size / connector family)

• Singlemode MxN：2x8: FC 1U / SC 1U / LC 1U 2x16: FC 1U / SC 1U / LC 1U 4x4: FC 1U / SC 1U / LC 1U 4x8: FC 1U / SC 1U / LC 1U 4x12: FC 1U / SC 1U / LC 1U 4x16: FC 1U / SC 1U / LC 1U 8x8: FC 1U / SC 1U / LC 1U 8x16: FC 1U / SC 1U / LC 1U 16x16: FC 1U / SC 1U / LC 1U 24x24: FC 2U / SC 1U / LC 1U 32x32: FC 2U / SC 2U / LC 1U 48x48: FC 2U / SC 2U / LC 2U 64x64: FC 3U / SC 3U / LC 2U 96x96: FC 4U / SC 3U / LC 2U 192x192: FC 8U / SC 6U / LC 4U

• PM MxN：2x8: FC 1U / SC 1U / LC 1U 2x16: FC 1U / SC 1U / LC 1U 2x32: FC 1U / SC 1U / LC 1U 4x8: FC 1U / SC 1U / LC 1U 4x16: FC 1U / SC 1U / LC 1U 4x32: FC 1U / SC 1U / LC 1U 8x8: FC 1U / SC 1U / LC 1U 16x16: FC 1U / SC 1U / LC 1U 16x32: FC 2U / SC 2U / LC 1U 32x32: FC 2U / SC 2U / LC 1U

• Multimode MxN：2x8: FC 1U / SC 1U / LC 1U 2x16: FC 1U / SC 1U / LC 1U 2x32: FC 1U / SC 1U / LC 1U 4x8: FC 1U / SC 1U / LC 1U 4x32: FC 1U / SC 1U / LC 1U 16x16: FC 1U / SC 1U / LC 1U 16x32: FC 2U / SC 2U / LC 1U 32x32: FC 2U / SC 2U / LC 1U 64x64: FC 3U / SC 3U / LC 2U

1xN array — Chassis size (by number of switches)

• Singlemode 1xN（1x4 / 1x8）：1 switch: 1x4 1U; 1x8 1U 2 switches: 1x4 1U; 1x8 1U 4 switches: 1x4 1U; 1x8 1U 6 switches: 1x4 1U; 1x8 2U

• PM 1x4：1 switch: 1U 2 switches: 1U 4 switches: 1U

• Multimode 1xN（1x4 / 1x8）：1 switch: 1x4 1U; 1x8 1U 2 switches: 1x4 1U; 1x8 1U 4 switches: 1x4 1U; 1x8 1U 6 switches: 1x4 1U; 1x8 2U 8 switches: 1x4 1U; 1x8 2U

Mechanical specifications — Chassis dimensions

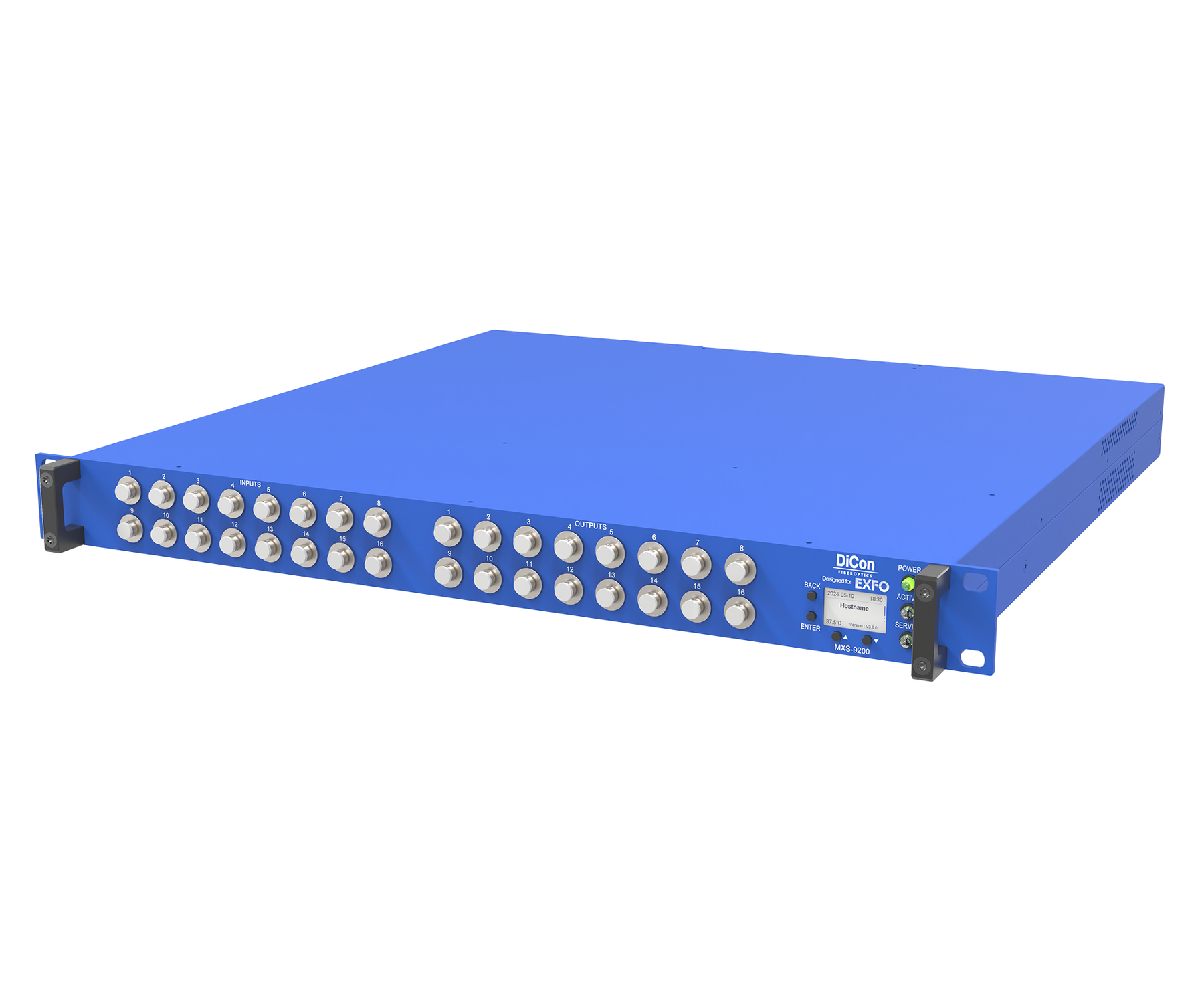

• 1U：Height: 44 mm (1.7 in) Width: 483 mm (19 in) Depth: 435 mm (17.1 in)

•
