UXG系列N5191A 10MHz至20/40GHz捷变信号发生器 改进版|是德/KEYSIGHT (停产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
是德科技|KEYSIGHT

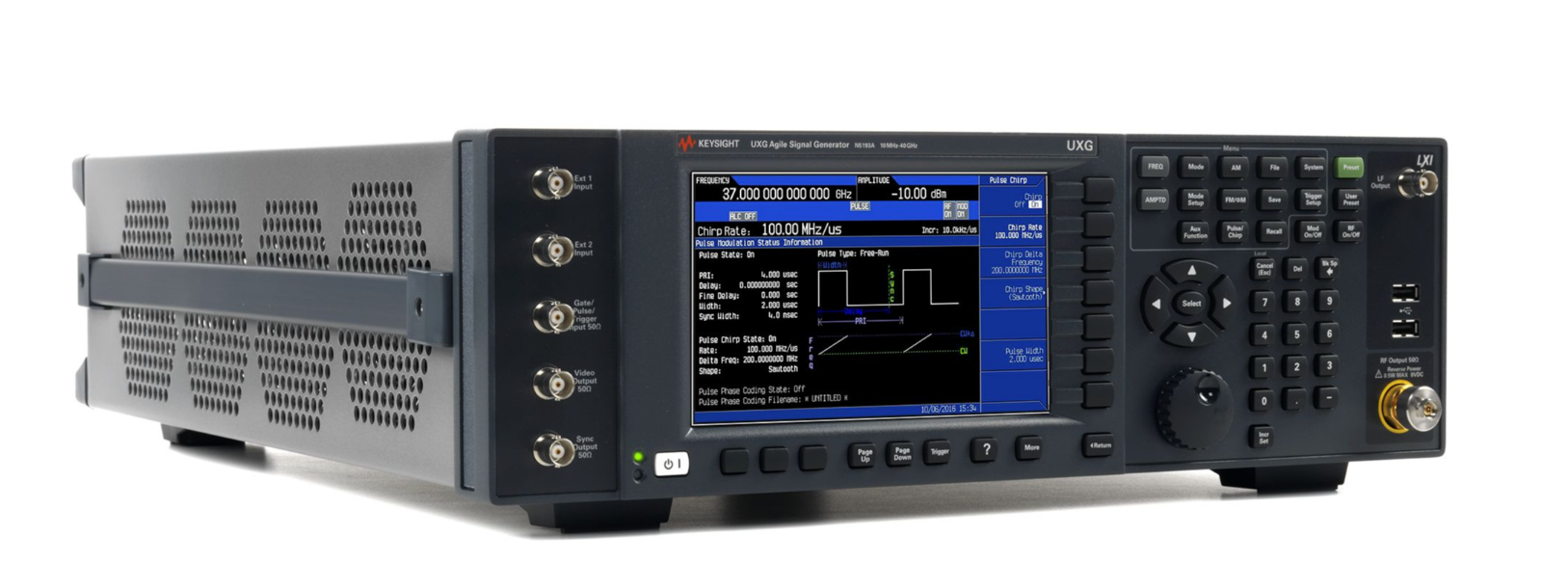

XG9系列敏捷信号发生器，40 GHz
精准模拟复杂信号场景

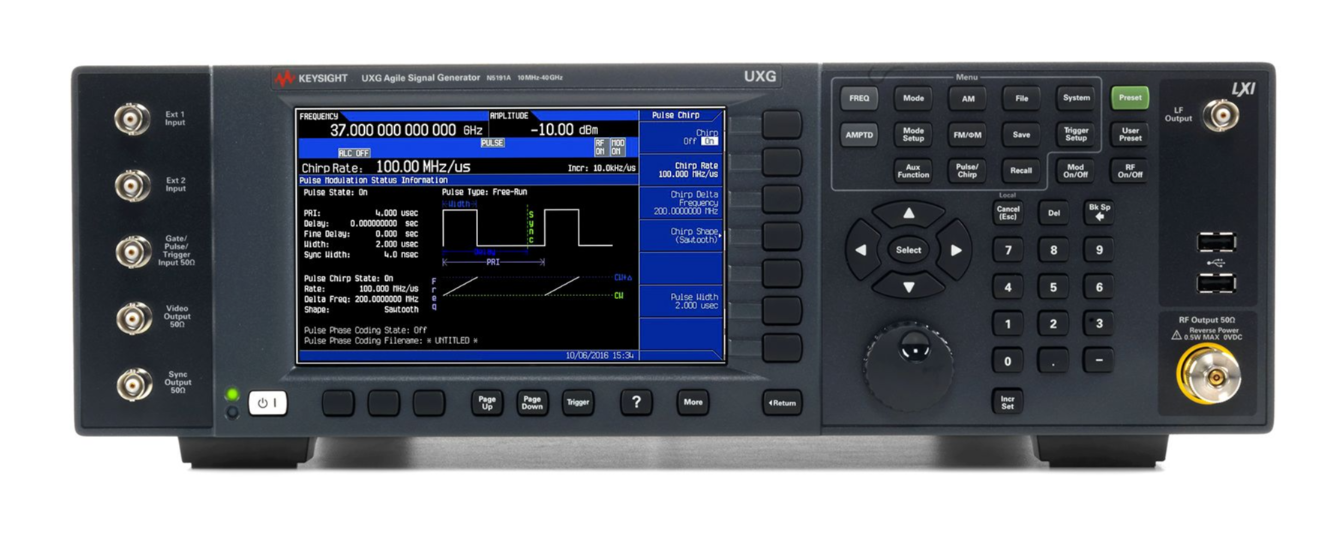

产品简介
N5191A UXG X 系列捷变信号发生器改进型在 10 MHz 至 40 GHz 的频率范围内提供了快速的频率、幅度和相位相干开关切换功能。
核心参数
• 1 GHz 谐波：< -50 dBc
• 1 GHz 输出功率：10 dBm
• 1 GHz 相位噪声（20 kHz 偏移）：-135 dBc/Hz
• 最大调制带宽：1024 MHz
• 最高频率：40 GHz
• 频率切换速度：100 µs
• 输出路数：1
功能特性
• 产品亮点
更贴近现实：在复杂雷达、电子战和天线测试等应用中日益复杂的信号环境
根据需要实施信号仿真，从而更快执行测试，增强对电子战系统的信心：UXG 是一款可扩展的威胁仿真器
使用脉冲描述字（PDW）生成长脉冲串，单独控制脉冲特征
快速频率调谐功能支持您在宽广的频率范围内快速表征天线。
性能出众且无需获取出口许可证
附件包括：
10 kHz 频率分辨率
100 微秒开关速度（高达 31.6 GHz）；
500 微秒（高达 40 GHz）
+10 至 -10 dBm 幅度范围
-117 dBc/Hz（典型值）标配相位噪声（10 GHz 载频，20 kHz 频偏）
3.5 mm（阴头）至 3.5 mm（阴头）连接器适配器（仅适用于 20 GHz 型号）
2.4 mm（阴头）至 2.4 mm（阴头）和 2.4 mm（阴头）至 2.9 mm（阴头）连接器适配器（仅适用于 40 GHz 型号）
符合当地标准的电源线
文档集（光盘）
为期一天的现场入门指导
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
UXG系列N5191A 10MHz至20/40GHz捷变信号发生器 改进版 详细指标
精准模拟复杂信号场景
一、Specifications
Specified range Tunable range
Option 52E 10 MHz to 20 GHz
10 MHz to 21.5 GHz
Option 54E 10 MHz to 40 GHz
10 MHz to 40 GHz
CW 频率分辨率
Standard
10 kHz
Option FR1
0.001 Hz
频率 switching 模式
Phase continuous switching Minimizes phase changes and spectral splatter when transitioning to a new frequency within
a band
条件：assuming the same setup conditions. Some temporary amplitude and phase changes may
Phase coherent switching When returning to a prior frequency, returns to the prior phase trajectory at that frequency,
相位偏置
Adjustable in 0.1° increments (nom)
条件：Accuracy is equivalent to the internal or external frequency reference in use.
Choices are the internal timebase reference oscillator, the external reference input, the
system sync input, and the
6 GHz input.
Internal timebase reference oscillator
Initial calibration accuracy ± 5 × 10
-8
Aging rate 1 ± 3 × 10 -8/year or ± 2.5 ×10 -10/day after
30 days
Temperature effects ± 4.5 × 10
-9 (nom) from 0 to 55 °C
Electronic frequency control (EFC) sensitivity
-0.04 ppm/V (nom) from -10 V to +10 V
External
10 MHz reference input
Frequency
10 MHz
Modes Manually or automatically selected
条件：Input amplitude 6 dBm ± 6 dB (nom). To optimize phase noise use 6 dBm ± 2 dB (nom).
Lock range
± 1.0 ppm (nom)
Input impedance
50 Ω (nom)
Other reference choices
System sync in/out See the Synchronization Section
6 GHz in/out See the Synchronization Section
Reference output (10/100 MHz output)
Frequency
10 MHz or 100 MHz, user selectable
Amplitude 7 dBm (nom) into
50 Ω load
1 Not verified by Keysight N7800A TME Calibration and Adjustment Software. Daily aging rate may be verified as a supplementary
chargeable service, on request
Page
4
频率频段 (频率模式, Default)
Frequency (GHz) 0.01 0.02 0.03 0.05 0.1 0.2 0.3 0.5 12 35 10 20 30
40
Region A0
Region A1
Region A2
Region A3
Region A4
Region A5
Region A6
Region A7
Region A8
Region A9
(N=1)
(N=1)
(N=2)
(N=4)
(N=8)
(N=16)1
(N=16)
(N=32)
(N=32)
(N=32)Opt.
54E
Opt.
54E
Opt.
54E
Opt.
54E
Nor mal CW Band Limits
条件：1. In Option 52E, the 18.8-21.5 GHz band behaves like it is part of Region A5.
In Option 54E, the 18.8-21.5 GHz band behaves like it is part of Region A6.
Extended Band Limits f or Modulation 10 − 13.5 MHz
10 MHz
12.1 −
20.4 MHz
12.8 MHz
18.4 −
30.9 MHz
19.4 MHz
27.8 −
46.9 MHz
29.4 MHz
42.2 −
71 MHz
44.5 MHz
63.9 −
108 MHz
67.5 MHz
96.9 −
163 MHz
102 MHz
147 −
247 MHz
155 MHz
223 −
375 MHz
235 MHz
338 −
568 MHz
356 MHz
512 −
862 MHz
540 MHz
775 −
1310 MHz
818 MHz
42.2 −
1980 MHz
1240 MHz
1.35 −
1.72 GHz
1.43 GHz
1.55 −
1.98 GHz
1.64 GHz
1.78 −
2.27 GHz
1.88 GHz
2.05 −
2.61 GHz
2.16 GHz
2.35 −
3 GHz
2.48 GHz
2.7 −
3.45 GHz
2.85 GHz
3.1 −
3.96 GHz
3.27 GHz
3.56 −
4.55 GHz
3.76 GHz
4.09 −
5.22 GHz
4.32 GHz
4.7 −
6 GHz
4.96 GHz
5.4 −
6.89 GHz
5.7 GHz
6.2 −
7.92 GHz
6.55 GHz
7.13 −
9.09 GHz
7.52 GHz
8.18 −
10.4 GHz
8.64 GHz
9.4 −
12 GHz
9.92 GHz
10.8 −
13.8 GHz
11.4 GHz
12.4 −
15.83 GHz
13.1 GHz
14.3 −
18.2 GHz
15 GHz
16.4 −
20.9 GHz
17.3 GHz
18.8 −
21.5 GHz
19.8 GHz
19.8 −
24 GHz
20.55 GHz
21.6 −
26.6 GHz
22.8 GHz
25.1 −
31.6 GHz
25.6 GHz
28.6 −
32.7 GHz
30.1 GHz
31.5 −
36.4 GHz
32 GHz
32.8 −
40 GHz
34.6 GHz
频率频段 (频率模式, default)
Page
5
频率频段 (频率模式 B)
Frequency (GHz) 0.01 0.02 0.03 0.05 0.1 0.2 0.3 0.5 12 35 10 20 30
40
Region A0
Region A1
Region A2
Region A3
Region A4
Region A5
Region A6
Region A7
Region A8
Region A9
(N=1)
(N=1)
(N=2)
(N=4)
(N=8)
(N=16)1
(N=16)1
(N=32)
(N=32)
(N=32)Opt
540
Opt
540
Opt
540
Opt
540
Nor mal CW Band Limits
条件：1. In Option 52E, the 18.8-21.5 GHz band behaves like it is part of Region A5.
In Option 54E, the 18.8-21.5 GHz band behaves like it is part of Region A6.
Extended Band Limits f or Modulation 10 − 13.5 MHz
10 MHz
12.1 −
20.4 MHz
12.8 MHz
18.4 −
30.9 MHz
19.4 MHz
27.8 −
46.9 MHz
29.4 MHz
42.2 −
1980 MHz
44.5 MHz
338 −
2610 MHz
356 MHz
2.35 −
3 GHz
2.48 GHz
2.7 −
3.45 GHz
2.85 GHz
3.1 −
3.96 GHz
3.27 GHz
3.56 −
4.55 GHz
3.76 GHz
4.09 −
5.22 GHz
4.32 GHz
4.7 −
6 GHz
4.96 GHz
5.4 −
6.89 GHz
5.7 GHz
6.2 −
7.92 GHz
6.55 GHz
7.13 −
9.09 GHz
7.52 GHz
8.18 −
10.4 GHz
8.64 GHz
9.4 −
12 GHz
9.92 GHz
10.8 −
13.8 GHz
11.4 GHz
12.4 −
15.83 GHz
13.1 GHz
14.3 −
18.2 GHz
15 GHz
16.4 −
20.9 GHz
17.3 GHz
18.8 −
21.5 GHz
19.8 GHz
19.8 −
24 GHz
20.55 GHz
21.6 −
26.6 GHz
22.8 GHz
25.1 −
31.6 GHz
25.6 GHz
28.6 −
32.7 GHz
30.1 GHz
31.5 −
36.4 GHz
32 GHz
32.8 −
40 GHz
34.6 GHz
频率频段 (频率模式 B)
Page
6
Frequency band overview
Default bands (Mode A) Provide lowest harmonics and spurious signals.
42.2 to 1980 MHz band (Mode B) Provides wider bandwidth at low frequencies for wider chirps, wider FM, and better pulse shape.
338 to 2610 MHz band (Mode B) Provides wider bandwidth at low frequencies for wider chirps, wider FM, and better pulse shape.
Dual attenuator specified frequency range (Option AT2)
Option 52E Option
54E
Electronic agile attenuator 10 MHz to 20 GHz
10 MHz to 40 GHz
Mechanical step attenuator 10 MHz to 20 GHz
10 MHz to 40 GHz
Dual attenuator step size (Option AT2)
Electronic agile attenuator
0 dB to 65 dB in 5 dB steps, for frequencies up to 40 GHz, or bypassed
Mechanical step attenuator
0 dB to 85 dB in 5 dB steps, for frequencies up to 40 GHz
Maximum output power (Option
52E)
Frequency Standard Option AT2
Electronic attenuator bypassed
Option AT2
1
Electronic attenuator inline 10 MHz to 13 GHz 10 dBm 10 dBm
-1 dBm
> 13 GHz to 18 GHz 10 dBm 10 dBm
-4 dBm
> 18 GHz to 20 GHz 10 dBm 10 dBm
-6 dBm
Maximum output power (Option
54E)
Frequency Standard Option AT2
Electronic attenuator bypassed
条件：mechanical switches used to switch between bypass and inline modes can take as long as 20 ms (nom) to change modes.
Option AT2
1
Electronic attenuator inline 10 MHz to 13 GHz 10 dBm 8 dBm
-3 dBm
> 13 GHz to 18 GHz 10 dBm 8 dBm
-5 dBm
> 18 GHz to 20.55 GHz 7 dBm 6 dBm
-10 dBm
> 20.55 GHz to < 25.6 GHz 10 dBm 10 dBm
-7 dBm
25.6 GHz to 32 GHz 7 dBm 6 dBm
-8 dBm
> 32 GHz to 40 GHz 7 dBm 7 dBm
-7 dBm
1 Note that during EW simulations using option AT2 agile power capability, these are the maximum power values available in the
agile power range. Bypass mode is not recommended for EW simulations that require >
20 dB agile power capability, as the
Measured maximum output power (Opt
520)
Frequency (GHz)
Power (dBm) 05 10 15
20
−15
−10
−5
Without option AT2
Option AT2 with electronic attenuator bypassed
Option AT2 with electronic attenuator inline
Page
7
-15
-10
-5
05 10 15 20 25 30 35
40
Frequency (GHz)
Measured maximum output power (Opt
540)
Without Option AT2
Option AT2 with electronic attenuator bypassed
Option AT2 with electronic attenuator inline
最小值 settable 输出功率
Frequency Standard Option AT2
Electronic attenuator bypassed
Option AT2
1
Electronic attenuator inline 10 MHz to 20 GHz -10 dBm -95 dBm
-130 dBm
> 20 GHz to 40 GHz (Option 540) -10 dBm -95 dBm
-130 dBm
Agile 功率量程
Frequency Standard Option AT2
Electronic attenuator bypassed
Option AT2
1
Electronic attenuator inline
Option
52E
10 Hz to 20 GHz 20 dB (nom) 20 dB (nom)
90 dB (nom)
Option
54E
10 Hz to 18 GHz 20 dB (nom) 20 dB (nom)
90 dB (nom)
> 18 to 20.55 GHz 17 dB (nom) 20 dB (nom)
90 dB (nom)
> 20.55 to < 25.6 GHz 20 dB (nom) 10 dB (nom)
80 dB (nom)
> 25.6 GHz to 40 GHz 17 dB (nom) 10 dB (nom)
80 dB (nom)
ALC 开内部功率 leveling
条件：level with ALC off to match the power level with ALC on at a customer specified power level.
ALC off
1 No power leveling
ALC off with power alignment Power alignment is a routine that improves level accuracy with ALC off. It aligns the power
It should be run at regular intervals and whenever the operating temperature changes
± 5 °C
RF Gating
条件：Turns RF power on/off with external trigger 1 For EW simulations using option AT2 agile power capability, it is strongly recommended to operate with ALC mode off after running power alignment. If ALC mode is left on, switching speed performance will be significantly reduced.
Page
8
-130
-110
-90
-70
-50
-30
-10
0.01 12345678 91 01 11 21 31 41 51 61 71 81 92
0
Frequency, GHz
Agile Power Range for 20 GHz UXG
90 dB agile
功率量程
-130
-110
-90
-70
-50
-30
-10 0.01 20.55 25.6
Frequency, GHz
条件：Specifications apply for CW signals that do not exceed the maximum specified power. For instruments with Option 1ED Type-N connectors,
specifications apply below 18 GHz and performance is typically degraded 0.2 dB above 18 GHz.
Specifications apply for CW signals that do not exceed the maximum specified power.
Specifications apply for CW signals that do not exceed the maximum specified power.
significantly improved by running the UXG user amplitude correction routine with a power sensor.
2 Specifications apply after running power alignment at +4 dBm power level. It is strongly recommended that EW simulations
significantly reduced. 3 The Power Alignment routine aligns ALC off level accuracy performance to ALC ON performance at a customer specified power.
It should be run at regular intervals, and whenever the operating temperature changes ±5 °C from the alignment temperature.
alignment at a power level < 5 dBm and with the output attenuation set to the desired operating condition.
Agile power linearity (frequency ≤ 20 GHz with Option AT2) 1
Measured relative to -5 dBm for Option 52E and relative to -15 dBm for Option 54E with the mechanical step attenuator set to 0 dB and the
Measured relative to -15 dBm with the mechanical step attenuator set to 0 dB and the electronic attenuator inline.
Agile Power Range for 40 GHz UXG
90 dB agile
power range
80 dB agile power range
Page
9
Amplitude resolution
0.01 dB
Level accuracy (Option 52E)
1
Output power (Standard) ALC on ALC off
3
10 dBm to 0 dBm ± 1.4 dB (typ)
± 2.0 dB (typ)
Output power (Option AT2) Mechanical attenuator Electronic attenuator ALC on ALC off
3
10 to 2 dBm 0 dB Bypass ± 1.5 dB
± 2.0 dB
< 2 to -10 dBm 0 dB Bypass ± 1.6 dB (typ)
± 2.5 dB (typ)
10 to -75 dBm Auto Bypass ± 1.5 dB
± 2.0 dB
-3 to -65 dBm 0 dB Inline ± 1.5 dB ± 2.0 dB
4
< -65 to -90 dBm 0 dB Inline ± 2.0 dB ± 2.5 dB
4
5 to -10 dBm Auto Auto ± 1.5 dB ± 2.0 dB
4
< -10 to -80 dBm Auto Auto ± 1.6 dB ± 2.5 dB
4
Level accuracy (Option 54E, frequency ≤ 20 GHz)
1
Output power (Standard) ALC on ALC off
3
10 dBm to 0 dBm ± 1.4 dB (typ)
± 2.0 dB (typ)
Output power (Option AT2) Mechanical attenuator Electronic attenuator ALC on ALC off
3
10 to 0 dBm 0 dB Bypass ± 1.5 dB
± 2.0 dB
< 0 to -10 dBm 0 dB Bypass ± 1.6 dB (typ)
± 2.5 dB (typ)
10 to -75 dBm Auto Bypass ± 1.5 dB
± 2.0 dB
-15 to -65 dBm 0 dB Inline ± 1.5 dB ± 2.0 dB
4
< -65 to -90 dBm 0 dB Inline ± 2.0 dB ± 2.5 dB
4
5 to -10 dBm Auto Auto ± 1.5 dB ± 2.0 dB
4
< -10 to -80 dBm Auto Auto ± 1.6 dB ± 2.5 dB
4
Level accuracy (Option 54E, frequency > 20 GHz)
1
Output power (Standard) ALC on ALC off
3
10 dBm to 0 dBm ± 1.4 dB (typ)
± 4.5 dB (typ)
Output power (Option AT2) Mechanical attenuator Electronic attenuator ALC on ALC off
3
10 to 0 dBm 0 dB Bypass ± 1.8 dB
± 4.5 dB
< 0 to -10 dBm 0 dB Bypass ± 1.6 dB (typ)
± 5.0 dB (typ)
10 to -50 dBm Auto Bypass ± 1.8 dB
± 4.5 dB
< -50 to -75 dBm Auto Bypass ± 2.2 dB
± 4.5 dB
-15 to -65 dBm 0 dB Inline ± 2.0 dB
± 4.5 dB
5 to -10 dBm Auto Auto ± 2.0 dB
± 4.5 dB
< -10 to -80 dBm Auto Auto ± 2.6 dB
± 4.5 dB
1 Specifications shown represent uncorrected performance at the RF output port. Level accuracy at the DUT input can be
be performed with ALC mode off after running power alignment. If ALC mode is left on, switching speed performance will be
For optimal performance in applications where the instrument will be used at more than one power level, execute power
4 For frequencies > 17 to 20 GHz, level accuracy degrades by an additional
0.5 dB.
Page
10
electronic attenuator inline. 10 MHz to 13 GHz
± 0.4 dB (typ) for relative power from 0 to -75 dB
> 13 GHz to 20 GHz
± 0.5 dB (typ) for relative power from 0 to -75 dB
Agile power linearity (frequency > 20 GHz with Options 54E and AT2)
1
> 20 GHz to 40 GHz
± 1.8 dB (typ) for relative power from 0 to -60 dB
± 2.2 dB (typ) for relative power from -60 to -65 dB
温度稳定度
条件：SWR (meas) with Option AT2, electronic attenuator bypassed, mechanical attenuator = 0 dB
SWR (meas) with Option AT2, electronic attenuator bypassed, mechanical attenuator > 0 dB
SWR (meas) with Option AT2, electronic attenuator inline
It should be run at regular intervals, and whenever the operating temperature changes ±5 °C from the alignment temperature.
alignment at a power level < 5 dBm and with the output attenuation set to the desired operating condition.
ALC on and frequency ≤ 20 GHz
± 0.02 dB/°C (typ)
ALC on and frequency > 20 GHz
± 0.04 dB/°C (typ)
ALC off and frequency ≤ 20 GHz
± 0.07 dB/°C (typ)
ALC off and frequency > 20 GHz
± 0.15 dB/°C (typ)
Output impedance
50 Ω (nom)
SWR (meas) without Option AT2
Frequency Option 52E with 1ED Option
54E
10 MHz to 1 GHz 1.4 : 1 1.4
1
> 1 GHz to 2 GHz 1.4 : 1 1.5
1
> 2 GHz to 18 GHz 1.7 : 1 2
1
> 18 GHz to 20 GHz 1.9 : 1 2
1
> 20 GHz to 40 GHz n/a
1
Frequency Option 52E without 1ED Option 52E with 1ED Option
54E
10 MHz to 1 GHz 1.4 : 1 1.4 : 1 1.4
1
> 1 GHz to 2 GHz 1.4 : 1 1.4 : 1 1.5
1
> 2 GHz to 18 GHz 1.7 : 1 1.7 : 1 2
1
> 18 GHz to 20 GHz 1.8 : 1 1.8 : 1 2
1
> 20 GHz to 40 GHz n/a n/a
1
Frequency Option 52E without 1ED Option 52E with 1ED Option
54E
10 MHz to 1 GHz 1.2 : 1 1.2 : 1 1.2
1
> 1 GHz to 2 GHz 1.2 : 1 1.2 : 1 1.2
1
> 2 GHz to 18 GHz 1.5 : 1 1.5 : 1 1.4
1
> 18 GHz to 20 GHz 1.5 : 1 1.5 : 1 1.4
1
> 20 GHz to 40 GHz n/a n/a 1.5
1
Frequency Option 52E without 1ED Option 52E with 1ED Option
54E
10 MHz to 1 GHz 1.6 : 1 1.6 : 1 1.6
1
> 1 GHz to 2 GHz 1.5 : 1 1.5 : 1 1.5
1
> 2 GHz to 18 GHz 1.7 : 1 1.7 : 1 1.7
1
> 18 GHz to 20 GHz 1.7 : 1 1.7 : 1 1.7
1
> 20 GHz to 40 GHz n/a n/a 1.8
1
1 The Power Alignment routine aligns ALC off level accuracy performance to ALC ON performance at a customer specified power.
For optimal performance in applications where the instrument will be used at more than one power level, execute power
Page
11
Maximum reverse power 1/2 Watt
0 VDC
User corrections
The User Corrections capability can apply corrections across frequency for amplitude, phase and time. Corrections can only be applied
when the UXG operates in Streaming Mode. Amplitude-only corrections can be done with a power sensor. In order to maximize agile
dynamic range, it may necessary to modify mechanical attenuator settings depending on PDW amplitude values and the peak amplitude
loss being corrected
Number of points/table
2 to 3201
Number of tables Dependent on available free memory in instrument
10,000 maximum
Entry modes USB/LAN direct power meter control, LAN to GPIB and USB to GPIB, remote bus, and manual USB/
Agile switching modes
条件：amplitude with the lowest latency. When using the CC1 Interface Card, Option FR1 is required.
Fast CW Switching Mode The fast control port (Options CC1 or CC2) provides agile switching of CW frequency at a constant
Normal Mode The fast control port (Options CC1, CC3, or CC4) provides agile switching of frequency, phase,
amplitude, pulse modulation, frequency modulation, phase modulation, and chirp. Option CC2 provides
agile switching of frequency only
List Mode Internal list memory and a hardware trigger provide agile switching of frequency, phase, amplitude, pulse
modulation, frequency modulation, phase modulation, and chirp.
Streaming Mode The LAN interface or fast control port (Options CC1, CC3, or CC4) is asynchronous and utilizes
time stamps to provide agile switching of frequency, phase, amplitude, pulse modulation, frequency
modulation, phase modulation, and chirp. PDWs can also be streamed via the internal hard drive. Option
PM2 is required to stream.
Frequency transition types Transition examples
Type
1 A frequency change in which the initial frequency and final frequency
are in the same band per the frequency band diagrams in the frequency section, but not in region A0. 3.77 GHz to 4.3 GHz
35 GHz to 39 GHz
Type
2 A frequency change in which the initial frequency and final frequency
are in the same region per the frequency band diagrams in the
frequency section, but not in region A0.
1 GHz (A1) to 500 MHz (A1)
34 GHz (A9) to 40 GHz (A9)
Type
3 A frequency change in which the initial frequency and final frequency
are in regions A1 through A5 per the frequency band diagrams in the
frequency section. 1 GHz (A1) to 18 GHz (A5)
10 GHz (A4) to 3 GHz (A2)
Type 4 A frequency change not described in Types 1, 2, or 3.
1 GHz (A1) to 37 GHz (A9)
28 GHz (A8) to 10 GHz (A4)
22 GHz (A6) to 39 GHz (A9)
RF transition speed
条件：For frequency and phase transitions at a fixed power level, with ALC off and the electronic attenuator bypassed, for frequencies < 32 GHz.
Measured from the first phase change of more than 0.1 radians that occurs after the input trigger, and measured to RF phase settled.
Applies to Normal Mode or List Mode, not Fast CW Switching Mode.
off. With Option AT2, includes amplitude changes over the agile power range.
Latency - Determined by transition time as measured from input trigger to RF phase and amplitude settled with ALC off. With Option AT2,
Transition type Standard Option SS3 (10 MHz to 6.89 GHz)
Type
100 μs (10 MHz to 31.6 GHz)
500 us (>
31.6 GHz to 40 GHz)
50 ns (typ)
Page
12
Switching speed for Normal, Streaming, or List Mode
1
Update rate - Determined by transition time as measured from pulse sync out or list point start to RF phase and amplitude settled with ALC
Transition type Freq. Start/Stop Range Standard Option SS3
Type 1, 2, or
10 MHz to 6.89 GHz
10 MHz to 31.6 GHz
10 MHz to 40 GHz
100 μs
100 μs
500 μs
180 ns
100 μs
500 μs
Type
10 MHz to 31.6 GHz
10 MHz to 40 GHz
103 µs
503 μs
103 µs
503 μs
includes amplitude changes over the agile power range
Transition type Freq. Start/Stop Range Standard Option SS3
Type 1, 2 or
10 MHz to 6.89 GHz
10 MHz to 31.6 GHz
10 MHz to 40 GHz
101 μs
101 μs
501 μs
650 ns
101 μs
501 μs
Type
10 MHz to 31.6 GHz
10 MHz to 40 GHz
104 μs
504 μs
104 μs
504 μs
CW switching speed for Fast CW Switching Mode
2
Update rate - Determined by transition time as measured from pulse sync out to RF phase and amplitude settled at a fixed power level with
ALC off
Transition type Freq. Start/Stop Range Standard Option SS3
Type 1, 2 or
10 MHz to 6.89 GHz
10 MHz to 31.6 GHz
10 MHz to 40 GHz
100 μs
100 μs
500 μs
240 ns
100 μs
500 μs
Type
10 MHz to 31.6 GHz
10 MHz to 40 GHz
103 μs
503 μs
103 μs
503 μs
Latency - Determined by transition time as measured from input trigger to RF phase and amplitude settled at a fixed power level with ALC
Transition type Freq. Start/Stop Range Standard Option SS3
Type 1, 2 or
10 MHz to 6.89 GHz
10 MHz to 31.6 GHz
10 MHz to 40 GHz
101 μs
101 μs
501 μs
370 ns
101 μs
501 μs
Type
10 MHz to 31.6 GHz
10 MHz to 40 GHz
104 μs
504 μs
104 μs
504 μs
Additional contributors to switching speed
条件：or CC4). Add 1 µs (nom) when switching to or from any frequency in region A0.
With GPIB, LAN, or USB control Add
900 μs (nom) from receipt of SCPI command or trigger signal
With Opt AT1 attenuators Add
20 ms (nom) for any change in the mechanical attenuator or bypass switch. These are controllable
via GPIB, LAN, or USB. These are not controllable via list or fast control port (Options CC1, CC2, CC3,
RF amplitude settling criteria
条件：end frequencies). 2 When using the CC1 Interface Card for Fast CW Switching, Option FR1 is required.
Measured to amplitude settled within
1 dB of final amplitude.
1 For list mode, each point is controlled by dwell time, which will be limited based on the larger of the two frequencies (start and
Page
13
Page
14
Multiple UXG units can be synchronized together to have phase coherent outputs. This is useful for simulating
angle-of-arrival (AoA) and phased array antenna wavefronts
条件：Synchronization input connections 10 MHz input Accepts a basic external reference at 10 MHz. Achieves lower residual phase noise than a 10 MHz input at the system sync input. See the Rear Panel Connectors Section for connection details.
important. Accepts a wide variety of input frequencies. See the Rear Panel Connectors Section for connection details.
Connectors Section for connection details. For a single N5191A, the 6 GHz output is fed into its own 6 GHz input.
Synchronization output connections 10/100 MHz output Provides a basic external reference at 10 MHz or 100 MHz. Achieves better spectral purity than the system sync.
Output power is +7 dBm 1 . See the Rear Panel Connectors Section for connection details.
System sync input Recommended external reference input for use in system environments where trigger jitter and phase stability are
6 GHz input Provides high stability synchronization between multiple signal generators. This is not a general
6 GHz connection. Only
the
6 GHz synchronization output from another compatible signal generator should be connected. See the Rear Panel
RF sync output Recommended external reference output for use in system environments where trigger jitter and phase stability are
important. Normally provides a 250 MHz output, but other frequencies are available. Output power is +11 dBm
1. See
the Rear Panel Connectors Section for connection details. 6 GHz output Provides high phase stability synchronization between multiple signal generators. Output power is +15 dBm
1. See the
系统 sync 输入
条件：Usage The input frequency is not auto-detected. It must be entered manually and must be accurate to within the lock range above.
Frequency 1 to 250 MHz in 1 MHz steps. Default value is
250 MHz.
Lock range
± 1.0 ppm (nom)
Amplitude 6 dBm ± 6 dB (nom). To optimize phase noise use 6 dBm
± 2 dB (nom)
Input impedance
50 Ω (nom)
RF sync output
Frequency 10 MHz
100 MHz, or 250 MHz, selectable. Multi-box synchronization overrides this selection and may use other
条件：signal generator. The signal generator will not function without a 6 GHz signal at this input.
from a primary signal generator must be connected back into the 6 GHz input of the primary signal generator.
Amplitude 11 dBm
1
Output impedance
50 Ω (nom)
6 GHz input
Frequency
6 GHz
Lock range
± 1.0 ppm (nom)
Amplitude 11 dBm
± 6 dB (nom)
Input impedance
50 Ω (nom)
Usage This input must be connected to the
6 GHz output (described below) or a similar output from another compatible
6 GHz output
Frequency
6 GHz
Amplitude 15 dBm
1
Output impedance
50 Ω (nom)
Usage A rigid jumper cable is provided to connect the 6 GHz output to the
6 GHz input. The jumper can be removed
to distribute this signal to other equipment. When distributing this signal to multiple UXG signal generators,
approximately
12 dB of loss is permissible before distribution amplifiers are required. One of the distributed outputs
Reference bandwidth
Standard
25 Hz
1 Does not include a guard band for performance distribution, measurement uncertainty, or environmental variations.
Page
15
正常模式
Normal mode is optimized for maximum update rate (throughput). If the fast control
port (FCP) Option CC1, CC3, or CC4 is installed, it provides the capability to use pulse
descriptor words (PDWs) to control frequency, amplitude, phase, pulse (include chirp
or phase coding), and FM or ϕM. With CC1, the PDW is streamed into the rear-panel
FCP 100-pin connector using
46-bit wide control words. The control word information is
Fast CW mode
Fast CW mode is optimized for minimum latency. The FCP control over signal attributes
is limited to CW frequency switching and the addition of FM/ ϕM provided this option
was purchased. It is typically used with the FCP Option CC2 for compatibility with
instruments used in legacy test systems. When using the CC1 Interface Card, Option
FR1 is required.
PDW streaming mode
条件：or the Fast Control Port (with Option CC3 or CC4). The set of parameters controlled
Streaming provides agile control of most of the instrument settings via a continuous
stream of PDWs transferred from the internal SSD or an external source, such as a LAN
by Streaming include frequency, frequency band map, band adjust, relative power,
phase, phase mode, pulse, pulse start time, FM (chirp) and PM (phase coding). Each
PDW consists of seven
32-bit words. The streaming PDW parameters are executed
asynchronously, based on the time stamp information contained within the PDW. Option
PM2 is required to stream.
From file on solid state drive (SSD)
PDW streaming rate
750 k pulses/s (nom)
Over LAN port
PDW streaming rate
750 k pulses/s (nom)
Over fast control port (FCP) (Options CC3/CC4)
PDW streaming rate
6 M pulses/s (nom)
Over CC4 10 GbE LAN Interface
1
PDW streaming rate
6 M pulses/s (nom)
PDW streaming trigger Auto, external, single, SCPI, timer, or trigger key
时间精度
Pulse start time accuracy/ resolution 40 ps (typ)/
10 ps
Pulse fine delay accuracy/ resolution 40 ps (typ)/
10 ps
1 Typically requires driving the PDWs via a compiled language program.
Page
16
List mode
List mode lets you play out a list of PDW’s located in and read from the instrument’s
FPGA memory. The memory contains a series of list points where each list point
contains multiple signal attributes. This mode supports dynamic sequencing using the
工作模式
List of frequency, phase, amplitude, pulse, chirp, and modulation
Uniform timer
Standard Advance every
100 μs to 34 s
Option SS3 Advance every
48 ns to 34 s (for frequencies from 10 MHz to 6.89 GHz)
Dwell timer
Standard Advance every
100 μs to 17 s
Option SS3 Advance every
48 ns to 17 s (for frequencies from 10 MHz to 6.89 GHz)
Number of points
Arbitrary list 1 to 500,000 per table assuming
50 sequences. Lists and sequences
Point trigger Auto, external, single, SCPI, timer, or trigger key
List trigger Auto, external, single, SCPI, timer, or trigger key
Sequence trigger Auto, external, single, SCPI, timer, or trigger key
Marker types List, sequence, point
Number of configurable markers Up to 12
Settable 标记参数 Polarity, 延迟
Page
17
条件：Measured at 10 dBm or maximum specified power, whichever is lower. Performance is unspecified for harmonics beyond the specified
Fundamental frequency Harmonic level 10 MHz to 2.61 GHz (Frequency Mode B) -25 dBc (typ) 10 MHz to 1 GHz (Frequency Mode A)
-40 dBc
> 1 GHz to 2 GHz (Frequency Mode A)
-50 dBc
> 2 GHz
-55 dBc
条件：Measured at +10 dBm or maximum specified power, whichever is lower. Sub-harmonics are defined as Carrier Freq *(x/N), where N
spurs which may overlap with sub-harmonics. Performance is unspecified for sub-harmonics beyond the specified frequency range.
indicates the frequency multiplication number and X is an integer value that is not an integer multiple of N. Does not apply to non-harmonic
Fundamental frequency 1/2
3/4, and 3/2 sub-harmonics Other sub-harmonics N
0.01 to < 1.43 GHz None None
1
1.43 to < 2.85 GHz -75 dBc -80 dBc
2
2.85 to < 5.7 GHz -75 dBc -80 dBc
4
5.7 to < 11.4 GHz -75 dBc -80 dBc
8
11.4 to < 16 GHz -70 dBc -80 dBc
16
16 to 20 GHz -65 dBc (typ) -70 dBc (typ)
16
> 20 to < 22.8 GHz (Opt 54E) -70 dBc (typ) -70 dBc (typ)
16
22.8 to 38 GHz (Opt 54E) -70 dBc (typ) -70 dBc (typ)
32
> 38 to 40 GHz (Opt 54E) - 62 dBc (typ) -70 dBc (typ)
32
Measured in Frequency Mode A at +10 dBm or maximum specified power, whichever is lower. Performance is unspecified for non-
谐波 beyond specified 频率范围
Fundamental frequency Offsets >
300 Hz excluding power-
line related
Power-line related 0.01 to < 1.43 GHz -70 dBc (typ) -60 dBc (typ) 1.43 to < 2.85 GHz -70 dBc (typ) -60 dBc (typ) 2.85 to < 5.7 GHz -70 dBc (typ)
-50 dBc (typ)
5.7 to < 11.4 GHz -70 dBc (typ)
-50 dBc (typ)
11.4 GHz to 20 GHz -70 dBc (typ)
-50 dBc (typ)
> 20 GHz (Opt 54E) 1 -65 dBc (typ)
-45 dBc (typ)
Broadband noise
条件：In CW mode at +10 dBm or maximum specified output power, whichever is lower, for offsets > 10 MHz.
Frequency Broadband noise 10 MHz to 20 GHz
-131 dBc/Hz (typ)
> 20 GHz to 40 GHz (Opt 54E)
-125 dBc/Hz (typ)
1 At precisely 22 GHz, several spurs coalesce and may add to -60 dBc. Moving
1 Hz away from 22 GHz avoids this issue.
Page
18
相位噪声
Phase noise is measured using a CW signal at +10 dBm or maximum specified power,
whichever is less, with spur optimizations off. Phase noise specifications exclude
偏置从 carrier
条件：For frequencies from 400 MHz to 1.43 GHz, pulse modulation specifications apply in Mode B only. For
Frequency
20 kHz spec (typ)
0.01 to < 1.43 GHz
-132 (-135)
1.43 to < 2.85 GHz
-125 (-129)
2.85 to < 5.7 GHz
-119 (-122)
5.7 to < 11.4 GHz
-114 (-117)
11.4 to 20 GHz
-109 (-112)
> 20 GHz (Opt 54E)
-103 (-106)
Page
19
Pulse modulation (Option PM2)
frequencies below
400 MHz, pulse modulation is not specified.
脉冲类型
External input The RF pulse width is the same as the input pulse width at the pulse/trigger gate input
Triggered The internal pulse generator is triggered by a selectable trigger source. The pulse delay and
List 模式脉冲参数 defined · list
条件：Streaming mode The pulse parameters are defined in the streamed PDW data.
Free run The internal pulse generator generates pulses with the specified parameters without waiting
for a trigger
On/off ratio 0.4 to < 4.2 GHz 80 dB (90 dB typ) 4.2 GHz to 20 GHz
90 dB
> 20 GHz (Option 54E)
80 dB (90 dB typ)
Rise/fall times 0.4 to < 1.43 GHz (6 ns typ) 1.43 to < 2.85 GHz
10 ns (6 ns typ)
≥ 2.85 GHz
10 ns (3 ns typ)
最小值脉冲 width
ALC on
50 ns
ALC off
10 ns (10 MHz to 31.6 GHz)
32 ns (>
31.6 GHz to 40 GHz)
Minimum pulse repetition interval
ALC on
60 ns (10 MHz to 31.6 GHz)
64 ns (>
31.6 GHz to 40 GHz)
ALC off
20 ns (10 MHz to 31.6 GHz)
64 ns (>
31.6 GHz to 40 GHz)
时间精度
Pulse start time accuracy/resolution
40 ps (nom)/10 ps
Pulse fine delay accuracy/ resolution
40 ps (nom)/10 ps
电平精度 (相对至 CW)
条件：For pulse width ≥ 100 ns with ALC on and for pulse width ≥ 10 ns with ALC off.
0.4 to < 1.43 GHz
± 1 dB (typ)
≥ 1.43 GHz
± 1 dB (typ)
Width 压缩点
RF width relative to video out
± 5 ns (typ)
Video feed-through
For frequencies ≥ 400 MHz and output power of 10 dBm or less
10% (typ)
Video delay
External input to video output
60 ns (meas)
RF 延迟 (video 至 RF 输出)
Frequency > 500 MHz
10 ns (meas)
Pulse overshoot
10% (typ)
Page
20
输入电平
+1 V = RF on
0 V = RF off
Input impedance
50 Ω (nom)
RF Pulse
Output
50%
Tm
50%
Vf
10%
90%
Measured pulse shape
条件：Option WC2 is required for chirp control through the Option CC1 I/O interface.
Frequency = 9 GHz, power = 10 dBm, amplitude = 10 dBm, ALC off, pulse width = 10 ns, pulse period =
100 ns. The oscilloscope is
protected by a
10 dB pad and the timescale is set to 2 ns/div.
Page
21
Chirp and chirped-pulse modulation (Options UT1 and PM2)
1
FCP · 正常模式 Streaming 模式
Fast CW mode
2
List mode
Options installed Opt CC1 (LVDS) or
Opt CC3/CC4 (10 Gbit Ethernet)
Opt CC2 (BCD)
FMCW Chirp
UT1 FMCW
3 up to 6.89 GHz
32 chirp slope selections above
6.89 GHz
FMCW
16 chirp
slope selections
FMCW available up to 6.89 GHz
3
FMCW not available
FMCW
3
Pulse Chirp
UT1 + PM2 LFM within pulse up to 6.89 GHz
32 chirp slope selections within pulse
above 6.89 GHz
3
Chirped pulse not available
Chirped pulse up to 6.89 GHz
3
LFM within pulse
条件：CW mode. Option WC2 is required for wideband modulation, including chirp. Option PM2 is required for streaming mode.
3 Capability available with Firmware Revision A.01.70 with Option U03 or later.
Note: CW chirp (opt UT1 required) and Pulse Chirp (opt PM2 required) are available under the Pulse/Chirp hardkey in all modes except Fast
1 If FCP (Fast Control Port) state is set to on and real-time streaming control is used, chirp and chirped-pulse modulation is only
available for frequency range below
6.89 GHz.
2 When using the CC1 Interface Card for Fast CW Switching, Option FR1 is required.
Page
22
Compatible without jitter Free-run, synchronously triggered
With ± 8 ns jitter Asynchronously triggered 26.5 GHz to 31.6 GHz (Option
54E)
Pulse and chirp alignment
条件：Deviation (peak to peak) with Option UT1
Option 52E cannot chirp beyond 21.5 GHz. Option 54E cannot chirp beyond 40 GHz.
Option 52E cannot chirp beyond 21.5 GHz. Option 54E cannot chirp beyond 40 GHz.
Wider deviations are available up to 6.89 GHz when not near a band edge, for example, any chirp which lies within one band is obtainable.
See the frequency band diagrams. Amplitude accuracy may degrade for wide chirps.
Chirp start time is aligned to pulse start time within
± 50 ns (typ)
Frequency Maximum peak to peak deviation 10 MHz to < 250 MHz 8 MHz 250 MHz to < 8 GHz 256 MHz 8 GHz to < 12 GHz
384 MHz
12 GHz to < 18 GHz
512 MHz
18 GHz to 20 GHz
768 MHz
> 20 GHz to < 26.5 GHz (Option 54E)
768 MHz
≥ 26.5 GHz to 31.6 GHz (Option 54E) 1024 MHz
1
> 31.6 GHz to 40 GHz (Option 54E)
550 MHz
Deviation (peak to peak) with Options UT1 and WC2
Frequency Maximum peak to peak deviation 50 MHz to 6.89 GHz
10% of center frequency
> 6.89 GHz to 31.6 GHz (Option 54E) 2.2 GHz
1
> 31.6 GHz to 40 GHz (Option 54E)
550 MHz
Range
10 kHz/μs to 1.3 GHz/ns
Resolution
10 kHz/μs to 0.32768 kHz/ns depending on rate
1 Additionally, if chirp delta frequency is > 550 MHz or <
-550 Hz, then the chirp start and stop frequency (stop frequency = start
frequency + chirp delta) must both be ≤
32.35 GHz.
Internal pulse generator (Option PM2)
Modes Free-run, square, and triggered
Square wave rate
0.1 Hz to 10 MHz with 0.1 Hz resolution (nom)
Pulse period (PRI) (Tp)
30 ns to 42 s, corresponding to repetition frequencies of 0.024 Hz to 33.33 MHz. (10 MHz to 31.6 GHz)
32 ns to 42 s, corresponding to repetition frequencies of 0.024 Hz to 31.25 MHz. (>
31.6 GHz to 40 GHz)
Minimum pulse width (Tw)
4 ns (nom)
Pulse accuracy
40 ps (typ)
Delay resolution
10 ps
PRI resolution
2 ns
Width resolution
2 ns
Page
23
Frequency modulation (Option UT1)
最大值速率
条件：Maximum peak deviation with Option UT1
Option 52E cannot deviate beyond 21.5 GHz. Option 54E cannot deviate beyond 40 GHz.
Option 52E cannot deviate beyond 21.5 GHz. Option 54E cannot deviate beyond 40 GHz.
obtainable. See the frequency band diagrams. Amplitude accuracy may degrade for wide FM.
Internal or external
10 MHz
Frequency Maximum peak deviation 10 MHz to < 250 MHz 4 MHz 250 MHz to < 8 GHz 128 MHz 8 GHz to < 12 GHz
192 MHz
12 GHz to < 18 GHz
256 MHz
18 GHz to 20 GHz
384 MHz
> 20 GHz to < 26.5 GHz (Option 54E)
384 MHz
≥ 26.5 GHz to 31.6 GHz (Option 54E)
512 MHz
> 31.6 GHz to 40 GHz (Option 54E)
275 MHz
Maximum peak deviation with Options UT1 and WC2
Frequency Maximum peak deviation 10 MHz to 6.89 GHz
5% of center frequency
> 6.89 GHz to 20 GHz
1.1 GHz
> 20 GHz to 31.25 GHz (Option 54E)
1.1 GHz
> 31.25 GHz to 31.6 GHz (Option 54E)
750 MHz
> 31.6 GHz to 40 GHz (Option 54E)
275 MHz
Wider deviations are available up to 6.89 GHz when not near a band edge, for example, any FM deviation which lies within one band is
Resolution
0.1% of deviation or 1 Hz, whichever is greater
Internal ± 1% of FM deviation (
± 0.2% typ)
External In ± 3.5% of FM deviation +
20 Hz
Modulation frequency response (3 dB bandwidth)
Measured at 100 kHz deviation.
AC coupling
DC to 10 MHz (nom)
5 Hz to 10 MHz (nom)
外部 DC FM carrier 偏置
条件：At the calibrated deviation and carrier frequency, within 5 °C of ambient temperature at time of user calibration.
± 0.1% of set deviation (meas)
条件：Measured at a 1 kHz rate with 100 kHz deviation.
0.4%
Sensitivity
± 1 V peak for indicated deviation
最小值 bin width
Maximum pattern length 16 levels, at least 32 maps 4 ns
65,536 bits/pattern
Page
24
Phase modulation (Option UT1)
最大值速率
Internal or external
10 MHz
Maximum peak deviation in radians 5% of carrier frequency
600 MHz or or 12 whichever is lessmodulation frequency modulation frequency π
Resolution
0.1% of set deviation
Deviation accuracy
条件：Measured at a 1 kHz rate with 3π rad deviation.
Internal ± 1 % of ϕM deviation (
± 0.2% typ)
External In
± 3.5% of ϕM deviation
Modulation frequency response (3 dB bandwidth)
Measured at 3π rad deviation.
DC coupling DC to 10 MHz (nom)
AC coupling
5 Hz to 10 MHz (nom)
条件：Measured at a 1 kHz rate with 3π rad deviation.
Total harmonic distortion
0.5% (0.1% typ)
Sensitivity
± 1 V peak for indicated deviation
相位调制类型
Triggered BPSK Phase can be changed 180˚ on a bin-by-bin basis every
8 ns via an external trigger
Barker Coding
Supported Codes 2, 3, 4, 5, 7, 11
13
最小值 bin width/分辨率
条件：performance is not specified with ALC off or above 20 GHz or when AM peaks exceed maximum specified power.
Maximum pattern length 16 levels, at least 32 maps 4 ns/4 ns
65,536 bits/pattern
Amplitude modulation (Option UT1)
AM performance is typical up to 20 GHz with ALC on when AM peaks do not exceed maximum specified power. AM
Maximum depth
80% (14 dB)
Depth accuracy
ALC on, 1 kHz rate and depth ≤ 80% ± (6% of setting +
1%)
External input (selectable polarity)
Sensitivity for indicated depth
1 Vpeak
Maximum voltage
± 1 V
Modulation frequency response (3 dB bandwidth)
Measured at 30% depth.
DC coupling DC to 10 MHz (nom)
AC coupling
5 Hz to 10 MHz (nom)
Distortion 30% AM, 1 kHz rate 1.5% total harmonic distortion 60% AM, 1 kHz rate
2% total harmonic distortion
Page
25
External modulation inputs (Option UT1)
Connections Ext1 and Ext2
调制类型 AM, FM, 和 M
条件：Dual function generators Provide two independent signals (internal1 and internal2) for use with AM, FM, ϕM, or LF output.
Waveforms Sine, square, positive ramp, negative ramp, triangle, pulse, uniform noise, Gaussian noise.
Input impedance 50 Ω
600 Ω, or 1 MΩ (nom) switched
Internal modulation source (Option UT1)
速率范围
Sine
0.1 Hz to 10 MHz
Square, ramp, triangle
0.1 Hz to 1 MHz
Resolution
0.1 Hz
LF output
条件：Also provides monitoring of function generators when used for AM, FM, or ϕM.
Output Internal 1, internal 2, noise generator 1, noise generator
2.
Amplitude 0 to 5 V peak (nom) into 50 Ω or 10 V (nom) into
1 MΩ
Output impedance
50 Ω (nom)
远程编程
条件：Interfaces GPIB (IEEE-488.2,1987) with listen and talk, USB 2.0, and 1000BaseT LAN interface.
Control languages SCPI version 1997.0. Code compatibility modes for Aeroflex 2500, 2200, FS2000 or FS5000.
IEEE-488 functions SH1, AH1, T6, TE0, L4, LE0, SR1, RL1, PP0, DC1, DT0, C0, E2
Keysight IO libraries Keysight’s IO Library Suite helps you quickly establish an error-free connection between your PC and
instruments, regardless of the vendor. It provides robust instrument control and works with the software
development environment you choose
Page
26
二、通用规格
条件：Storage temperature range -40 to 70 °C; during storage below -20 °C, instrument states may be lost.
Humidity Maximum relative humidity (non-condensing): 95%RH up to 40 °C, decreases linearly to 45%RH at 55 °C 1
and verified to be robust against the environmental stresses of storage, transportation, and end-use.
line conditions. Test methods are aligned with IEC 60068-2 and levels are similar to MIL-PRF-28800F
Class 3. Phase noise specifications are not warranted in a vibrating environment.
Power requirements 100/120 VAC 50/60/400 Hz or 220/240 VAC
50/60 Hz (automatically selected)
< 350 W typical
400 W maximum
Operating temperature range
0 to 55 °C
Altitude
0 to 4600 m (15,000 ft)
Environmental testing Samples of this product have been tested in accordance with the Keysight Environmental Test Manual
Those stresses include but are not limited to temperature, humidity, shock, vibration, altitude, and power
ISO compliant This family of signal generators is manufactured in an ISO-9001 registered facility in concurrence with
Keysight’s commitment to quality
EMC Conforms to the immunity and emission requirements of IEC/EN
61326-1 including the conducted and
radiated emission requirements of CISPR Pub 11/2009 Group
1, Class A.
Acoustic noise Normal
48 dBA (nom)
Worst case
68 dBA (nom)
Storage Memory is shared by instrument states and sweep list files.
The solid-state drive initially has at least
480 GB of free space.
Security Display blanking
Memory clearing functions (See Application Note, “Security Features of Keysight Technologies Signal
Generators,” Part Number E4400-90621).
acceptable limits, then the module passes the test
Weight <
25 kg (54 lb.) net
< 34 kg (73 lb.) shipping
Dimensions 134 mm H x 426 mm W x 559 mm D (5.25” H x 16.8” W x
22.0” D)
Recommended calibration cycle
12 months
1 From 40 °C to 55 °C, the maximum % Relative Humidity follows the line of constant dew point.
Page
27
前面板面板连接器
条件：Unless otherwise noted, all connectors are BNC female, digital inputs and outputs are 3.3 V CMOS, and digital
inputs will accept 5 V CMOS, 3 V CMOS, or TTL voltage levels. Option
1EM moves all connectors to the rear
面板 except USB 连接器
条件：Option 54E Precision 2.4 mm male; plus 2.4 - 2.4 mm and 2.4 - 2.9 mm female adapters.
USB 2.0 primary (2 ports) Allows control of USB devices. USB Type-A female connector. Nominal output current 0.5 A.
LF output Outputs the internally generated LF source. Nominal output impedance 50 Ω.
External input 1 Drives either AM, FM, or ϕM . Nominal input impedance is 50 Ω, 600 Ω, or 1 MΩ, selectable.
External input 2 Drives either AM, FM, or ϕM . Nominal input impedance is 50 Ω, 600 Ω, or 1 MΩ, selectable. Damage
pulse modulation. Nominal impedance 50 Ω. Damage levels are 5 V rms and 10 V peak.
Pulse video out Outputs a signal that follows the RF output for internal pulse modes. TTL-level compatible. Nominal
RF output Output impedance
50 Ω (nom).
Option 52E Standard: Precision APC-3.5 male; plus
3.5 - 3.5 mm female adapter
Option
1ED: Type-N female; plus Type-N male - 3.5mm female adapter
Damage levels are
5 V rms and 10 V peak.
levels are
5 V rms and 10 V peak.
Pulse/trigger gate input Accepts input signal for external pulse modulation. Also accepts external trigger pulse input for internal
source impedance
50 Ω.
Pulse sync out Outputs a synchronizing pulse, nominally
50 ns width, for internal pulse modes. TTL-level compatible
nominal source impedance
50 Ω.

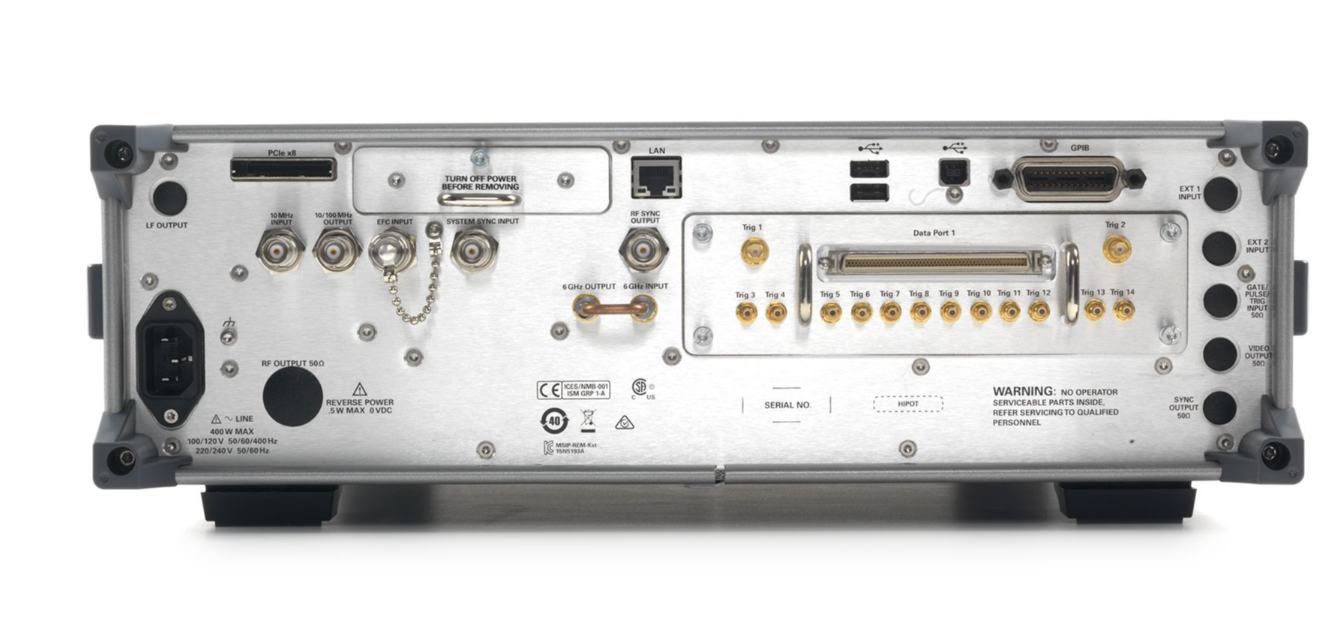

后面板面板连接器
条件：Unless otherwise noted, all connectors are BNC female, digital inputs and outputs are 3.3 V CMOS, and digital
inputs will accept 5 V CMOS, 3 V CMOS, or TTL voltage levels. Option
1EM moves the front panel connectors to
后面板面板 except USB 连接器
GPIB Operates as a GPIB controller or device. IEEE-488 bus connector.
LAN (1000 BaseT) Allows LAN TCP/IP communication. RJ45 Ethertwist connector. The LAN connector provides the same
SCPI remote programming functionality as the GPIB connector. The LAN connector is a used to access
the internal web server and FTP server. The LAN supports DHCP , HiSLIP , sockets SCPI, VXI-11 SCPI,
connection monitoring, dynamic hostname services, and TCP keep alive. This interface is LXI class C
条件：USB 2.0 primary (2 ports) Allows control of USB devices. USB Type-A female connector. Nominal output current 0.5 A.
USB 2.0 secondary (1 port) Receives control from USB host. USB Type-B female connector. Nominal output current 0.5 A.
10 MHz input Accepts a 10 MHz external reference (timebase) input. Nominal input impedance 50 Ω. Nominal input
10/100 MHz output Provides a reference signal of 10 MHz or 100 MHz, selectable. Nominal output impedance 50 Ω. Output
signal generator. 10 MHz EFC Accepts an external DC voltage, ranging from -10 V to +10 V, for electronic frequency control (EFC) of the internal 10 MHz reference oscillator. This voltage inversely tunes the oscillator about its center frequency.
See the EFC sensitivity in the frequency section. The nominal input impedance is greater than 1 MΩ.
System sync input Accepts an external reference input. The acceptable frequencies are listed in the synchronization section.
Nominal input impedance 50 Ω, with a DC block. Nominal input range 0 to 12 dBm.
RF sync output Provides an external reference output of 10, 100, or 250 MHz, or Sync Output, selectable. Nominal
6 GHz input SMA female connector. Accepts a synchronization input of 6 GHz. Nominal input impedance 50 Ω.
Nominal input range 5 to 17 dBm. Damage levels are above +23 dBm.
6 GHz output SMA female connector. Provides a synchronization output of 6 GHz. Nominal output impedance 50 Ω.
PCIe x8 Provides
8 lanes of PCIe I/O. Reserved for future use.
range
0 to 12 dBm.
power is +7 dBm 1. Suitable for use with the
10 MHz input or System Sync input of another compatible
1 Does not include a guard band for performance distribution, measurement uncertainty, or environmental variations.
Page
28
output impedance
50 Ω. Suitable for use with the System sync input. This output is a square wave with
a fast rise time. To avoid electromagnetic interference, use coaxial cable with at least
90 dB shielding
effectiveness. Example: Times Microwave Systems LMR 240 coaxial cable used in Amphenol PN
115101-
22-48.00 BNC cable assembly. Output power is +11 dBm
1.
Output power is +15 dBm 1. Suitable for use with the
6 GHz input.
Triggers
1-14 Number of trigger varies depending on which option is installed (CC1, CC2, CC#, or CC4). These use
3.3V CMOS levels and are tolerant to 5V inputs. The output impedance is
50 Ω and the input is high
impedance.
1 Does
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
