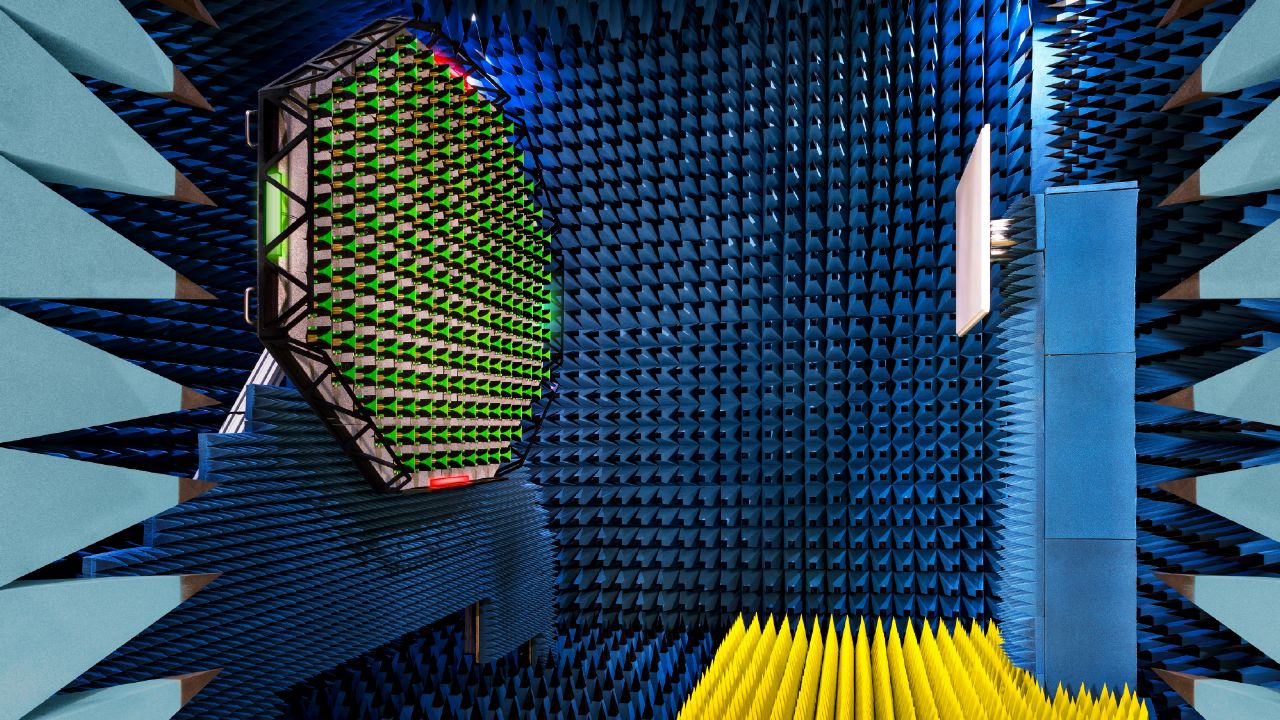

R&S®PWC200在5G大规模MIMO基站的辐射近场中的指定静区内形成平面波，以便进行OTA测量。
QAR 74GHz优质汽车电子天线罩测试仪|罗德与施瓦茨 (在产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
罗德与施瓦茨 · Rohde & Schwarz
QAR 优质汽车电子天线罩测试仪
R&S®QAR 是罗德与施瓦茨的优质汽车电子天线罩测试仪。官方目录位于「汽车电子雷达测试仪 / 天线罩测试仪」。官方技术指标共 38 组、149 项，详见「详细指标」。
产品简介

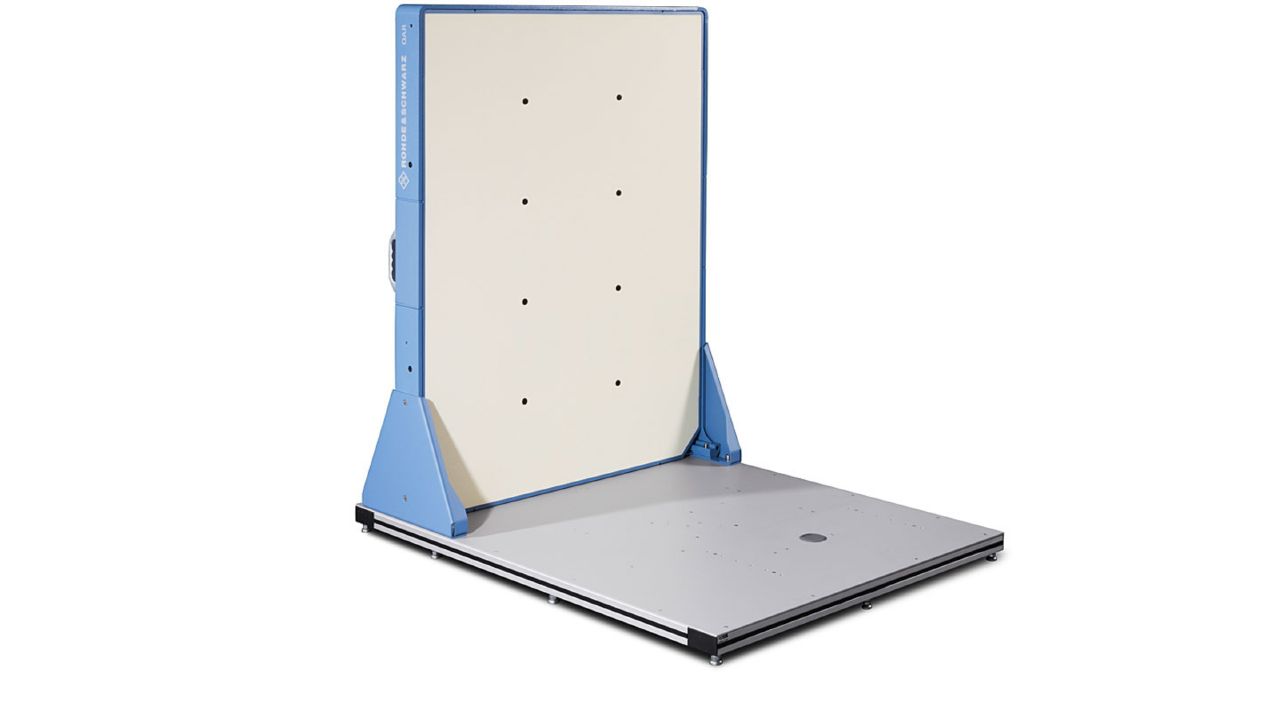

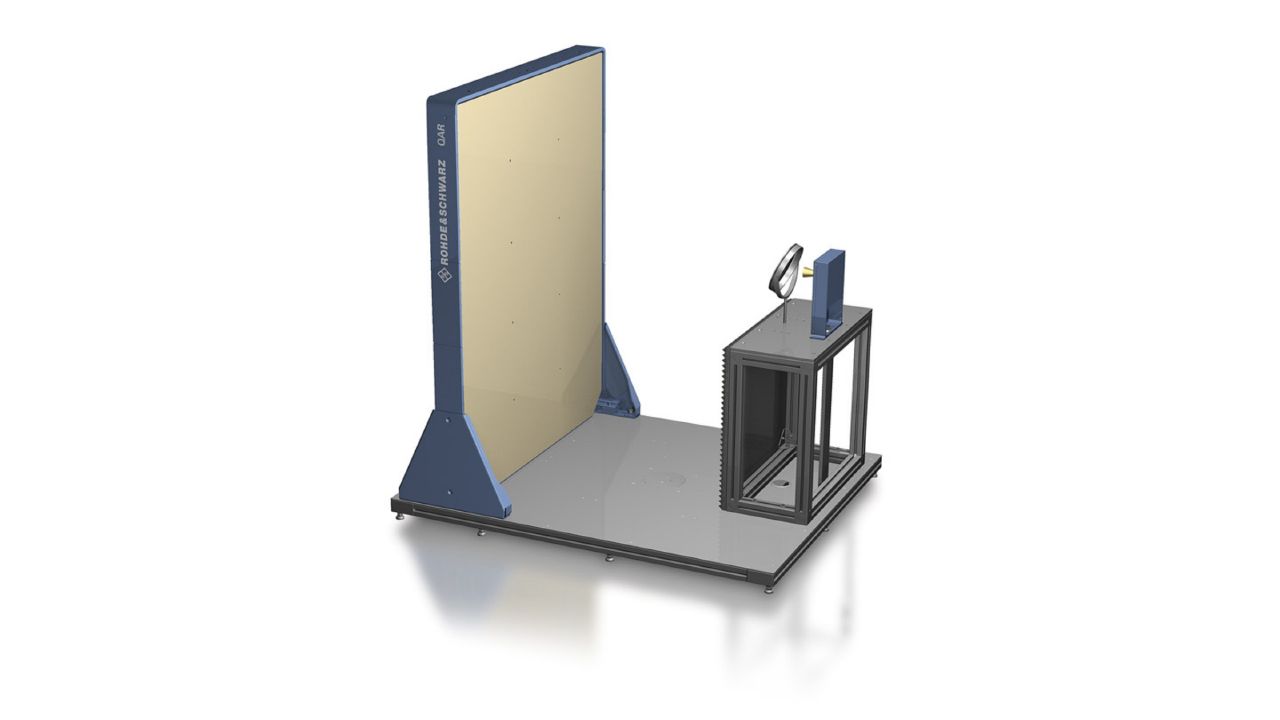

R&S®QAR50 汽车电子天线罩测试仪是专为雷达集成测试设计的解决方案，可测量、分析并评估天线罩和保险杠与雷达的兼容性。
官方公布的主要指标：频率范围 start frequency ｜ 74GHz；频率跨度 5GHz；动态范围 > 30 dB；Measurement time for reflection only ｜ < 1 s；for reflection and transmission < 2 s。
官方公布的产品型号：QAR、QAR-Z10、QAR-Z42、QAR-K10、QAR-Z60、QAR-Z20、QAR-K50、QAR-Z21。
核心参数
• 频率范围：start frequency ｜ 74GHz
• 频率跨度：5GHz
• 动态范围：> 30 dB
• Measurement time：for reflection only ｜ < 1 s
• for reflection and transmission：< 2 s
• R&S®QAR-K：(data saving time excluded)
• Operating system：Windows 10 IoT
• stop frequency：79GHz
产品型号
• 官方型号：QAR、QAR-Z10、QAR-Z42、QAR-K10、QAR-Z60、QAR-Z20、QAR-K50、QAR-Z21、QAR-Z50、QAR-K100、QAR-Z61、QAR-Z40、QAR-Z41、QAR-Z43
资源下载
详细指标请见 QAR 详细指标页。
罗德与施瓦茨 Rohde & Schwarz · onetest 仪器资源库
以下为 R&S®QAR 的官方技术指标，共 38 个指标组、149 项。
参数名以行业通用中文术语为主（其中 133 项保留官方规格书原文），数值与单位保留官方规格书原样。
System
• Measurement time：for reflection only ｜ < 1 s
• for reflection and transmission：< 2 s
• R&S®QAR-K：(data saving time excluded)
• Operating system：Windows 10 IoT
Reflection measurements (using R&S®QAR-K10 software)
• 频率范围：start frequency ｜ 74GHz
• stop frequency：79GHz
• center frequency：76.5GHz
• 频率跨度：5GHz
• Frequency accuracy：1MHz
• Number of frequency steps：64
• Scan volume：W × H × D ｜ 352 mm × 512 mm × 550 mm
(14 in × 20 in × 22 in)
• Image dynamic range：of mean reflection value 1 ｜ > 25 dB
• RF output power：5 mW (nom.)
• Polarization angle：see Fig. 4 ｜ 45°
• Image lateral resolution：≤ 3 mm
• Image pixel size：0.5 mm × 0.5 mm
• with -20 dB mean reflection：< 0.7 dB
with R&S®QAR-K10 software)
• Frequency range 3：72 GHz至82GHz
• Frequency accuracy：1MHz
• Number of frequency steps：max. frequency range ｜ 64
• 动态范围：> 30 dB
• TX 4 antenna gain：at 76.5GHz ｜ 22 dB
• at 79.0 GHz：23 dB
• TX antenna HPBW 5 in E plane：at 76.5GHz ｜ 17°
• TX antenna HPBW in H plane：at 76.5GHz ｜ 12°
• TX antenna HPBW in E plane：at 79.0GHz ｜ 15°
• TX antenna HPBW in H plane：at 79.0GHz ｜ 11°
• TX RF output power：5 mW (nom.)
• R&S®QAR-Z10, model .03, horizontal：horizontally polarized
• for DUT with：transmission attenuation of 4 dB ｜ < 0.35 dB
with R&S®QAR-K50 option)
• 频率范围：start frequency ｜ 75.98GHz
• stop frequency：77.02GHz
• center frequency：76.5GHz
• 频率跨度：1GHz
• Frequency accuracy：1MHz
• Number of frequency steps：14
• Scan volume：W × H × D ｜ 257 mm × 257 mm × 187.1 mm
(10.1 in × 10.1 in × 7.4 in)
• Image dynamic range：of mean reflection value ｜ 7 ｜ > 30 dB
• RF output power：5 mW (nom.)
• Polarization angle：see Fig. 4 ｜ 45°
• Image lateral resolution：≤ 15 mm
• Image pixel size：1 mm × 1 mm
• (static)：plate A (with typ. ｜ 25 dB mean reflection) ｜ < 0.8 dB
• (dynamic)：plate A (with typ. ｜ 25 dB mean reflection) ｜ < 3 dB
• plate B (with typ. -8 dB mean reflection)：< 1.2 dB
(data saving time excluded)
• Transmission measurements (using R&S：®QAR-Z60 option
with R&S®QAR-K60 software)
• 频率范围：start frequency ｜ 76GHz
• stop frequency：81GHz
• center frequency：78.5GHz
• 频率跨度：5GHz
• Frequency accuracy：1MHz
• Number of frequency steps：64
• Scan volume：W × H × D ｜ 352 mm × 512 mm × 550 mm
(14 in × 20 in × 22 in)
• 动态范围：> 25 dB
• RF output power：5 mW (nom.)
• Polarization angle：see Fig. 4 ｜ 45°
• Reproducibility 10 of mean attenuation 11：< 0.4 dB
R&S®QAR-K100 software)
• 频率范围：start frequency ｜ 71GHz
• stop frequency：81GHz
• center frequency：76GHz
• 频率跨度：10GHz
• Frequency accuracy：1MHz
• Number of frequency steps：128
• Scan volume：W × H × D ｜ 512 mm × 352 mm × 250 mm
• (When mounted on R&S®QAR-Z21 platform)：(20 in × 14 in × 10 in)
• 动态范围：> 25 dB
• RF output power：5 mW (nom.)
• Polarization angle：see Fig. 4 ｜ 45°
• Accuracy of clearance calculation 12：< ±3 mm (typ.)
Connectors and switches
• LAN：(5) see Fig. 1 ｜ 1 Gbit
• Power button：(8) see Fig. 1 for switching on and off
Environmental conditions
• storage temperature range：10 °C to +60 °C
• 湿度：+38 °C at 95 % rel. humidity,
in line with IEC 60068-2-78
• Protection class：IP20
• Installation altitude：max. 2000 m above sea level
• Vibration：in line with IEC 60068-2-6
• Shock：in line with IEC 60068-2-27
• Transport：in line with IEC 60068-2-31
and IEC 60068-2-64
• Adjustment interval：6 months
Power rating
• with additional protective earthing 13：200 V至240 V AC (± 10 %)
• Rated current：max. 6 A
• 功耗：average ｜ 800 W
• standby：11 W
• Rated frequency：without additional protective earthing ｜ 50Hz (± 5 %)
• with additional protective earthing 13：50 Hz至60Hz (± 5 %)
CISPR 11/EN 55011 class A
• 2014/35/EU：EN 61010-1, IEC 61010-1, UL 61010-1,
CSA C22.2 61010-1
• substances in electrical and electronic：EN 50581
equipment (RoHS) in line with
• 2011/65/EU
尺寸
• Panel and options：see Figs. 4, 6 and 8
• Absorber wall：W × H × D ｜ 1875 mm × 1860 mm × 136 mm
重量

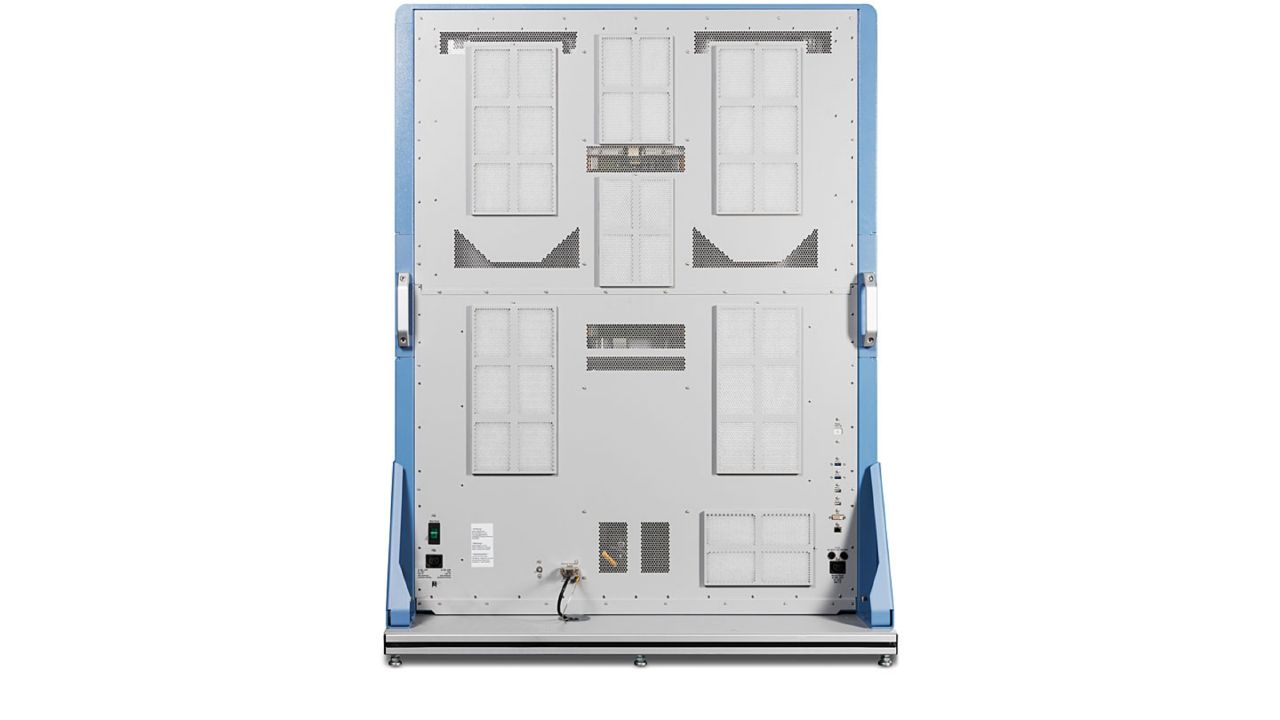

• Panel：QAR ｜ 86 kg (190 lb)

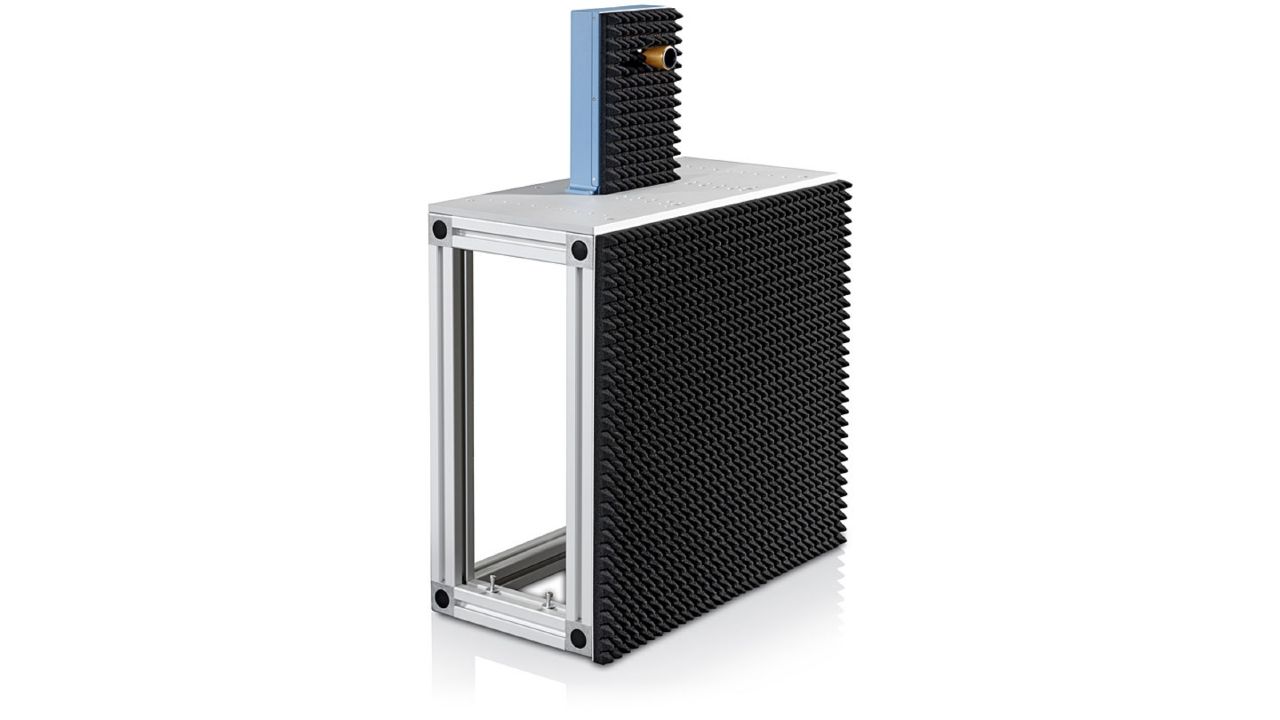

• Transmitter module：QAR-Z10 ｜ 3 kg (7 lb)
• Platform：QAR-Z20 ｜ 44 kg (97 lb)
• Platform Horizontal：QAR-Z21 ｜ 40 kg (89 lb)
• Calibration set：QAR-Z30 ｜ 15 kg (33 lb)
• Verification set：QAR-Z40 ｜ 5 kg (11 lb)
• Verification set：QAR-Z41 ｜ 5 kg (11 lb)
• Verification set：QAR-Z42 ｜ 17 kg (38 lb)
• Verification set：QAR-Z43 ｜ 4 kg (9 lb)
• Mounting table：QAR-Z50 ｜ 17 kg (37 lb)
• Reference reflector：QAR-Z60 ｜ 1.5 kg (3.3 lb)
• Fixture for reference reflector：QAR-Z61 ｜ 12 kg (27 lb)
• Absorber wall：QAR-Z70 ｜ 18 kg (40 lb)
Shipping dimensions (W × H × D)
• Panel：QAR ｜ 1530 mm × 1320 mm × 820 mm
(60 in × 52 in × 32 in)
• Transmitter module：QAR-Z10 ｜ 360 mm × 340 mm × 190 mm
(14 in × 14 in × 8 in)
• Platform：QAR-Z20 ｜ 1530 mm × 330 mm × 1250 mm
(60 in × 13 in × 50 in)
• Platform horizontal：QAR-Z21 ｜ 1510 mm × 300 mm × 800 mm
(60 in × 12 in × 32 in)
• Calibration set：QAR-Z30 ｜ 1020 mm × 760 mm × 350 mm
(40 in × 30 in × 14 in)
• Verification set：QAR-Z40 ｜ 580 mm × 380 mm × 380 mm
(23 in × 15 in × 15 in)
• Verification set：QAR-Z41 ｜ 530 mm × 460 mm × 370 mm
(21 in × 19 in × 15 in)
• Verification set：QAR-Z42 ｜ 735 mm × 665 mm × 380 mm
(29 in × 27 in × 15 in)
• Verification set：QAR-Z43 ｜ 600 mm × 450 mm × 340 mm
(24 in × 18 in × 14 in)
• Mounting table：QAR-Z50 ｜ 830 mm × 500 mm × 700 mm
(33 in × 20 in × 28 in)
• Reference reflector：QAR-Z60 ｜ 330 mm × 320 mm × 80 mm
(48 in × 32 in × 20 in)
• Absorber wall：QAR-Z70 ｜ 1020 mm × 750 mm × 350 mm
Shipping weight
• Panel：QAR ｜ 176 kg (390 lb)
• Transmitter module：QAR-Z10 ｜ 6 kg (13 lb)
• Platform：QAR-Z20 ｜ 102 kg (225 lb)
• Platform horizontal：QAR-Z21 ｜ 90 kg (199 lb)
• Calibration set：QAR-Z30 ｜ 20 kg (44 lb)
• Verification set：QAR-Z40 ｜ 6 kg (13 lb)
• Verification set：QAR-Z41 ｜ 10 kg (22 lb)
• Verification set：QAR-Z42 ｜ 21 kg (47 lb)
• Verification set：QAR-Z43 ｜ 7 kg (16 lb)
• Mounting table：QAR-Z50 ｜ 40 kg (90 lb)
• Reference reflector：QAR-Z60 ｜ 2 kg (4.5 lb)
• Fixture for reference reflector：QAR-Z61 ｜ 15 kg (33 lb)
• Absorber wall：QAR-Z70 ｜ 22 kg (49 lb)
订购信息
• Designation：Type Order No.
• Quality automotive radome tester：QAR ｜ 1336.6008.02
选件
• Transmitter module, copolar polarization：QAR-Z10 ｜ 1336.5401.02
• Transmitter module, horizontal polarization：QAR-Z10 ｜ 1336.5401.03
• Platform：QAR-Z20 ｜ 1336.5418.02
• Platform horizontal：QAR-Z21 ｜ 1336.5524.02
• Calibration set：QAR-Z30 ｜ 1336.5430.02
• Verification set for R&S®QAR-Z：QAR-Z40 ｜ 1336.5447.02
• Verification set for R&S®QAR-Z：QAR-Z41 ｜ 1336.5499.02
• Verification set for R&S®QAR-K：QAR-Z42 ｜ 1336.5530.02
• Verification set for R&S®QAR-K：QAR-Z43 ｜ 1343.0230.02
• Mounting table：QAR-Z50 ｜ 1336.5424.02
• Reference reflector：QAR-Z60 ｜ 1336.5453.02
• Fixture for reference reflector：QAR-Z61 ｜ 1336.5476.02
• Absorber wall：QAR-Z70 ｜ 1336.5460.02
Software options
• Software for radome measurement：QAR-K10 ｜ 1336.5501.02
• OPC client for radome measurement：QAR-K11 ｜ 1340.5219.02
• Software for bumper measurement：QAR-K60 ｜ 1336.5482.02
• OPC client for bumper measurement：QAR-K61 ｜ 1340.5225.02
Software update
• Upgrade of the R&S®QAR to Windows 10 IoT：QAR-U1 ｜ 1343.0501.02
sales and service network with locations in more than
• 70 countries.
型号与选件
• 官方型号：QAR、QAR-Z10、QAR-Z42、QAR-K10、QAR-Z60、QAR-Z20、QAR-K50、QAR-Z21、QAR-Z50、QAR-K100、QAR-Z61、QAR-Z40、QAR-Z41、QAR-Z43
指标整理自官方文件：QAR_dat-sw_en_5215-5388-22_v0500.pdf
