    安立

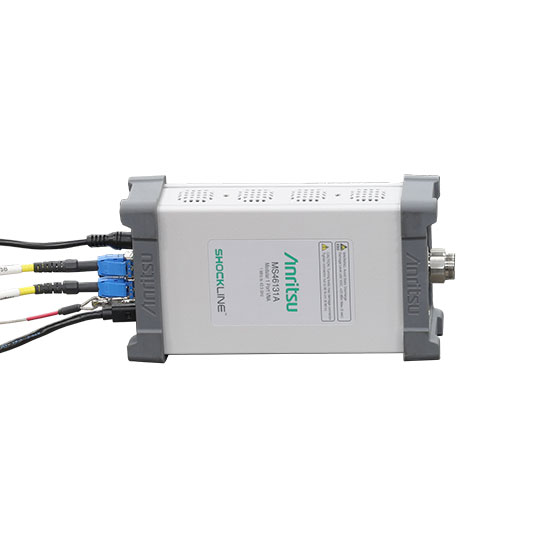

    ME786xA 分布式模块化双端口矢量网络分析仪

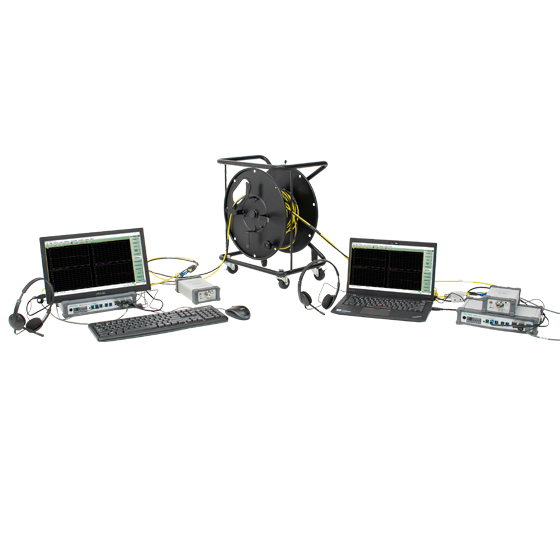

    分布式模块化双端口 USB VNA 系统，端口间距可达 100 m 且保持相位同步，1 MHz 至 43.5 GHz，提供 8/20/43.5 GHz 三种频率配置。
    产品简介

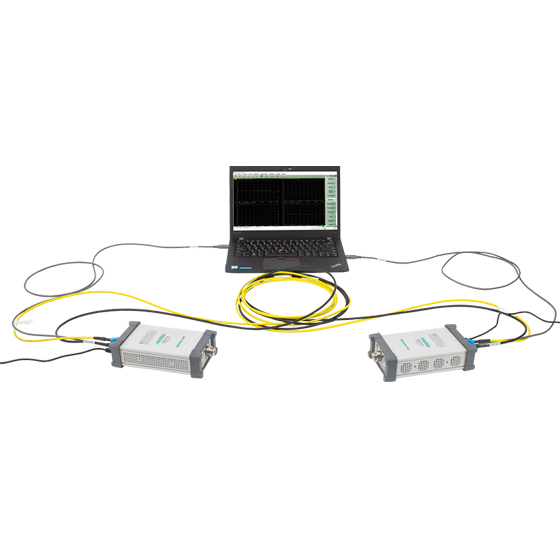

    ShockLine ME7868A/ME7869A 是首个分布式、全反向的双端口 VNA 方案，采用安立 Extended-K 元件，在 1 MHz 至 43.5 GHz 范围内提供有保证的性能。

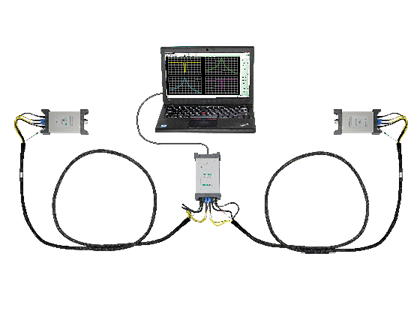

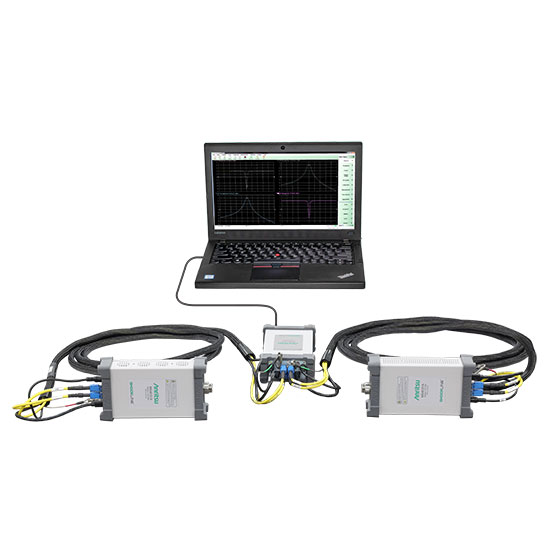

    系统可灵活配置端口数量（单个 1 端口、双 1 端口或单个 2 端口），提高硬件利用率；配合 PhaseLync 同步，远端端口可相距 100 m。
    核心特点
    • 双端口 VNA，频率选件覆盖 1 MHz 至 8 GHz / 20 GHz / 43.5 GHz，端口间距选件 20 m、50 m、100 m
    • 借助 PhaseLync 同步，远端端口间距可达 100 m
    • 端口体积小、重量轻，可直接连接被测件，省去长电缆
    • 采用 Extended-K 端口，43.5 GHz 内性能有保证
    • PC 控制，充分利用外部计算机的运算能力与功能
    • 无板载数据存储，更适合涉密场景使用
    • 共用 ShockLine 控制软件，具备强大的调试与测试能力

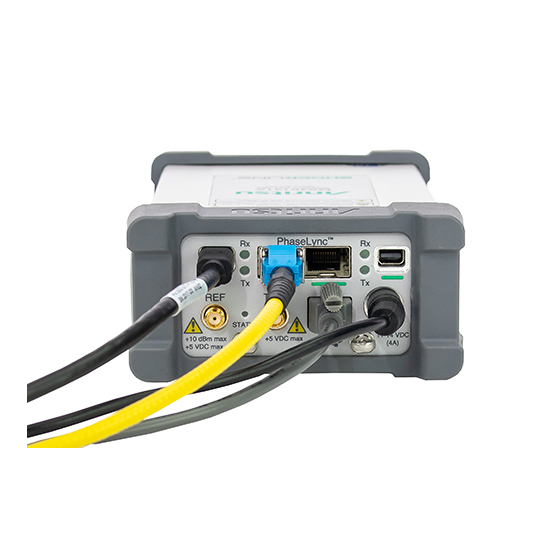

    • 配 PhaseLync 控制模块 MN25132A
    功能与结构
    Cables and Adapters
    Cables and Adapters
    Model Number
    Description
    1091-26-R
    SMA(m) to N(m), DC to 18 GHz, 50 Ω
    1091-27-R
    SMA(f) to N(m), DC to 18 GHz, 50 Ω
    1091-80-R
    SMA(m) to N(f), DC to 18 GHz, 50 Ω
    1091-81-R
    SMA(f) to N(f), DC to 18 GHz, 50 Ω
    71693-R
    Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
    34NK50
    Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
    34NKF50
    Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
    34NFK50
    Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
    34NFKF50
    Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
    K220B
    Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
    K222B
    Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
    K224B
    Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
    33KK50C
    Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
    33KKF50C
    Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
    33KFKF50C
    Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
    34VFK50A
    Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
    34VFKF50A
    Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
    34VK50A
    Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
    34VKF50A
    Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω
    Test Port Cables, Flexible, Ruggedized, Phase Stable
    Model Number
    Description
    15NNF50-1.0B
    Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
    15NNF50-1.5B
    Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
    15NN50-1.0B
    Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
    15LL50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
    15LLF50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
    15KK50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
    15KKF50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
    3671KFS50-60
    Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
    3671KFK50-60
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
    3671KFKF50-60
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
    3671KFK50-100
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
    806-304-R
    Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
    806-423-R
    Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
    806-424-R
    Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
    806-425-R
    Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
    806-426-R
    Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω
    Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)
    Model Number
    Description
    3670N50-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
    3670N50-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
    3670NN50-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
    3670NN50-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
    3670K50A-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
    3670K50A-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
    Accessories
    Tools
    Model Number
    Description
    01-200
    Calibrated Torque End Wrench, GPC-7 and Type N
    01-201
    Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
    01-203
    Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
    01-204
    End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
    Transit Cases
    Part Number
    Description
    760-299-R
    Transit case for the ME7869A VNA system
    760-295-R
    Transit case for the ME7868A VNA system
    Third Party Solutions
    Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.
    Material Measurements
    Compass Technology
    Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz 至 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more.
    Anritsu and Compass Technology Group Material Measurements Solutions
    Compass Technology Group VectorStar Integration [video]
    Keycom Technologies
    Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more.
    Anritsu and Keycom Material Measurement Solution
    RanLOS
    RanLOS provides innovative and cost-effective OTA test solutions for evaluating antennas and wireless communication. With patented
    hardware and proprietary software, developed through years of research, RanLOS enables fast and reliable testing – helping companies speed up development and optimize real-world wireless performance.
    Full-Scale Vehicle Antenna and OTA Measurements Solution
    SWISSto12
    Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more.
    Anritsu and SWISSto12 Material Measurement Solution
    典型应用
    • 长距离 S 参数测量
    • 长电缆插入损耗测试
    • 天线测试与 OTA 应用
    • 暗室安装场景
    • 大型车辆射频屏蔽与传播测试
    • 系统集成与系统校准
    型号与选件
    • Frequency Options：Description
    • ME7869A-010：8 GHz, 2 port VNA system
    • ME7869A-020：20 GHz, 2 port VNA system
    • ME7869A-043：43.5 GHz, 2 port VNA system
    • Must order one PhaseLync synchronization option for each MS46131A VNA
    • MS46131A-025：Option 25, PhaseLync synchronization to 20 meters
    • MS46131A-050：Option 50, PhaseLync synchronization to 50 meters
    • MS46131A-100：Option 100, PhaseLync synchronization to 100 meters
    • Must order 2 cable sets from the following (cable set lengths must total to within the length of PhaseLync synchronization software option)
    • 2000-2123-R：PhaseLync 2 meter cable set
    • 2000-2124-R：PhaseLync 5 meter cable set
    • 2000-2125-R：PhaseLync 10 meter cable set
    • 2000-2126-R：PhaseLync 25 meter cable set
    • 2000-2127-R：PhaseLync 50 meter cable set
    • 2000-2128-R：PhaseLync 75 meter cable set
    • Other Options
    • MS46131A-002：Time Domain with Time Gating (required for each MS46131A)
    • Frequency/Cable Options：Description
    • ME7868A-010-2：8 GHz, 2 meter system
    • ME7868A-010-5：8 GHz, 5 meter system
    • ME7868A-010-25：8 GHz, 25 meter system
    • ME7868A-020-2：20 GHz, 2 meter system
    • ME7868A-020-5：20 GHz, 5 meter system
    • ME7868A-020-25：20 GHz, 25 meter system
    资源下载
    • ME786xA 分布式模块化双端口矢量网络分析仪 详细指标见 ME786xA 分布式模块化双端口矢量网络分析仪 详细指标页。
    • 官方资料：Vector Network Analysis Product Portfolio（产品手册）、ShockLine ME7869A Modular 2-port VNA Enabled by PhaseLync Quick Fact Sheet（产品手册）、ShockLine ME7868A Modular 2-Port Vector Network Analyzer System Quick Fact Sheet（产品手册）、ShockLine Vector Network Analyzer Family Product Brochure（产品手册）、ShockLine Modular 2-Port VNA ME7868A Technical Data Sheet（技术指标）、ShockLine Modular 2-port PhaseLync VNA ME7869A Technical Datasheet（技术指标）
    注：以上内容与指标取自安立官网该产品详情页。
    安立 · onetest 仪器资源库





    安立
    ME786xA 分布式模块化双端口矢量网络分析仪 详细指标
    分布式模块化双端口 USB VNA 系统，端口间距可达 100 m 且保持相位同步，1 MHz 至 43.5 GHz，提供 8/20/43.5 GHz 三种频率配置。
    详细指标
    以下为该产品公布的关键指标。
    • 双端口 VNA，频率选件覆盖 1 MHz 至 8 GHz / 20 GHz / 43.5 GHz，端口间距选件 20 m、50 m、100 m
    • 借助 PhaseLync 同步，远端端口间距可达 100 m
    • 采用 Extended-K 端口，43.5 GHz 内性能有保证
    • 配 PhaseLync 控制模块 MN25132A
    型号与选件
    • Frequency Options：Description
    • ME7869A-010：8 GHz, 2 port VNA system
    • ME7869A-020：20 GHz, 2 port VNA system
    • ME7869A-043：43.5 GHz, 2 port VNA system
    • Must order one PhaseLync synchronization option for each MS46131A VNA
    • MS46131A-025：Option 25, PhaseLync synchronization to 20 meters
    • MS46131A-050：Option 50, PhaseLync synchronization to 50 meters
    • MS46131A-100：Option 100, PhaseLync synchronization to 100 meters
    • Must order 2 cable sets from the following (cable set lengths must total to within the length of PhaseLync synchronization software option)
    • 2000-2123-R：PhaseLync 2 meter cable set
    • 2000-2124-R：PhaseLync 5 meter cable set
    • 2000-2125-R：PhaseLync 10 meter cable set
    • 2000-2126-R：PhaseLync 25 meter cable set
    • 2000-2127-R：PhaseLync 50 meter cable set
    • 2000-2128-R：PhaseLync 75 meter cable set
    • Other Options
    • MS46131A-002：Time Domain with Time Gating (required for each MS46131A)
    • Frequency/Cable Options：Description
    • ME7868A-010-2：8 GHz, 2 meter system
    • ME7868A-010-5：8 GHz, 5 meter system
    • ME7868A-010-25：8 GHz, 25 meter system
    • ME7868A-020-2：20 GHz, 2 meter system
    • ME7868A-020-5：20 GHz, 5 meter system
    • ME7868A-020-25：20 GHz, 25 meter system
    • ME7868A-043-2：43.5 GHz, 2 meter system
    • ME7868A-043-5：43.5 GHz, 5 meter system
    • ME7868A-043-25：43.5 GHz, 25 meter system
    • Other Options
    资源下载
    • ME786xA 分布式模块化双端口矢量网络分析仪 产品介绍见 ME786xA 分布式模块化双端口矢量网络分析仪 产品介绍页。
    • 官方资料：Vector Network Analysis Product Portfolio（产品手册）、ShockLine ME7869A Modular 2-port VNA Enabled by PhaseLync Quick Fact Sheet（产品手册）、ShockLine ME7868A Modular 2-Port Vector Network Analyzer System Quick Fact Sheet（产品手册）、ShockLine Vector Network Analyzer Family Product Brochure（产品手册）、ShockLine Modular 2-Port VNA ME7868A Technical Data Sheet（技术指标）、ShockLine Modular 2-port PhaseLync VNA ME7869A Technical Datasheet（技术指标）
    注：以上内容与指标取自安立官网该产品详情页。
