MS2720xA 远程频谱监测仪
面向广域频谱监视的远程频谱监测仪，频率 至 54 GHz，IQ 流式传输带宽达 110 MHz，支持 PC 控制软件。
产品简介
MS27201A 频谱监测仪是紧凑的机架式频谱分析仪，面向需要在大范围地理区域内长期监测射频频谱的应用。
基于安立 40 余年的高性能现场便携频谱分析仪开发经验，该监测仪可在 54 GHz 以内实现广域频谱监测。
核心特点
• 频率范围 9/14/20/26.5/32/43.5/54 GHz
• 19 英寸机架式机箱
• PC 应用用户界面
• DANL -164 dBm（开前置放大器）
• TOI +20 dBm（典型）
• 分析带宽 110 MHz
• 1 GHz 处相位噪声 -110 dBc/Hz @ 100 kHz 频偏（典型）
• 分辨率带宽（RBW）1 Hz 至 10 MHz
• 幅度准确度：<14 GHz 时 ±1.3 dB（典型 ±0.5 dB）
• 零扫宽最小 60 ns
• IQ 捕获与流式传输
型号与主要参数
• Parameter：Specification
• Frequency range：9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
• Analysis bandwidth：110 MHz
• Third order intercept point：+20 dBm
• DANL (with pre amp)：–164 dBm
• Amplitude range：DANL to +30 dBm
• Phase noise @ 1 GHz：-110 dBc/Hz @ 100 kHz offset (typical)
• RBW/VBW：1 Hz 至 10 MHz
功能与结构
Remote and Report Tools
Anritsu Remote and Report Tools (ARRT)
Anritsu Remote and Report Tools software suite contains two separate applications that will create two separate icons once the application is installed.
Anritsu Remote Tool:

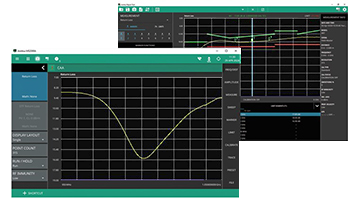

The Anritsu Remote Tool offers a remote user interface. Users can take full control of the instrument from any remote location using this PC application. The GUI replicates the instrument display on a standard PC and can be used for remote instrument control and results and trace monitoring. The tool enables saving of traces directly to the PC file system where markers and limit lines can be added and adjusted retrospectively. The Anritsu remote tool also supports simulation mode for instances where an actual instrument is not available or if there is no network connection to the instrument. In simulation mode, all functionalities of a real instrument can be depicted on a PC, including recall and display of saved measurements.
Anritsu Report Tool:
The Anritsu Report Tool provides a comprehensive set of reporting capabilities and retains key features of the legacy Line Sweep Tools (LST) while maintaining the familiar theme of the Anritsu Remote Tool. Users can open and convert or modify saved measurements, work with markers and limit lines, import screenshots of traces in PNG and JPEG file formats, and create PDF reports. The Anritsu Report Tool includes the latest cable list, which has over 350 entries. The manufacturer and description for each cable has been added. Users can filter by categories to ease the process of searching cables. Like LST, users can add custom cables and upload the list to their instrument.
IQ Capture and Analysis
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer

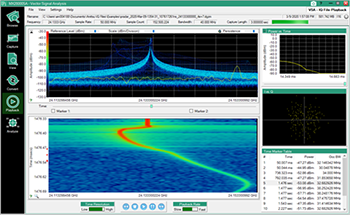

IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Remote Spectrum Analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application, support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements and playback IQ data with high frequency and time resolution.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software

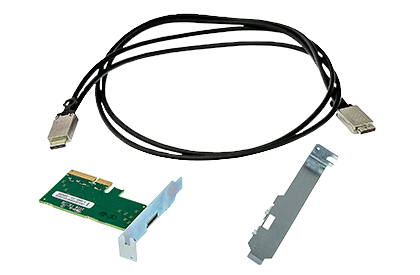

IQ Data can be captured or streamed to a PC via USB, Ethernet, or PCIe interface using the MA25101A IQ Streaming PCIe kit.
Vision Software
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.
Vision Monitor

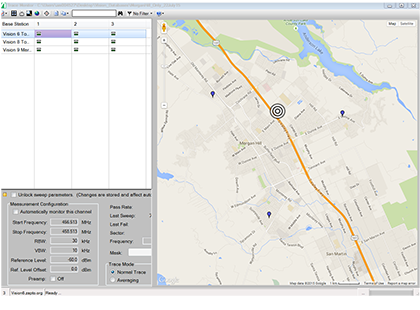

Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software
典型应用
• 频谱清理
• 频谱共享监测
• 卫星地面站监测
• 重要场所安全防护
• 重大赛事、节庆与会议的干扰监测
• 监管执法
型号与选件
• MS27201A-0709：Frequency Range 9 kHz 至 9 GHz
• MS27201A-0714：Frequency Range 9 kHz 至 14 GHz
• MS27201A-0720：Frequency Range 9 kHz 至 20 GHz
• MS27201A-0726：Frequency Range 9 kHz 至 26.5 GHz
• MS27201A-0732：Frequency Range 9 kHz 至 32 GHz
• MS27201A-0743：Frequency Range 9 kHz 至 43.5 GHz
• MS27201A-0754：Frequency Range 9 kHz 至 54 GHz
• MS27201A-0006：Remove Wi-Fi and Bluetooth
• MS27201A-0007：Secure Data
• MS27201A-0017：Secure Communication
• MS27201A-0027：Channel Scanner
• MS27201A-0031：GPS Receiver (requires GPS antenna, sold separately)
• MS27201A-0883：LTE FDD/TDD Measurements (requires GPS option MS27201A-0031)
• MS27201A-0888：5GNR FDD/TDD Measurements (requires GPS option MS27201A-0031)
• MS27201A-0089：Zero Span IF Output
• MS27201A-0090：Gated Sweep
• MS27201A-0103：55 MHz Analysis Bandwidth
• MS27201A-0104：120 MHz Analysis Bandwidth
• MS27201A-0105：150 MHz Analysis Bandwidth
• MS27201A-0124：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS27201A-0125：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 124)
• MS27201A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set) (Non-Export Controlled)
• MS27201A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 126, Non-Export Controlled)
• MS27201A-0128：Vector Signal Analysis enabled (requires option 124 or 126)
资源下载
• MS2720xA 远程频谱监测仪 详细指标见 MS2720xA 远程频谱监测仪 详细指标页。
• 官方资料：IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、Remote Spectrum Monitor MS27201A Product Brochure（产品手册）、Remote Spectrum Monitor MS27201A Quick Fact Sheet（产品手册）、Remote Spectrum Monitors MS27201A Technical Data Sheet（技术指标）、Remote Spectrum Monitors Product Information, Compliance, and Safety（技术指标）、Millimeter Wave Measurement Solutions（产品简介）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS2720xA 远程频谱监测仪 详细指标
面向广域频谱监视的远程频谱监测仪，频率 至 54 GHz，IQ 流式传输带宽达 110 MHz，支持 PC 控制软件。
详细指标
• 频率范围：9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
• 分析带宽：110 MHz
• 三阶截获点：+20 dBm
• DANL（开前置放大器）：–164 dBm
• 幅度范围：DANL to +30 dBm
• 1 GHz 处相位噪声：-110 dBc/Hz @ 100 kHz 频偏（典型）
• RBW/VBW：1 Hz 至 10 MHz
• 幅度准确度：<14 GHz 时 ±1.3 dB（典型 ±0.5 dB）
型号与选件
• MS27201A-0709：Frequency Range 9 kHz 至 9 GHz
• MS27201A-0714：Frequency Range 9 kHz 至 14 GHz
• MS27201A-0720：Frequency Range 9 kHz 至 20 GHz
• MS27201A-0726：Frequency Range 9 kHz 至 26.5 GHz
• MS27201A-0732：Frequency Range 9 kHz 至 32 GHz
• MS27201A-0743：Frequency Range 9 kHz 至 43.5 GHz
• MS27201A-0754：Frequency Range 9 kHz 至 54 GHz
• MS27201A-0006：Remove Wi-Fi and Bluetooth
• MS27201A-0007：Secure Data
• MS27201A-0017：Secure Communication
• MS27201A-0027：Channel Scanner
• MS27201A-0031：GPS Receiver (requires GPS antenna, sold separately)
• MS27201A-0883：LTE FDD/TDD Measurements (requires GPS option MS27201A-0031)
• MS27201A-0888：5GNR FDD/TDD Measurements (requires GPS option MS27201A-0031)
• MS27201A-0089：Zero Span IF Output
• MS27201A-0090：Gated Sweep
• MS27201A-0103：55 MHz Analysis Bandwidth
• MS27201A-0104：120 MHz Analysis Bandwidth
• MS27201A-0105：150 MHz Analysis Bandwidth
• MS27201A-0124：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS27201A-0125：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 124)
• MS27201A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set) (Non-Export Controlled)
• MS27201A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 126, Non-Export Controlled)
• MS27201A-0128：Vector Signal Analysis enabled (requires option 124 or 126)
• MS27201A-0199：Real-Time Spectrum Analysis (RTSA)
• MS27201A-0400：Vision Monitor Enabled
• MS27201A-0401：Vision Locate (requires option MS27201A-0400)
• MS27201A-0407：Vision High-Speed Port Scanner Enabled
资源下载
• MS2720xA 远程频谱监测仪 产品介绍见 MS2720xA 远程频谱监测仪 产品介绍页。
• 官方资料：IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、Remote Spectrum Monitor MS27201A Product Brochure（产品手册）、Remote Spectrum Monitor MS27201A Quick Fact Sheet（产品手册）、Remote Spectrum Monitors MS27201A Technical Data Sheet（技术指标）、Remote Spectrum Monitors Product Information, Compliance, and Safety（技术指标）、Millimeter Wave Measurement Solutions（产品简介）
