    Matsusada Precision Inc. · 直流电源

    P4KF-80 直流电源

    Model ｜Output ｜Ripple * · voltage；current；power · Relay：Short；TTL：LOW
    Model ｜Output ｜Ripple *
    voltage；current；power
    Relay：Short；TTL：LOW
    ON
    Relay：Open；TTL：HIGH
    OFF
    CABLE TYPE3；250 V/10 A
    Additional accessory
    CABLE TYPE4；250 V/10 A
    Additional accessory
    产品定位

    The P4KF-80 series is a next-generation programmable DC power supply featuring an ultra-slim 35 mm profile. Engineered for high reliability,

    it combines low ripple noise with fast rise time-performance characteristics often difficult to achieve simultaneously in compact units. The fanless design ensures quiet operation,

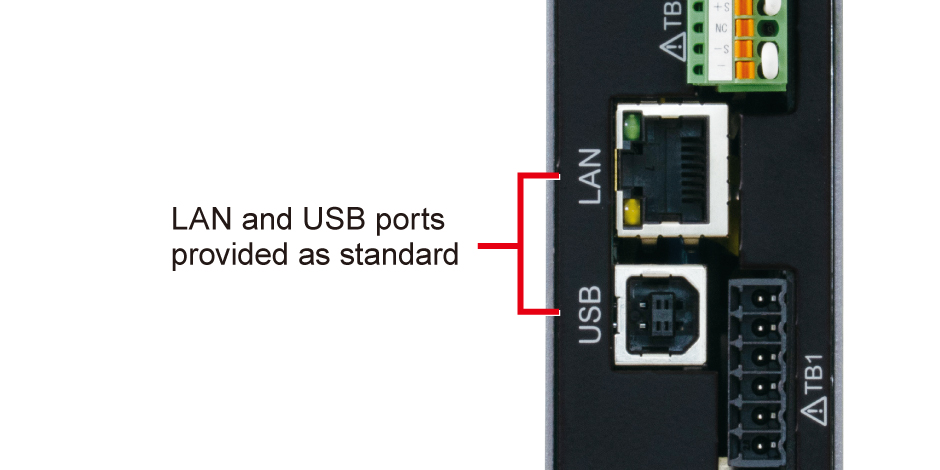

    making it ideal for R&D environments and desktop applications. Standard features include LAN/USB interfaces and safety terminals,

    supporting precise measurements for circuit board testing and system integration.

    核心参数
    · ：Model ｜Output ｜Ripple *
    · ：voltage；current；power
    · P4KF-80L：0 to 16 V；0 to 10 A；80 W；4 mVrms；6 mArms
    · P4KF-80N
    – 0 to 36 V
    – 0 to 5 A
    – 5 mVrms
    – 4 mArms
    · P4KF-80M
    – 0 to 110 V
    – 0 to 1.3 A
    – 6 mVrms
    – 2 m Arms
    · P4KF-80H
    – 0 to 320 V
    – 0 to 0.5 A
    – 10 mVrms
    – 1 mArms
    · P4KF-80X Coming soon
    – 0 to 400 V
    – 0 to 0.4 A
    – 12 mVrms
    – 0.1 mArms
    Voltage and Current Control
    · 0 to MAX
    – Vcon/Icon：0 to approx. 10Vdc
    – Resistor：0 to approx. 10kΩ
    Remote output ON/OFF control
    典型应用
    · 实验室供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 P4KF-80-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    P4KF-80 直流电源 · 详细指标

    Model ｜Output ｜Ripple * · voltage；current；power · Relay：Short；TTL：LOW
    产品简介

    The P4KF-80 series is a next-generation programmable DC power supply featuring an ultra-slim 35 mm profile. Engineered for high reliability,

    it combines low ripple noise with fast rise time-performance characteristics often difficult to achieve simultaneously in compact units. The fanless design ensures quiet operation,

    完整技术指标
    · ：Model ｜Output ｜Ripple *
    · ：voltage；current；power
    · P4KF-80L：0 to 16 V；0 to 10 A；80 W；4 mVrms；6 mArms
    · P4KF-80N
    – 0 to 36 V
    – 0 to 5 A
    – 5 mVrms
    – 4 mArms
    · P4KF-80M
    – 0 to 110 V
    – 0 to 1.3 A
    – 6 mVrms
    – 2 m Arms
    · P4KF-80H
    – 0 to 320 V
    – 0 to 0.5 A
    – 10 mVrms
    – 1 mArms
    · P4KF-80X Coming soon
    – 0 to 400 V
    – 0 to 0.4 A
    – 12 mVrms
    – 0.1 mArms
    Voltage and Current Control
    · 0 to MAX
    – Vcon/Icon：0 to approx. 10Vdc
    – Resistor：0 to approx. 10kΩ
    Remote output ON/OFF control
    · ON
    – Relay：Short
    – TTL：LOW
    · OFF
    – Relay：Open
    – TTL：HIGH

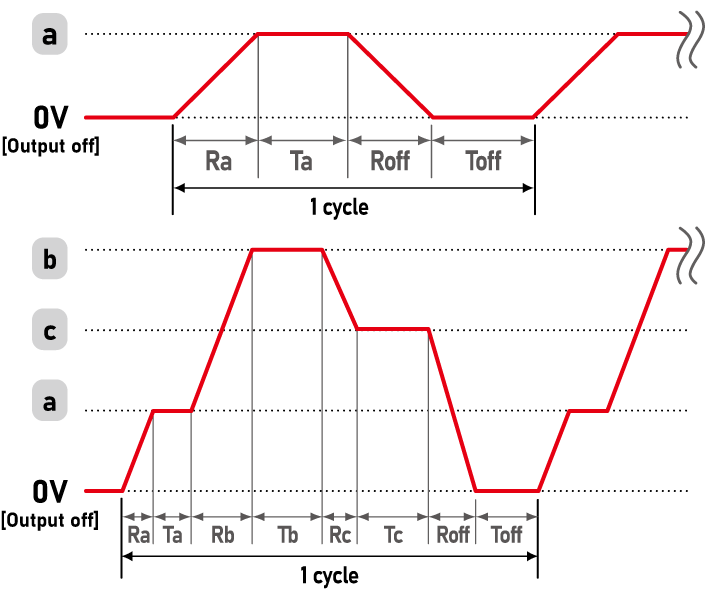

    A. Pulse Sequence
    ·
    – Controllable Time and Count ｜Minimum Setting Time Output on: 1.0s Others: 0.0s (0.1–0.9s is invalid) Maximum Number of Operations 9999
    B. Ramp
    · ：Controllable Time ｜Minimum Setting Time 0.0s
    · ：Included accessory ｜CABLE TYPE1 ｜125 V/10 A
    · Additional accessory：CABLE TYPE3；250 V/10 A
    · Additional accessory：CABLE TYPE4；250 V/10 A
    · Additional accessory：CABLE TYPE13；250 V/15 A
