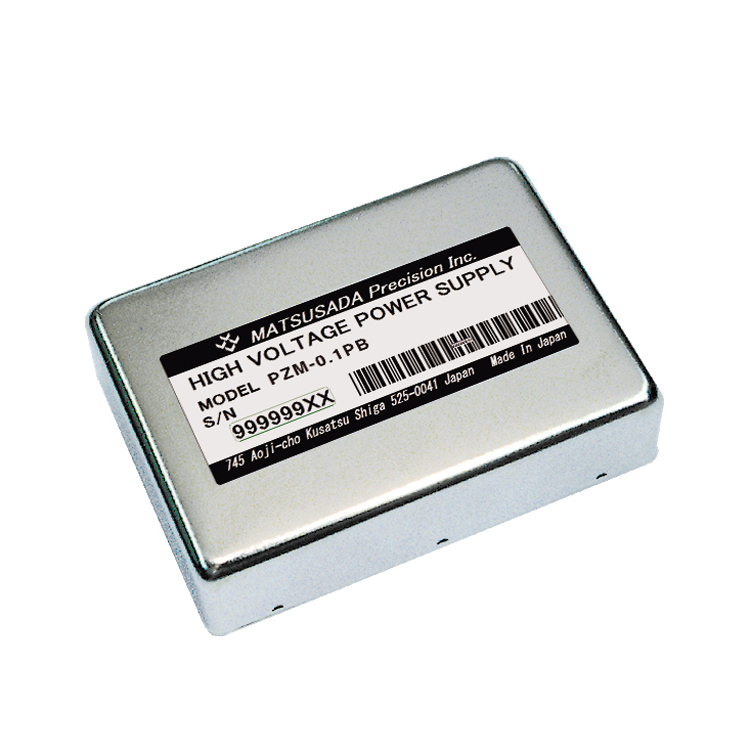

    The PZM Series consists of compact high-voltage power supply modules designed exclusively for driving piezoelectric elements. With output voltage controlled via an external signal, these modules are optimized for precision applica。

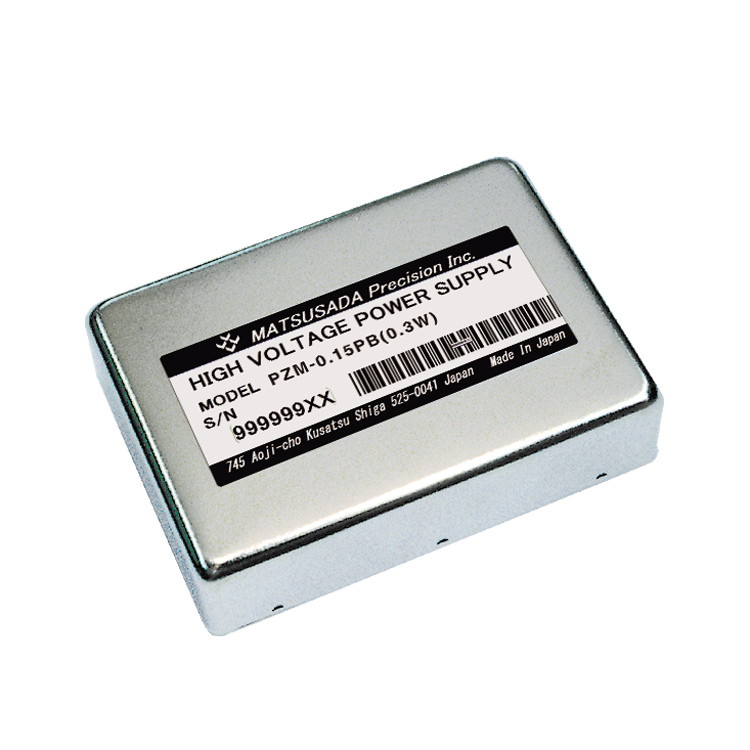

    The PZM-B(0.3W) Series is a compact, PCB-mountable driver module designed for piezoelectric elements. Featuring enhanced peak current capability, it is optimized for driving piezo positioners and supports a wide range of load capa。
    The PZM-B Series is a compact high-voltage amplifier module designed for driving piezoelectric elements. Featuring enhanced peak current capability, this series is optimized for piezo positioners and supports a wide range of load 。
    • «
    • 1

    PZM-A 压电驱动模块|松田精密 (在产)

    The PZM-A series is a compact piezo driver module designed to drive a wide variety of piezoelectric elements. The lineup includes unipolar (0 to +150 V) and bipolar (-75 V to +75 V) configurations. The series features built-in pro。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录2330个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 放大器

    PZM-A 压电驱动模块

    产品定位

    The PZM-A series is a compact piezo driver module designed to drive a wide variety of piezoelectric elements. The lineup includes unipolar (0 to +150 V) and bipolar (-75 V to +75 V) configurations. The series features built-in protection against abrupt peak currents,

    ensuring stable operation even with the high inrush currents typical of capacitive loads. Its low-noise performance and compact footprint facilitate the miniaturization of integrated systems.

    核心参数
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave
    – Rising time *1
    ·
    – Rated Imean
    – Peak Ip ≤ 10 ms
    – at 16 µF load, output voltage 37.5 mVp-p
    – △V = 100V
    – 0 to Max. voltage
    · PZM-0.15PA
    – 0 to +150 V；20 mA；50 mA；DC to 100 Hz *2；2 ms；3 ms；44 Ω
    · PZM-0.075BA
    – -75 to +75 V；20 mA；50 mA；DC to 100 Hz *2；2 ms；1.5 ms；44 Ω
    功能与特点
    · Compact module form factor optimized for system integration.
    · Supports maximum peak output current of up to 50 mA.
    · High reliability ensured by comprehensive protection circuits.
    典型应用
    · 信号放大
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 PZM-A-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 放大器

    PZM-A 压电驱动模块 · 详细指标

    产品简介

    The PZM-A series is a compact piezo driver module designed to drive a wide variety of piezoelectric elements. The lineup includes unipolar (0 to +150 V) and bipolar (-75 V to +75 V) configurations. The series features built-in protection against abrupt peak currents,

    ensuring stable operation even with the high inrush currents typical of capacitive loads. Its low-noise performance and compact footprint facilitate the miniaturization of integrated systems.

    完整技术指标
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave
    – Rising time *1
    ·
    – Rated Imean
    – Peak Ip ≤ 10 ms
    – at 16 µF load, output voltage 37.5 mVp-p
    – △V = 100V
    – 0 to Max. voltage
    · PZM-0.15PA
    – 0 to +150 V；20 mA；50 mA；DC to 100 Hz *2；2 ms；3 ms；44 Ω
    · PZM-0.075BA
    – -75 to +75 V；20 mA；50 mA；DC to 100 Hz *2；2 ms；1.5 ms；44 Ω
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
