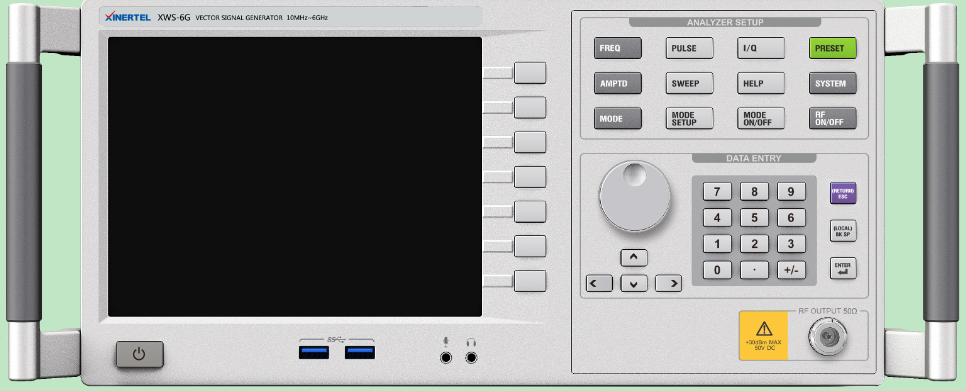

XWS-6G/8G矢量信号发生器是信而泰推出的一款中高端电子测试仪器，能精确生成并控制复杂电信号的幅度、相位和频率，特别适用于模拟QAM等数字调制信号。XWS系列矢量信号发生器采用独特的低相噪频综与矢量调制算法，确保3G/4G/5G信号的精准测量与分析，在5G调制技术上处于行业前端。频率范围XWS-6G：10MHz ~ 6GHz；XWS-8G：10MHz ~ 8GHz单音频率切换速度100ms输出功率-120 ~ +17dBm精度±0.55dbI/Q调制：调制带宽100M64QAM EVM 0.25% 典型值256QAM EVM 0.4% 典型值相位噪声-124dBc/Hz，@1GHz，100k谐波（1GHz，0dBm）大于30dB
频率范围：8kHz至3/6GHz高额输出功率，高达 +33 dBm1 GHz 调制带宽，准确度出色符合所有主要数字通信标准的信号生成，包括 5G NR、LTE 和 WLAN 标准GNSS 模拟器，支持 GPS、格洛纳斯、伽利略、北斗和 QZSS/SBAS相位噪声：1GHz、20kHz偏移时低于-134dBc(测量值)
频率范围：10 MHz至6 GHz−90 dBm至+12 dBm的宽输出功率控制范围低相位噪声：−130 dBc/Hz（20 kHz），1 GHz载波偏移模拟调制类型：幅度、频率、相位和脉冲调制自定义数字调制内置调制信号发生器100 MHz 调制信号带宽
同厂商产品
频率范围：9 kHz 至 3/6 GHz频率转换800us相位噪声（1 GHz，20 kHz 频偏）：–122dBc/Hz杂散（1 GHz，谐波）：–35 dBc输出功率（1 GHz）：+21 dBm60/120/160MHz带宽
• 9 kHz 至6/8.5/14/20/31.8/44/54GHz（使用 V3080A 频率扩展器可达到 110 GHz）• 每个通道高达 2.5 GHz 调制带宽（利用 channel bonding 技术可达到 5 GHz）• 每个机箱多达 4 个通道• 业界优异的性能• 先进的实时应用
频率范围：9 kHz 至 3/6 GHz频率转换：800 µs相位噪声（1 GHz，20 kHz 频偏）：–146 dBc/Hz杂散（1 GHz，谐波）：–35 dBc输出功率（1 GHz）：+24 dBm
XG5系列N5182B 9 kHz 至3/6GHz 射频矢量信号发生器 160MHz带宽|是德/KEYSIGHT (停产)
参考价格 ： US$ 31,787至US$ 81,756
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
是德科技|KEYSIGHT
XG2 系列矢量信号发生器，6 GHz
矢量信号发生器
产品简介
是德科技N5182B EXG ：相位噪声与频谱纯度、带宽、EVM、ACPR和输出功率。
核心参数
• 1 GHz 谐波：-35 dBc
• 1 GHz 输出功率：24 dBm
• 1 GHz 相位噪声（20 kHz 偏移）：-146 dBc/Hz
• 最高频率：6 GHz
• 最大调制带宽：160 MHz
• 输出路数：1
• 频率切换速度：800 µs
功能特性
• 9 kHz - 3 GHz MXG
是德科技N5182BEXG ：相位噪声与频谱纯度、带宽、EVM、ACPR和输出功率。
通过使用MXG EXG Signal Studio 可根据最新标准执行先进的接收机测试：定义信号参数并将参数传输至仪器，
在信号生成过程中进行闭环或交互式控制。
卓越的硬件性能，包括优异的相位噪声和杂散特性，能够推动您的设计达到性能极限。
优异的邻道功率比（ACPR）和输出功率能够驱动功率放大器，并表征功率放大器的非线性特性。
经过工厂均衡的160 MHz射频带宽，可更准确地测试宽带器件。
利用PathWave LTE、WLAN 和 GNSS 等信号。
3年校准周期和全面的自我维护解决方案确保降低您的拥有成本。
主要技术指标
频率范围：9 kHz 至 6 GHz
相位噪声（1 GHz，20 kHz 频偏）：–146 dBc/Hz
杂散（1 GHz，非谐波）：–96 dBc
输出功率（1 GHz）：+27 dBm
ACPR（矢量）W-CDMA 64 DPCH：–73 dBc
EVM（矢量）802.11ac/LTE：0.4%
带宽（矢量）：160 MHz
任意波形存储器（矢量）：1024 MSa
附件包括：
标配相位噪声
+18 dBm 标配输出功率
电子衰减器
连续波信号生成
矢量（I/Q）调制器
50 W 反向功率保护
符合当地标准的电源线
文档集（光盘）
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
XG5系列N5182B 9 kHz 至3/6GHz 射频矢量信号发生器 160MHz带宽 详细指标
矢量信号发生器
一、频率规格
条件：Phase offset Adjustable in nominal 0.1° increments
1. Only applicable to N5182B ; requires option 506 and N5182BX07 Frequency Extender .
2. N is a factor used to help define certain specifications within the document.
Option 503
9 kHz (5 MHz I/Q mode) to 3 GHz
Option 506
9 kHz (5 MHz I/Q mode) to 6 GHz
Option 506 + FRQ 9 kHz to 7.2 GHz
1
Resolution
0.001 Hz
Frequency bands
2
Band Frequency range N 1 9 kHz to < 5 MHz 1 (digital synthesis) 1 5 to < 250 MHz 1 2 250 to < 375 MHz
0.25
3 375 to < 750 MHz
0.5
4 750 to < 1500 MHz
1
5 1500 to < 3000.001 MHz
2
5 3000.001 to 6000 MHz
4
Frequency switching speed
2
Standard Option UNZ
3 Option UNZ, typical
CW mode
条件：1. Time from receipt of SCPI command or trigger signal to within 0.1 ppm of final frequency or within 100 Hz, whichever is greater.
2. With internal channel corrections on, the frequency switching speed is <1.3 ms measured for list mode and SCPI mode cached
cache the most recently used 1024 frequencies. There is no speed degradation for amplitude -only changes.
3. Specific ations apply when statues register updates are off. For export control purposes CW sw itching speed to within 0.05% of
SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
950 μs
List/step sweep mode ≤ 5 ms, typical ≤ 900 μs ≤
800 μs
Digital modulation on (N5182B only)
SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
1.05 ms
List/step sweep mode ≤ 5 ms, typical ≤ 900 μs ≤
800 μs
frequency points. For the initial frequency point in SCPI mode the time is
<3.3 ms measured. The instrument will automatically
final frequency is
190 μs (measured).
频率参考
Accuracy ± (time since last adjustment x aging rate) ± temperature effects ± line voltage effects
± 校准精度
条件：Temperature effects < ± 2 x 10-10, nominal
Line voltage effects < ± 1 x 10-9 for ± 10% change, nominal
Internal time base reference oscillator aging rate
1
< ± 1 x
10-7/year
< ± 5 ×10-10/day after
30 days
Initial achievable calibration accuracy ± 4 ×10-8 or
± 40 ppb
Adjustment resolution < 1 x
10-10
Reference output
条件：Amplitude ≥ +4 dBm, nominal into 50 Ω load
Frequency
10 MHz
外部 reference 输入
条件：Amplitude –3 dBm to +20 dBm, nominal
Input frequency, standard
10 MHz
Input frequency, Option 1ER 1 to 50 MHz (in multiples of 0.1 Hz)
2
Stability Follows the stability of external reference input signal
Lock range
± 1 ppm
Impedance
50 Ω, nominal
工作模式
Step sweep (equally spaced frequency and amplitude or logarithmically spaced frequency
List sweep (arbitrary list of frequency and amplitude steps) Simultaneously sweep
waveforms with N5182B; see Baseband Generator section for more detail
扫描范围 Within instrument 频率范围
Dwell time
100 µs to 100 s
Number of points
2 to 65535 (step sweep)
1 to 3201 (list sweep)
Step change Linear or logarithmic
条件：1. Not verified by Keysight N7800A TME Calibration and Adjustments Software. Daily aging rate may be verified as a
supplementary chargeable service, on request. 2. Close -in phase noise will degrade when reference input is tuned away from 10 MHz .
Triggering Free run, trigger key, external, timer, bus (GPIB, LAN, USB)
二、幅度规格
输出参数
Settable range
+19 to -144 dBm (Standard)
+30 to -144 dBm (Option
1EA)
Resolution
0.01 dB
Step attenuator
0 to 130 dB in 5 dB steps electronic type
Connector Type N
50 Ω, nominal
Max output power
1 () = typical
Frequency Standard Option
1EA
9 kHz to 10 MHz +13 dBm
+17 dBm (+18 dBm)
10 MHz to 3 GHz +18 dBm
+24 dBm (+26 dBm)
3 to 5 GHz +16 dBm
+19 dBm (+20 dBm)
5 to 6.0 GHz +16 dBm
+18 dBm (+19 dBm)
条件：1. Quoted specifications between 20 °C and 30 °C. For temperatures outside this range, absolute level accuracy degrades by
Repeatability measures the ability of the instrument to return a given power setting after a random excursion to any other frequency and power setting. It should not be confused with absolute level accuracy.
Relative level accuracy measures the accuracy of a step change from any power level to any other power level.
Absolute level accuracy in CW mode
1 (ALC on) ()= typical
Standard Option
1EQ
Range Max power to –60 dBm < –60 to –110 dBm <
–110 to –127 dBm
9 to 100 kHz (± 0.6 dB) (
± 0.9 dB)
100 kHz to 5 MHz ± 0.8 dB (± 0.3) ± 0.9 dB (
± 0.3)
5 MHz to 3 GHz ± 0.6 dB (± 0.3) ± 0.8 dB (± 0.3) ± 1.5 dB (
± 0.5)
3 to 6 GHz ± 0.6 dB (± 0.3) ± 1.1 dB (± 0.3) ± 1.6 dB (
± 0.6)
Absolute level accuracy in CW mode (ALC off, power search run, relative to ALC on)
9 kHz to 6 GHz
± 0.15 dB, typical
Absolute level accuracy in digital I/Q mode (N5182B only)
(ALC on, relative to CW, W-CDMA 1 DPCH configuration <
+10 dBm)
5 MHz to 6 GHz
± 0.25 dB, (0.05 dB)
0.01 dB/°C. Output power may drift up to 0.10 dB < 3 GHz and 0.15 dB >
3 GHz per g/kg change in absolute humidity (nom).
This is useful for large changes (such as
5 dB steps).
SWR (measured CW mode)
1
频率衰减器 state
条件：1. SWR < 1.60:1 below 30 kHz.
Bypass 0 to 10 dB
15 dB or more
≤ 1.0 GHz < 1.3:1 < 1.35:1 <
1.2:1
1.0 to 2 GHz < 1.55:1 < 1:5:1 <
1.3:1
2 to 3 GHz < 1.8:1 < 1.5:1 <
1.45:1
3 to 4 GHz < 1.5:1 < 1.6:1 <
1.7:1
4 to 6 GHz < 1.9:1 < 1.6:1 <
1.6:1
最大值 reverse 功率, 标称值
< 1 GHz
50 W
1 to 2 GHz
25 W
2 to 6 GHz
20 W
Max DC voltage
50 VDC
Trip level
2 W
Amplitude switching speed
1 Standard Option UNZ Option UNZ, typical
CW mode
SCPI mode ≤ 5 ms, typical ≤ 750 µs ≤
650 µs
Power search SCPI mode <
12 ms, measured
List/step sweep mode ≤ 5 ms, typical ≤ 500 µs ≤
300 µs
Digital modulation on (N5182B only)
SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
950 µs
Power search SCPI mode <
12 ms, measured
List/step sweep mode ≤ 5 ms, typical ≤ 900 µs ≤
400 µs
Alternate power level control (N5182B only)
Switching time (via waveform markers) 20 µs within
± 1 dB, measured
Functional power range
–15 dBm to –144 dBm, measured
User flatness correction
Number of points
3201
Number of tables Dependent on available free memory in instrument
10,000 maximum
Entry modes USB/LAN direct power meter control, LAN to GPIB and USB to GPIB, remote bus and
三、Spectral Purity Specifications
条件：1. From 20 to 30 °C, excludes mechanic vibration, measured @ +10 dBm or maximum specified power, whichever is less .
1. From 20 to 30 °C, excludes mechanic vibration, measured @ +10 dBm or maximum specified power, whichever is less.
1. Use external 10 MHz input path, between +3 to +7 dBm for maximum performance .
Standard absolute SSB phase noise (dBc/Hz, CW, at 20 kHz offset) () = typical
1
5 MHz to < 250 MHz
–129 (–133)
250 MHz
–140 (–143)
500 MHz
–135 (–139)
1 GHz
–131 (–134)
2 GHz
–124 (–127)
3 GHz
–123 (–127)
4 GHz
–118 (–122)
6 GHz
–116 (–121)
Option UNX absolute SSB phase noise (dBc/Hz, CW, at 20 kHz offset) () = typical
1
5 MHz to < 250 MHz
–140 (–143)
250 MHz
–144 (–150)
500 MHz
–143 (–150)
1 GHz
–141 (–146)
2 GHz
–135 (–141)
3 GHz
–131 (–137)
4 GHz
–118 (–122)
6 GHz
–117 (–121)
Option UNY absolute SSB phase noise (CW) () = measured
1
Frequency 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz
100 kHz
100 MHz (–91) (–113) (–124) (–137) (–142) (–142)
249 MHz (–85) –93 (–110) –103 (–118) –130 (–137) –139 (–142)
–138 (–142)
250 MHz (–85) –96 (–110) –104 (–118) –127 (–139) –144 (–150)
–147 (–152)
500 MHz (–74) –89 (–100) –98 (–109) –125 (–139) –139 (–149)
–145 (–149)
1 GHz (–70) –87 (–97) –93 (–106) –123 (–136) –141 (–146)
–140 (–143)
2 GHz (–65) –79 (–90) –85 (–101) –114 (–131) –135 (–140)
–134 (–137)
3 GHz (–61) –74 (–88) –81 (–98) –112 (–128) –132 (–138)
–131 (–135)
4 GHz (–61) –73 (–84) –79 (–95) –110 (–124) –130 (–134)
–127 (–131)
6 GHz (–57) –69 (–81) –76 (–91) –107 (–121) –126 (-132)
–125 (–129)
Residual FM (CW mode
300 Hz to 3 kHz BW, CCITT, rms)
5 MHz to 6 GHz < N x
2 Hz (measured) (see N value in frequency band table)
Residual AM (CW mode, 0.3 to 3 kHz BW, rms
+5 dBm)
100 kHz to 3 GHz <
0.01% (measured)
谐波 (CW 模式)
条件：Standard (dBc) UNX or UNY (dBc) 9 kHz to < 5 MHz –65, nominal –65, nominal 5 to < 250 MHz –75 –75 (–80) 250 to < 750 MHz –87 –96 (–100)
1. < 3 GHz fixed 100 MHz spur is specified @ –78 dBc. In signal -to -noise optimization mode 100 MHz spur is < –100 dBc, measured.
LO input frequency range 250 MHz to 6 GHz, nominal
LO input power range 0 to +12 dBm, nominal
LO output frequency range 250 MHz to 6 GHz, nominal
LO output power range 0 to +12 dBm, nominal
1. Calculated from phase noise performance in CW mode at +10 dBm. For other frequencies, data rates, or bandwidths, please
Range Standard < +4 dBm Option 1EA <
+12 dBm
9 kHz to 3 GHz < –35 dBc <
–30 dBc
3 to 4 GHz < –35 dBc, typical <
–35 dBc, typical
4 to 6 GHz < –53 dBc, typical <
–40 dBc, typical
Nonharmonics (CW mode)
1 () = typical
Range
10 KHz offset
750 MHz to < 1.5 GHz –87
–92 (–96)
1.5 to < 3.0 GHz –81
–86 (–90)
3 to 6 GHz –75
–80 (–84)
Subharmonics (CW mode) () = typical 9 kHz to 1.5 GHz None 1.5 to 3 GHz –77 dBc (–91) 3 to 6 GHz
–74 dBc (–81)
Jitter (standard phase noise)
1
Carrier frequency SONET/SDH data rate rms jitter BW μUI rms, typical Seconds, typical
155 MHz 155 MB/s 100 Hz to 1.5 MHz 91.8
0.6 ps
622 MHz 622 MB/s 1 KHz to 5 MHz 50.5
81 fs
2.488 GHz 2488 MB/s 5 kHz to 20 MHz 198
80 fs
Jitter (UNX or UNY phase noise)
1
Carrier frequency SONET/SDH data rate rms jitter BW μUI rms, measured Seconds, measured
155 MHz 155 MB/s 100 Hz to 1.5 MHz 40
0.25 ps
622 MHz 622 MB/s 1 KHz to 5 MHz 21
33 fs
2.488 GHz 2488 MB/s 5 kHz to 20 MHz 72
29 fs
Phase coherence (Option
012)
四、Analog 调制规格
频率频段
Band # Frequency range N 1 9 kHz to < 5 MHz (digital synthesis) 1 5 to < 250 MHz 1 2 250 to < 375 MHz
0.25
3 375 to < 750 MHz
0.5
4 750 to < 1500 MHz
1
5 1500 to < 3000.001 MHz
2
6 3000.001 to 6000 MHz
4
频率调制 (选件 UNT) (见 N 值 above)
条件：Max deviation N × 4 MHz, nominal 3
Sensitivity +1 V peak for indicated deviation, nominal
Input impedance 50 Ω/600 Ω/1 MΩ, nominal
internally for composite modulation 1. Specification valid for temperature changes of less than ± 5 °C since last DCFM calibration. 2. Typical performance immediately after a DCFM calibration. 3. Digital synthesis band FM deviation is 5 MHz.
Resolution
1 Hz, nominal
Deviation accuracy < ± 2% + 20 Hz (1 kHz rate, deviation is N x
50 kHz)
Modulation frequency response @
100 kHz
deviation 1 dB bandwidth
3 dB bandwidth
DC/5 Hz to 3 MHz, nominal
DC/1 Hz to 7 MHz, nominal
Carrier frequency accuracy < ± 0.2% of set deviation + (N × 1 Hz)
1
Relative to CW < ± 0.06% of set deviation + (N × 1 Hz), typical
2
Total harmonic distortion < 0.4% [1 kHz rate, deviation is N x
50 kHz]
FM using external inputs
1 or 2
Paths FM path 1 and FM path
2 are summed
频率响应
条件：Normal bandwidth (3 dB) DC to 1 MHz, nominal
High-bandwidth mode (3 dB) DC to 4 MHz, nominal
Sensitivity +1 V peak for indicated deviation, nominal
Input impedance 50 Ω or 600 Ω or 1 MΩ, nominal
Resolution
0.1% of deviation
Deviation accuracy < + 0.5% +
0.01 rad, typical [1 kHz rate, normal bandwidth mode]
Total harmonic distortion < 0.2%, typical [1 kHz rate, N x
1 radian deviation normal bandwidth mode]
ΦM using external inputs
1 or 2
Paths ΦM path 1 and ΦM path
2 are summed
internally for composite modulation
Amplitude modulation (Option UNT)
1
AM depth type Linear or exponential
条件：Frequency response wideband AM (N5182B only) Rates ALC off/on: DC/800 Hz to 80 MHz, nominal 1. AM specifications apply 6 dB below maximum specified power from 20 to 30 °C.
Maximum depth
100%
Depth resolution
0.1% of depth (nom)
AM depth error @1 kHz rate and
< 80% depth
f < 5 MHz < 1.5% of setting + 1% (typ
0.5% of setting
+ 1%)
5 MHz < f < 2 GHz < 3% of setting +
1 %
2 < f < 3 GHz < 5% of setting + 1% (typical
3% of setting
+ 1%)
Total harmonic distortion @
1 KHz rate
F <
5 MHz
30% depth <
0.25%, typical
80% depth <
0.5%, typical
5 MHz < f <
2 GHz
(2 to 3 GHz is typical)
30% depth <
2%
80% depth <
2%
Frequency response 30% depth
3 dB BW DC/10 Hz to 50 KHz
AM inputs using external inputs
1 or 2
Sensitivity
± 1 V peak for indicated depth (Over-range
can be
200% or 2.2 V peak)
Input impedance
50 Ω or 600 Ω or 1M Ω, Damage level:
± 5 V max
Paths AM path 1 and AM path
2 are summed
internally for composite modulation
条件：Input impedance 50 Ω, nominal (I input)
Wideband AM inputs (N5182B only)
Sensitivity
1 V peak-to-peak sine wave signal with 0.5 V
DC offset required input for 100% AM
Simultaneous and composite modulation
2
Simultaneous modulation
All modulation types (I/O, FM, AM, ΦM, and pulse modulation) may be simultaneously
enabled except: FM and phase modulation cannot be combined and two modulation types
cannot be simultaneously generated using the same modulation source; for example, the
baseband I/Q generator, AM, and FM can run concurrently and all will modulate the output
RF (this is useful for simulating signal impairments)
Composite modulation AM, FM, and ΦM each consist of two modulation paths which are summed internally for
composite modulation; modulation can be any combination of internal or external sources
AM FM Phase Pulse Internal I/Q 1 External I/Q
1
Pulse + + + – + +
条件：+ = compatible, - = incompatible, * = Internal + External 1. AM specifications apply 6 dB below maximum specified power from 20 to 30 °C. 2. I/Q modulation available on N5182B.
Frequency accuracy Same as RF reference source, nominal
LF audio output 0 to 5 V peak into 50 Ω, –5V to 5 V offset, nominal
Internal I/Q (1) + + + + – +
External I/Q (1) + + + + + –

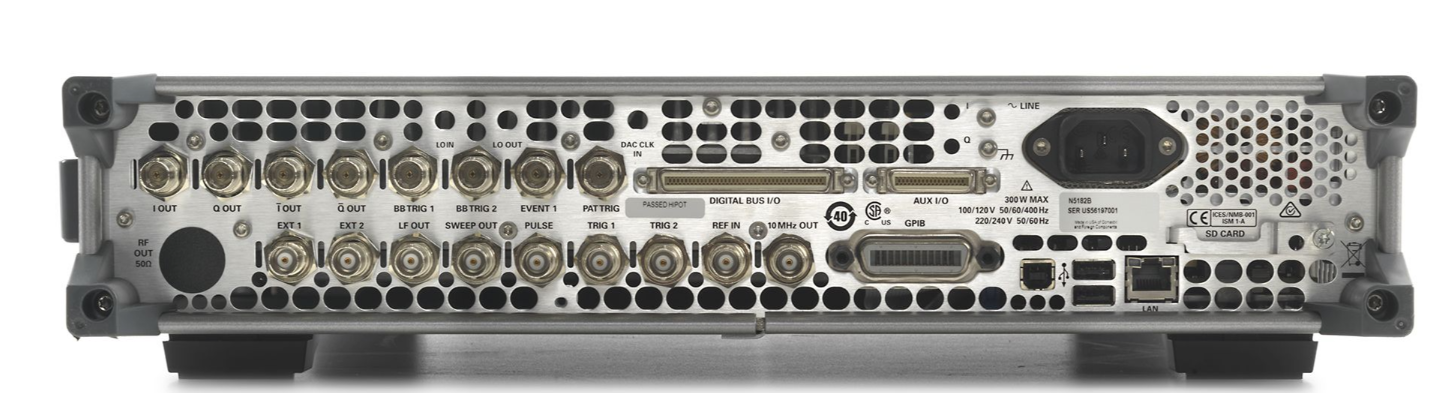

External modulation inputs (Option UNT required for FM, AM, and phase modulation inputs; Option UNW required for pulse modulation inputs)
EXT1 AM, FM, PM
EXT2 AM, FM, PM
PULSE Pulse (50 Ω only)
I Wideband AM (50 Ω only, N5182B only requires Q to be biased with 1.0 V)
Input impedance 50 Ω, 1 MΩ
600 Ω, DC and AC coupled
Standard internal analog modulation source (Single sine wave generator for use with AM, FM, phase modulation requires Option UNT or 303)
Waveform Sine, square, triangle, positive ramp, negative ramp
Rate range
0.1 Hz to 2 MHz (tunable to 3 MHz)
Resolution
0.1 Hz
Multifunction generator (Option
303)
The multifunction generator option (Option 303) consists of seven waveform generators that can be set independently with up to
five simultaneously using the composite modulation features in AM, FM/PM, and LF out
条件：DC Only for LF output –5 V to +5 V, nominal
Function generator
1 Sine, triangle, square, positive ramp, negative ramp, pulse
Function generator
2 Sine, triangle, square, positive ramp, negative ramp, pulse
Dual function generator Sine, triangle, square, positive ramp, negative ramp, phase offset, and amplitude ratio for
Tone 2 relative to Tone
1
Swept function generator Sine, triangle, square, positive ramp, negative ramp
Trigger: free run, trigger key, bus, external, internal, timer trigger
Noise generator
1 Uniform, Gaussian
Noise generator
2 Uniform, Gaussian
条件：Triangle, square, ramp, pulse 0.1 Hz to 1 MHz, nominal
Noise bandwidth 10 MHz, nominal
Frequency accuracy Same as RF reference source, nominal
Sine wave
0.1 Hz to 10 MHz
Resolution
0.1 Hz
Narrow pulse modulation (Option UNW)
1 () = typical
On/off ratio (>
80 dB)
Rise/fall times (Tr, Tf) <
10 ns; (7 ns)
Minimum pulse width ALC on/off > 2 µs/>
20 ns
Repetition frequency ALC on/off
10 Hz to 500 kHz/DC to 10 MHz
电平精度 (相对至 CW) ALC on/关
条件：External video delay (ext input to video) 30 ns, nominal
RF delay (video to RF output) 20 ns, nominal
Input level +1 Vpeak = RF on into 50 Ω, nominal
< ± 1.0 (± 0.5) dB/(<
± 0.5) dB
Width compression (RF width relative to video out) (<
5 ns)
Video feed-through 3 ≤ 3 GHz/> 3 GHz (< 50 mV/<
5 mV)
Pulse overshoot (<
15%)
Vor 脉冲过冲
条件：Vf Video feedthrough 1. Pulse specifications apply to frequencies > 100 MHz and power set to > -3 dBm. Operable down to 9 kHz. 2. With power search on. 3. Video feed through applies to power levels < +10 dBm.
Internal pulse generator (included with Option UNW)
Square wave rate 0.1 Hz to 10 MHz, 0.1 Hz resolution, nominal
Pulse period 30 ns to 42 seconds, nominal
Pulse width 20 ns to pulse period –10 ns, nominal
Modes Free-run, square, triggered, adjustable doublet, trigger doublet, gated, and external pulse
Resolution
10 ns
Adjustable trigger delay (– pulse period + 10 ns) to (pulse width
–10 ns)
Settable delay
条件：Resolution (delay, width, period) 10 ns, nominal
Free run
–3.99 to 3.97 µs
Triggered
0 to 40 s
Pulse doublets 1st pulse delay (Relative to sync out)
0 to 42 s – pulse width
– 10 ns
1st pulse width
20 ns to 42 s – delay – 10 ns
2nd pulse delay 0 to 42 s – (Delay 1 + Width
2) – 10 ns
2nd pulse width 20 ns to 42 s – (Delay 1 + Delay
2) – 10 ns
Pulse train generator Option N5180320B (requires Option UNW)
Number of pulse patterns
2047
On/off time range
20 ns to 42 sec
Avionics (Option N5180302B)
条件：Frequency accuracy Same as RF reference source, nominal
Bearing accuracy
± 0.1°
AM accuracy 30% depth
± 5% of setting
AM distortion
2%
FM accuracy 480 Hz deviation
± 1.7 Hz
ILS: localizer and glide slope
AM accuracy 40% depth
± 5% of setting
AM distortion
2%
Difference in depth of modulation (DDM) resolution
Localizer
0.0002
Glide slope
0.0004
Difference in depth of modulation (DDM) accuracy
Localizer ± 0.0004 ± 5% of DDM
1
Glide slope ± 0.0008 ± 5% of DDM
1
Marker beacon
条件：1. DDM must not be equal to 0.
Marker tone AM accuracy 95% depth ± 5% of setting +
1%
Marker tone AM distortion 95% depth
5%
五、矢量调制规格
条件：Baseband (I or Q) Up to 100 MHz baseband, nominal
Full scale input drive (I+Q) 0.5 V into 50 Ω, nominal
RF (I+Q) Up to 200 MHz RF
I or Q offset
± 100 mV (200 uV resolution)
I/Q gain balance
± 4 dB (0.001 dB resolution)
I/Q attenuation
0 to 50 dB (0.01 dB resolution)
Quadrature angle adjustment
± 200 units (0.1 units resolution)
Internal I/Q baseband generator adjustments 1, 2 (Options
656 and 657)
I/Q offset
± 20% (0.025% resolution)
I/Q gain
± 1 dB (0.001 dB resolution)
Quadrature angle adjustment
± 10 ° (0.01 degrees resolution)
I/Q phase
± 360.00 ° (0.01 degrees resolution)
I/Q skew
± 800.00 ns (1 picosecond resolution)
I/Q delay
± 250.00 ns (1 picosecond resolution)
外部 I/Q 输出
条件：Impedance 50 Ω, nominal per output 100 Ω, nominal differential output
Type Single-ended or differential (Option
1EL)
Maximum voltage per output
1 V peak-to-peak or 0.5 V peak
Bandwidth (I, Q)
条件：Baseband (I or Q) 80 MHz, nominal (Option 656 and 657)
RF (I+Q) 160 MHz, nominal (Option 656 and 657)
Amplitude flatness ± 0.2 dB measured with channel corrections optimized for I/Q output
Phase flatness ± 2.5 degrees measured with channel corrections optimized for I/Q output
1. I/Q adjustments represent user interface nominal parameter ranges and not specifications .
2. Internal I/Q adjustments apply to RF out and I/Q outputs simultaneously .
Internal real-time complex digital I/Q filters (included with Option 656)
Common mode I/Q offset ± 1.5 V into
50 Ω (200 µV resolution)
Differential mode I or Q offset ± 50 mV into
50 Ω (200 µV resolution)
Factory channel correction (256 taps)
Corrects the linear phase and amplitude response of the baseband I/Q and RF outputs of the signal generator using factory calibration
arrays. (default mode is off)
RF amplitude flatness (160 MHz)
± 0.2 dB measured
RF phase flatness (160 MHz)
± 2 degrees measured
User channel correction (256 taps)
Automated routine uses power sensor to correct for linear phase and amplitude response of DUT (equalizer). See Users Guide for more
条件：SystemVue to correct for linear errors of DUT/system. See Users Guide for more details.
Recommended max amplitude error for correction
± 15 dB
Recommended max phase error for correction
± 25 degrees
Equalization filter (256 taps)
User can download and apply inverse or custom phase and amplitude response coefficients from tools such as MATLAB
89600 VSA or
Baseband generator (Options
656 and 657)
Channels
2 [I and Q]
Resolution
16 bits [1/65,536]
采样率
Option 656
100 Sa/s to 100 MSa/s
Option 656 and 657
100 Sa/s to 200 MSa/s
Maximum number of waveform files in cache
1024
RF (I+Q) bandwidth Option
656
Option
656 and 657
80 MHz, nominal
160 MHz, nominal
Interpolated DAC rate 800 MHz (waveforms only need OSR =
1.25)
Frequency offset range
± 80 MHz
数字扫描模式
In list sweep mode each point in the list can have independent waveforms (N5182B) along
with user definable frequencies and amplitudes; see the Amplitude and Frequency
Specifications sections for more detail
Waveform switching speed
1
SCPI mode
≤ 5 ms, measured (standard)
≤ 1.2 ms, measured (Option UNZ)
List/step 扫描模式
≤ 5 ms, measured (standard)
≤ 900 µs, measured (Option UNZ)
Waveform transfer rates (measured, no markers, unencrypted)
FTP LAN to internal SSD
10.7 MB/sec or 2.67 Msa/sec
Internal SSD to FTP LAN 7.7 MB/sec
1.92 Msa/sec
FTP LAN to BBG
8.2 MB/sec or 2.05 Msa/sec
FTP LAN to BBG encrypted
4 MB/sec or 1 Msa/sec
USB to BBG
19 MB/sec or 4.75 Msa/sec
BBG to USB
1.2 MB/sec or 300 Ksa/sec
Internal SSD to BBG
48 MB/sec or 12 Msa/sec
BBG to internal SSD
1.2 MB/sec or 300 Ksa/sec
SD card to BBG (Option 006)
2.7 MB/sec or 678 Ksa/sec
BBG to SD card (Option 006)
845 KB/sec or 211 Ksa/sec
1, SCPI mode switching speed applies when waveforms are pre-loaded in list sweep and sample rate ≥
10 MSa/s.
Arbitrary 波形存储
Maximum playback capacity 32 Msa (standard) 512 Msa (Option 022) 1024 Msa (Option
023)
Maximum storage capacity including markers 3 GBytes/800 Msa (standard) 30 GBytes/7.5 Gsa (Option 009) 8 GBytes / 2 Gsa (Option
006)
Waveform segments
Segment length 60 samples to 32 Msa (standard) 60 samples to 512 Msa (Option 022) 60 samples to 1024 Msa (Option
023)
Minimum memory al- location per segment
256 samples
Maximum number of segments
8192
Label 最大值编号波形 files
Value
1024
Waveform sequences
Maximum number of sequences
2000 depending on non-volatile memory
Maximum number of segments/sequence 32,000 (standard) 4 million (Option
022 or 023)
Maximum number of repetitions
65,535
Segment advance Single or continuous
条件：Trigger latency (Single trigger only) 356 ns + 1 sample clock period, nominal
Trigger accuracy (Single trigger only) ± 2.5 ns, nominal
External coarse delay time
5 ns to 40 s
External coarse delay resolution
5 ns
Single trigger - restart on trigger mode will initiate a FIFO clear. Therefore, the latency
includes re-filling the buffer. The latency is 8 µs + (1406 x sample period)
± 1 sample clock
period, 标称值
条件：Trigger repeatability < 1 ns, nominal
Multi-baseband generator synchronization mode (multiple sources)
Fan out
1 primary and up to 15 secondary
Fine 触发延迟范围见内部 I/Q Baseband section
Fine trigger delay resolution See Internal I/Q Baseband section
Markers are defined in a segment during the waveform generation process, or from the front
panel; a marker can also be routed to the RF blanking, ALC hold functions, and alternate
Marker polarity Negative, positive
Number of markers
4
RF blanking/burst on/off ratio
80 dB
Alternate amplitude control switching speed See amplitude section
Real-时间调制 FIR 滤波器
Filter types: Nyquist, root-Nyquist, WCDMA, EDGE, Gaussian, rectangular, APCO
25 C4FM
IS-95, User FIR
(Applies real-time FIR filtering when playing waveforms with OSR=1. Helps reduce waveform
size for long simulation times. Option
660 not required.)
Real-time baseband generator (Option
660)
Real-time baseband generator required for real-time Signal Studio applications
1
Cellular real-time applications LTE-FDD, LTE-TDD, HSPA+/W-CDMA,
GSM/EDGE, cdma2000®
Real-time navigation GPS, GLONASS, Galileo
Real-time video applications DVB-T/T2/H/S/S2/C/J.83 Annex A/C,
条件：the interface module adapts to your device with the logic type, data format, clock features, and signaling you require.
Note: Option
660 is not required for real-time custom modulation (Option N5180431B)
Memory: Shares memory with Options
656 and 657
Triggering: Same as Options
656 and 657
Markers: 3 markers available, all other features are same as Options
656 and 657
Digital baseband inputs/outputs (Option
003/004)
Options 003 and 004 activate the rear panel digital I/Q bus and enable connectivity to the N5102A digital signal interface module. In output
mode (003), you can deliver realistic complex-modulated signals such as LTE, GPS, WLAN, custom pulses and many others directly to
your digital devices and subsystems. In the input mode (004), the interface module ports your digital input to the signal generator's
baseband system, providing a quick and easy way of upconverting to calibrated analog I/Q,IF,or RF frequencies. In both operating modes,
Data (requires N5102A)
Digital data format User-selectable
2's complement or binary offset, I/Q (I,I-bar,Q,Q-bar) or digital IF output
(real,imaginary)
Data port Dual
16-bit data buses support parallel, parallel I/Q interleaved,parallel Q/I interleaved,or
serial port configuration
N5102A connectors (breakout boards)
144-pin Tyco Z-Dok+ connects to break-out boards (included with N5102A) that interface
with the following connector types:68-pin SCSI,38-pin dual AMP Mictor
100-pin dual
Samtec, 20-pin dual 0.1 inch headers, 40-pin dual
0.1 inch headers
Logic types
Single-ended:LVTTL,1.5V CMOS,1.8V CMOS,2.5V CMOS
3.3.V CMOS
Differential: LVDS
Data output resampling MXG baseband output is resampled to the arbitrary clock rate set by the user via real-time
curve-fit calculations
Clock (requires N5102A)
时钟输入
User selectable: internal clock, device under test clock, or external clock (via SMA or
时钟输出
User selectable:via breakout board or SMA Clock Out connector
N5102A SMA Clock Out connector: 2 Vpp into load > 5K Ω from 1 to 100 kHz
400 mVpp
into
50 Ω load from 100 kHz to 400 MHz
Sample rate (limited by MXG sample rate)
User-selectable in parallel mode up to a maximum
200 MHz,but limited by other user
settings (see N5102A users guide for more details).
User-selectable in serial mode, the maximum rate is
400 MHz/word size.
比特率 (limited by MXG 采样率)
Parallel Up to 200 MHz x word size (1.6 Gbps LVDS,CMOS and LVTTL) per parallel bus
2
parallel buses available
Serial Up to 400 MHz per serial line (400 Mbps LVDS) or 150 MHz per serial line (150 Mbps
(CMOS/LVTTL)
32 lines available)
Clocks per sample In parallel output mode, the data sample can be held for
2 or 4 clock cycles
Clock to data skew Coarse adjustment in 90°steps from 0 to 270º;fine-adjustment in increments of 100 ps up
to 5 ns
时钟 polarity 时钟信号 may be inverted
Frequency reference input 1 to 100 MHz BNC,50 Ω,3 dBm
± 6 dB
Power supply (included on N5102A) Output: 5V
4A DC
AWGN (Option N5180403B)
Type Real-time, continuously calculated, and played using DSP
Modes of operation Standalone or digitally added to signal played by arbitrary waveform or real-time baseband
条件：Bandwidth With Option 656 1 Hz to 80 MHz
With Option 656 and 657 1 Hz to 160 MHz
Crest factor
15 dB
Randomness 90 bit pseudo-random generation,repetition period 313 x
109 years
Carrier-to-noise ratio
±100 dB when added to signal
Carrier-to-noise ratio formats C/N,Eb/No
Carrier-to-noise ratio error Magnitude error ≤
0.2 dB at baseband I/Q outputs
Custom modulation Arb Mode (Option N5180431B)
BPSK, QPSK, OQPSK, π/4DQPSK,gray
coded and unbalanced QPSK, 8PSK
16PSK
D8PSK,IS95 QPSK,IS95 OQPSK,EDGE,
QAM 4, 16, 32, 64, 128, 256, 1024 (and
89600 VSA
FSK Selectable:2,4,8
16, C4FM, HCPM
MSK
0 to 100°
ASK
0 to 100%
DVB-S2 APSK
16APSK 2/3,16APSK 3/4 16APSK
4/5
16APSK 5/6,16APSK 8/9,16APSK
9/10
32APSK 3/4 32APSK 4/5,32APSK
5/6
32APSK 8/9,32APSK
9/10
Number of carriers
Up to 100 (limited by a max bandwidth of
160 MHz depending on symbol rate and
调制类型)
Frequency offset (per carrier) Up to –80 to +80 MHz
Power offset (per carrier)
0 dB to –40 dB
Symbol rate
50 sps to 100 Msps
Filter types Nyquist, root-Nyquist, Gaussian, rectangular, APCO
25 C4FM,user
IS-95 w/EQ,IS-95 Mod,IS-95 Mod w/EQ,
HDQPSK, APCO25 HCPM, SOQPSK-TG
Quick setup modes
PCO25w/C4FM,APCO25w/CQPSK,
Bluetooth®, CDPD, DECT, EDGE, GSM,
NADC, PDC, PHS, PWT, TETRA 16APSK 2/3,16APSK 3/4 16APSK 4/5,16APSK 5/6,16APSK 8/9,16APSK 9/10,32APSK 3/4,32APSK 4/5,32APSK
5/6
32APSK 8/9,32APSK
9/10
Custom modulation real-time mode (Option N5180431B) (Does not require Option
660)
BPSK, QPSK, OQPSK, π/4DQPSK,gray
coded and unbalanced QPSK, 8PSK
16PSK
D8PSK,SOQPSK
QAM 4, 16, 32, 64, 128, 256, 1024 (and
89600 VSA
Selectable
2,4,8,16 level symmetric, C4FM
User-defined Custom map of up to 16 deviation levels
Max deviation
20 MHz
MSK
0 to 100°
ASK
0 to 100%
Custom I/Q Custom map of 1024 unique values
Frequency offset Up to –80 MHz to +80 MHz
Symbol rate
Internal generated data
1 sps up to 100 Msps and max of 10 bits per
symbol (Option 656 +
657)
External serial data
1 sps to [(50 Mbits/sec)/(#bits/symbol)]
Nyquist,root-Nyquist,Gaussian,rectangular,
APCO 25 (phase
1 and 2 UL and DL), IS-95
WCDMA, EDGE (wide and HSR)
Custom FIR
16-bit resolution,up to 64 symbols long,automatically resampled to 1024 coefficients (max)
32 to 64 symbol filter:symbol rate ≤
12.5 MHz
16 to 32 symbol filter: symbol rate ≤
25 MHz
Internal filters switch to 16 tap when symbol
rate is between
25 and 100 MHz
Quick setup modes APCO
25 with (C4FM, CQPSK, HCPM, HDQPSK), TETRA, Bluetooth, CDPD, DECT
EDGE, GSM, NADC, PDC, PHS, PWT, WorldSpace, Iridium, ICO, CT2, TFTS, SOQPSK
触发延迟
Range
0 to 1,048,575 bits
Resolution
1 bit
适用型号 Pseudo-random patterns PN9,PN11,PN15,PN20,PN23
Repeating sequence Any
4-bit sequence
Direct-码型 RAM [PRAM] 最大尺寸
Note: Used for custom TDMA/non- standard framing 32 Mb (standard) 512 Mb (Option
022)
1024 Mb (Option
023)
User file 32 MB (standard) 512 MB (Option 022) 1024 MB (Option
023)
内部 burst shape (varies（含） 比特率)
Rise/fall time range Up to 30 bits
Rise/fall delay range
–15 to +15 bits
Multitone and two-tone (Option N5180430B)
Number of tones
2 to 512, with selectable on/off state per tone
Frequency spacing 100 Hz to 160 MHz (Option
656 and 657)
Phase (per tone) Fixed or random
Real-time phase noise impairments (Option N5180432B)
Close-in phase noise characteristics
–20 dB per decade
Far-out phase noise characteristics
–20 dB per decade
六、Mid-频率规格
Start frequency (f1) Offset settable from 0 to 77 MHz
Stop frequency (f2) Offset settable from 0 to 77 MHz
Phase noise amplitude level (L(f)) User selected;max degradation dependent on f2
3GPP W-CDMA distortion performance
1,2
标配选件 UNV 选件 UNV（含）
Option
1EA
Power level ≤2 dBm 2 ≤2 dBm 2 ≤5 dBm
2
Offset Configuration Frequency Spec Typ Spec Typ Spec Typ
条件：1. ACPR specifications apply when the instrument is maintained within 20 to 30 °C.
2. This is rms power. Convert from rms to peak envelope power (PEP) with the following equation:PEP =rms power + crest factor
Adjacent (5 MHz)
1 DPCH,1 carrier
1800 to 2200 MHz
– 69 dBc –73 dBc –71 dBc –75 dBc –71 dBc
–75 dBc
Alternate (10 MHz) –70 dBc –75 dBc –72 dBc –77 dBc –71 dBc
–77 dBc
Adjacent (5 MHz) Test model
1 with
64 DPCH,1 carrier
1800 to 2200 MHz
–68 dBc –70 dBc –71 dBc –73 dBc –71 dBc
–72 dBc
Alternate (10 MHz) –73 dBc –72 dBc –76 dBc –71 dBc
–76 dBc
Adjacent (5 MHz) Test model
1 with
64 DPCH,4 carrier
1800 to 2200 MHz
–63 dBc –65 dBc –65 dBc –67 dBc –64 dBc
–66 dBc
Alternate (10 MHz) –64 dBc –66 dBc –66 dBc –68 dBc –66 dBc
–68 dBc
(for example, 3GPP test model 1 with 64 DPCH has a crest factor 11.5 dB, therefore at +5 dBm rms, the PEP =
5 dBm +
11.5dB =
+16.5 dBm PEP).
3GPP LTE-FDD distortion performance
标配选件 UNV 选件 UNV（含）
Option
1EA
Power level ≤ 2 dBm 2 ≤ 2 dBm 2 ≤ 5 dBm
2
Offset Configuration Frequency Spec Typ Spec Typ Spec Typ
条件：1. ACPR specifications apply when the instrument is maintained within 20 to 30 °C.
2. This is rms power. Convert from rms to peak envelope power with the following equation: PEP = rms power + crest factor (for
3. ACPR measurement configuration:reference channel integration BW:9.015 MHz,offset channel integration bandwidth :
Adjacent (10 MHz) 3 10 MHz E-TM
1.1
QPSK 1800 to 2200 MHz –64 dBc –66 dBc –67 dBc –69 dBc –64 dBc
–67 dBc
Alternate (20 MHz) 3 –66 dBc –68 dBc –69 dBc –71 dBc –69 dBc
–71 dBc
example,3GPP test model 1 with 64 DPCH has a crest factor 11.5 dB,therefore at +5 dBm rms,the PEP =5 dBm +
11.5 dB =
+16.5 dBm PEP).
9.015 MHz.
GSM EDGE
Power level < +7 dBm <
+7 dBm
Offset Configuration Frequency
1 Standard, typical Option UNV
typical Standard, typical Option UNV, typical 200 kHz
1 normal timeslot
bursted 800 to 900 MHz
1800 to 1900 MHz
–34 dBc –36 dBc –37 dBc
–38 dBc
400 kHz –69 dBc –70 dBc –69 dBc
–70 dBc
600 kHz –81 dBc –82 dBc –80 dBc
–81 dBc
800 kHz –82 dBc –83 dBc –82 dBc
–83 dBc
1200 kHz –84 dBc –85 dBc –83 dBc
–84 dBc
3GPP2 cdma2000 distortion performance,typical
Standard Option UNV Option UNV +
1EA
Power level 2 ≤2dBm ≤2 dBm ≤
5 dBm
Offset Configuration Frequency (1) Typical Typical Typical
885 kHz to
1.98 MHz
9 channel forward
link
800 to 900 MHz
–78 dBc –79 dBc
–77 dBc
1.98 to 4.0 MHz –86 dBc –87 dBc
–87 dBc
>4.0 to 10 MHz –91dBc –93 dBc
–93 dBc
802.16e Mobile WiMAX™ distortion performance, measured
Power Offset 3 Configuration
4 Frequency Standard
measured UNV, measured
条件：1. Performance evaluated at bottom, middle, and top of bands shown.
2. This is rms power. Convert from rms to peak envelope power (PEP) with the following equation:PEP =rms power + crest factor (for
3. Measurement configuration: reference channel integration BW: 9.5 MHz, offset channel integration BW: 9 MHz, channel offset:
4. 802.16e WiMAX signal configuration –bandwidth:10 MHz,FFT:1024,frame length:5 ms,guard period:1/ 8,symbol rolloff:5%,
EVM power level with Option 1EA ≤ 13 dBm ≤ 13 dBm ≤ 13 dBm ≤ 13 dBm ≤ 13 dBm
<-7 dBm 10 MHz QPSK 2.5 and 3.5 GHz –65 dBc
–68 dBc
Up to +5 dBm 10 MHz QPSK 3.5 GHz –62 dBc
–65 dBc
example:3GPP test model 1 with 64 DPCH has a crest factor >11 dB,therefore at +5 dBm rms the PEP =5 dBm +
11 dB =
+16 dBm PEP).
10 MHz.
content
30 symbols of PN9 data.
EVM performance data
2
Format GSM EDGE cdma2000/IS95A W-CDMA LTE FDD
3
Modulation type GMSK (bursted) 3pi/8 8PSK (bursted) QPSK QPSK
64 QAM
Modulation rate 270.833 ksps 70.833 ksps 1.2288 Mcps 3.84 Mcps
10 MHz BW
Configuration 1 timeslot 1 timeslot Pilot channel 1 DPCH E-TM
3.1
Frequency
800 to 900 MHz
1800 to1900 MHz
800 to 900 MHz
1800 to 1900 MHz
800 to 900 MHz
1800 to 1900 MHz 1800 to 2200 MHz
1800 to 2200 MHz
EVM power level ≤ 7 dBm ≤ 7 dBm ≤ 7 dBm ≤ 7 dBm ≤
7 dBm
EVM/global 相位误差
条件：EVM power level with Option 1EA ≤2 dBm ≤2 dBm ≤10 dBm ≤10 dBm ≤10 dBm ≤10 dBm
Spec Typ Spec Typ Spec Typ Spec Typ Measured rms 0.8 ° 0.2 ° 1.2% 0.75% 1.3% 0.8% 1.2% 0.8%
0.2%
Format 802.11a/g 802.11ac5 QPSK
16 QAM
Modulation type 64 QAM 256 QAM QPSK
16 QAM
Modulation rate 54 Mbps 80 MHz 4 Msps (root-Nyquist filter α=
0.25)
Frequency
4
2400 to
2484
MHz GHz
5.775
≤ 3 GHz ≤ 6 GHz ≤ 3 GHz ≤
6 GHz
5150 to
5825 MHz
EVM power level ≤–5 dBm ≤–5 dBm ≤4 dBm ≤4 dBm ≤4 dBm ≤
4 dBm
条件：Measured Measured Spec Typ Spec Typ Spec Typ Spec Typ 0.3% 0.4% 1.2% 0.8% 1.9% 1.1% 1.1% 0.65% 1.5% 0.9% 1. EVM specifications apply for the default ARB file setup conditions with the default ARB files supplied with the instrument. 2. EVM specifications apply after execution of I/Q calibration when the instrument is maintained within ±5 °C of the calibration
temperature. 3. LTE FDD E -TM 3.1, 10 MHz, 64 QAM PDSCH, full resource block. Measured EVM after DC calibration. 4. Performance evaluated at bottom, middle, and top of bands shown.
WLAN 802.11ac 80 MHz,256 QAM,MCS
7 symbols, no filtering. Channel corrections enabled. Rx equalizer training preamble
Bit error rate [BER] analyzer (Option UN7)
Clock rate
100 Hz to 60 MHz (usable to 90 MHz)
Data patterns PN9, 11, 15, 20
23
Resolution
10 digits
Bit sequence length
100 bits to 4,294 Gbits after synchronization
七、通用规格
GPIB IEEE-488.2
1987 with listen and talk
LAN
1000BaseT LAN interface,LXI class C compliant
USB Version
2.0
Control languages Control languages SCPI Version
1997.0
Compatibility languages
Keysight Technologies:N5181A\61A,N
5182A\62A, N5183A, E4438C, E4428C, E442xB, E443xB
适用型号 E8241A, E8244A, E8251A, E8254A, E8247C, E8257C/D,E8267C/D,8648 Series,8656B,E8663B,
8657A/B,8662A
8663A
Aeroflex Incorporated
3410 Series
Rohde &Schwarz:SMB100A,SMBV100A,SMU200A,SMJ100A,SMATE200A,SMIQ,SML,SMV
Power requirements 100/120 VAC,50/60/400 Hz 220/240 VAC,50/60 Hz
160 W maximum (N5181B)
300 W maximum (N5182B)
Operating temperature range
0 to 55 °C
存储温度范围
-40 to 70 °C
工作和存储海拔
Up to 4,600 meters
Up to 3,000 meters (Option
660 only)
Environmental stress
条件：humidity,shock,vibration,altitude,and power line conditions;test methods are aligned with IEC 60068-2 and levels are similar to MIL-
1. From 40 °C to 55 °C, the maximum % Relative Humidity follows the line of constant dew poin t.
Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust
against the environmental stresses of storage, transportation and end-use; those stresses include but are not limited to temperature,
PRF-28800F Class
3
Complies with European Low Voltage Directive
2006/95/EC
–IEC/EN 61010-1
2nd Edition
– Canada: CSA C22.2 No.
61010-1
–USA:UL std no. 61010-1
2nd Edition
Acoustic noise emission
LpA <
70 dB
Normal position
Per ISO
7779
LpA <
70 dB
Normaler Betrieb
Nach DIN
45635 t.19
Complies with European EMC Directive
2004/108/EC
–IEC/EN 61326-1or IEC/EN
61326-2-1
CISPR Pub 11 Group
1,class A
AS/NZS CISPR
11
ICES/NMB-001
This ISM device complies with Canadian ICES-001; cet appareil ISM est conforme a la
norme NMB-001 du Canada
条件：3 GB (30 GB with Option 009) memory available in the N5182B
–Memory is shared by instrument states,user data files,sweep list files,waveform sequences,and other files
Security Option 006 allows storage of up to 8 GB on SD card
Depending on how the memory is utilized,a maximum of 1000 instrument states can be saved
Security (Option
006)
No internal non-volatile memory (Option SD0)
Disable/remove any internal non-volatile memory or solid state drive
User will not be able to store any files in the internal memory of the instrument
Not compatible with instrument hardware option 009 (Internal Solid State Memory) and option
660 (Base Band Generator with Real-Time
Requires firmware B.01.80 or newer
N5181B:≤13.6 kg (30 lb) net,≤
28.6 kg (63 lb) shipping
N5182B: ≤ 15.9 kg (35 lb) net, ≤
30.8 kg (68 lb) shipping
Dimensions 88 mm Hx 426 mm W x 489 mm L (length includes rear panel feet) (3.5 in H x 16.8 in W x
19.2 in L)
Max length (L) include RF connector tip to end of rear panel feet is
508 mm (20 in)
Recommended calibration cycle
36 months
前面板面板连接器
RF output Outputs the RF signal via a precision N type female connector; see output section for reverse
power protection information
条件：I and Q inputs BNC input accepts “in-phase”and “quadrature”input signals for I/Q modulation;nominal input
of the instrument; also used with U2000, U848X and U202X Series USB power sensors.
imped- ance is 50 Ω,damage levels are
1 Vrms and 5 Vpeak
USB
2.0 Used with a memory stick for transferring instrument states,licenses and other files into or out
后面板面板连接器
Rear panel inputs and outputs are 3.3 V CMOS,unless indicated otherwise;CMOS inputs will accept 5 V CMOS
3 V CMOS, or TTL
电压电平
条件：Accepts “in-phase” and “quadrature” input signals for I/Q modulation SMB connector,nominal
I and Q outputs BNC outputs the analog I/Q modulation signals from the internal baseband generator;nominal
RF output (Option
1EM) Outputs the RF signal via a precision N type female connector
I and Q inputs (Option
1EM)
input impedance is 50 Ω; damage levels are 1 Vrms and 5 Vpeak; Option
1EM units will come
with 2 SMB to BNC adapters
output impedance 50 Ω, DC coupled; damage levels
±2 V
I bar and Q bar outputs (Option 1EL) BNC outputs the complement of the I and Q signals for differential applications
Event
1
This connector outputs the programmable timing signal generated by marker
1
The marker signal can also be routed internally to control the RF blanking and ALC hold
functions;this signal is also available on the AUX I/O connector
With bit error rate analyzer (Option UN7) this connector is used for data input
Damage levels are >+8 V and <
–4 V
码型触发
Accepts signal to trigger internal pattern generator to start single pattern output, for use with the
internal baseband generators
Accepts CMOS signal with minimum pulse width of 10 ns
Damage levels are > +8 V and <
–4 V
BBTRIG 1 For arbitrary and real-time baseband generators I/O such as Markers or trigger inputs
With bit error rate analyzer (Option UN7) this connector is used for clock input
BBTRIG 2 For arbitrary and real-time baseband generators I/O such as Markers or trigger inputs
With bit error rate analyzer (Option UN7) this connector is used for gate input
Sweep out
条件：Ext 1 External AM/FM/PM #1 input;nominal input impedance is 50 Ω/600 Ω/1M Ω,nominal;damage
Ext 2 External AM/FM/PM #2 input;nominal input impedance is 50 Ω/600 Ω /1M Ω,nominal;
LF OUT 0 to 5 V peak into 50 Ω, –5 V to 5 V offset, nominal
Generates output voltage
0 to +10 V when the signal generator is sweeping; this output can
also be programmed to indicate when the source is settled or output pulse video and is TTL and
CMOS compatible in this mode;output impedance <1 Ω,can drive
2 kΩ; damage levels are
± 15 V.
levels are
± 5 V
damage levels are
±5 V
条件：0 V and high logic levels are +1 V;nominal input impedance is 50 Ω;input damage levels are
External pulse modulation input; this input is TTL and CMOS compatible; low logic levels are
≤–0.3 V and ≥
+5.3 V.
Trigger in Accepts TTL and CMOS level signals for triggering point-to-point in sweep mode; damage
levels are ≤–0.3 V and ≥
+5.3 V.
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 |KEYSIGHT ·onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
