是德科技|KEYSIGHT

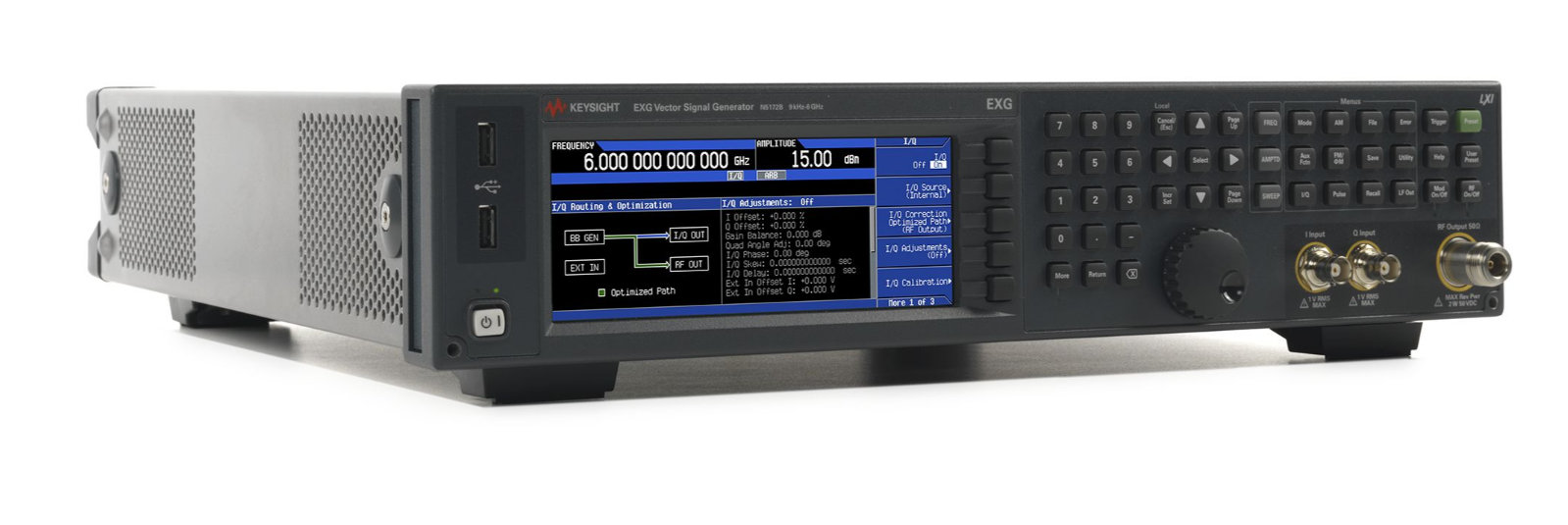

XG2 系列模拟信号发生器，6 GHz
模拟信号发生器
产品简介
N5171B EXG 系列中档性能射频模拟信号发生器可提供 9 kHz 至 6 GHz 的频率范围，并针对制造测试进行了优化，具有更快的吞吐量、更长的正常运行时间以及适宜的价格。
核心参数
• 1 GHz 谐波：-35 dBc
• 1 GHz 输出功率：21 dBm
• 1 GHz 相位噪声（20 kHz 偏移）：-122 dBc/Hz
• 最高频率：6 GHz
• 频率切换速度：800 µs
• 输出路数：1
功能特性
• 产品亮点
经济高效的信号发生器专为制造测试而优化
吞吐量更快，正常运行时间更持久
出色的输出功率使其能够执行元器件基本参数测试和接收机功能验证。
利用多功能发生器的功能，对复杂的模拟调制场景进行仿真，对接收机性能进行全面彻底的验证。
采用自我维护解决方案，维修成本极低，可最大限度减少停机时间及相关成本。
• 出色的硬件性能有助于最大限度提高良率
出色的准确度和可重复性让您能够充满信心地测试元器件
大输出功率有利于补偿测试系统损耗
超快的开关速度有助于最大限度提高吞吐量
仅需两个机架单元的高度，减少占用空间
仅购买您当前所需的性能和功能，日后可轻松升级。
• 拥有成本较低，提升资源使用率
在第一代MXG 的基础上，实现了更长的平均故障间隔时间（MTBF），从而延长了正常运行时间。
采用自我维护策略和低成本维修方式，最大限度减少停机时间、降低费用。
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
XG2系列N5171B 9 kHz 至 3/6 GHz射频模拟信号发生器 详细指标
模拟信号发生器
一、频率规格
条件：Phase offset Adjustable in nominal 0.1 ° increments
Frequency range Option 501 (N5171B only)
9 kHz to 1 GHz
Option 503
9 kHz (5 MHz IQ mode) to 3 GHz
Option 506
9 kHz (5 MHz IQ mode) to 6 GHz
Option 506 + FRQ 9 kHz (5 MHz I/Q mode) to 7.2 GHz
1
Resolution
0.001 Hz
Frequency bands
2
Band Frequency range N 1 9 kHz to < 5 MHz Digital synthesis 1 5 to < 250 MHz 1 2 250 to < 375 MHz
0.25
3 375 to < 750 MHz
0.5
4 750 to < 1500 MHz
1
5 1500 to < 3000.001 MHz
2
6 3000.001 to 6000 MHz
4
Frequency switching speed
4
Standard Option UNZ
5 Option UNZ, typical
CW mode
条件：1. Only applicable to N5182B. Requires option 506 and N5182BX07 Frequency Extender .
2. N is a factor used to help define certain specifications within the document.
3. Time from receipt of SCPI command or trigger signal to within 0.1 ppm of final frequency or within 100 Hz, whichever is
is within 0.3 dB. Implies simultaneous frequency and amplitude switching.
4. With internal channel corrections on, the frequency switching speed is < 1.3 ms, measured for list mode and SCPI mode
automatically cache the most recently used 1024 frequencies. There is no speed degradation for amplitude -only changes.
5. Specifications apply when status register updates are off. For export control purposes CW swi tching speed to within 0.05% of
SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
950 µs
List/step sweep mode ≤ 5 ms, typical ≤ 900 µs ≤
800 µs
Digital modulation on (N5172B only)
SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
1.05 ms
List/step sweep mode ≤ 5 ms, typical ≤ 900 µs ≤
800 µs
greater, and amplitude settled to within 0.2 dB from 20 to 30 °C. When switching into or out of band
6 amplitude settling time
cached frequency points. For the initial frequency point in SCPI mode the time is <
3.3 ms, measured. The instrument will
final frequency is
190 μs (measured).
频率参考
条件：Temperature effects ± 1 ppm (0 to 55 °C), nominal
Line voltage effects ± 0.1 ppm, nominal; 5% to –10%, nominal
Accuracy ± (time since last adjustment x aging rate) ± temperature effects ± line voltage effects ± calibration accuracy
Internal time base reference oscillator aging rate 1 ≤ ± 5 ppm/10 yrs, <
± 1 ppm/yr
Initial achievable calibration accuracy ± 4 ×10-8 or
± 40 ppb
Adjustment resolution < 1 x
10-10
Reference output
条件：Amplitude ≥ +4 dBm, nominal into 50 Ω load
Frequency
10 MHz
外部 reference 输入
条件：Amplitude > –3.0 to 20 dBm, nominal
Input frequency, standard
10 MHz
Input frequency, Option 1ER
1 to 50 MHz (in multiples of 0.1 Hz)
Stability Follows the stability of external reference input signal
Lock range
± 1 ppm
Impedance
50 Ω, nominal
扫描模式 (频率和幅度)
Operating modes Step sweep (equally spaced frequency and amplitude or
List 扫描 (arbitrary list 频率和幅度 steps)
Simultaneously sweep waveforms with N5172B; see Baseband
扫描范围 Within instrument 频率范围
Dwell time
100 µs to 100 s
Number of points
2 to 65535 (step sweep)
1 to 3201 (list sweep)
Step change Linear or logarithmic
条件：1. Not verified by Keysight N7800A TME Calibration and Adjustments Software. Daily aging rate may be verified as a supplementary
Triggering Free run, trigger key, external, timer, bus (GPIB, LAN, USB)
二、幅度规格
输出参数
条件：1. Quoted specifications between 20 °C and 30 °C. Maximum output power typically decreases by 0.01 dB/°C for temperatures
Settable range
+19 to –144 dBm (Standard)
+30 to –144 dBm (Option
1EA)
Resolution
0.01 dB
Step attenuator
0 to 130 dB in 5 dB steps electronic type
Connector Type N
50 Ω, nominal
Max output power
1 () = typical
Frequency Standard Option
1EA
9 kHz to 10 MHz +13 dBm
+17 dBm (+18 dBm)
> 10 MHz to 3 GHz +18 dBm
+21 dBm (+26 dBm)
> 3 to 6 GHz +16 dBm
+18 dBm (+19 dBm)
outside this range
条件：1. Quoted specifications between 20 °C and 30 °C. For temperatures outside this range, absolute level accuracy degrades by
Repeatability measures the ability of the instrument to return to a given power setting after a random excursion to any other frequency and power setting.
Absolute level accuracy in CW mode
1 (ALC on) () = typical
Range Max power to –60 dBm < –60 to –110 dBm <
–110 to –127 dBm
9 to 100 kHz (± 0.6) (
± 0.9)
100 kHz to 5 MHz ± 0.8 dB (± 0.3) ± 0.9 dB (
± 0.3)
> 5 MHz to 3 GHz ± 0.6 dB (± 0.3) ± 0.8 dB (± 0.3) (
± 0.5)
> 3 to 6 GHz ± 0.6 dB (± 0.3) ± 1.1 dB (± 0.3) (
± 0.6)
Absolute level accuracy in CW mode (ALC off, power search run, relative to ALC on)
9 kHz to 6 GHz
± 0.15 dB, typical
Absolute level accuracy in digital I/Q mode (N5172B only)
(ALC on, relative to CW, W-CDMA 1 DPCH configuration <
+10 dBm)
5 MHz to 6 GHz
± 0.25 dB, (0.05 dB)
0.01 dB/°C. Output power may drift up to 0.10 dB < 3 GHz and 0.15 dB >
3 GHz per g/kg change in absolute humidity (nom) .
It should not be confused（含） 绝对电平精度
条件：Relative level accuracy measures the accuracy of a step change from any power level to any other power level. This is useful for large changes ( such as 5 dB steps).
SWR (measured CW mode)
1
频率衰减器 state
条件：1. SWR < 1.60:1 below 30 kHz.
Bypass 0 to 10 dB
15 dB or more
≤ 1.0 GHz < 1.3:1 < 1.35:1 <
1.2:1
> 1.0 to 2 GHz < 1.55:1 < 1:5:1 <
1.3:1
> 2 to 3 GHz < 1.8:1 < 1.5:1 <
1.45:1
> 3 to 4 GHz < 1.5:1 < 1.6:1 <
1.7:1
> 4 to 6 GHz < 1.9:1 < 1.6:1 <
1.6:1
最大值 reverse 功率, 标称值
< 1 GHz
50 W
> 1 to 2 GHz
25 W
> 2 to 6 GHz
20 W
Max DC voltage
50 VDC
Trip level
2 W
Amplitude switching speed
1 Standard Option UNZ Option UNZ, typical
CW mode
• SCPI mode ≤ 5 ms, typical ≤ 750 µs ≤
650 µs
• Power search SCPI mode <
12 ms, measured
List/step sweep mode ≤ 5 ms, typical ≤ 500 µs ≤
300 µs
Digital modulation on (N5172B only)
• SCPI mode ≤ 5 ms, typical ≤ 1.15 ms ≤
950 µs
• Power search SCPI mode <
12 ms, measured
• List/step sweep mode ≤ 5 ms, typical ≤ 900 µs ≤
400 µs
Alternate power level control (N5172B only)
Switching time (via waveform markers) 20 µs within
± 1 dB, measured
Functional power range
–15 dBm to –144 dBm, measured
User flatness correction
Number of points
3201
Number of tables Dependent on available free memory in instrument
10,000 maximum
Entry modes USB/LAN direct power meter control, LAN to GPIB and USB to GPIB, remote bus and manual
三、Spectral Purity Specifications
Absolute SSB phase noise (dBc/Hz, CW at 20 kHz offset, typical)
5 MHz to < 250 MHz
–119
250 MHz
–133
500 MHz
–128
1 GHz
–122
2 GHz
–115
3 GHz
–110
4 GHz
–109
6 GHz
–103
Residual FM (CW mode
300 Hz to 3 kHz BW, CCITT, rms)
5 MHz to 6 GHz < N x
2 Hz (measured) (see N value in frequency band table)
Residual AM (CW mode, 0.3 to 3 kHz BW, rms
+5 dBm)
100 kHz to 3 GHz <
0.01% (measured)
谐波 (CW 模式)
Range Standard < +4 dBm Option 1EA <
+12 dBm
9 kHz to 3 GHz < –35 dBc <
–30 dBc
> 3 to 4 GHz < –35 dBc, typical <
–35 dBc, typical
> 4 to 6 GHz < –53 dBc, typical <
–40 dBc, typical
Nonharmonics (CW mode)
条件：Standard (dBc) 9 kHz to < 5 MHz –65, nominal 5 to < 250 MHz –75 250 to < 750 MHz –75
LO input frequency range 250 MHz to 6 GHz, nominal
LO input power range 0 to +12 dBm, nominal
LO output frequency range 250 MHz to 6 GHz, nominal
LO output power range 0 to +12 dBm, nominal
1. Calculated from phase noise performance in CW mode at +10 dBm. For other frequencies, data rates, or bandwidths, please
Range >
10 KHz offset
750 MHz to < 1.5 GHz
–72
1.5 to < 3.0 GHz
–66
3 to 6 GHz
–60
Subharmonics (CW mode)
9 kHz to 1.5 GHz None
> 1.5 to 3 GHz
–77 dBc
> 3 to 6 GHz
–74 dBc
Jitter
1
Carrier frequency SONET/SDH data rate rms jitter BW μUI rms, measured Seconds, typical
155 MHz 155 MB/s 100 Hz to 1.5 MHz 140
0.9 ps
622 MHz 622 MB/s 1 KHz to 5 MHz 67
0.11 ps
2.488 GHz 2488 MB/s 5 kHz to 20 MHz 271
0.11 ps
Phase coherence (Option
012)
四、Analog 调制规格
频率频段
Band # Frequency range N 1 9 kHz to < 5 MHz 1 (digital synthesis) 1 5 to < 250 MHz 1 2 250 to < 375 MHz
0.25
3 375 to < 750 MHz
0.5
4 750 to < 1500 MHz
1
5 1500 to < 3000.001 MHz
2
6 3000.001 to 6000 MHz
4
频率调制 (选件 UNT) (见 N 值 above)
条件：Max deviation N × 10 MHz, nominal 3
Resolution 0.025% of deviation or 1 Hz, whichever is greater, nominal
Modulation frequency response at 100 KHz rate 1 dB bandwidth DC/5 Hz to 3 MHz, nominal 3 dB bandwidth DC/1 Hz to 7 MHz, nominal
FM using external inputs 1 or 2 Sensitivity +1 V peak for indicated deviation, nominal
Input impedance 50 Ω/600 Ω/1 M Ω, nominal
Deviation accuracy < ± 2% + 20 Hz (1 kHz rate, deviation is N x
50 kHz)
Carrier frequency accuracy < ± 0.2% of set deviation + (N × 1 Hz)
1
Relative to CW in DCFM < ± 0.06% of set deviation + (N × 1 Hz), typical
2
Distortion < 0.4% [1 kHz rate, deviation is N x
50 kHz]
Paths FM path 1 and FM path
2 are summed internally for composite modulation
相位调制 (选件 UNT) (见 N 值 above)
条件：Maximum deviation Normal bandwidth N × 5 radians, nominal
High-bandwidth mode N × 0.5 radians, nominal
Frequency response Normal bandwidth (3 dB) DC to 1 MHz, nominal
High-bandwidth mode (3 dB) DC to 4 MHz, nominal
ΦM using external inputs 1 or 2 Sensitivity +1 V peak for indicated deviation, nominal
Input impedance 50 Ω or 600 Ω or 1 M Ω, nominal
1. Specification valid for temperature changes of less than ± 5 °C since last DCFM calibration.
2. Typical performance immediately after a DCFM calibration.
3. Digital synthesis band FM deviation is 5 MHz.
Resolution
0.1% of deviation
Deviation accuracy < + 0.5% +
0.01 rad, typical [1 kHz rate, normal bandwidth mode]
Distortion <
0.2% (typ) [1 kHz rate, deviation normal bandwidth mode]
Paths ΦM path 1 and ΦM path
2 are summed internally for composite modulation
Amplitude modulation (Option UNT)
1
AM depth type Linear or exponential
条件：Frequency response wideband AM (N5172B only) Rates ALC off/on: DC/800 Hz to 80 MHz, nominal
Maximum depth
100%
Depth resolution
0.1% of depth (nom)
AM depth error at 1 KHz rate and < 80% depth f < 5 MHz < 1.5% of setting + 1% (typ 0.5% of setting +
1%)
5 MHz ≤ f ≤ 2 GHz < 3% of setting +
1 %
2 < f < 3 GHz < 5% of setting + 1% (typical 3% of setting +
1%)
3 < f < 6 GHz (typical 4% of setting +
1%)
Total harmonic distortion at 1 KHz rate F < 5 MHz 30% depth <
0.25%, typical
80% depth <
0.5%, typical
5 MHz ≤ f <
2 GHz
(2 to 3 GHz is typical)
30% depth <
2%
80% depth <
2%
Frequency response 30% depth
3 dB BW DC/10 Hz to 50 KHz
AM inputs using external inputs 1 or 2 Sensitivity ± 1 V peak for indicated depth (Over-range can be
200%
or 2.2 V peak)
Input impedance 50 Ω or 600 Ω or 1M Ω, Damage level
± 5 V max
Paths AM path 1 and AM path
2 are summed internally for
composite modulation
条件：Input impedance 50 Ω, nominal (I input)
Wideband AM inputs (N5172B only) Sensitivity
1 V peak-to-peak sine wave signal with 0.5 V DC offset
required input for 100% AM
Simultaneous and composite modulation
2
Simultaneous modulation All modulation types (I/Q, FM, AM, ΦM, and pulse modulation) may be simultaneously
enabled except: FM and phase modulation cannot be combined and two modulation
types cannot be simultaneously generated using the same modulation source; for
example, the baseband I/Q generator, AM, and FM can run concurrently and all will
modulate the output RF (this is useful for simulating signal impairments)
Composite modulation AM, FM, and ΦM each consist of two modulation paths which are summed internally for
composite modulation; modulation can be any combination of internal or external sources
AM FM Phase Pulse Internal I/Q 2 External I/Q
2
Phase + – + + + +
条件：+ = compatible, – = incompatible, * = Internal + External 1. AM specifications apply 6 dB below maximum specified power from 20 to 30 °C. 2. I/Q modulation available on N5172B.
Frequency accuracy Same as RF reference source, nominal
LF audio output 0 to 5 V peak into 50 Ω, –5 V to 5 V offset, nominal
Pulse + + + – + + sInternal I/Q
2 + + + + * +
External I/Q
2 + + + + + –

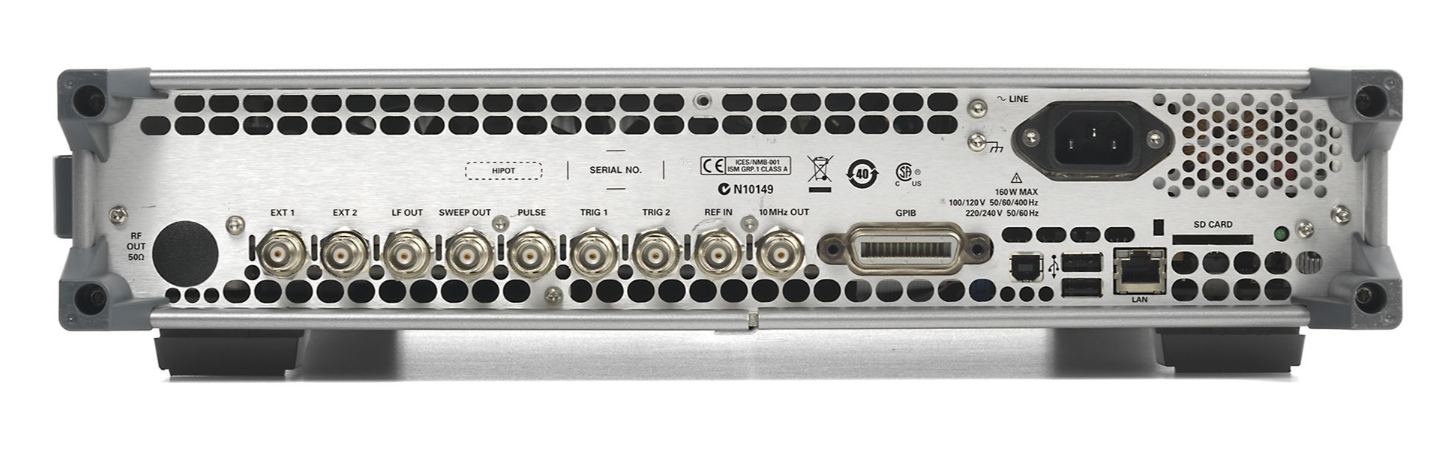

External modulation inputs (Option UNT required for FM, AM, and phase modulation inputs; Option UNW required for pulse modulation inputs)
EXT1 AM, FM, PM
EXT2 AM, FM, PM
PULSE Pulse (50 Ω only)
I Wideband AM (50 Ω only, N5172B only)
Input impedance 50 Ω, 1 MΩ
600 Ω, DC and AC coupled
Standard internal analog modulation source (Single sine wave generator for use with AM, FM, phase modulation requires Option UNT or 303)
Waveform Sine, square, triangle, positive ramp, negative ramp
Rate range
0.1 Hz to 2 MHz (tunable to 3 MHz)
Resolution
0.1 Hz
Multifunction generator (Option
303)
The multifunction generator option (Option 303) consists of seven waveform generators that can be set independently with up to five
simultaneously using the composite modulation features in AM, FM/PM, and LF out
条件：DC Only for LF output –5 V to +5 V, nominal
Function generator
1 Sine, triangle, square, positive ramp, negative ramp, pulse
Function generator
2 Sine, triangle, square, positive ramp, negative ramp, pulse
Dual function generator Sine, triangle, square, positive ramp, negative ramp, phase offset, and amplitude ratio
for Tone 2 relative to Tone
1
Swept function generator Sine, triangle, square, positive ramp, negative ramp
Trigger: free run, trigger key, bus, external, internal, timer trigger
Noise generator
1 Uniform, Gaussian
Noise generator
2 Uniform, Gaussian
条件：Sine wave 0.1 Hz to 10 MHz, nominal
Triangle, square, ramp, pulse 0.1 Hz to 1 MHz, nominal
Noise bandwidth 10 MHz, nominal
Frequency accuracy Same as RF reference source, nominal
1. Pulse specifications apply to frequencies > 100 MHz and power set to > -3 dBm. Operable down to 9 kHz.
2. With power search on.
External video delay (ext input to video) 30 ns, nominal
RF delay (video to RF output) 20 ns, nominal
Input level +1 Vpeak = RF on into 50 Ω, nominal
Resolution
0.1 Hz
Narrow pulse modulation (Option UNW)
1 () = typical
On/off ratio (>
80 dB)
Rise/fall times (Tr, Tf) <
10 ns; (7 ns)
Minimum pulse width ALC on/off ≥ 2 us/≥
20 ns
Repetition frequency ALC on/off
10 Hz to 500 kHz/DC to 10 MHz
Level accuracy (relative to CW) ALC on/off 2 < ± 1.0 dB (± 0.5) dB/(<
± 0.5) dB
Width compression (RF width relative to video out) (<
5 ns)
Video feed-through 1 ≤ 3 GHz/> 3 GHz (< 50 mV/<
5 mV)
Pulse overshoot (<
15%)
Vor 脉冲过冲
条件：Vf Video feedthrough 1. Video feed through applies to power levels < +10 dBm .
Internal pulse generator (included with Option UNW)
Square wave rate 0.1 Hz to 10 MHz, 0.1 Hz resolution, nominal
Pulse period 30 ns to 42 seconds, nominal
Pulse width 20 ns to pulse period –10 ns, nominal
Resolution (delay, width, period) 10 ns, nominal
Modes Free-run, square, triggered, adjustable doublet, trigger doublet, gated, and external pulse
Resolution
10 ns
Adjustable trigger delay (–pulse period + 10 ns) to (pulse width
–10 ns)
Settable delay Free run
–3.99 to 3.97 µs
Triggered
0 to 40 s
Pulse doublets 1st pulse delay (Relative to sync out)
0 to 42 s – pulse width – 10 ns
1st pulse width
500 ns to 42 s – delay – 10 ns
2nd pulse delay 0 to 42 s – (Delay 1 + Width
2) – 10 ns
2nd pulse width 20 ns to 42 s – (Delay 1 + Delay
2) – 10 ns
Pulse train generator Option N5180320B (requires Option UNW)
Number of pulse patterns
2047
On/off time range
20 ns to 42 sec
Avionics (Option N5180302B)
条件：Frequency accuracy Same as RF reference source, nominal
Bearing accuracy
± 0.1 degrees
AM accuracy 30% depth
± 5% of setting
AM distortion
2%
FM accuracy 480 Hz deviation
± 1.7 Hz
ILS: localizer and glide slope
AM accuracy 40% depth
± 5% of setting
AM distortion
2%
Difference in depth of modulation (DDM) resolution Localizer
0.0002
Glide slope
0.0004
Difference in depth of modulation (DDM) accuracy Localizer ± 0.0004 ± 5% of DDM
1
Glide slope ± 0.0008 ± 5% of DDM
1
Marker beacon
条件：1. DDM must not be equal to 0.
Marker tone AM accuracy 95% depth ± 5% of setting +
1%
Marker tone AM distortion 95% depth
5%
五、矢量调制规格
适用型号 N5172B 仅
条件：Bandwidth Baseband (I or Q) Up to 100 MHz baseband, nominal
RF (I+Q) Up to 200 MHz RF, nominal
Full scale input drive (I+Q) 0.5 V into 50 Ω, nominal
Impedance 50 Ω, nominal per output
100 Ω, nominal differential output
Bandwidth (I, Q) Baseband (I or Q) 80 MHz, nominal (Option 653, 655, and 657)
RF (I+Q) 160 MHz, nominal (Option 653, 655, and 657)
Amplitude flatness ± 0.2 dB measured with channel corrections optimized for I/Q output
Phase flatness ± 2.5 degrees measured with channel corrections optimized for I/Q output
1. I/Q adjustments represent user interface nominal parameter ranges and not specifications.
2. Internal I/Q adjustments apply to RF out and I/Q outputs simultaneously.
Internal real-time complex digital I/Q filters (included with Option 653)
I/Q modulator external inputs
1
I or Q offset
± 100 mV (200 uV resolution)
I/Q gain balance
± 4 dB (0.001 dB resolution)
I/Q attenuation
0 to 50 dB (0.01 dB resolution)
Quadrature angle adjustment
± 200 units
Internal I/Q baseband generator adjustments 1, 2 (Options 653
655, and 657)
I/Q offset
± 20% (0.025% dB resolution)
I/Q gain
± 1 dB (0.001 dB resolution)
Quadrature angle adjustment
± 10 ° (0.01 degrees resolution)
I/Q phase
± 360.00 ° (0.01 degrees resolution)
I/Q skew
± 500 ns (1 picosecond resolution)
I/Q delay
± 250 ns (1 picosecond resolution)
External I/Q outputs
1
Type Single-ended or differential (Option
1EL)
Maximum voltage per output 1 V peak-to-peak or 0.5 V peak; into
50 Ω (200 uV resolution)
Common mode I/Q offset ± 1.5 V into
50 Ω (200 uV resolution)
Differential mode I or Q offset ± 50 mV into
50 Ω (200 uV resolution)
Factory channel correction (256 taps)
Corrects the linear phase and amplitude response of the baseband I/Q and RF outputs of the signal generator using factory cal ibration
arrays (default mode is off)
RF amplitude flatness (160 MHz)
± 0.2 dB measured
RF phase flatness (160 MHz)
± 2 degrees measured
User channel correction (256 taps)
Automated routine uses USB power sensor to correct for linear phase and amplitude response of DUT (equalizer). See User Guide for more
条件：SystemVue to correct for linear errors of DUT/system. See User Guide for more details.
RF (I+Q) bandwidth Option 653 60 MHz, nominal
Option 653 and 655 120 MHz, nominal
Option 653, 655, and 657 160 MHz, nominal
Max RF amplitude flatness correction
± 15 dB
Max RF phase flatness correction
± 20 degrees
Equalization filter (256 taps)
User can download and apply inverse or custom phase and amplitude response coefficients from tools such as MATLAB
89600 VSA, or
Baseband generator (Options
653 and 655)
Channels
2 [I and Q]
Resolution
16 bits [1/65,536]
Sample rate Option 653
100 Sa/s to 75 MSa/s
Option 653 and 655
100 Sa/s to 150 MSa/s
Option 653, 655, and 657
100 Sa/s to 200 MSa/s
Interpolated DAC rate 800 MHz (waveforms only need OSR =
1.25)
Baseband generator (Options
653 and 655)
Frequency offset range
± 80 MHz
Digital sweep modes In list sweep mode each point in the list can have independent waveforms (N5172B) along with
user definable frequencies and amplitudes; see the Amplitude and Frequency Specifications
sections for more detail
Waveform switching speed 1 SCPI mode ≤
5 ms, measured (standard)
≤ 1.2 ms, measured (Option UNZ)
List/step sweep mode ≤
5 ms, measured (standard)
≤ 900 us, measured (Option UNZ)
Waveform transfer rates (measured, no markers, unencrypted)
条件：1. SCPI mode switching speed applies when waveforms are pre -loaded in list sweep and sample rate ≥ 10 MSa/s.
FTP LAN to internal SSD
10.7 MB/sec or 2.67 Msa/sec
Internal SSD to FTP LAN 7.7 MB/sec
1.92 Msa/sec
FTP LAN to BBG
8.2 MB/sec or 2.05 Msa/sec
FTP LAN to BBG encrypted
4 MB/sec or 1 Msa/sec
USB to BBG
19 MB/sec or 4.75 Msa/sec
BBG to USB
1.2 MB/sec or 300 Ksa/sec
Internal SSD to BBG
48 MB/sec or 12 Msa/sec
BBG to internal SSD
1.2 MB/sec or 300 Ksa/sec
SD card to BBG (Option
006)
BBG to SD card (Option 006)
845 KB/sec or 211 Ksa/sec
Arbitrary waveform memory Maximum playback capacity
32 Msa (standard)
256 Msa (Option
021)
512 Msa (Option
022)
Maximum storage capacity including markers 3 GBytes/800 Msa (standard) 30 GBytes/7.5 Gsa (Option
009)
8 GBytes / 2 Gsa (Option
006)
Waveform segments Segment length
60 samples to 32 Msa (standard)
60 samples to 256 Msa (Option
021)
60 samples to 512 Msa (Option
022)
Minimum memory allocation per segment
256 samples
Maximum number of segments
8192
Waveform sequences Maximum number of sequences >
2000 depending on non-volatile memory
Maximum number of segments/sequence
32,000 (standard)
4 million (Option
021 or 022)
Maximum number of repetitions
65,535
Segment advance Single or continuous
条件：Trigger latency (Single trigger only) 356 ns + 1 sample clock period, nominal
Trigger accuracy (Single trigger only) ± 2.5 ns, nominal
re-filling the buffer. The latency is 8 µs + (1406 x sample period) ± 1 sample clock period, nominal
Trigger repeatability < 1 ns, nominal
External coarse delay time
5 ns to 40 s
External coarse delay resolution
5 ns
Single trigger - restart on trigger mode will initiate a FIFO clear. Therefore, the latency includes
Multi-baseband generator synchronization mode (multiple sources)
Fan out
1 primary and up to 15 secondary
Fine 触发延迟范围见内部 I/Q Baseband section
Fine trigger delay resolution See Internal I/Q Baseband section
I/Q phase adjustment range See Internal I/Q Baseband section
Markers Markers are defined in a segment during the waveform generation process, or from the front
panel; a marker can also be routed to the RF blanking, ALC hold functions, and alternate
Marker polarity Negative, positive
Number of markers
4
RF blanking/burst on/off ratio >
80 dB
Alternate amplitude control switching speed See amplitude section
Real-time modulation FIR filter: Nyquist, root-Nyquist, WCDMA, EDGE, Gaussian, rectangular, APCO
25 C4FM, IS-95, User
FIR (Applies real -time FIR filtering when playing waveforms with OSR=1. Helps reduce
waveform size for long simulation times. Option
660 not required).
Real-time baseband generator (Option
660)
Real-time baseband generator required for real-time Signal Studio applications
1
Cellular real-time applications LTE-FDD, LTE-TDD, HSPA+/W-CDMA,
GSM/EDGE, cdma2000®
Real-time navigation GPS, GLONASS, Galileo
条件：module adapts to your device with the logic type, data format, clock features, and signaling you require.
Real-time video applications DVB-T/T2/H/S/S2/C/J.83 Annex A/C, ISDB-T/
Note: Option
660 is not required for real-time custom modulation (Option N5180431B)
Memory: Shares memory with Options 653
655, and 657
Triggering: Same as Options 653
655, and 657
Markers: 3 markers available, all other features are same as Options 653
655, and 657
Digital baseband inputs/outputs (Option
003/004)
Options 003 and 004 activate the rear panel digital I/Q bus and enables connectivity to the N5102A digital signal interface module. In output
mode (003), you can deliver realistic complex-modulated signals such as LTE, GPS, WLAN, custom pulses and many others directly to your
digital devices and subsystems. In the input mode (004), the interface module ports your digital input to the signal generato r's baseband
system, providing a quick and easy way of upconverting to calibrated analog I/Q, IF, or RF frequencies. In both operating modes, the interface
Data (requires N5102A)
Digital data format User-selectable
2's complement or binary offset, I/Q (I, I-bar, Q, Q-bar) or digital IF output
(real, imaginary)
Data port Dual
16-bit data buses support parallel, parallel I/Q interleaved, parallel QI interleaved, or serial
port configuration
N5102A connectors (breakout boards) 144-pin Tyco Z-Dok+ connects to break-out boards (included with N5102A) that interface with
the following connector types: 68-pin SCSI, 38-pin dual AMP Mictor, 100-pin dual Samtec
20-
pin dual 0.1 inch headers, 40-pin dual
0.1 inch headers
Logic types Single-ended: LVTTL, 1.5V CMOS, 1.8V CMOS, 2.5V CMOS
3.3.V CMOS
Differential: LVDS
Data output resampling EXG baseband output is resampled to the arbitrary clock rate set by the user via real -time
curve-fit calculations
Clock (requires N5102A)
Clock input User selectable: internal clock, device under test clock, or external clock (via SMA or breakout
条件：N5102A SMA Ext Clock In connector: 50 Ω, 0 dBm nominal, 1 to 400 MHz
Clock output User selectable: via breakout board or SMA Clock Out connector
N5102A SMA Clock Out connector: 2 Vpp into load > 5 KΩ from 1 to 100 kHz
400 mVpp into
50 Ω load from 100 kHz to 400 MHz
Sample rate (limited by EXG sample rate) User-selectable in parallel mode up to a maximum
200 MHz but limited by other user settings
(see N5102A users guide for more details).
User-selectable in serial mode, the maximum rate is
400 MHz/word size.
Bit rate (limited by EXG sample rate) Parallel Up to 200 MHz x word size (1.6 Gbps LVDS, CMOS and LVTTL) per parallel bus,
2 parallel buses available
Serial Up to 400 MHz per serial line (400 Mbps LVDS) or 150 MHz per serial line (150 Mbps
(CMOS/LVTTL)
32 lines available
Clocks per sample In parallel output mode, the data sample can be held for
2 or 4 clock cycles
Clock to data skew Coarse adjustment in 90° steps from 0 to 270º; fine-adjustment in increments of 100 ps up to
5 ns
时钟 polarity 时钟信号 may be inverted
Frequency reference input 1 to 100 MHz BNC, 50 Ω, 3 dBm
± 6 dB
Power supply (included on N5102A) Output: 5 V
4 A DC
AWGN (Option N5180403B)
Type Real-time, continuously calculated, and played using DSP
Modes of operation Standalone or digitally added to signal played by arbitrary waveform or real-time baseband
条件：Bandwidth With Option 653 1 Hz to 60 MHz
With Option 653 and 655 1 Hz to 120 MHz
With Option 653, 655, and 657 1 Hz to 160 MHz
Crest factor
15 dB
Randomness 90 bit pseudo-random generation, repetition period 313 x
109 years
Carrier-to-noise ratio
± 100 dB when added to signal
Carrier-to-noise ratio formats C/N, Eb/No
Carrier-to-noise ratio error Magnitude error ≤
0.2 dB at baseband I/Q outputs
Custom modulation Arb Mode (N5180431B)
Modulation PSK BPSK, QPSK, OQPSK, π/4DQPSK, gray coded and
unbalanced QPSK, 8PSK
16PSK, D8PSK
QAM 4, 16, 32, 64, 128, 256, 1024 (and
89600 VSA mappings)
FSK Selectable: 2, 4, 8
16, C4FM
MSK
0 to 100°
ASK
0 to 100%
Multicarrier Number of carriers Up to 100 (limited by a max bandwidth of 160 MHz
depending 开 symbol 速率和调制类型)
Frequency offset (per carrier) Up to –80 to +80 MHz
Power offset (per carrier)
0 dB to –40 dB
Symbol rate
50 sps to 100 Msps
Filter types Nyquist, root-Nyquist, Gaussian, rectangular, APCO
25 C4FM, user
Quick setup modes APCO
25w/C4FM, APCO25 w/CQPSK, Bluetooth®, CDPD, DECT, EDGE, GSM, NADC, PDC
Data Random only
Custom modulation real-time mode (Option N5180431B) (Does not require Option
660)
Modulation PSK BPSK, QPSK, OQPSK, π/4DQPSK, gray coded and unbalanced
QPSK, 8PSK
16PSK, D8PSK, IS95 QPSK, IS95 OQPSK, EDGE
HDQPSK, SOQPSK
QAM 4, 16, 32, 64, 128, 256, 1024 (and
89600 VSA mappings)
FSK Selectable 2,4,8
16 level symmetric, C4FM, HCPM
User-defined Custom map of up to 16 deviation levels
Max deviation
20 MHz
MSK
0 to 100°
ASK
0 to 100%
DVB-S2 APSK 16APSK 2/3, 16APSK 3/4, 16APSK 4/5, 16APSK 5/6, 16APSK
8/9
16APSK 9/10, 32APSK 3/4, 32APSK 4/5, 32APSK 5/6
32APSK
8/9, 32APSK
9/10
Custom I/Q Custom map of 1024 unique values
Frequency offset Up to –80 MHz to +80 MHz
Symbol rate Internal generated data 1 sps to 100 Msps and max of 10 bits per symbol (Option 653 +
655
+ 657)
External serial data
1 sps to [(50 Mbits/sec)/(#bits/symbol)]
Filter types Selectable Nyquist, root-Nyquist, Gaussian, rectangular, APCO 25 (phase
1
and 2 UL and DL), IS-95, WCDMA, EDGE (wide and HSR)
IS-95 w/EQ, IS-95 Mod, IS-95 Mod w/EQ, HDQPSK, APCO25
HCPM, SOQPSK-TG
Custom FIR
16-bit resolution, up to 64 symbols long, automatically resampled to
1024 coefficients (max)
> 32 to 64 symbol filter: symbol rate ≤
12.5 MHz
> 16 to 32 symbol filter: symbol rate ≤
25 MHz
Internal filters switch to 16 tap when symbol rate is between
25 and
100 MHz
Quick setup modes APCO 25 with (C4FM, CQPSK, HCPM, HDQPSK), TETRA , Bluetooth, CDPD, DECT, EDGE
GSM, NADC, PDC, PHS, PWT, WorldSpace, Iridium, ICO, CT2, TFTS
16APSK 2/3, 16APSK 3/4, 16APSK 4/5, 16APSK 5/6, 16APSK 8/9, 16APSK 9/10
32APSK
3/4, 32APSK 4/5, 32APSK 5/6, 32APSK 8/9, 32APSK
9/10, SOQPSK
Trigger delay Range
0 to 1,048,575 bits
Resolution
1 bit
Data types Internally generated Pseudo-random patterns PN9, PN11, PN15, PN20, PN23
Repeating sequence Any
4-bit sequence
Direct-码型 RAM [PRAM] 最大尺寸
Note: Used for custom TDMA/non-standard framing 32 Mb (standard) 512 Mb (Option 021) 1024 Mb (Option
022)
User file
32 MB (standard)
256 MB (Option
021)
512 MB (Option
022)
Custom modulation real-time mode (Option N5180431B) (Does not require Option
660)
输入/输出 Data, symbol sync, bit 时钟
条件：Frequency spacing 100 Hz to 160 MHz (with Option 653, 655, and 657)
Internal burst shape (varies with bit rate) Rise/fall time range Up to 30 bits
Rise/fall delay range
–15 to +15 bits
Multitone and two-tone (Option N5180430B)
Number of tones
2 to 512, with selectable on/off state per tone
Phase (per tone) Fixed or random
条件：Standard Option UNV Option UNV with Option 1EA
Real-time phase noise impairments (Option N5180432B)
Close-in phase noise characteristics
–20 dB per decade
Far-out phase noise characteristics
–20 dB per decade
Mid-frequency characteristics Start frequency (f1) Offset settable from 0 to 77 MHz
Stop frequency (f2) Offset settable from 0 to 77 MHz
Phase noise amplitude level (L(f)) User selected; max degradation dependent on f2
3GPP W-CDMA distortion performance
2
Power level ≤ 2 dBm 2 ≤ 2 dBm 2 ≤ 5 dBm
2
Offset Configuration Frequency Spec Typ Spec Typ Spec Typ
条件：Standard Option UNV Option UNV with Option 1EA
Adjacent (5 MHz) 1 DPCH
1
carrier MHz
1800 to 2200
– 69 dBc –73 dBc –71 dBc –75 dBc –71 dBc
–75 dBc
Alternate (10 MHz) –70 dBc –75 dBc –72 dBc –77 dBc –71 dBc
–77 dBc
Adjacent (5 MHz) Test model
1
with 64 DPCH,
1 carrier
1800 to 2200 MHz
–68 dBc –70 dBc –71 dBc –73 dBc –71 dBc
–72 dBc
Alternate (10 MHz) –73 dBc –72 dBc –76 dBc –71 dBc
–76 dBc
Adjacent (5 MHz) Test model
1
with 64 DPCH,
4 carrier
1800 to 2200 MHz
–63 dBc –65 dBc –65 dBc –67 dBc –64 dBc
–66 dBc
Alternate (10 MHz) –64 dBc –66 dBc –66 dBc –68 dBc –66 dBc
–68 dBc
3GPP LTE-FDD distortion performance
3
Power level ≤ 2 dBm 4 ≤ 2 dBm 4 ≤ 5 dBm
4
Offset Configuration Frequency Spec Typ Spec Typ Spec Typ
条件：1. ACPR specifications apply when the instrument is maintained within ± 20 to 30 °C.
2. This is rms power. Convert from rms to peak envelope power (PEP) with the following equation: PEP = rms power + crest
3. ACPR specifications apply when the instrument is maintained within ± 20 to 30 °C.
4. This is rms power. Convert from rms to peak envelope power with the following equation: PEP = rms power + crest factor (for
5. ACPR measurement configuration: reference channel integration BW: 9.015 MHz, offset channel integration bandwidth: 9.015 MHz.
Adjacent (10 MHz)
10 MHz E-TM
1.1 QPSK
1800 to 2200 MHz
–64 dBc –66 dBc –67 dBc –69 dBc –64 dBc
–67 dBc
Alternate (20 MHz) 5 –66 dBc –68 dBc –69 dBc –71 dBc –69 dBc
–71 dBc
factor (for example, 3GPP test model 1 with 64 DPCH has a crest factor 11.5 dB, therefore at +5 dBm rms, the PEP =
5 dBm
+ 11.5 dB =
+16.5 dBm PEP).
example, 3GPP test model 1 with 64 DPCH has a crest factor 11.5 dB, therefore at +5 dBm rms, the PEP = 5 dBm +
11.5 dB
= +16.5 dBm PEP).
GSM EDGE
Power level < +7 dBm <
+7 dBm
Offset Configuration Frequency
1 Standard
标配, 典型值
Option UNV, typical 200 kHz
1 normal timeslot, bursted
800 to 900 MHz
1800 to 1900 MHz
–34 dBc –36 dBc –37 dBc
–38 dBc
400 kHz –69 dBc –70 dBc –69 dBc
–70 dBc
600 kHz –81 dBc –82 dBc –80 dBc
–81 dBc
800 kHz –82 dBc –83 dBc –82 dBc
–83 dBc
1200 kHz –84 dBc –85 dBc –83 dBc
–84 dBc
3GPP2 cdma2000 distortion performance, typical
Standard Option UNV Option UNV +
1EA
Power level 2 ≤ 2 dBm ≤ 2 dBm ≤
5 dBm
Offset Configuration Frequency (1) Typical Typical Typical
885 kHz to 1.98 MHz
9 channel forward
link 800 to 900 MHz –78 dBc –79 dBc
–77 dBc
> 1.98 to 4.0 MHz –86 dBc –87 dBc
–87 dBc
> 4.0 to 10 MHz –91 dBc –93 dBc
–93 dBc
802.16e Mobile WiMAX™ distortion performance, measured
Power Offset 3 Configuration
4 Frequency Standard
UNV, measured
条件：1. Performance evaluated at bottom, middle, and top of bands shown.
2. This is rms power. Convert from rms to peak envelope power (PEP) with the following equation: PEP = rms power + crest
3. Measurement configuration: reference channel integration BW: 9.5 MHz, offset channel integration BW: 9 MHz, channel
4. 802.16e WiMAX signal configuration–bandwidth: 10 MHz, FFT: 1024, frame length: 5 ms, guard period: 1/ 8, symbol rolloff: 5%,
EVM power level with Option 1EA
< –7 dBm 10 MHz QPSK 2.5 and 3.5 GHz –65 dBc
–68 dBc
Up to +5 dBm 10 MHz QPSK 3.5 GHz –62 dBc
–65 dBc
factor (for example: 3GPP test model 1 with 64 DPCH has a crest factor > 11 dB, therefore at +5 dB m rms the PEP =
5 dBm
+ 11 dB =
+16 dBm PEP).
offset
10 MHz.
content
30 symbols of PN9 data.
EVM performance data
2
Format GSM EDGE cdma2000/IS95A W-CDMA LTE FDD
3
Modulation type GMSK (bursted) 3pi/8 8PSK (bursted) QPSK QPSK
64 QAM
Modulation rate 270.833 ksps 70.833 ksps 1.2288 Mcps 3.84 Mcps
10 MHz BW
Channel configuration 1 timeslot 1 timeslot Pilot channel 1 DPCH E-TM
3.1
Frequency 4 800 to 900 MHz 800 to 900 MHz 800 to 900 MHz 1800 to 2200 MHz
1800 to 2200 MHz
1800 to 1900 MHz 1800 to 1900 MHz
1800 to 1900 MHz
EVM power level ≤ 7 dBm ≤ 7 dBm ≤ 7 dBm ≤ 7 dBm ≤
7 dBm
≤ 13 dBm ≤ 13 dBm ≤ 13 dBm ≤ 13 dBm ≤
13 dBm
EVM/global 相位误差
条件：EVM power level with Option 1EA
EVM Measured Measured Spec Typ Spec Typ Spec Typ Spec Typ 0.3% 0.4% 1.2% 0.8% 1.9% 1.1% 1.1% 0.65% 1.5% 0.9% 1. EVM specifications apply for the default ARB file setup conditions with the default ARB files supplied with the instrument. 2. EVM specifications apply after execution of I/Q calibration when the instrument is maintained within ± 5 °C of the calibration temperature.
3. LTE FDD E-TM 3.1,10 MHz, 64 QAM PDSCH, full resource block. Measured EVM after DC calibration.
4. Performance evaluated at bottom, middle, and top of bands shown.
5. WLAN 802.11ac 80 MHz, 256 QAM, MCS 8, 7 symbols, no filtering. Channel corrections enabled. Rx equalizer training: preamble only.
Spec Typ Spec Typ Spec Typ Spec Typ Measured ms 0.8 ° 0.2 ° 1.2% 0.75% 1.3% 0.8% 1.2% 0.8%
0.2%
Format 802.11a/g 802.11ac 5 QPSK
16 QAM
Modulation type 64 QAM 256 QAM QPSK
16 QAM
Modulation rate 54 Mbps
80 MHz
BW 4 Msps (root-Nyquist filter α =
0.25)
Frequency
2400 to
2484 MHz
≤ 3 GHz ≤ 6 GHz ≤ 3 GHz ≤
6 GHz
5150 to
5825 MHz
5.775 GHz
EVM power level ≤ –5 dBm ≤ –5 dBm ≤ 4 dBm ≤ 4 dBm ≤ 4 dBm ≤
4 dBm
≤ 2 dBm ≤ 2 dBm ≤ 10 dBm ≤ 10 dBm ≤ 10 dBm ≤
10 dBm
Bit error rate [BER] analyzer (Option UN7)
Clock rate
100 Hz to 60 MHz (usable to 90 MHz)
Data patterns PN9, 11, 15, 20
23
Resolution
10 digits
Bit sequence length
100 bits to 4,294 Gbits after synchronization
六、通用规格
远程编程
Interfaces GPIB IEEE-488.2
1987 with listen and talk
LAN
1000BaseT LAN interface, LXI Class C compliant
USB Version
2.0
Control languages SCPI Version
1997.0
Compatibility languages Keysight Technologies: N5181A\61A, N
5182A\62A, N5183A, E4438C, E4428C
适用型号 E442xB, E443xB, E8241A, E8244A, E8251A, E8254A, E8247C, E8257C/D,
E8267C/D, 8648 Series, 8656B, E8663B, 8657A/B, 8662A
8663A
Aeroflex Inc.
3410 Series
SMIQ, SML, SMV
Power requirements 100/120 VAC, 50/60/400 Hz 220/240 VAC, 50/60 Hz
160 W maximum (N5171B)
300 W maximum (N5172B)
Operating temperature range
0 to 55 °C
存储温度范围
–40 to 70 °C
工作和存储海拔
Up to 4,600 meters
Up to 3,000 meters (Option
660 only)
Environmental stress
条件：vibration, altitude, and power line conditions; test methods are aligned with IEC 60068-2 and levels are similar to MIL-PRF-28800F Class 3
Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against
the environmental stresses of storage, transportation and end-use; those stresses include but are not limited to temperature, humidity, shock,
Complies with the essential requirements of the European Low Voltage Directive as well as current editions of the following standards (dates
and editions are cited in the Declaration of Conformity)
• IEC/EN
61010-1
• Canada: CSA C22.2 No.
61010-1
• USA: UL std no.
61010-1
Acoustic noise emission
LpA <
70 dB
Normal position
Per ISO
7779
LpA <
70 dB
Normaler Betrieb
条件：1. From 40 °C to 55 °C, the maximum % Relative Humidity follows the line of constant dew point.
Nach DIN
45635 t.19
Complies with European EMC Directive
2004/108/EC
• IEC/EN 61326-1 or IEC/EN
61326-2-1
• CISPR Pub 11 Group
1, class A
• AS/NZS CISPR
11
• ICES/NMB-001
This ISM device complies with Canadian ICES-001; cet appareil ISM est conforme a la
norme NMB-001 du Canada
条件：• 3 GB (30 GB with Option 009) memory available in the N5172B
• Memory is shared by instrument states, user data files, sweep list files, waveform sequences, and other files
• Security Option 006 allows storage of up to 8 GB on SD card
• Depending on how the memory is utilized, a maximum of 1000 instrument states can be saved
No internal non-volatile memory (Option SD0)
• Disable/remove any internal non-volatile memory or solid state drive
• User will not be able to store any files in the internal memory of the instrument
• Not compatible with instrument hardware option 009 (Internal Solid State Memory) and option
660 (Base Band Generator with
Real-时间能力)
• Requires firmware B.01.80 or newer
Security (Option
006)
• Removable
8 GB solid state memory (SD card) from rear panel
• User can force all files to be stored only on external memory card including instrument states, user data files, sweep list files,
waveforms, waveform sequences, and other files
• Memory sanitizing, memory sanitizing on, power on, and display blanking
• Note: Read/write speeds to external memory card will be slower compared to internal solid-state drive (Option
009)
• N5171B: ≤ 13.6 kg (30 lb) net, ≤
28.6 kg (63 lb) shipping
• N5172B: ≤ 15.9 kg (35 lb) net, ≤
30.8 kg (68 lb) shipping
• 88 mm H x 426 mm W x
489 mm L (length includes rear panel feet)
• (3.5 in H x 16.8 in W x
19.2 in L)
• Max length (L) including RF connector tip to end of rear panel feet is
508 mm (20 in)
Recommended calibration cycle
36 months
前面板面板连接器
RF output Outputs the RF signal via a precision N type female connector; see output section for reverse power
protection information
条件：I and Q inputs BNC input accepts “in -phase” and “quadrature” input signals for I/Q modulation; nominal input
impedance is 50 Ω, damage levels are
1 Vrms and 5 Vpeak
USB
2.0 Used with a memory stick for transferring instrument states, licenses and other files into or out of the
instrument; also used with U2000, U848X, and U202X Series USB power sensors
后面板面板连接器
Rear panel inputs and outputs are 3.3 V CMOS, unless indicated otherwise; CMOS inputs will accept 5 V CMOS
3 V CMOS, or TTL
电压电平
条件：I and Q inputs (Option 1EM) Accepts “in-phase” and “quadrature” input signals for I/Q modulation SMB connector, nominal input
RF output (Option
1EM) Outputs the RF signal via a precision N type female connector
impedance is 50 Ω; damage levels are 1 Vrms and 5 Vpeak; Option
1EM units will come with 2 SMB
to BNC adapters
条件：I and Q outputs BNC outputs the analog I/Q modulation signals from the internal baseband generator; nominal output
impedance 50 Ω, DC coupled; damage levels
± 2 V
I bar and Q bar outputs (Option
1EL)
BNC outputs the complement of the I and Q signals for differential applications;
Event 1 This connector outputs the programmable timing signal generated by marker
1
The marker signal can also be routed internally to control the RF blanking and ALC hold functions; this
信号 also available 开 AUX I/O 连接器
With bit error rate analyzer (Option UN7) this connector is used for data input
Damage levels are > +8 V and <
–4 V
Pattern trigger Accepts signal to trigger internal pattern generator to start single pattern output, for use with the
internal baseband generators
Accepts CMOS signal with minimum pulse width of 10 ns
Female BNC
条件：Ext 1 External AM/FM/PM #1 input; nominal input impedance is 50 Ω/600 Ω/1M Ω, nominal; damage levels
Damage levels are > +8 V and <
–4 V
BBTRIG 1 For arbitrary and real-time baseband generators I/O such as Markers or trigger inputs
With bit error rate analyzer (Option UN7) this connector is used for clock input
BBTRIG 2 For arbitrary and real-time baseband generators I/O such as Markers or trigger inputs
With bit error rate analyzer (Option UN7) this connector is used for gate input
Sweep out Generates output voltage
0 to +10 V when the signal generator is sweeping; this output can also be
programmed to indicate when the sourc e is settled or output pulse video and is TTL and CMOS
compatible in this mode; output impedance < 1 Ω, can drive 2 kΩ; damage levels are
± 15 V
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
