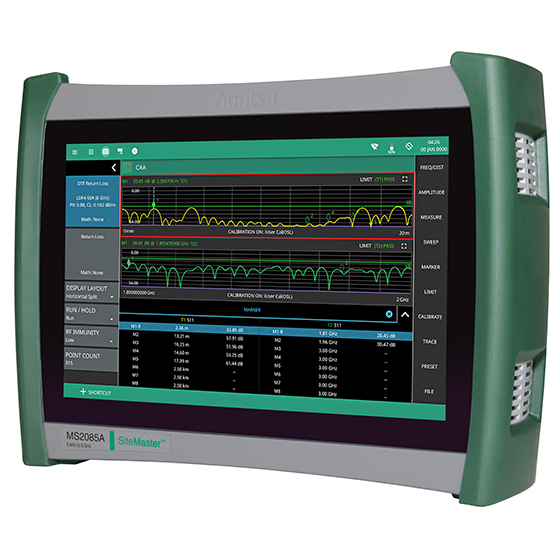

MS2085A-MS2089A Site Master 手持式电缆与天线分析仪
Site Master 手持式电缆与天线分析仪，可选频谱分析仪与矢量网络分析仪功能，适用于 6 GHz 以内射频通信系统的安装、维护与故障排查。
产品简介
MS2085A 与 MS2089A 是面向现场电缆与天线测试的 Site Master 系列，用于射频通信系统的安装、维护与故障排查。
MS2085A 提供 5 kHz 至 4 GHz 或 6 GHz 的电缆与天线分析仪，并可加装矢量网络分析仪选件；MS2089A 在此基础上增加 9 kHz 至 4 GHz 或 6 GHz 的频谱分析仪，便于开展发射机质量测量与干扰查找。
核心特点
• 电缆与天线分析仪：5 kHz 至 4 GHz / 6 GHz
• 回波损耗、电缆损耗、驻波比、故障定位、时域反射（TDR）、史密斯圆图、单端口相位
• 频谱分析仪：9 kHz 至 4 GHz / 6 GHz
• 50 kHz 至 3 GHz 动态范围典型 105 dB
• 快速扫描模式 350 μs/数据点
• 10,049 个数据点

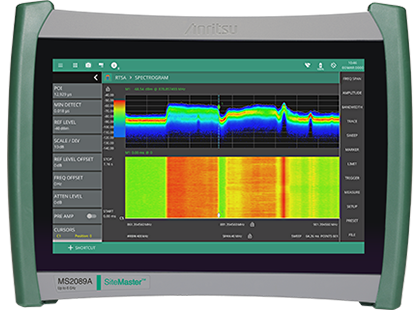

• 实时频谱分析（RTSA）
• IQ 捕获/流式传输
• 干扰分析仪
• 真功率计
• AM/FM 调制质量测量
• 内置 PDF/HTML 报告生成
功能与结构

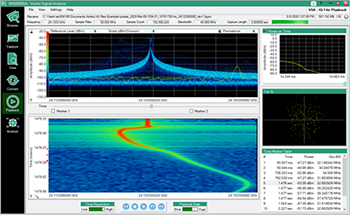

IQ Capture and Analysis
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer
IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Field Master Pro spectrum analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application, support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements, playback IQ data with high frequency and time resolution, view LTE and 5G frame resource blocks and playback IQ spectrograms from up to four analyzers in parallel.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software
Mobile InterferenceHunter
Anritsu Mobile Interference Hunting System — Quick. Reliable. Multi-Emitter.
Anritsu’s Mobile InterferenceHunter MX280007A is a quick and reliable way to find single or multiple sources of interference. The ability to work with multiple signal sources, reflections, RF shadows, drifting signals, bursty signals, and multi-path distinguish the Mobile InterferenceHunter MX280007A from more expensive solutions targeted at single fixed frequency interference sources.
The Mobile InterferenceHunter’s post-capture analysis capability allows users to modify search parameters without re-driving the route. This allows re-analysis of the captured data as well as consulting with experts.
The Mobile InterferenceHunter works with the broad array of Anritsu’s handheld spectrum analyzers, providing interference hunting and spectrum clearing capability from 9 kHz 至 54 GHz. The Mobile InterferenceHunter is a quick, reliable, and multi-emitter solution to your interference hunting and spectrum clearing needs.
Mobile InterferenceHunter

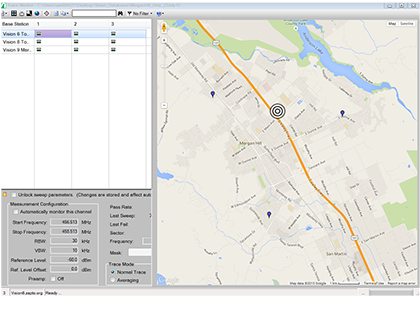

Vision Software
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.
Vision Monitor
Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software
典型应用
• 广播发射机系统测试
• 蜂窝网络基站馈线与天线系统安装验收
• 分布式天线系统（DAS）测试
• 现场故障定位与报告生成
型号与选件
• MS2085A-0804：Frequency Option 4 GHz Cable and Antenna Analyzer
• MS2085A-0806：Frequency Option 6 GHz Cable and Antenna Analyzer
• MS2085A-0904：Frequency Option 4 GHz Vector Network Analyzer
• MS2085A-0906：Frequency Option 6 GHz Vector Network Analyzer
• MS2085A-0002：Time Domain with Gating
• MS2085A-0003：Time Domain Reflection
• MS2085A-0006：Remove Wi-Fi and Bluetooth
• MS2085A-0007：Secure Data
• MS2085A-0015：Vector Voltmeter
• MS2085A-0017：Secure Communication
• MS2085A-0019：High Accuracy Power Meter (Requires USB sensor, sold separately)
• MS2085A-0021：2-Port Transmission Measurement
• MS2085A-0031：GNSS Receiver
• MS2085A-0804-0097：Accredited Calibration
• MS2085A-0804-0098：Standard Calibration
• MS2085A-0804-0099：Premium Calibration
• MS2085A-0806-0097：Accredited Calibration
• MS2085A-0806-0098：Standard Calibration
• MS2085A-0806-0099：Premium Calibration
• MS2089A-0804：Frequency Option 4 GHz Cable and Antenna Analyzer
• MS2089A-0806：Frequency Option 6 GHz Cable and Antenna Analyzer
• MS2089A-0704：Frequency Option 4 GHz Spectrum Analyzer
• MS2089A-0706：Frequency Option 6 GHz Spectrum Analyzer
• MS2089A-0904：Frequency Option 4 GHz Vector Network Analyzer
资源下载
• MS2085A-MS2089A Site Master 手持式电缆与天线分析仪 详细指标见 MS2085A-MS2089A Site Master 手持式电缆与天线分析仪 详细指标页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、Vector Network Analysis Product Portfolio（产品手册）、IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、C-RAN In The City Poster（产品手册）、Site Master MS2085A and MS2089A Product Brochure（产品手册）、Site Master MS2085A and MS2089A Quick Fact Sheet（产品手册）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS2085A-MS2089A Site Master 手持式电缆与天线分析仪 详细指标
Site Master 手持式电缆与天线分析仪，可选频谱分析仪与矢量网络分析仪功能，适用于 6 GHz 以内射频通信系统的安装、维护与故障排查。
详细指标
• 电缆与天线分析仪频率范围：5 kHz 至 4 GHz 或 6 GHz
• 频谱分析仪频率范围（MS2089A）：9 kHz 至 4 GHz 或 6 GHz
• 矢量网络分析仪选件频率范围：5 kHz 至 4 GHz 或 6 GHz
• 动态范围：50 kHz 至 3 GHz 典型 105 dB
• 快速扫描速度：350 μs/数据点
• 数据点数：10,049
• RTSA 实时频谱分析：支持
• IQ 捕获/流式传输：支持
型号与选件
• MS2085A-0804：Frequency Option 4 GHz Cable and Antenna Analyzer
• MS2085A-0806：Frequency Option 6 GHz Cable and Antenna Analyzer
• MS2085A-0904：Frequency Option 4 GHz Vector Network Analyzer
• MS2085A-0906：Frequency Option 6 GHz Vector Network Analyzer
• MS2085A-0002：Time Domain with Gating
• MS2085A-0003：Time Domain Reflection
• MS2085A-0006：Remove Wi-Fi and Bluetooth
• MS2085A-0007：Secure Data
• MS2085A-0015：Vector Voltmeter
• MS2085A-0017：Secure Communication
• MS2085A-0019：High Accuracy Power Meter (Requires USB sensor, sold separately)
• MS2085A-0021：2-Port Transmission Measurement
• MS2085A-0031：GNSS Receiver
• MS2085A-0804-0097：Accredited Calibration
• MS2085A-0804-0098：Standard Calibration
• MS2085A-0804-0099：Premium Calibration
• MS2085A-0806-0097：Accredited Calibration
• MS2085A-0806-0098：Standard Calibration
• MS2085A-0806-0099：Premium Calibration
• MS2089A-0804：Frequency Option 4 GHz Cable and Antenna Analyzer
• MS2089A-0806：Frequency Option 6 GHz Cable and Antenna Analyzer
• MS2089A-0704：Frequency Option 4 GHz Spectrum Analyzer
• MS2089A-0706：Frequency Option 6 GHz Spectrum Analyzer
• MS2089A-0904：Frequency Option 4 GHz Vector Network Analyzer
• MS2089A-0906：Frequency Option 6 GHz Vector Network Analyzer
• MS2089A-0002：Time Domain with Gating
• MS2089A-0003：Time Domain Reflection
• MS2089A-0006：Remove Wi-Fi and Bluetooth
资源下载
• MS2085A-MS2089A Site Master 手持式电缆与天线分析仪 产品介绍见 MS2085A-MS2089A Site Master 手持式电缆与天线分析仪 产品介绍页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、Vector Network Analysis Product Portfolio（产品手册）、IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、C-RAN In The City Poster（产品手册）、Site Master MS2085A and MS2089A Product Brochure（产品手册）、Site Master MS2085A and MS2089A Quick Fact Sheet（产品手册）
注：以上内容与指标取自安立官网该产品详情页。
