横河测试测量 YOKOGAWA
集成软件平台 IS8000
一百多年来，横河公司始终致力于了解并满足全球研究人员、科学家和工程师的测量需求，并以此享誉世界。专业人员要求其测量系统具备良好的准确性、稳定性和可重复性，以确保获得可靠可信的测量结果。
产品简介
IS8000软件平台是一套能加速工程流程的集成解决方案。它是一款高度集成了多台仪器时序、控制和数据采集的突破性软件，创建了一套可靠、高效和统一的全方位测量组件。
官方定位：一百多年来，横河公司始终致力于了解并满足全球研究人员、科学家和工程师的测量需求，并以此享誉世界。专业人员要求其测量系统具备良好的准确性、稳定性和可重复性，以确保获得可靠可信的测量结果。
核心参数
• EN 61000-3-2：2006/A1:2009/A2:2009, EN 61000-3-2:2014, EN 61000-3-2:2019, EN 61000-3-2:2021
• EN 61000-4-7：1993, EN 61000-4-7:2002/A1:2009
• JIS C 61000-3-2：2011, JIS C 61000-3-2:2019
• JIS C 61000-4-7：2007
• EN 61000-3-3：2008, EN 61000-3-3:2013, EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A2:2021
• EN 61000-4-15：1998/A1:2003, EN 61000-4-15:2011
• EN 61000-3-11：2000, EN 61000-3-11:2019
• EN 61000-3-12：2005, EN 61000-3-12:2011
• Functions：Supported devices
• Data File Import：DL350, DL850 series, DL950, SL2000, DL750 (Only WVF file), SL1400 (Only WVF file) , SL1000, WT1800 series, WT3000 series, WT5000, DLM2000 series, DLM3000 series, DLM3000 series, DLM3000HD series (will be supported by the future update.), DLM4000 series, DLM5000 series, DLM5000HD series
产品特点
The Power of One
The IS8000 software platform is an integrated solution that accelerates engineering workflow. It is a revolutionary software solution that tightly integrates the timing, control, and data collection from multiple instruments, creating a comprehensive measurement suite that delivers high confidence, efficiency, and unity.

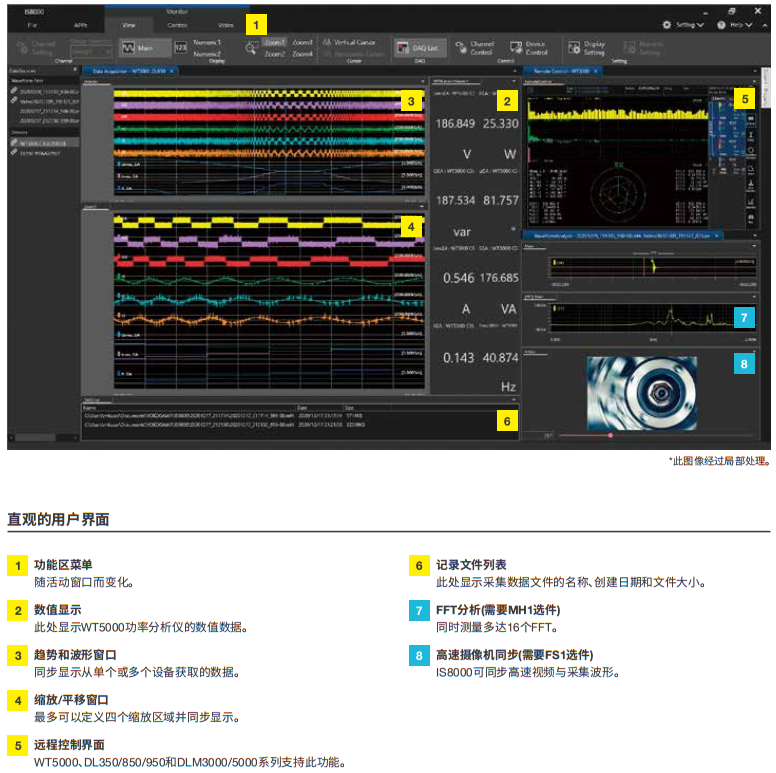

IS8000 Integrated Software Platform | Yokogawa Test&Measurement
High speed data acquisition up to 10 Gb
In combination with the 10 GbE option (C60 option) on the DL950 and the IS8000, up to 8 channels of data can be stored in real time on a PC at a sampling rate of up to 20 M samples per seconds.*
Longer recording times are now possible for high-speed, multi-channel inputs such as gate signals and switching waveforms of multi-phase inverters.
Multi-unit monitoring with time synchronization (SY1 option)
IS8000 and SY1 option enable accurate power and waveform data synchronization across multiple channels with minimal error. Data from the WT5000 power analyzer and DL950 ScopeCorder is time correlated with less than 10 us error using IEEE1588 technology.

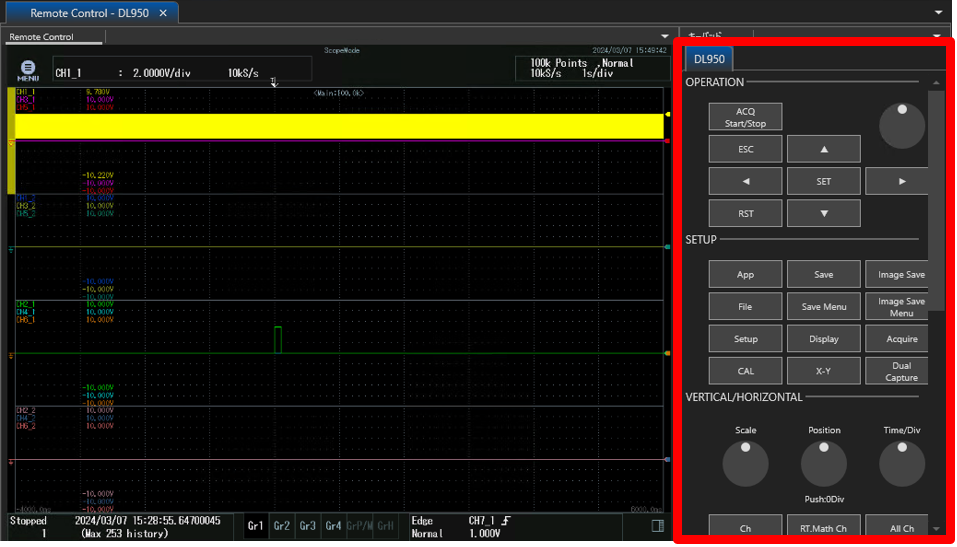

Control and realtime remote monitoring
YOKOGAWA’s high-precision power analyzer, ScopeCorder and oscilloscope can be remotely operated, monitored and configured from IS8000. Additional options, third-party high-speed cameras can also be controlled, greatly reducing the burden of operating and managing various instruments measuring power, physical phenomenon, video, and control signals.
FFT and math function (MH1 option)
Measure up to 16 FFT processes for a wealth of analysis functions for automatic calculation of frequency and integrated value and filter processing.
Report generator (RP1 option)
Customized reports are easily created by dragging and dropping measurement data, waveforms, graphs, etc. onto the sheet.

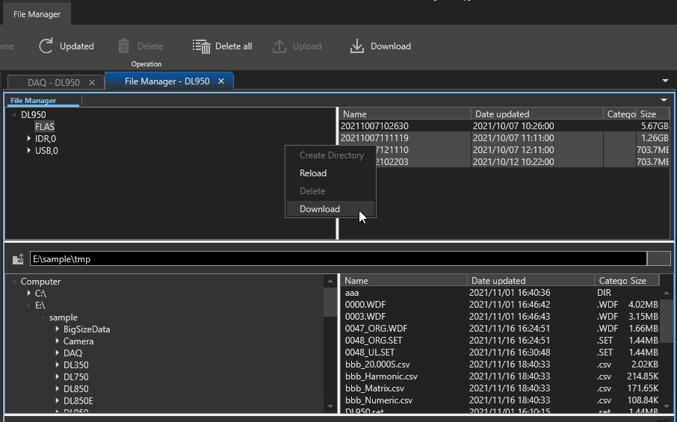

File import and export
The IS8000 supports binary, ASCII, and the MDF format, a very common format for the automotive industry. Power and waveform data on the IS8000 can be shared with your development system or third-party software.
Synchronization high-speed camera (FS1 option)
IS8000 synchronizes high speed camera images with related current, voltage, and control signals. Simultaneous slow motion playback allows visualization between design and results. In addition, video files captured by other than high-speed camera and waveform files can be synchronized offline for display and analysis.
IEEE1588 Precision Time Protocol
IEEE 1588 is a standard for the Precision Time Protocol (PTP), a protocol for high-precision time synchronization of networked instruments and control systems. The PTP grandmaster server provides a reference clock for each client instrument to achieve high-precision clock synchronization. Since the ScopeCorder DL950 has the PTP master function, high precision clock synchronization of the corresponding instruments on the same network is possible even without a PTP grandmaster server. The IS8000 is also capable of combining the simultaneous measurement data of each of these PTP-synchronized instruments in the same window.

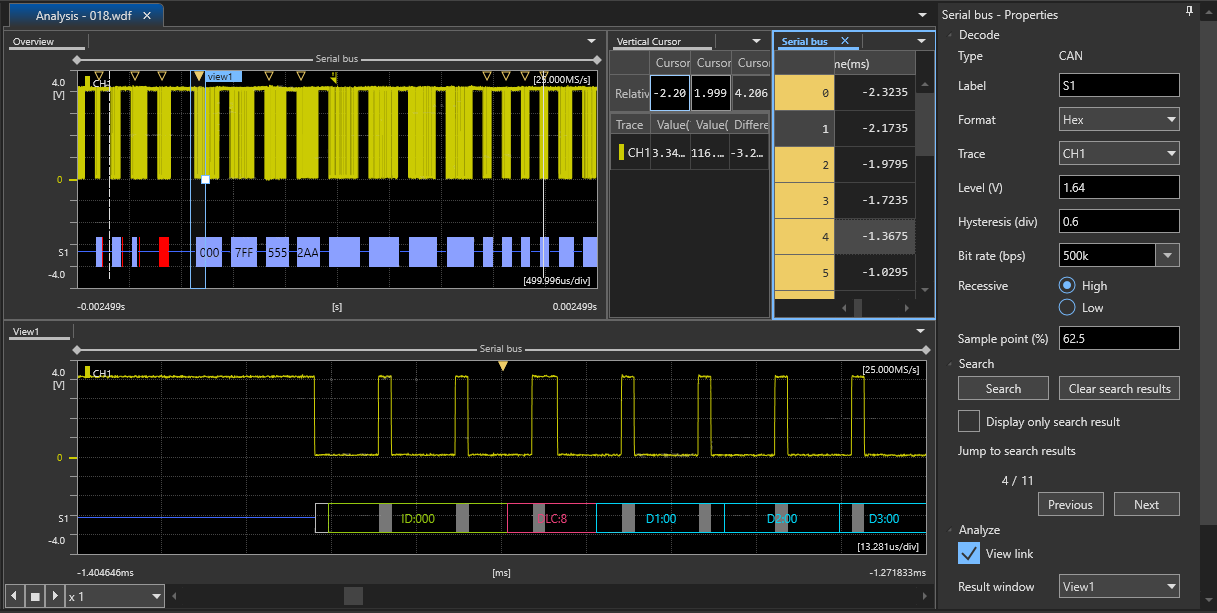

Serial Bus Analysis（SB1）
This is an analysis function for CAN bus communication widely used in in-vehicle networks and other applications. It enables decoding of communication contents, frame display, and search for specific information in CAN bus communication signal. This new serial bus analysis option can also be used to analyze signal waveforms acquired not only by Yokogawa's oscilloscopes but also by the ScopeCorder series and IS8000. It is effective for reanalysis of communication signal waveforms previously measured, and for comparison and analysis with other physical quantity measurements.
Serial Bus Analysis（SB1）
Modbus/TCP Communication（MB1）
Modbus/TCP communication. A communication configuration file for connection to the YOKOGAWA GM10 and VZ20X recorders is included with the software. Other Modbus/TCP communication devices can also be connected to the IS8000 by creating a communication configuration file using the included tool. Integration of these devices with a Yokogawa Test & Measurement’s power analyzer and waveform measuring instrument by the IS8000 will provide a measurement system that supports more input channels, longer recording times and a wider variety of temperature sensors.
Screenshot example of data acquisition with Yokogawa's GM10 and DL950
Modbus configuration file editor

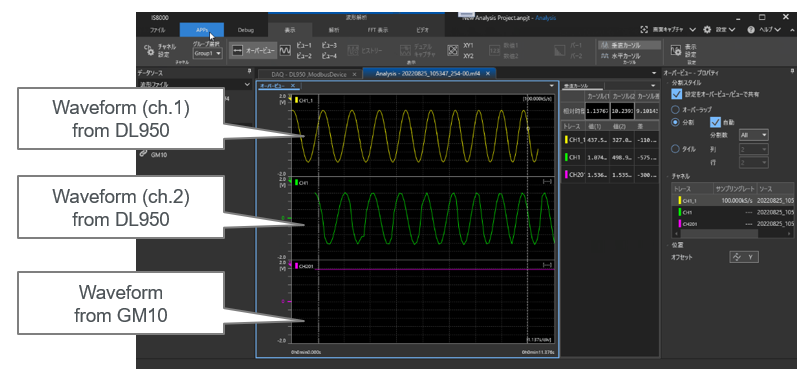

Screenshot example of data acquisition with DL950 Yokogawa's GM10

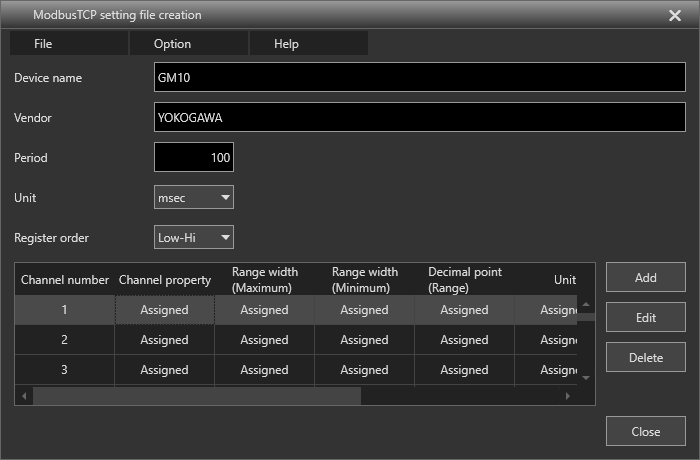

Modbus communication configuration file editor
DL950 示波记录仪
DL950将混合信号示波器和便携式数据采集记录仪结合为一个平台，可捕获高速瞬态事件和长期趋势，并能进行高达200MS/s和16位A/D的高速多通道测量。为了实际应用可组合超过20种不同的模块，单台仪器即可测量从低压到1000V绝缘模拟信号、逻辑信号、车辆通信信号、振动和应变量、温度等各种信号。它还可以将车辆通信数据(例如CAN/CAN FD/LIN/SENT)显示为趋势波形。12.1英寸大尺寸触摸屏可实现直观的操作。新设计的应用菜单让常用应用的设置变得更加简单。通过将DL950与IS8000结合使用，可以在测量时将数据直接传输到PC，在PC上进行分析。最多可以有5台DL950通过光纤同步，同时测量多达160个通道。了解更多示波器DL950的信息
WT5000 高精度功率分析仪
WT5000是一款高精度功率分析仪，其基本功率精度为±0.03%，是世界上最优秀的功率分析仪之一。WT5000具有±0.07%的DC功率精度、10MHz的电压测量带宽、5MHz的电流测量带宽以及(视在功率) ±0.02%的低功率因数特性，可对设备功耗、损耗和转换效率进行高精准测量。多达7个功率输入和4个电机扭矩输入，可同时评价多个电机驱动系统。WT5000可帮助提高EV、HEV、可再生能源相关设备和节能型家电的开发效率。了解更多高精度功率分析仪 WT5000的信息

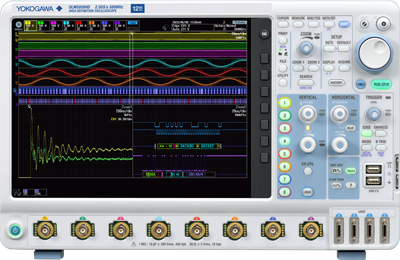

DLM5000HD & DLM3000HD 高分辨率示波器系列
DLM5000HD具有8个通道，DLM3000HD具有4个通道，是紧凑型 12 位示波器，旨在以高分辨率观察和分析复杂的高速波形，从而轻松检查微小噪声、振铃和其他细节。直观的触摸屏、自动设置和广泛的分析功能可加速复杂的诊断，提供无与伦比的测试精度。了解更多高分辨率示波器 DLM5000HD的信息 了解更多高分辨率示波器 DLM3000HD的信息
DLM5000HD
DLm3000HD
Compatible Models
Standard Functions

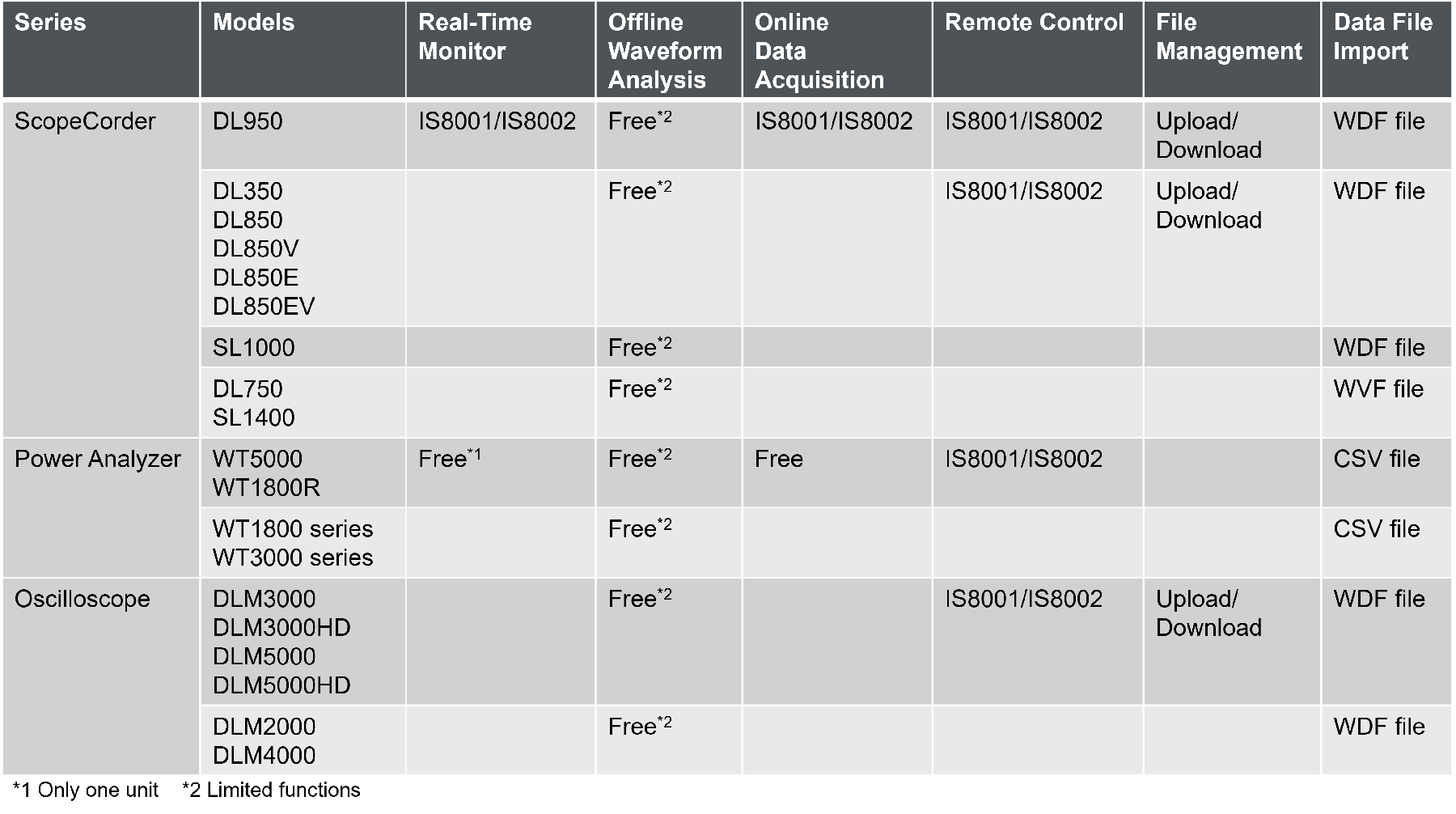

IS8000 Integrated Software Compatible Models Standard Functions | Yokogawa Test&Measurement
Optional Functions

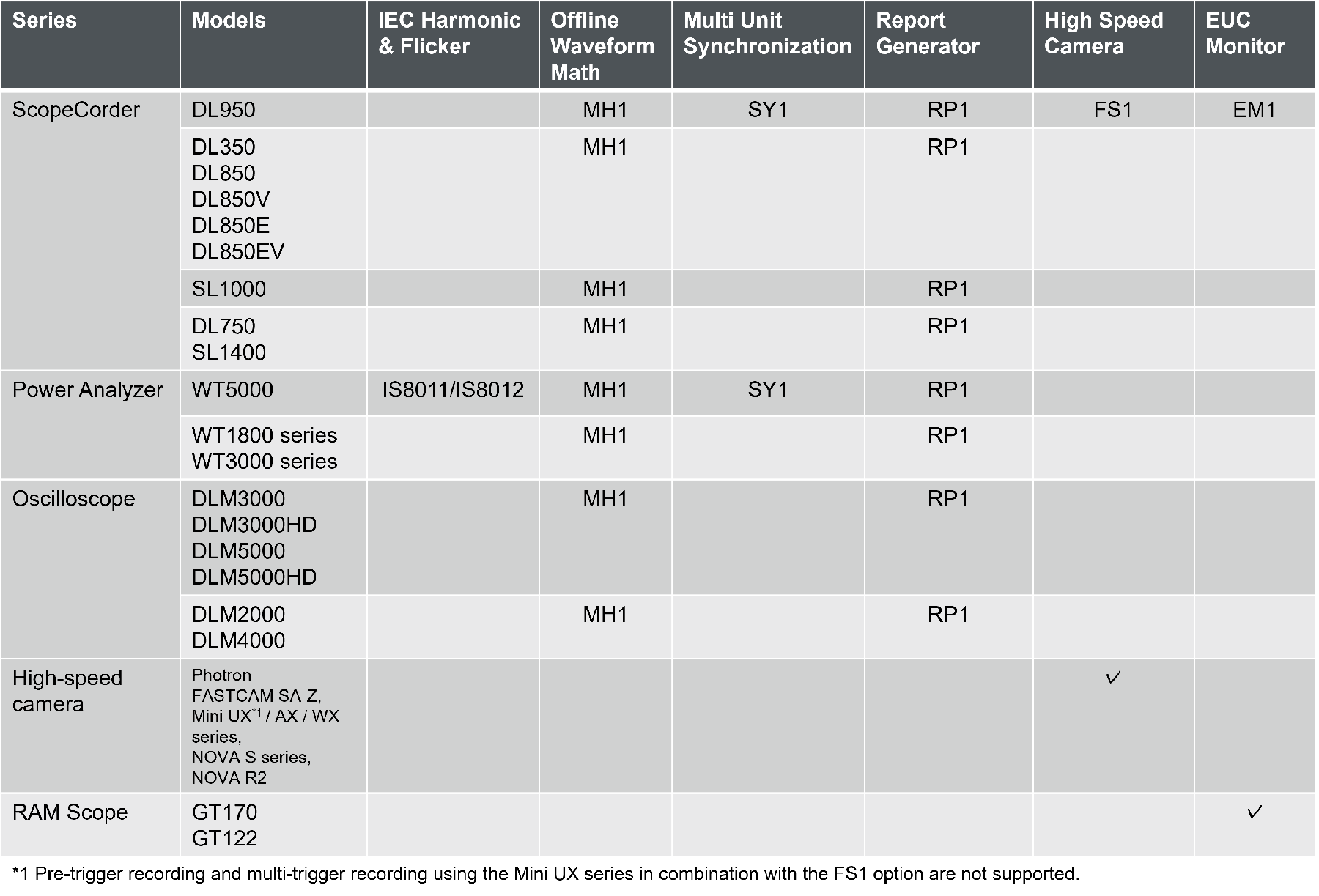

IS8000 Integrated Software Compatible Models Optional Functions | Yokogawa Test&Measurement
典型应用
汽车和工业领域

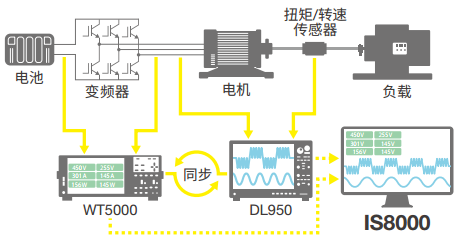

IS8000 Integrated Software Motor Efficiency | Yokogawa Test&Measurement
电机效率
概述
电机效率是电动汽车的一项关键指标，因为小幅改进就可能会增加行驶里程。效率测量需要用电机转速和扭矩进行准确的同步功耗测量。
IS8000优势
实现功率分析仪和高速记录仪的高精度同步测量 使用IEEE1588 PTP技术，可以将来自WT5000功率分析仪和DL950示波记录仪的数据进行时间同步，且误差小于10μs。在同一时间轴上即可显示精确的功率参数和波形。

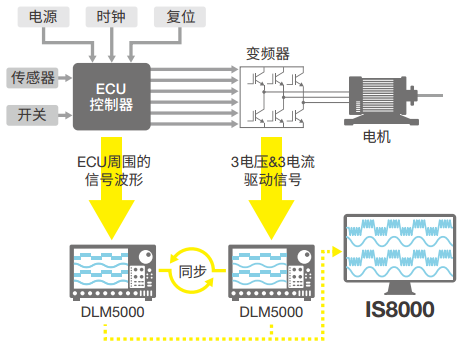

IS8000 Integrated Software Switching Waveform Analysis Sic Invertor | Yokogawa Test&Measurement
IGBT变频器的开关波形分析
为了分析电动机和变频器系统，需要三相之间的电压和电流信号，电机I/O信号以及多个IGBT门信号来正确地测量和诊断系统性能和效率。
组合更多波形 测量负载系统中的变频器性能需要超过8个波形。IS8000可以连接多台8通道DLM5000示波器，满足在一个控制和观测界面中显示和分析所有通道的需求。
电力/能源行业

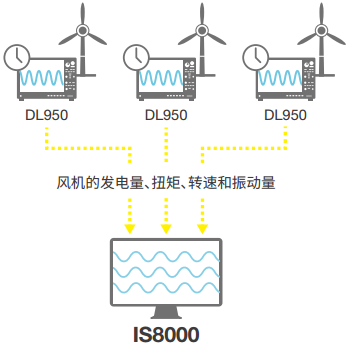

IS8000 Integrated Software Solar Wind Power System Development | Yokogawa Test&Measurement
太阳能/风能系统开发
风能、太阳能和水力等可再生能源系统必须保持能量转换阶段的高效率，以减少对环境的影响。多个测量点的精准和同步尤为重要。
查看和比较多台仪器的波形 IS8000可轻松同步多台仪器的波形，生成一个易于比较的视图。使用缩放和平移控制可轻松完成波形操作，用于分析长时间记录的能量波形
产品研发

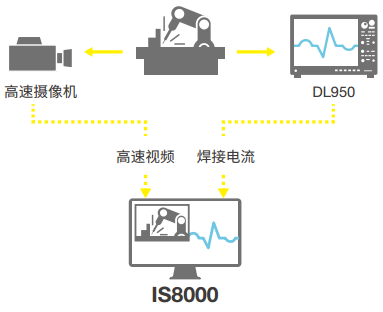

IS8000 Integrated Software Analysis of Robotic Welding Control | Yokogawa Test&Measurement
机器人焊接控制分析
对于具有成本效益的制造系统，需要对机器人焊接条件进行优化。要确定机器人的姿态和性能之间的最佳组合，需要监测多个信号和输入(包括高速摄像机输入、源电压和电流以及多个位置和控制I/O信号)。
同时记录多种信号类型 IS8000可显示多个输入。摄像机图像在时间上与其他波形(包括控制信号以及电压和电流波形)对齐。同时慢动作回放实现了设计和结果之间的可视化。
型号与附件
Subscription License
• This licenses type is based on annual subscription renewal for the platform and optional features. Users can purchase the software for as long as they need it, keeping their initial investment to a minimum. Users will always have the latest version of the software available for the duration of the subscription, so they will always be able to use the latest features, standards and security.
Perpetual License
• This is a one-time purchase and can be used indefintely. Additional optional features can be purchased at a later date. The platform can be upgraded free of charge for up to five years major software version revisions after purchase. After that, users can continue to use the software in the same environment. This license is suitable for users who do not plan to change their equipment environment at the time of installation.
Activation
• All IS8000 models and licenses, except the free trial period, require software activation over the internet before use. If the PC with the IS8000 installed cannot be connected to the network, it is possible to activate the IS8000 via another network-accessible PC. For more information, please refer to the electronic manual.

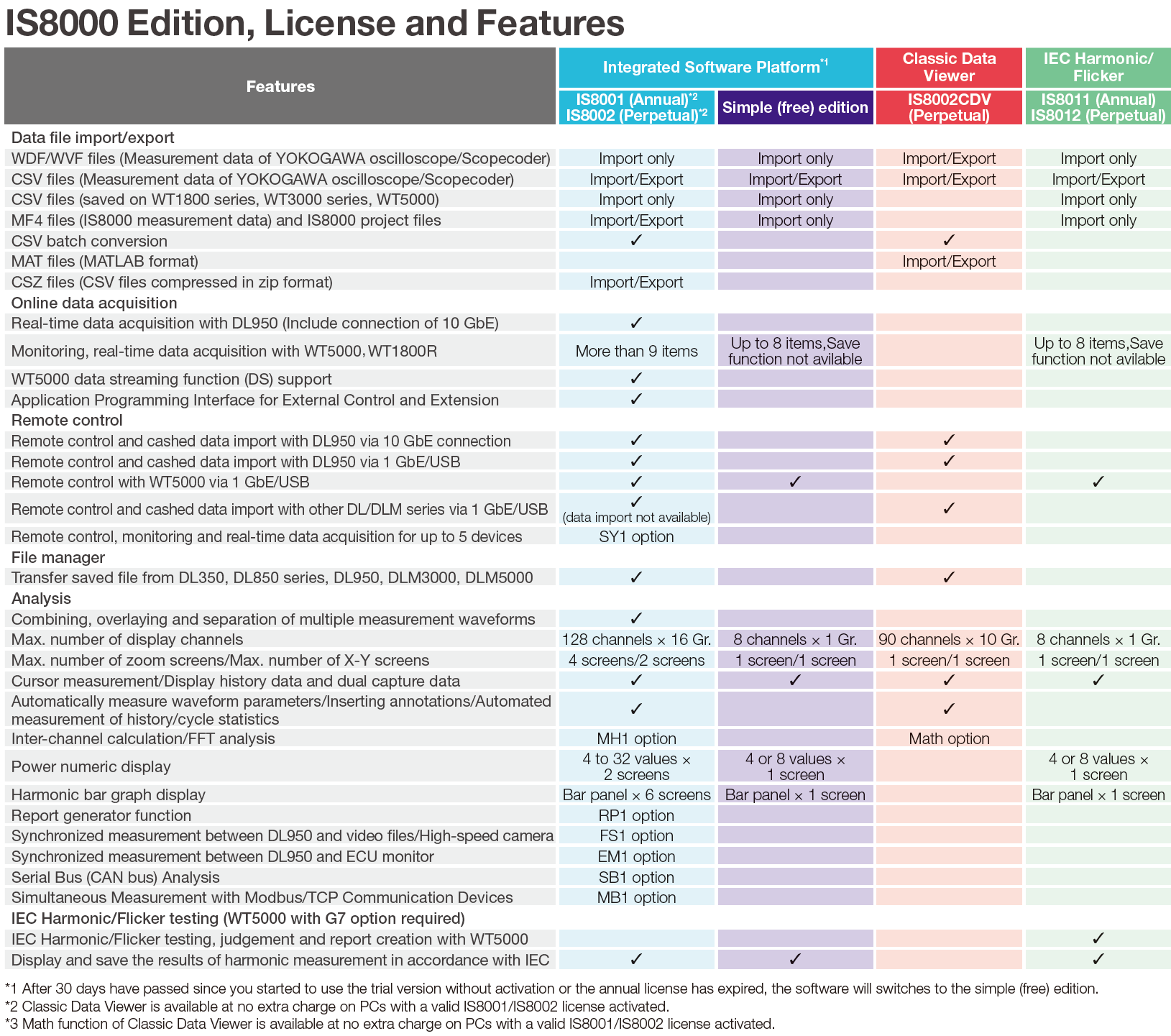

IS8000 Integrated Software Platform Licenses and Fees | Yokogawa Test&Measurement
资源下载
详细指标请见 集成软件平台 IS8000 详细指标页。
横河测试测量 · onetest 仪器资源库
横河测试测量 YOKOGAWA
集成软件平台 IS8000 详细指标
集成软件平台 IS8000（数据采集/开关系统）关键指标汇总。数据整理自厂商官方产品页与手册资料。
产品简介
IS8000软件平台是一套能加速工程流程的集成解决方案。它是一款高度集成了多台仪器时序、控制和数据采集的突破性软件，创建了一套可靠、高效和统一的全方位测量组件。
详细指标

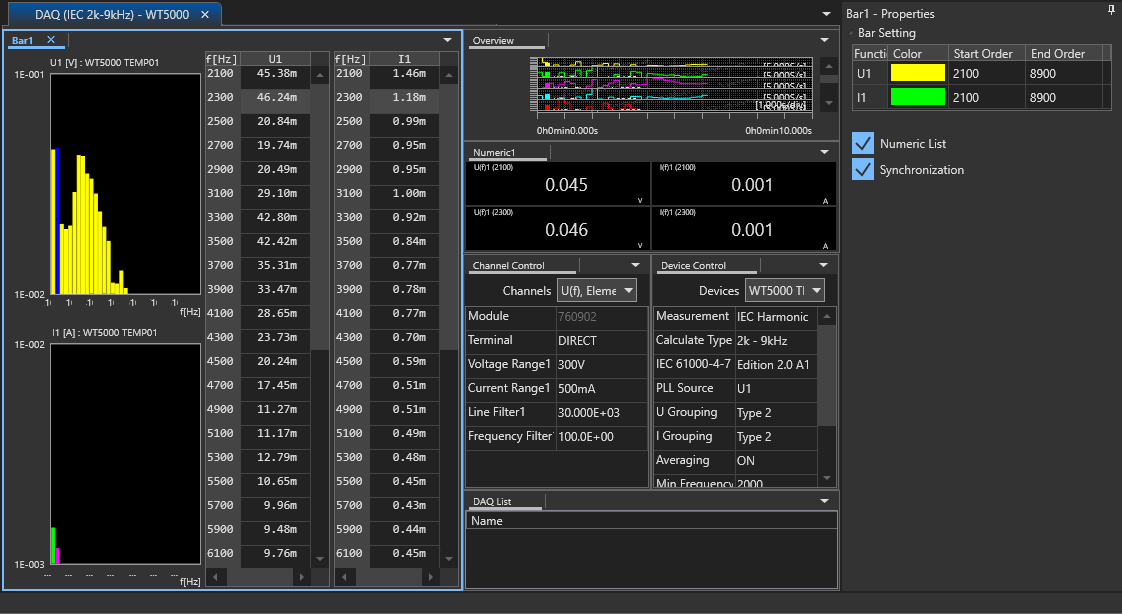

Optional software package for IEC harmonic and flicker compliance test
• IEC 61000-3-2 Edition 3.0:2005/A1:2008/A2:2009, IEC 61000-3-2 Edition 4.0:2014, IEC 61000-3-2 Edition 5.0:2018/A1:2020
• EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-2:2014, EN 61000-3-2:2019, EN 61000-3-2:2021
• IEC 61000-4-7 Edition 1.0:1991, Edition 2.0:2002 and A1 of the Edition 2.0:2008
• EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
• JIS C 61000-3-2:2011, JIS C 61000-3-2:2019
• JIS C 61000-4-7:2007
• IEC 61000-3-3 Edition 2.0:2008, IEC 61000-3-3 Edition 3.0:2013/A1:2017/A2:2021
• EN 61000-3-3:2008, EN 61000-3-3:2013, EN 61000-3-3:2013/A1:2019, EN 61000-3-3:2013/A2:2021
• IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
• EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
• IEC 61000-3-11 Edition 1.0:2000, IEC 61000-3-11 Edition 2.0:2017
• EN 61000-3-11:2000, EN 61000-3-11:2019
• IEC 61000-4-15 Edition 1.1:2003, IEC 61000-4-15 Edition 2.0:2010
• EN 61000-4-15:1998/A1:2003, EN 61000-4-15:2011
• IEC 61000-3-12 Edition 1.0:2004, and Edition 2.0:2011/A1:2021
• EN 61000-3-12:2005, EN 61000-3-12:2011
• IEC 61000-4-7 Edition 2.0:2002/A1:2008
• EN 61000-4-7:1993, EN 61000-4-7:2002/A1:2009
• IS8011/IS8012 optional software package is designed to perform harmonic and flicker tests in accordance with IEC61000-3-2, 3-3, 3-11 and 3-12 standards using the WT5000 precision power analyzer. Users can easily set the conditions and output the test report without any specialized knowledge. Users can make a pass/fail judgment by class A, B, C, and D of the harmonic current measurement values.
• Compatible measurement device: WT5000 (/G7 option required)
• Applicable standards: IEC 61000-3-2 Harmonic Measurement
• IEC 61000-3-3 Voltage Fluctuation and Flicker Measurement
• Voltage fluctuation and flicker suppression standards
• Flicker meter function and design specifications
• IEC 61000-3-11 Voltage Fluctuation and Flicker Measurement
• Voltage fluctuation and flicker suppression standards
• Flicker meter function and design specifications
• IEC 61000-3-12 Harmonic Measurement
Supported devices
• * Pre-trigger recording and multi-trigger recording using the Mini UX series in combination with the FS1 option are not supported.
• Functions：Supported devices
• Online data acquisition / DL950, SL2000, WT5000
• Remote control and setting, acquisition data download / DL350, DL850 series, DL950, SL2000, DLM3000 series, DLM3000HD series, DLM5000 series, DLM5000HD series, WT5000 (Remote control and setting only)
• Data File Import：DL350, DL850 series, DL950, SL2000, DL750 (Only WVF file), SL1400 (Only WVF file) , SL1000, WT1800 series, WT3000 series, WT5000, DLM2000 series, DLM3000 series, DLM3000 series, DLM3000HD series (will be supported by the future update.), DLM4000 series, DLM5000 series, DLM5000HD series
• High-speed camera Sync. / (FS1 option) / Supported cameras for online sync.: Photron’s FASTCAM SA-Z, MIni UX*/AX/WX series, Nova S series, Nova R2 / Supported devices for online sync.: DL950, SL2000
• Modbus/TCP Communication /（MB1 option） / Devices supported Modbus/TCP protocol.
• ECU Monitor sync. /（EM1 option） / DTS INSIGHT's RAMScope GT170（only for the variable data acquisition and calibration module）, GT122
Main specifications
• The writings in red are changes from the previous version.
• *1 Harmonic measurement data excluded. *2 The measurement data of first 128 channels can be imported. *3 /DS option is required for the WT5000 to be connected. *4 Trigger DAQ with DL950 external clock input is not supported. Freerun DAQ with DL950 external clock input, including 16-channel input module or CAN/CAN FD/LIN/SENT module, is not supported. *5 Pre-trigger recording and multi-trigger recording using the Mini UX series in combination with the FS1 option are not supported. *6 Only CSV files saved with Ver. 22.6.1.0 or later IS8000 can be imported. *7 Connecting instruments and collecting data with multiple launches of the IS8000 software on the same PC is not covered by the specification. *8 MB1 option is required. *9 G7 option on the connecting WT5000 is required to display measurement data complying with IEC 61000-4-7 Annex B (2k-9kHz). *10 Firmware version 3.61 or later and the G7 option are required on the connected WT5000 to display interharmonic measurement data compliant with IEC 61000-4-7 Ed. 2.1 Annex A. *11 IS8011/8012 does not support the 760903 Current Sensor Element. *12 Conditions for the Trigger DAQ may be subject to certain limitations. For more information, please visit: https: / tmi.yokogawa.com/p/is8000-tdaq
• Ver. 25.3.1.0
• Connecting support firmware / DL950, SL2000 / Ver. 2.01 or later
• WT5000：Ver. 3.31 or later
• Languages：English / Chinese / Japanese
• PC requirements：For data acquisition with 10 Gb Ethernet connection and Trigger DAQ; / CPU: Desktop PC required Intel Core i7 10700K 4 cores(8 threads) 4.7 GHz or faster Intel CPU / Amount of memory: 16 GB or more / Amount of SSD: 512 GB or more(M.2 slot is recommended, Sequential read/write 3 GB/s or faster) / For data acquisition with 1 Gb Ethernet/USB connection and offline analysis; / CPU: Intel Core i5-10210U 4 cores(8 threads) 4.2 GHz or faster Intel CPU / Amount of memory: 8 GB or more / Amount of SSD: 256 GB or more(Sequential read/write 400 MB/s or faster)
• OS：Windows 11 Pro or Enterprise edition / Windows 10 64bit Pro or Enterprise edition
• Communication interface / USB (USBTMC / VISA), Ethernet (VXI-11, HiSLIP, Modbus/TCP *8)
• Display resolution：1366×768 dots or higher, 100 % zoom
• Number of connectable units / Up to 5 units / (Only one unit without SY1 option) / (SY1 option is required even if the time synchronisation is not used)
• Supported file format / WDF / DL350, DL850 series, DL950, SL2000, SL1000, DLM2000 series, DLM3000 series, DLM3000HD series , DLM4000 series, DLM5000 series,DLM5000HD series
• CSV (Waveform data)：DL950, SL2000, DL850 series, DL350, DLM5000HD/5000/4000/3000HD/3000/2000 series, Xviewer Application Software and IS8000 *6
• CSZ：IS8000 CSV data compressed in ZIP format
• CSV (Power measurement data)*2 / WT5000, WT3000 series*1, WT1800 series
• WVF：DL750, SL1400
• MF4：IS8000 data files / ASAM MDF 4.1 files
• mepjt, anpjt：IS8000 Project files
• Export file formats：ASAM MDF 4.1 files (mf4), ASCII files (csv), CSV files compressed in ZIP format (csz)
• Online data acquisition / (DL950, SL2000)*7 / Motion mode / Scope mode (Trigger*12/ Free-run)*4
• Maximum transfer rate / 10Gb Ethernet connection: 320MB/s (20MS/s x 8ch, 10MS/s x 16ch) / 1Gb Ethernet / USB connection: 6.4MB/s (200kS/s x 16ch)
• Online data acquisition / (WT5000, WT1800R)*7 / Monitoring/DAQ items / Power trend graph and numeric / Harmonic bar graph *9*10 / Data-streaming waveform *3 / Vector diagram
• Online data acquisition / (common)*7 / Maximum continuous recording time/size / The recording will be kept until free storage space falls below 10%.
• Maximum recording channels / 160 channels
• Display format：Common / TY-Overview (up to 128 ch for each group, up to 16 group), XY (up to 2 windows for each group), TY-View (up to 4 areas for each group), Numeric Monitor（Up to 128 channels）
• For WT5000, WT1800R：Power trend graph and numeric display / Peak-to-peak compressed waveform (Data update interval: 1s or slower) / Bar graph of the amplitude and phase of each harmonic *9*10 / Data streaming waveform display *3 / Harmonic list display / Matrix display / Vector diagram
• Waveform overlays：Aligned by time, absolute time, head of data, end of data or arbitrary position
• Automated waveform parameter measurements / Parameters / Up to 28 parameters (including P-P, Amp, RMS and Freq).
• Automated measurement of history statistics / Waveform parameters for each waveform in the historical memory and their statistics can be calculated automatically.
• Automated measurement of cycle statistics / Waveform parameters of each period of a cyclic waveform and their statistics can be calculated automatically.
• Cursor：Vertical (up to 2 curors in a window), Horizontal (up to 2 curors in a window)
• Annotation：Comments, acquired data and calculated values can be added on the overview/view, waveform window and X-Y window.
• Supported devices：Data acquisition / DL950, SL2000 / WT5000*11, WT1800R（760903 Current Sensor Element supported.10ms update rate supported.）
• Flash ACQ data saving / DL950, SL2000
• Data file import：DL350, DL850 series, DL950, SL2000, SL1000, WT1800 series, WT3000 series, WT5000, DLM2000 series, DLM3000 series, DLM3000HD series, DLM4000 series, DLM5000 series,DLM5000HD series, DL750 (Only WVF files), SL1400 (Only WVF files)
• Remote control and setting, acq. data download / DL350, DL850 series, DL950, SL2000, DLM3000 series, DLM3000HD series, DLM5000 series,DLM5000HD series, DLM4000/2000 series, WT5000（Remote control and setting only）
• Screen Capture：Save / Clipboard, png, jpg, gif
• CSV batch converter：Load / MF4 (MDF4.1), WDF, WVF
• Save：CSV, CSZ (CSV compressed in ZIP format)
• Mathematical data analysis（MH1） / Number of Math channels / Up to 16 channels
• Operators：+, -, x, /, Phase shift, ABS, SQRT, LOG, EXP, RMS, NEG, SIN, COS, TAN, ATAN, PH, DIF, DDF, INTEG, BIN, P2, P3, F1, F2, FV, PWHH, PWHL, PWLH, PWLL, PWXX, DUTYH, DUTYL, FLT1, FLT2, HLBT, MEAN
• Number of computed points / Up to 12.5 M points / or up to100 M points can be supported by installing MATLAB Runtime
• Digital filters：Gauss, Sharp, IIR（Butterworth）
• FFT analysis（MH1)：Operator / Type: LS, RS, PS, PSD, CS, TF, CH / Sub-type: REAL, IMAG, MAG, LOGMAG, PHASE
• Window function：Rect, Hanning, Flat top, Hamming
• Number of FFT channels / Up to 16 channels independently
• Number of computed points / Up to 2 M points / or up to100 M points can be supported by installing MATLAB Runtime
• Serial bus analysis（SB1） / supported protocol / CAN (CAN FD is not supported at present.)
• Search target：SOF, ID/Data, Error
• Number of search points / Up to 100,000 frames
• Bit rate：Select the value from 33.3kbps, 83.3kbps, 125kbps, 250kbps, 500kbps,1Mbps, or enter it within the range of 10kbps to 1Mbps in 0.1kbps steps.
• Report Generator (RP1) / Export / Microsoft Word, Excel, PDF, Print
• Components：Waveforms, Measurement data, Comments, Images
• High-speed camera Sync.（FS1） / Supported cameras for online sync / Photron’s FASTCAM SA-Z, MIni UX*5/AX/WX series, Nova S series, Nova R2
• Supported video format for online sync / high-speed camera video files（avi）
• Supported devices for online sync / DL950, SL2000
• Supported video file formats for offline sync / AVI(*.avi), MP4(*.mp4), WMV(*.wmv), AVCHD(*.mts), MOV(*.mov), MPEG2-PS(*.mpg, *.mpeg)
• ECU Monitor sync.（EM1） / Supported monitoring tools / DTS INSIGHT's RAMScope GT170（only for the variable data acquisition and calibration module）, GT122
• Supported data file：RAMScopeVP output files（a2l）
• Supported devices for online sync / DL950, SL2000
Models and features
• Classic Data Viewer is available at no extra charge on PCs with a valid IS8001/IS8002 license activated.
Models and features
Notes on Trigger DAQ
• The instrument stops automatically after the set number of triggers, but IS8000 DAQ does not stop automatically.
• Maximum data per trigger is 1 GB per unit.
• Continuous Trigger DAQ has been verified to run for 24 hours on PCs that meet the system requirements.
• When using the Trigger DAQ function with DL950/SL2000 (IS8000 version 25.2.1.0 or later), please note:
手册与资料
说明
以上指标摘自厂商官方产品页与公开手册，若与随机文件不一致，以随箱文件为准。
横河测试测量 · onetest 仪器资源库
全部
横河测试测量官方渠道
厂家联系方式
技术与服务热线：400 820 0372
横河测量技术（上海）有限公司总部及上海分公司
地址：上海市长宁区天山西路799号603室
邮编：200335
电话：(86)-21-6239 6363
华东、华中、西南地区
苏州办事处
地址：苏州工业园区苏华路8号中银惠龙大厦1608室
邮编：215021
电话：(86)-512-6762 5501
杭州办事处
地址：杭州市西湖区古墩路387号绿城金桂大厦908室
邮编：310012
电话：(86)-571-8779 9106
南京办事处
地址：南京市鼓楼区云南北路49号天星翠琅大厦12楼J座
邮编：210009
电话：(86)-25-8315 3019
无锡办事处
地址：无锡市惠山区探索路6号宇野科技大厦B栋1807室
邮编：214000
电话：(86)-510-8359 0699
武汉办事处（通用测试）
地址：武汉市东湖新技术开发区光谷大道中国光谷云计算海外高新企业孵化中心1号楼2707室
邮编：430073
电话：(86)-27-6552 7728/7729
成都办事处
地址：成都市高新区吉泰五路88号香年广场3栋906号房
邮编：610095
电话：(86)-28-8620 2660/2680
北京分公司
地址：北京市东城区崇文门外大街8号院1号楼12层西塔1204-5,1204-6号
邮编：100062
电话：(86)-10-8522 1699
东北、华北、中原、西北地区
长春办事处
地址：长春市南关区亚泰大街6789号万晟商务花园2号楼1203室
邮编：130022
电话：(86)-431-8860 6412
沈阳办事处
地址：沈阳市沈河区青年大街169号盛华公馆A座813
邮编：110004
电话：(86)-24-3165 7770
天津办事处
地址：天津市南开区宾水西道时代奥城酒店式公寓19号楼1215房间
邮编：300381
电话：(86)-22-8378 8675
青岛办事处
地址：山东省青岛市市北区连云港路33号万达商务楼B座3018室
邮编：266034
电话：(86)-532-5568 5892
西安办事处
地址：西安市西咸新区沣东南路1000号环普西安沣东科创园A1栋3层301-2单元
邮编：710086
电话：暂无
武汉办事处（光通信测试）
地址：武汉市东湖新技术开发区光谷大道中国光谷云计算海外高新企业孵化中心1号楼2707室
邮编：430073
电话：(86)-27-6552 7728/7729
深圳分公司
地址：深圳市福田区益田路6009号新世界商务中心1405室
邮编：518026
电话：(86)-755-8373 4453/4456/4458/4459
华南地区
广州分公司
地址：广州市越秀区环市东路362-366号好世界广场2707
邮编：510060
电话：(86)-20-8371 7571/8365 8409
东莞办事处
地址：东莞市南城区宏北路18号碧桂园商务中心1522室
邮编：523000
电话：(86) -769-2288 8391
授权代理商
北京诺约科技有限公司 办公地址：北京市朝阳区大屯路222号院2号楼10层1009 联系电话：010-68944158 电子邮箱：market@promise-auto.com
WT300/GP/GM系列产品代理商
深圳市科瑞杰科技有限公司 代理区域：深圳市、惠州市、东莞市 办公地址：广东省深圳市龙华新区东环一路与建设路口恒和国际大厦1204 联系电话：0755-29812627/13823584162 电子邮箱：sales@keruijie.com.cn
北京凡实测控技术有限公司 代理区域：北京 办公地址：北京市丰台区玉泉营桥111文化产业园中科万邦大厦A501 联系电话：010-68456100/18518917293 电子邮箱：18518917293@163.com
大连通测仪器有限公司 代理区域：辽宁省 办公地址：辽宁省大连市沙河口区联兴巷18号22-5 联系电话：0411-88855568 电子邮箱：dltcyq@163.com
杭州鼎伟电子有限公司 代理区域：浙江省 办公地址：浙江省杭州市钱塘区下沙街道望钱塘印中心4幢505，506室 联系电话：0571-86705627/13656818305 电子邮箱：hanxiaojian@hzdwdz.com
西安益泰金泓电子科技有限公司 代理区域：陕西省、甘肃省 办公地址：陕西省西安市高新区锦业一路研祥城市广场B座3029室 联系电话：029-81100955/15319801817 电子邮箱：caihongdeweixiao@yitaijinhong.com
曲尺技术（武汉）有限公司 代理区域：湖南省、湖北省、江西省 办公地址：湖北省武汉市东湖高新技术开发区高新六路99号南山光谷自贸港A栋705# 联系电话：027－87771662/15377622261 电子邮箱：sales@eanalyzer.com.cn
成都曲尺科技有限公司 代理区域：四川省、云南省、贵州省、西藏自治区、重庆市 办公地址：四川省成都市金牛区兴科中路3号2栋2单元1层1号309室 联系电话：18927491671 电子邮箱：libiao@eanalyzer.com.cn
纬斯康（青岛）科技有限公司 代理区域：山东省 办公地址：山东省青岛市市北区黑龙江南路2号丙万科中心C栋1622室 联系电话：0532-85611860 / 18562590015 电子邮箱：wsk@wisecom-tech.com
郑州晶测科技有限公司 代理区域：河南省 办公地址：河南省郑州市管城区商城东路9号院8号楼1单元8层29号 联系电话：0371-86163367 / 13663005190 电子邮箱：jingcekeji@163.com
上海顺测电子有限公司 代理区域：上海市 办公地址：上海市松江区九新公路1005号4号楼102单元 联系电话：021-53087663 / 18616664242 电子邮箱：tony@shunce.net
DLM3000系列产品代理商
Electronic Scientific Engineering Ltd. 科电工程有限公司 代理区域：香港、澳门 办公地址：25/F Chinachem Exchange Square, 1 Hoi Wan Street, Quarry Bay, Hong Kong
香港鰂鱼涌海湾街1号华懋交易广场25楼 联系电话：Office 852- 2589 0864/ Mobile 852- 5109 7238 电子邮箱：alexleung@ese.com.hk
便携式产品(PTI)、MT/MC压力测量仪 代理商
上海横久电子科技有限公司 代理区域：上海市、江苏省、浙江省、安徽省、江西省、湖北省、湖南省、福建省 办公地址：上海市共和新路3699号共和国际商务广场A栋519室 联系电话：021-61810102 电子邮箱：yokoever@yokoever.com
广州技创电子设备有限公司 代理区域：广东省、广西省、海南省 办公地址：广州市黄埔区开创大道2395号至泰广场A2栋1104室 联系电话：13711672610 电子邮箱：daqi.li@jichuang-china.com
OTDR系列产品代理商
北京益安佳光电科技发展有限责任公司 代理区域：全国 办公地址：北京市海淀区巴沟南路35号京江阳光写字楼C座201-209室 联系电话：010-82562516 电子邮箱：daihongling@bj-everbetter.com.cn
北京路和兴信息技术有限公司 代理区域：全国 办公地址：北京市朝阳区八里庄西里99号住邦2000商务中心2号楼1701室 联系电话：010-85869430 电子邮箱：my117@lookworld.com.cn
成都雄博科技发展有限公司 代理区域：全国，以西南为主 办公地址：四川省成都市高新区环球中心西区（W5）7幢11楼1106号 联系电话：028-85140748 电子邮箱：18981784997@163.com
福州福光电子有限公司 代理区域：全国 办公地址：福建省福州市台江区广达路68号金源大广场东区24层 联系电话：0591－83305858 电子邮箱：hongji@fuguang.com
深圳维博信通科技有限公司 代理区域：全国 办公地址：广东省深圳市福田区新洲九街嘉葆润金座A座1713-1714室 联系电话：0755-25310527 电子邮箱：ford@ever-sun.com.cn
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
