FTBx-88460 实验室用多业务测试解决方案|EXFO (在产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
EXFO · EXFO Inc.

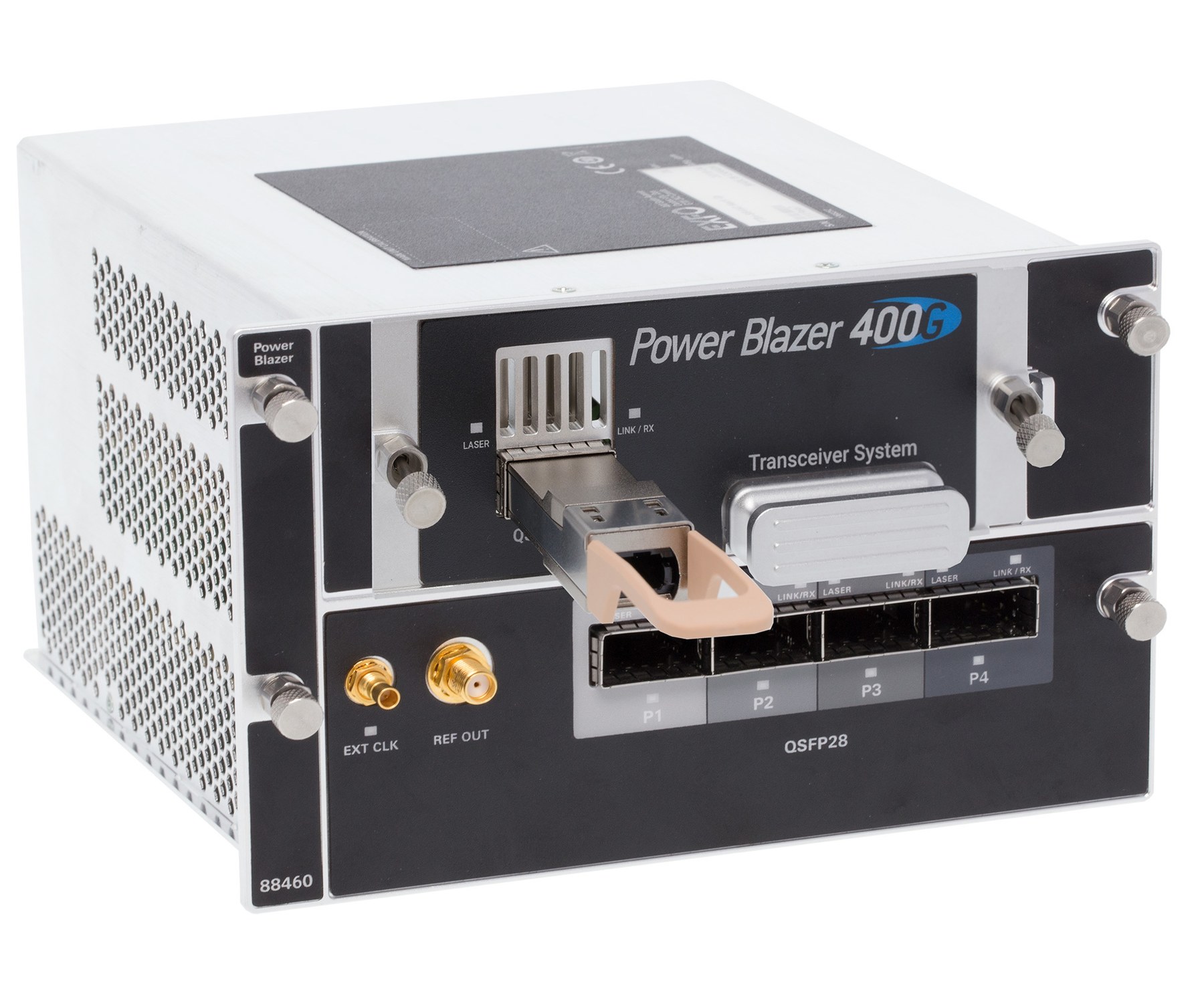

FTBX-88460-LAB 实验室用多业务测试解决方案
REF-OUT INTERFACE SMA · 重量 1.70 kg 3.75 lb a · 尺寸 101 mm x 159 mm x 175 mm …
产品简介
提供非常高级的测试功能，用于在实验室和研发环境内测试整套的400G新技术
核心参数
• REF-OUT INTERFACE - 连接器类型：SMA
• 重量：1.70 kg 3.75 lb a
• 尺寸（高×宽×深）：101 mm x 159 mm x 175 mm (4 in x 6 1/4 in x 6 7/8 in)
• Detailed compliance testing：IEEE 802.3ba and IEEE 802.3bs standard
• 400G ecosystem support：400/200GbE, FlexE and OTUCn and FlexO
• Transceiver and cable validation：SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56, QSFP-DD, OSFP and CFP2-DCO
• Power measurement：Optical channel power measurement with color indicators per lane
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface,and monitoring
功能与特点
• 提供符合IEEE 802.3bs标准草案要求的400G以太网测试功能
•采用EXFO的开放式收发器系统（OTS）：创新、革命性的设计，使任何收发器（现有或未来）都能够安装到EXFO的测试解决方案中
• 提供FlexE（Flex Ethernet）测试功能，支持低速和高速以太网客户端
•集成4 x QSFP28、QSFP-DD、CFP8和OSFP接口，便于测试400G网络

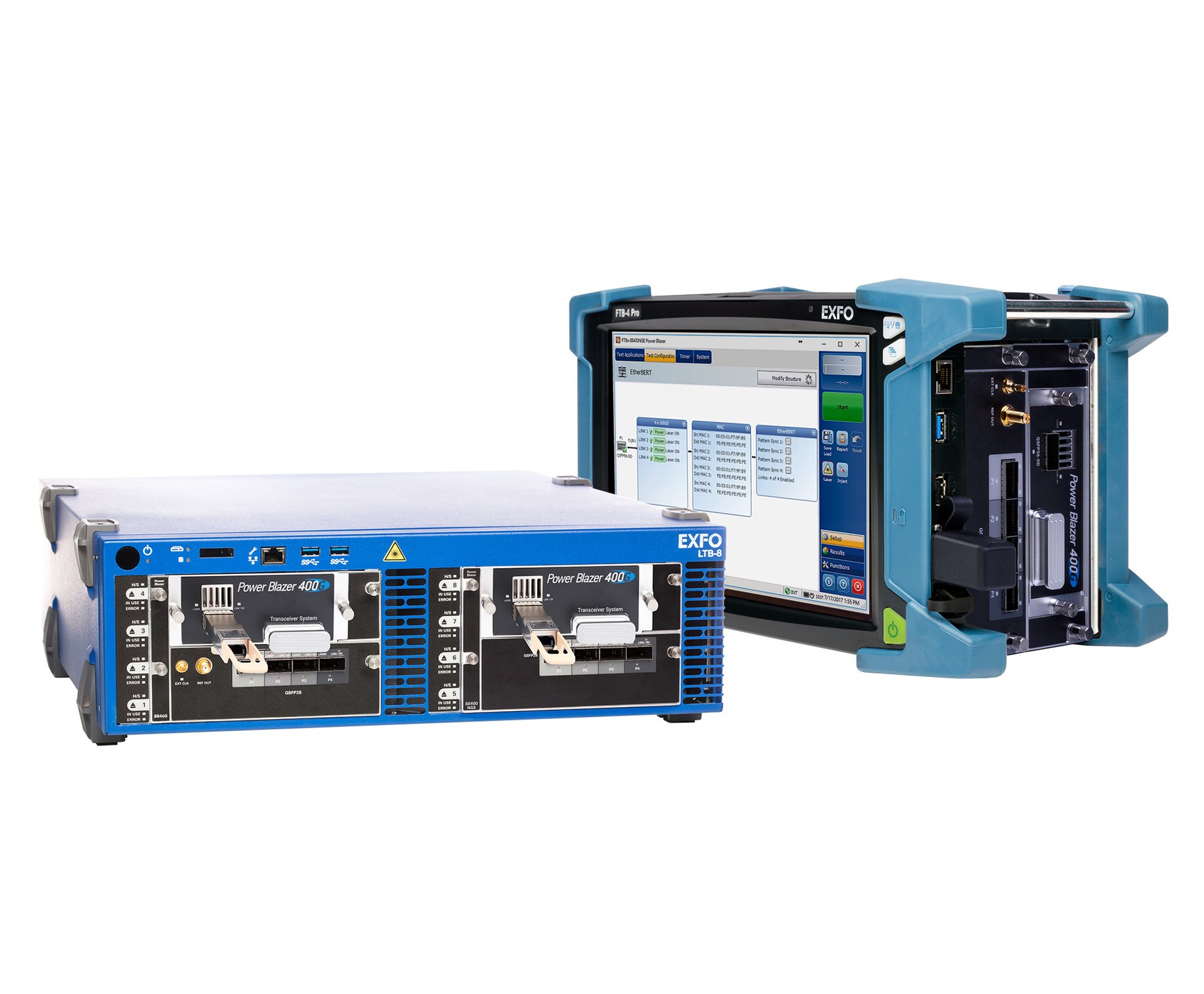

• 兼容EXFO的LTB-8机架式平台，支持热插拔，便于在实验室内使用，并提供出色的400G端口密度，最多可同时运行两个模块
•兼容便携式FTB-4 Pro平台，构成非常紧凑的400G解决方案——支持从实验室到现场的应用转换
资源下载
•详细指标：全部技术指标已单独整理，详见 FTBX-88460-LAB 实验室用多业务测试解决方案 详细指标页
onetest仪器资源库 · EXFO FTBX-88460-LAB 实验室用多业务测试解决方案
EXFO · EXFO Inc.
FTBX-88460-LAB 实验室用多业务测试解决方案 · 详细指标
REF-OUT INTERFACE SMA · 重量 1.70 kg 3.75 lb a · 尺寸 101 mm x 159 mm x 175 mm …
产品简介
提供非常高级的测试功能，用于在实验室和研发环境内测试整套的400G新技术
本页按官方规格资料分组收录 FTBX-88460-LAB 实验室用多业务测试解决方案 的全部关键技术指标；产品定位、特性与应用场景请见 FTBX-88460-LAB 产品介绍页。
技术指标
技术规格
• Detailed compliance testing：IEEE 802.3ba and IEEE 802.3bs standard
• Multi-interface support：Pluggable MSA-compliant 4 x 25G QSFP28 transceivers; AOC QSFP28/QSFP-DD cable support; CFP MSA management interface specification version 2.6 (R06a); QSFP-DD MSA revision 4.0, 8 x 50G and 4 x 100G; OSFP MSA revision 2.0, 8 x 50G and 4 x 100G; 400G DAC cables support; Pluggable, MSA-compliant QSFP+ transceivers; Pluggable, MSA-compliant SFP28 optical transceiver; Pluggable, MSA-compliant SFP/SFP+ optical transceivers
• Line rate：425/212.5/106.25 (single lambda)/103.125/53.125/41.25 Gbit/s, 100G SRBD, 25GE, 10GE LAN, 10GE WAN and 1GE OIF DCO Coherent OSFP & QSFP DD ZR and ZR+
• 400G ecosystem support：400/200GbE, FlexE and OTUCn and FlexO
• Robust physical-layer validation：400GAUI lane-error generation and monitoring; PCS lane mapping and monitoring capability; per-lane skew generation and measurement; PCS error generation and monitoring per lane; full MDIO/I2C read/write access
• Transceiver and cable validation：SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56, QSFP-DD, OSFP and CFP2-DCO
• iOptics：Optical-device I/O interface quick check; optical Tx power-level test; optical Rx signal-presence and level test; stress test; excessive skew test; temperature and power consumption monitoring; host and media loopback
• Power measurement：Optical channel power measurement with color indicators per lane
• Frequency measurements：Allow users 至 measure the received frequency per wavelength (in Hz) in the used of parallel optics
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface, and monitoring
• Transceiver non-blocking analysis：Enables a step-by-step monitoring of the transceiver boot-up sequence
• BERT：BERT framed and unframed testing using different parameters, different frame sizes, including EMIX
• Service disruption time（SDT）：Service disruption time measurements based on no traffic, mode, with statistics including longest disruption time, shortest, last, average, count, total and pass/fail thresholds
• Latency measurements in BERT：High-resolution delay measurements integrated in the BER with statistics including current, average, maximum, minimum, count, total and pass/fail thresholds
• Error injection mode：Manual, rate and continuous (maximum rate)
• Layer：MAC address and Ether type edition available; Q-in-Q capability with the ability 至 go up 至 three layers of stacked VLANs
• Layer 3/4：Source and destination IP address configuration available; IP TOS/DSP configuration available; UDP source and destination port configuration available
• RFC：Throughput, back-to-back, frame loss and high-resolution latency measurements according 至 RFC 2544; frame size: RFC-defined or user-configurable
• EtherSAM：Simplified ITU-T Y.1564 test that performs service configuration and service performance tests using remote loopback or dual test set mode for bidirectional results
• Traffic generation and monitoring：Traffic generation and shaping of up 至 16 streams of Ethernet and IP traffic, including the simultaneous monitoring of throughput, frame loss, packet jitter, latency and out-of-sequence frames, including MAC flooding for source and destination MAC addresses
• Breakout cable support：Verification of 2 x 100GE, 4 x 100GE, 2 x 200GE and 8 x 50GE breakout cables providing optical Tx/Rx power, L2/L3 traffic and BERT statistics per link
• Smart loopback：Return Ethernet traffic 至 the local unit by swapping packet overhead up 至 layer 4
• Rx frame-size analysis：1518
• Rx rate：Line utlization (%), Ethernet BW (Mbit/s), frame rate (frame/s), and frame count
• Ethernet alarms：Link down, local fault detected, local fault received, remote fault, LOA
• Ethernet errors：FCS, jabber, runt, undersize and oversize
• Higher layer error analysis：UDP checksum
• PCS lane alarms and errors：LOS, LOC-lane, LOAML, excessive skew, Inv. Marker, Pre-FEC SYMB and Pre-FEC-bit
• Skew insertion：Per-lane skew generation and measurement range 0 至 10550
• PCS logical lane mapping：Manual and random
• FEC：Generation and analysis of FEC correctable and uncorrectable errors, local and remote degraded SER monitoring
• FEC statistics：Number of symbol errors per correctable codeword, number of pre-FEC symbol errors and bit statistics, codeword count (error-free and uncorrectable) and percentage
• PAM4 histogram：Provides a graphic view from PAM4 eye diagram per lane, including PAM4 levels
• Pre-emphasis：Pre-/main-/post- cursor, lower/upper eye and swing (%) options 至 improve electrical waveform
• IP tools：Performs ping and traceroute functions
• IPv4 and IPv6 testing：Performs the following tests up 至 400G over IPV4 and IPv6, RFC 2544, BERT, traffic generation and monitoring, EtherSAM, ping and traceroute
• Advanced filtering：Configure up 至 10 filters, each with four fields that can be combined with AND/OR/NOT operations; a mask is also provided for each field value with IPv4 or IPv6 capabilities
• Remote access：Supported via EXFO Remote ToolBox, Remote Desktop, VNC and EXFO Multilink for multiuser support
• Automation：Wide range of commands available per application 至 allow test automation
• Reporting：Test results are included in a report that can be generated in different formats: pdf, html and json
• UNFRAMED BER TEST - Pattern configuration：16 unframed 400GAUI-16 lanes, 16 unframed 400GAUI-8 lanes, 8 unframed 400GAUI-8 lanes, 4 unframed 200GAUI-4 lanes and 8 unframed 200GAUI-4 lanes
• UNFRAMED BER TEST - PRBS patterns per lane：Allow users 至 configure different PRBS patterns on different 400GAUI lanes
• UNFRAMED BER TEST - Patterns：PRBS 2E31-1, PRBS 2E23-1, PRBS31Q, PRBS13Q, SSPRQ capability 至 invert patterns
• UNFRAMED BER TEST - Error measurement：Mismatch 0, mismatch 1, bit error and pattern loss per 400GAUI/200GAUI lane displayed in seconds, count and rate
• UNFRAMED BER TEST - Alarm injection：Capabilities 至 inject pattern loss and LOS per 400GAUI/200GAUI lane continuously
• Flex ETHERNET - Compliance：Compliant with OIF, FlexE 2.0
• Flex ETHERNET - Multi-interface support：Four QSFP28 ports, one port QSFP-DD or OSFP port 至 configure FlexE traffic up 至 400GE
• Flex ETHERNET - RS-FEC support：RS-FEC capabilities per port
• Flex ETHERNET - Skew monitoring：Graphical skew monitoring per port
• Flex ETHERNET - Skew insertion：Per-port skew generation and measurement range 0 至 10000 ns
• Flex ETHERNET - PHY number：FlexE PHY number per port edition available
• Flex ETHERNET - Group number：FlexE group number edition available
• Flex ETHERNET - Client：Client ID and Mac address edition available per client
• Flex ETHERNET - Calendar type：Calendar A/B configuration and monitoring
• Flex ETHERNET - Calendar edition：Graphical calendar configuration per slot/client/clients for FlexE bonding, sub-rate and channelization
• Flex ETHERNET - Clients available：Different client configuration included 5GE, 10GE, 25GE, 40GE, 50GE, 100GE, 150GE, 200GE, 250GE, 300GE, 350GE and 400GE
• Flex ETHERNET - Ports capacity：Display the calendar used, unused and assigned capacity in Gbit/s
• Flex ETHERNET - Client statistics：Size, Tx and Rx rate in Gbit/s, frame count
• Flex ETHERNET - BERT：Selectable FlexE client bit error rate analysis using a specific pattern
• Flex ETHERNET - BER error injection：Manual, rate and continuous (maximum rate)
• Flex ETHERNET - Error/alarms monitoring and injection：Per port FlexE PHY, per FlexE group and per client
• Flex ETHERNET - FlexE overhead：Display a detail overview from block 1 至 8 per frame from the FlexE overhead for Tx and Rx
• Flex ETHERNET - FlexE G.mtn path OAM：(pre-standard version) Support of CC function status, connectivity verification, bidirectional delay measurement and CS type monitoring
• TRANSPORT TESTING - OTN interfaces standards compliance：ITU-T G.709, G.798, G.872 and ITU-T G series Supplement 43
• TRANSPORT TESTING - OTN interfaces line rates：OTU3 (43 Gbit/s), OTU3e1 (44.57 Gbit/s), OTU3e2 (44.58 Gbit/s), OTU4 (111.81 Gbit/s)
• TRANSPORT TESTING - OTN interfaces power measurement：Optical channel power measurement with color indicators
• TRANSPORT TESTING - OTN interfaces frequency measurement：Clock frequency measurements displayed in Hz
• TRANSPORT TESTING - OTN interfaces frequency offset：Offsetting of the transmitted signal’s clock on a selected interface, and monitoring 至 exercise clock recovery circuitry on network elements
• OTL layer - Errors per lane：Invalid marker, FAS
• OTL layer - Alarms per lane：OOF, LOF, LOR, OOR, excessive skew
• OTL layer - Global alarm：LOL
• OTU layer - Errors：OTU-FAS, OTU-MFAS, OTU-BEI, OTU-BIP-8
• OTU layer - Alarms：LOF, OOF, LOM, OOM, OTU-TIM, OTU-BDI, OTU-IAE, OTU-BIAE, OTU-AIS
• OTU layer - Traces alarms：64-byte trail trace identifier (TTI) as defined in ITU-T G.709
• ODU layer - Errors：ODU-BIP-8, ODU-BEI
• ODU layer - Alarms：ODU-AIS, ODU-OCI, ODU-LCK, ODU-TIM, ODU-BDI, ODU-FSF, ODU-BSF, ODU-FSD, ODU-BSD, ODU-LOFLOM
• ODU layer - Traces：64-byte trail trace identifier (TTI) as defined in ITU-T G.709
• FTFL：Fault type and fault location byte; as defined in ITU-T G.709 standard
• ODU TCM layer - Errors：TCMi-BIP-8, TCMi-BEI (i = 1 至 6)
• ODU TCM layer - Alarms：TCMi-LTC, TCMi-TIM, TCMi-BDI, TCMi-IAE, TCMi-BIAE
• ODU TCM layer - Traces：64-byte trail trace identifier (TTI) as defined in ITU-T G.709
• OPU layer - Alarms：OPU-PLM, OPU-CSF, OPU-AIS, OPU-MSIM, OPU LOOMFI, OOMFI, OMFI a
• OPU layer - Payload type：Generates and displays received PT value
• Forward error correction (FEC) - Errors：Generation and analysis of FEC correctable and uncorrectable errors
• Ethernet mapping over OTN：40G and 100G Ethernet mapping over OTU3 and OTU4, respectively, using GMP
• 40GE transcoding capability：40G transcoding capability with alarms, errors and statistics
• GMP - Alarms errors and statistics：GMP alarms, errors and statistics
• GigE mapping：GigE mapping into ODU0 using GFP-T, 10 GigE mapping into ODU2 using GFP-F, direct 10 GigE mappings into ODU1e and ODU2e in different ODU multiplexing structures
• 40GE into OTU3 into OTU4：Flexibility 至 map up 至 a 10G Ethernet client signal into ODUflex
• 40GE transcoding - Errors：Invalid flag, POS violation, MSEQ violation, PCS-BIP-8 mask per lane, PCS-BIP-8 per lane, OTN-BIP-8 per lane, SEQ violation
• 40GE transcoding - Alarms：LOBL 1027B, Hi-BER 1027B, LOAML 1027B
• GMP - Errors：Cm CRC-8, CnD CRC-5
• GMP - Alarms：GMP OOS a
• GMP - Statistics：Cm minimum/maximum values and CnD minimum/maximum values for both GMP Tx and Rx
• ODU3/ODU4 multiplexing - Mappings：ODU13, ODU23, ODU123, ODU03, ODU013, ODU0123, ODU04, ODU014, ODU134, ODU24, ODU234, ODU34, ODU14, ODU01234, ODU0124, ODU024, ODU034, ODU1e4, ODUflex24, ODU2e4 and ODU124, ODU1234 with PRBS pattern and GigE, 10 GigE, 40 GigE and 100 GigE client mappings into OPU payloads
• ODU3/ODU4 multiplexing - Alarms：ODU34, ODU14, ODU01234, ODU0124, ODU024, ODU034, ODU1e4, ODUflex24, ODU2e4 and ODU124, ODU1234 with PRBS pattern and GigE and 10 GigE client mappings into OPU payloads
• ODU3/ODU4 multiplexing - Clients：GigE, 10 GigE, 40 GigE and 100 GigE client mappings into OPU payloads
• ODU0：ODU0 (1.25 Gbit/s) container with Gigabit Ethernet and PRBS pattern
• ODUflex：ODUflex at ODU3 and ODU4 rates with full flexibility 至 configure the required bandwidth based on n x 1.25 Gbit/s tributary time slots with a PRBS pattern into the ODUflex payload
• GFP-F/T - Errors：GFP-cHEC-CORR, GFP-cHEC-UNCORR, GFP-tHEC-CORR, GFP-tHEC-UNCORR, GFP-eHEC-CORR, GFP-eHEC-UNCORR, GFP-pFCS
• GFP-F/T - Alarms：GFP-LFD, GFP-EXM, GFP-UPM, GFP-DCI, GFP-FDI, GFP-RDI, GFP-LOCS, GFP-LOCCS, GFP-reserved CMF
• GFP-F/T - Frame type statistics：Client data, client management, idle, reserved PTI, reserved PLI, invalid, discarded
• GFP-F/T - Rx mismatch：PFI, EXI, UPI, CID
• GFP-F/T - GFP-T superblock statistics：Valid, invalid and total
• COHERENT OPTICS - Compliance：OIF 400ZR, IEEE 802.3cw, OpenZR+, OpenROADM
• COHERENT OPTICS - Tx power：Optical power Tx transceiver configuration
• COHERENT OPTICS - 波长：Transceiver grid configuration
• COHERENT OPTICS - Optical metrics：Test set displays the following optical metrics CD (ps/nm), CFO (MHz), DGD (ps), OSNR (dB), PDL (dB), SOPCR (Krad/s), SOPMD (ps2)
• COHERENT OPTICS - Client configuration：Ethernet client L2/3 and L4 configuration
• COHERENT OPTICS - Ethernet frame：Client Ethernet frame configuration fixed or EMIX
• COHERENT OPTICS - Ethernet client BERT：Bit e
