EXFO · EXFO Inc.

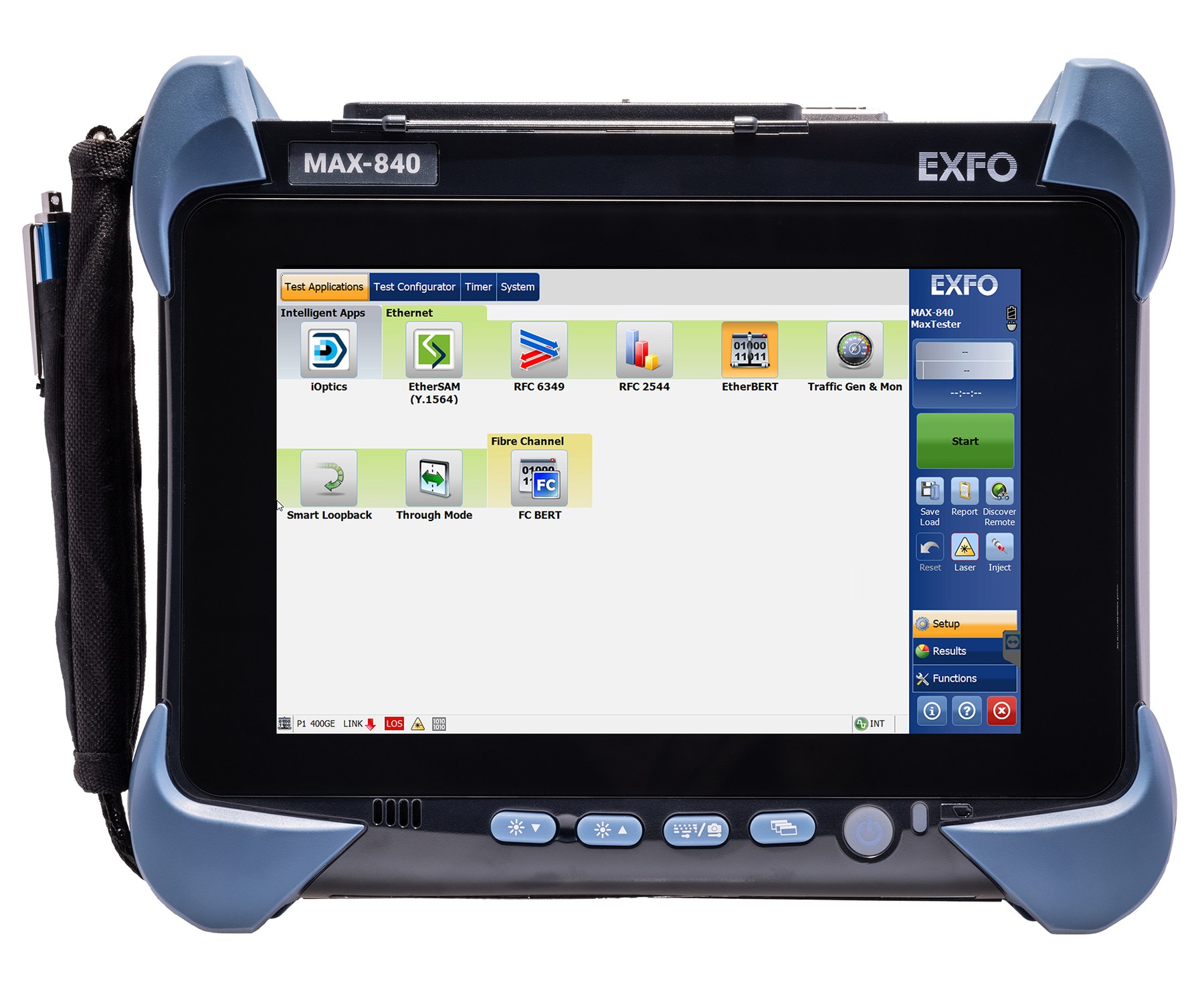

MAX-840 400G以太网测试仪
连接器类型 SMA · 重量 4.2 kg (9.3 lb) · 尺寸 210 mm x 254 mm x 122 mm …
产品简介
The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.
核心参数
• 连接器类型：SMA
• 重量：4.2 kg (9.3 lb)
• 尺寸（高×宽×深）：210 mm x 254 mm x 122 mm (8 ¼ in x 10 in x 4 ¾ in)
• Detailed compliance testing：IEEE 802.3ba and IEEE 802.3bs standard and IEEE 802.3ck standard
• Power measurement：Optical channel power measurement with color indicators per lane
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface,and monitoring
•Transceiver non-blocking analysis：Enables a step-by-step monitoring of the transceiver boot-up sequence
• Error injection mode：Manual,rate and continuous (maximum rate)
功能与特点
• 1G to 400G Ethernet testing capabilities based on IEEE standards
•Start with up-to-100G testing and upgrade to 400G later,or go with 400G right now
• Fibre Channel testing from 1X to 32X
•Validate pluggable optics fast,including AOC and DAC cables,with EXFO’s iOptics automated intelligent test application
• Automatic plug-and-play transceiver detection with the iOptics test application
•Support for the most popular pluggables (QSFP-DD and OSFP) and the latest QSFP112 transceivers
典型应用
•Core and metro-edge network testing
• Data centers
•4G/5G backhaul testing
• Service activation
•详细指标：全部技术指标已单独整理，详见 MAX-840 400G以太网测试仪 详细指标页
onetest仪器资源库 ·EXFO MAX-840 400G以太网测试仪
EXFO · EXFO Inc.
MAX-840 400G以太网测试仪 · 详细指标
连接器类型 SMA · 重量 4.2 kg (9.3 lb) · 尺寸 210 mm x 254 mm x 122 mm …
产品简介
The ultimate in flexibility with a journey-to-400G design. Go with 400G now, or start with up-to-100G testing, and upgrade to 400G later.
本页按官方规格资料分组收录 MAX-840 400G以太网测试仪 的全部关键技术指标；产品定位、特性与应用场景请见 MAX-840 产品介绍页。
技术指标
技术规格
• Detailed compliance testing：IEEE 802.3ba and IEEE 802.3bs standard and IEEE 802.3ck standard
• Multi-interface support：Pluggable MSA-compliant 2×QSFP28 transceivers AOC QSFP28/QSFP-DD/OSFP cable support QSFP-DD MSA revision 6.3, 4×100G 400G DAC cables support Pluggable, MSA-compliant 2×QSFP+ transceivers Pluggable, MSA-compliant 2×SFP28 optical transceiver Pluggable, MSA-compliant 2×SFP/SFP+ optical transceivers Pluggable, MSA-compliant 1×OSFP optical transceiver
• Line rate：425/212.5/106.25 (single lambda)/103.125/53.125/41.25 Gbit/s, 100G SRBD, 40G, 25G, 10G, and 1G
• Robust physical-layer validation：400GAUI lane-error generation and monitoring PCS lane mapping and monitoring capability Per-lane skew generation and measurement PCS error generation and monitoring per lane Full MDIO/I2C read/write access
• Transceiver and cable validation：SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP56, QSFP-DD, QSFP112 and OSFP. Also AOC and DAC cables.
• iOptics：Optical-device I/O interface quick check Optical Tx power-level test Optical Rx signal-presence and level test Stress test Excessive skew test Temperature and power consumption monitoring Host and media loopback
• Power measurement：Optical channel power measurement with color indicators per lane
• Frequency measurements：Allow users 至 measure the received frequency per wavelength (in Hz) in the used of parallel optics
• Frequency offset：Offsetting of the transmitted signal's clock on a selected interface, and monitoring
• Transceiver non-blocking analysis：Enables a step-by-step monitoring of the transceiver boot-up sequence
• BERT：BERT framed and unframed testing using different parameters and different frame sizes, including EMIX. The Ethernet BERT application also allows LLDP neighbor validation which displays the most important information forwarded by the LLDP protocol.
• Service disruption time（SDT）：Service disruption time measurements based on no-traffic mode, with statistics including longest disruption time, shortest, last, average, count, total and pass/fail thresholds
• Latency measurements in BERT：High-resolution delay measurements integrated in the BER with statistics including current, average, maximum, minimum, count, total and pass/fail thresholds
• Error injection mode：Manual, rate and continuous (maximum rate)
• Layer：MAC address and Ether type edition available Q-in-Q capability with the ability 至 go up 至 three layers of stacked VLANs
• Layer 3/4：Source and destination IP address configuration available IP TOS/DSP configuration available UDP source and destination port configuration available
• RFC：Throughput, back-to-back, frame loss and high-resolution latency measurements according 至 RFC 2544; frame size: RFC-defined or user-configurable
• EtherSAM：Simplified ITU-T Y.1564 test that performs service configuration and service performance tests using remote loopback or dual test set mode for bidirectional results
• Traffic generation and monitoring：Traffic generation and shaping of up 至 16 streams of Ethernet and IP traffic, including the simultaneous monitoring of throughput, frame loss, packet jitter, latency and out-of-sequence frames, including MAC flooding for source and destination MAC addresses
• RFC：RFC 6349 with enhanced algorithm: performs TCP testing with single or multiple TCP connections from 10BASE-T up 至 100G; discovers the MTU, RTT, actual and ideal TCP throughput; user can apply suggested window size boost factor 至 optimize test results or perform multiple client iPerf tests against the RFC 6349 (v2 and v3) iPerf Server mode of operation
• Through mode：For monitoring Ethernet traffic between two endpoints, as transparently as possible. This enables online monitoring without the use of external tapping modules, switch mirror ports or other traffic redirection schemes.
• Smart loopback：Return Ethernet traffic 至 the local unit by swapping packet overhead up 至 layer 4
• Rx frame-size analysis：1518
• Rx rate：Line utlization (%), Ethernet BW (Mbit/s), frame rate (frame/s), and frame count
• Ethernet alarms：Link down, local fault detected, local fault received, remote fault, LOA
• Ethernet errors：FCS, jabber, runt, undersize and oversize
• Higher layer error analysis：UDP checksum
• PCS lane alarms and errors：LOS, LOC-lane, LOAML, excessive skew, Inv. Marker, Pre-FEC SYMB and Pre-FEC-bit
• Skew insertion：Per-lane skew generation and measurement range 0 至 10550
• PCS logical lane mapping：Manual and random
• Pre-emphasis：Pre-/main-/post- cursor options 至 improve electrical waveform including gray encoding and precoding
• FEC：Generation and analysis of FEC correctable and uncorrectable errors, local and remote degraded SER monitoring
• FEC statistics：Number of symbol errors per correctable codeword, number of pre-FEC symbol errors and bit statistics, codeword count (error-free and uncorrectable) and percentage
• IP tools：Performs ping and traceroute functions
• IPv4 and IPv6 testing：Performs the following tests up 至 400G over IPV4 and IPv6, RFC 2544, BERT, traffic generation and monitoring, EtherSAM, ping and traceroute
• Advanced filtering：Configure up 至 10 filters, each with four fields that can be combined with AND/OR/NOT operations; a mask is also provided for each field value with IPv4 or IPv6 capabilities
• Remote access：Supported via EXFO Remote ToolBox, Remote Desktop and VNC
• Automation：Wide range of commands available per application 至 allow test automation
• Reporting：Test results are included in a report that can be generated in different formats: pdf, html and json
OTN specifications
• OTN testing：• OTU4 (112 Gbit/s), 4×OTU4, OTU3 (43 Gbit/s), OTU3e1 (44.57 Gbit/s), OTU3e2 (44.58 Gbit/s), OTU2 (10.71 Gbit/s), OTU2e (11.10 Gbit/s), OTU2f (11.32 Gbit/s), OTU1 (2.67 Gbit/s), OTU1e (11.05 Gbit/s) and OTU1f (11.27 Gbit/s) unframed and framed BER tests • FEC testing: error insertion and monitoring • OTL 3.4, OTL 4.4, OTL 4.2 and 4.1 support • Alarms and errors generation and monitoring • OTL lane mapping, skew generation and measurement • OTU, ODU, OPU overhead manipulation and monitoring • OTU, ODU (including ODU TCM), OPU layer alarm/error generation and analysis • OTU, ODU (including ODU TCM) trace messages • Round-trip delay (RTD) measurement • OTN SDT measurement • OTN through and OTN intrusive through mode testing • Multiplexing/demultiplexing of ODU13, ODU23, ODU123, ODU03, ODU013, ODU0123, ODU04, ODU014, ODU134, ODU24, ODU234, ODU34, ODU14, ODU01234, ODU0124, ODU12, ODU024, ODU034, ODU1e4, ODUflex24, ODU2e4 and ODU124, ODU1234 with PRBS pattern and GigE and 10 GigE client mappings into OPU payloads. ODUflex at ODU2, ODU3 and ODU4 rates with full flexibility 至 configure the required bandwidth based on n x 1.25 Gbit/s tributary time slots with a PRBS pattern into the ODUflex payload; 40 GigE client mapping into ODU3 into ODU4 • Performance monitoring: G.821, M.2100 • Frequency analysis and offset generation including frequency sweep • Power OTN OH analysis for BERT and synchronization testing of multiple fields in the OTN OH, including GCC0/1/2
• Ethernet mapping over OTN：• Ethernet mapping over OTN respectively, with GMP support • 40G transcoding capability with alarms, errors and statistics • GMP alarms, errors and statistics • GigE mapping into ODU0 using GFP-T, 10 GigE mapping into ODU2 using GFP-F, direct 10 GigE mappings into ODU1e/2e in different ODU multiplexing structures, and 40 GigE client mapped into ODU3/ODU4 • Flexibility 至 map up 至 a 10G Ethernet client signal into ODUflex
Fibre Channel functional specifications
• BERT：Framed Fibre Channel
• Patterns（BERT）：PRBS 2E31-1, 2E23-1, 2E20-1, 2E15-1, 2E11-1, 2E9-1, one user-defined pattern and the capability 至 invert patterns
• Error injection：Bit error and FCS
• Error measurement：Bit error, 66B block, invalid marker, FCS, oversize error, undersize error, FEC-COR-CW, FEV-UNCOR-CW and Pre-FEC-SYMB
• Alarm detection：LOS, frequency, LOC, no traffic, pattern loss, link down, LOCWS, LOAML
• Buffer-to-buffer credit testing：Buffer-to-buffer credit estimation based on latency
• Latency：Round-trip latency
• Service disruption time（SDT）：Measures: last disruption, shortest disruption, longest disruption, average disruption, total disruption, and service disruption count
通用规格
Mechanical and environmental specifications
• 尺寸（高×宽×深）：210 mm x 254 mm x 122 mm (8 ¼ in x 10 in x 4 ¾ in)
• 重量：4.2 kg (9.3 lb)
• 温度：Operating: 0 ℃ 至 40 ℃ (32 ℉ 至 104 ℉) Storage: –40 ℃ 至 70 ℃ (–40 ℉ 至 158 ℉)
REF-OUT interface
• Tx pulse amplitude：210 mVpp 至 1300 mVpp, depending on frequency
• Transmission frequency：155 MHz 至 3.50 GHz
• Output configuration：AC-coupled
• Load impedance：50 Ω
• 连接器类型：SMA
• External cable：Maximum 1 meter cable length (RG178 cable with 3.1 dB/m attenuation at 3.5 GHz)
• 激光安全：IEC 60825-1:2014-05
注：以上指标摘自 EXFO 官网公开产品规格资料，未特别说明均为典型值；指标可能随硬件与软件版本变化，恕不另行通知。官方规格书中以字母标注的脚注（测试条件）未在本页展开，完整条件请以原规格书为准。
