    Fluke Corporation · 电池内阻测试仪

    500 电池内阻测试仪

    3 mΩ；0.001 mΩ；1% + 8；●；●；● · 3 mΩ；0.001 mΩ；1% +68；●；●
    3 mΩ；0.001 mΩ；1% + 8；●；●；●
    Battery Resistance / Strap Resistance 1
    3 mΩ；0.001 mΩ；1% +68；●；●
    Battery Resistance / Strap Resistance 1
    30 mΩ；0.01 mΩ；0.8%+12；●；●
    Battery Resistance / Strap Resistance 1
    1000 V；1 V；0.09% + 5；●；●
    VDC
    400 A；1 A；3.5% + 2；●；●
    ADC/AAC (with accessory Fluke i410)
    BT520；BT521
    Measurement Modes BT510
    产品定位

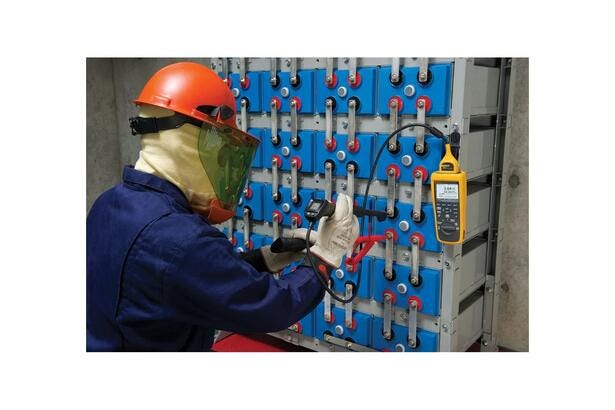

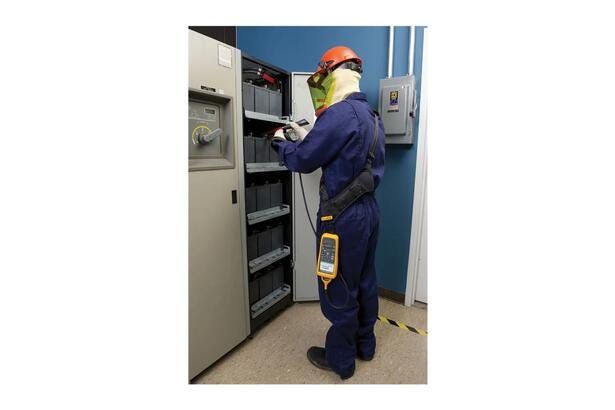

    The ideal test tool for maintenance,

    troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications

    The intuitive user interface, compact design and rugged construction ensure optimum performance,

    test results and reliability

    核心参数
    技术规格
    · Range
    – Resolution；Accuracy；BT510；BT520；BT520ANG；BT521；BT521ANG
    · Battery Resistance / Strap Resistance 1：3 mΩ；0.001 mΩ；1% + 8；●；●；●
    · Battery Resistance / Strap Resistance 1：3 mΩ；0.001 mΩ；1% +68；●；●
    · Battery Resistance / Strap Resistance 1：30 mΩ；0.01 mΩ；0.8% + 6；●；●；●
    · Battery Resistance / Strap Resistance 1：30 mΩ；0.01 mΩ；0.8%+12；●；●
    · Battery Resistance / Strap Resistance 1：300 mΩ；0.1 mΩ；0.8% + 6；●；●；●；●；●
    · Battery Resistance / Strap Resistance 1：3000 mΩ；1 mΩ；0.8% + 6；●；●；●；●；●
    · VDC：6 V；0.001 V；0.09% + 5；●；●；●；●；●
    · VDC：60 V；0.01 V；0.09% + 5；●；●；●；●；●
    功能与特点
    · Key measurements – Internal battery resistance, dc and ac voltage, dc and ac current, ripple voltage, frequency and temperature.
    · Sequence measurement mode – Automatic or manual sequence testing of battery strings with automatic measurement storage including voltage, resistance and temperature (with BTL21 intelligent test probe), eliminating the need to press a button each time a measurement needs to be saved.
    · Comprehensive logging – All measured values are automatically captured during testing and can be reviewed on the instrument before downloading for on the-go analysis.
    典型应用
    · 电池内阻测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-500-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 电池内阻测试仪

    500 电池内阻测试仪 · 详细指标

    3 mΩ；0.001 mΩ；1% + 8；●；●；● · 3 mΩ；0.001 mΩ；1% +68；●；●
    产品简介

    The ideal test tool for maintenance,

    troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications

    完整技术指标
    技术规格
    · Range
    – Resolution；Accuracy；BT510；BT520；BT520ANG；BT521；BT521ANG
    · Battery Resistance / Strap Resistance 1：3 mΩ；0.001 mΩ；1% + 8；●；●；●
    · Battery Resistance / Strap Resistance 1：3 mΩ；0.001 mΩ；1% +68；●；●
    · Battery Resistance / Strap Resistance 1：30 mΩ；0.01 mΩ；0.8% + 6；●；●；●
    · Battery Resistance / Strap Resistance 1：30 mΩ；0.01 mΩ；0.8%+12；●；●
    · Battery Resistance / Strap Resistance 1：300 mΩ；0.1 mΩ；0.8% + 6；●；●；●；●；●
    · Battery Resistance / Strap Resistance 1：3000 mΩ；1 mΩ；0.8% + 6；●；●；●；●；●
    · VDC：6 V；0.001 V；0.09% + 5；●；●；●；●；●
    · VDC：60 V；0.01 V；0.09% + 5；●；●；●；●；●
    · VDC：600 V；0.1 V；0.09% + 5；●；●；●；●；●
    · VDC：1000 V；1 V；0.09% + 5；●；●
    · VAC (45 Hz to 500 Hz with 800 Hz filter)：600 V；0.1 V；2% + 10；●；●；●；●；●
    · Frequency (displayed with VAC and AAC) 2：500 Hz；0.1 Hz；0.5% + 8；●；●；●；●；●
    · AC voltage ripple (20 KHz Max)：600 mV；0.1 mV；3% + 20；●；●；●；●；●
    · AC voltage ripple (20 KHz Max)：6000 mV；1 mV；3% + 10；●；●；●；●；●
    · ADC/AAC (with accessory Fluke i410)：400 A；1 A；3.5% + 2；●；●
    · Temperature：0°C to 60°C；1°C；2°C (4°F)；●；●
    · Meter mode
    – 999 records for each measurement position with time stamp
    · Sequence mode
    – Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp
    · Measurement Modes BT510：BT520；BT521
    · Resistance (mΩ) ●：●；●
    · Battery voltage ●：●；●
    · Voltage DC ●：●；●
    · Voltage AC and frequency (Hz) ●：●；●
    · Ripple volt ●：●；●

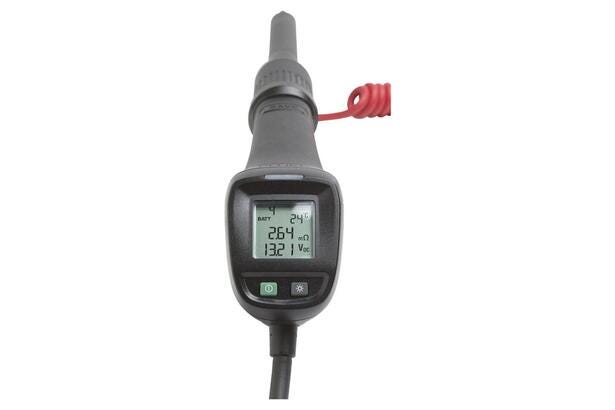

    · Temperature of negative battery post (using BTL21 straight probes)：●
    · DC and AC current (and frequency)：●
    · DMM mode ●：●；●
    · Sequence mode ●：●；●
    · Discharge measurement mode ●：●；●
    · Automatic measurement save ●：●；●
    · Wireless communication：●
    · Memory view ●：●；●
    General Specifications - Battery Analyzer
    · Size (H x W x D)：22 x 10.3 x 5.8 cm (9 x 4 x 2 in)
    · Weight：850 g (1.9 lb)
    · Screen dimensions：7.7 x 5.6 cm (3 x 2.2 in)
    · Interface：USB mini
    · Warranty：3 years

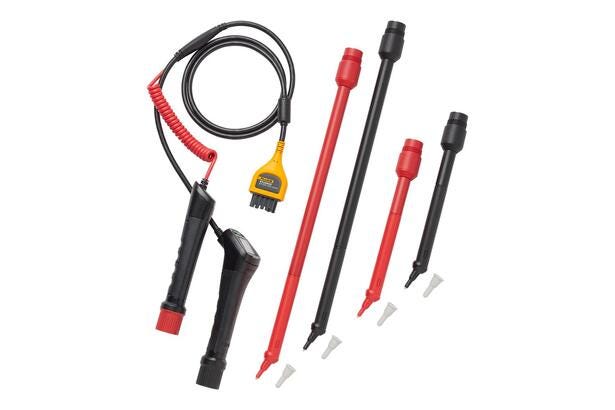

    General Specifications - BTL20ANG Angled Measurement Probe
    · Long angled probe (overall length)：242.2 cm (95.38 in)
    · Short angled probe (overall length)：216.8 cm (85.38 in)
    · Overall span (coil relaxed)：10.1 cm (4 in)
    · Overall maximum span (coil extended)：109.2 cm (43 in)
    · BTL20ANG probe tip angle：20 degrees from horizontal
    Environment Specifications
    · Operating temperature：0°C to 40°C
    · Storage temperature：-20°C to 50°C
    · Lithium-ion battery charging temperature：0°C to 40°C
    · Operating humidity：Non-condensing (10°C)
    · Operating humidity：≤ 80% RH (at 10°C to 30°C)
    · Operating humidity：≤ 75% RH (at 30°C to 40°C)
    · Operating altitude：Sea level to 2000 meters
    · Storage altitude：Sea level to 12, 000 meters
    · IP rating：IP40
    · Radio：FCC Class A
    · Vibration requirements：MIL-PRF-28800F: Class 2
    · Drop test requirements：1 meter
    · Temperature coefficients
    – Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
    · Safety compliance：600 V CAT III
    · EMC：IEC 61326
    · ROHS：China, Europe
    · Protection class 2：Pollution Degree II
    · Battery compliance：UN38.3
    · Battery compliance：UL2054
    · Battery compliance：IEC62133
    · Battery compliance：2 G per IEC68-2-26, 25 G, and 29
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
