MS46131A 模块化单端口矢量网络分析仪
轻量紧凑的单端口 VNA，1 MHz 至 43.5 GHz，单台 PC 可同时控制最多四台，提升回波损耗测试吞吐量。
产品简介

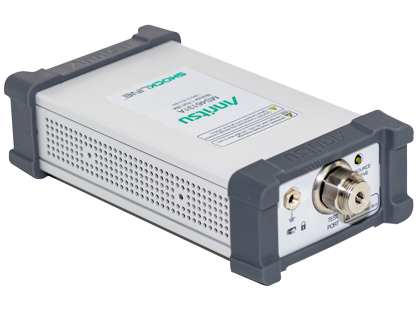

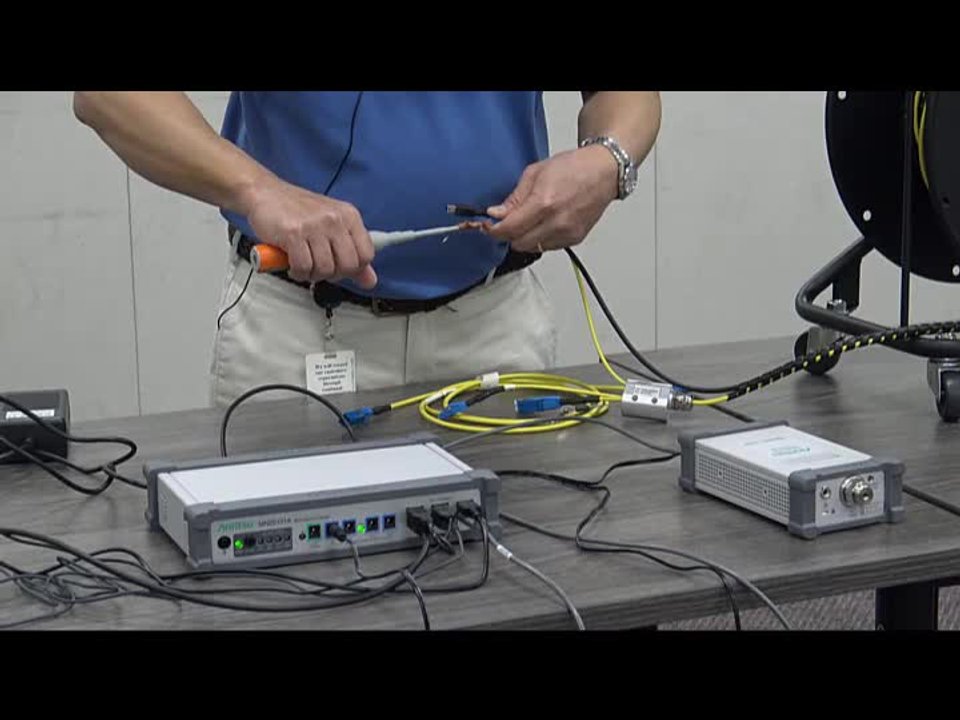

ShockLine MS46131A 系列包含三款模块化、PC 控制的单端口矢量网络分析仪，频率范围从 1 MHz 至 8/20/43.5 GHz。
该系列适合工程、制造与教学中的单端口射频与微波应用，三款型号均具备快速扫描速度与优良的校正性能。

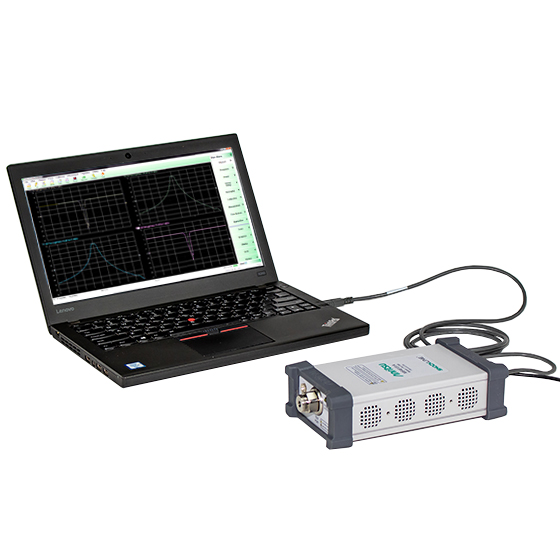

四台独立的 MS46131A 可通过 USB 由外部 PC 独立且同时控制；产品无板载存储器，简化了涉密场景下的数据清理流程，也便于直接连接被测件。
核心特点
• 单端口 VNA，频率选件覆盖 1 MHz 至 8 GHz / 20 GHz / 43.5 GHz
• 采用 Extended-K 端口，43.5 GHz 内性能有保证
• PC 控制，充分利用外部计算机的运算能力与功能
• 体积小、重量轻，可直接连接被测件
• 无板载数据存储，涉密应用无需数据清理
• 所有 ShockLine VNA 共用软件，界面与程序兼容
• 带时门选件的时域功能，故障定位更简便快速
• 支持同步扫描，可在独立软件实例中并行操作最多四台 VNA
功能与结构
Cables and Adapters
Cables and Adapters
Model Number
Description
1091-26-R
SMA(m) to N(m), DC to 18 GHz, 50 Ω
1091-27-R
SMA(f) to N(m), DC to 18 GHz, 50 Ω
1091-80-R
SMA(m) to N(f), DC to 18 GHz, 50 Ω
1091-81-R
SMA(f) to N(f), DC to 18 GHz, 50 Ω
71693-R
Ruggedized adapter, K(f) to N(f), DC to 18 GHz, 50 Ω
34NK50
Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
34NKF50
Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
34NFK50
Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
34NFKF50
Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
K220B
Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
K222B
Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
K224B
Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
33KK50C
Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
33KKF50C
Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
33KFKF50C
Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
34VFK50A
Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
34VFKF50A
Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
34VK50A
Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
34VKF50A
Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω
Test Port Cables, Flexible, Ruggedized, Phase Stable
Model Number
Description
15NNF50-1.0B
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NNF50-1.5B
Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
15NN50-1.0B
Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
15LL50-1.0A
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(m), 50 Ω
15LLF50-1.0A
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
15KK50-1.0A
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(m), 50 Ω
15KKF50-1.0A
Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
3671KFS50-60
Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
3671KFK50-60
Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
3671KFKF50-60
Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
3671KFK50-100
Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
806-304-R
Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
806-423-R
Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(f) – K(f), 50 Ω
806-424-R
Flexible Phase Stable Cable, DC to 43.5 GHz, 24 in (61 cm), K(m) – K(f), 50 Ω
806-425-R
Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(f) – K(f), 50 Ω
806-426-R
Flexible Phase Stable Cable, DC to 43.5 GHz, 1 m (39.4 in), K(m) – K(f), 50 Ω
Phase-Stable 18 GHz, 40 GHz, and 43.5 GHz Semi-Rigid Cables (Armored)
Model Number
Description
3670N50-1
Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670N50-2
Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
3670NN50-1
Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670NN50-2
Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
3670K50A-1
Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
3670K50A-2
Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
Accessories
Tools
Model Number
Description
01-200
Calibrated Torque End Wrench, GPC-7 and Type N
01-201
Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
01-203
Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
01-204
End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
Third Party Solutions
Anritsu has partnered with the following industry-leading companies to provide a variety of proven material measurement capabilities that are compatible with the VectorStar and ShockLine vector network analyzer families.
Material Measurements
Compass Technology
Choose from off-the-shelf or custom-designed RF material measurement systems able to measure material properties from 100 MHz 至 90 GHz. These solutions include: focused beam, resonant cavity, waveguides, spot probes, free space measurement systems, and more.
Anritsu and Compass Technology Group Material Measurements Solutions
Compass Technology Group VectorStar Integration [video]
Keycom Technologies
Select from a variety of material measurement solutions that leverage various methods including: resonator, frequency change, probe type, co-axial tube and waveguide type S-parameter, free space, capacitance, epsilometery, and more.
Anritsu and Keycom Material Measurement Solution
SWISSto12
Providing hardware and software technology capable of measuring: solid samples; soft sample and foam; liquid samples and powder; thin films; dielectric coatings and multilayer materials; alumina plate; and more.
Anritsu and SWISSto12 Material Measurement Solution
技术
Shockline NLTL
典型应用
• 射频无源器件测试与故障排查
• 43.5 GHz 以内的单端口测试
• 单台 PC 控制最多四台单端口 VNA
• 电缆测试与故障定位
• 回波损耗与相位测量
• 多天线测试
型号与选件
• MS46131A-010：1 MHz 至 8 GHz, type N(f) ports
• MS46131A-020：1 MHz 至 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
• MS46131A-043：1 MHz 至 43.5 GHz, type ruggedized Extended-K™ (m) ports (compatible with standard K, 3.5 mm, and SMA connectors)
• MS46131A-002：Time Domain with Time Gating
资源下载
• MS46131A 模块化单端口矢量网络分析仪 详细指标见 MS46131A 模块化单端口矢量网络分析仪 详细指标页。
• 官方资料：Anritsu's RF and Microwave Test and Measurement Solutions Product Brochure（产品手册）、Anritsu and Polar Instrument Solution for Delta-L 4.0 Measurement Based on Atlas SI Software with Anritsu 4-Port Benchtop VNAs Solution Flyer（产品手册）、ShockLine Vector Network Analyzer Family Product Brochure（产品手册）、ShockLine Modular Vector Network Analyzer MS46131A Quick Fact Sheet（产品手册）、ShockLine Modular 2-Port VNA ME7868A Technical Data Sheet（技术指标）、ShockLine Modular 2-port PhaseLync VNA ME7869A Technical Datasheet（技术指标）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS46131A 模块化单端口矢量网络分析仪 详细指标
轻量紧凑的单端口 VNA，1 MHz 至 43.5 GHz，单台 PC 可同时控制最多四台，提升回波损耗测试吞吐量。
详细指标
以下为该产品公布的关键指标。
• 单端口 VNA，频率选件覆盖 1 MHz 至 8 GHz / 20 GHz / 43.5 GHz
• 采用 Extended-K 端口，43.5 GHz 内性能有保证
型号与选件
• MS46131A-010：1 MHz 至 8 GHz, type N(f) ports
• MS46131A-020：1 MHz 至 20 GHz, type ruggedized K(m) ports (compatible with 3.5 mm and SMA connectors)
• MS46131A-043：1 MHz 至 43.5 GHz, type ruggedized Extended-K™ (m) ports (compatible with standard K, 3.5 mm, and SMA connectors)
• MS46131A-002：Time Domain with Time Gating
资源下载
• MS46131A 模块化单端口矢量网络分析仪 产品介绍见 MS46131A 模块化单端口矢量网络分析仪 产品介绍页。
• 官方资料：Anritsu's RF and Microwave Test and Measurement Solutions Product Brochure（产品手册）、Anritsu and Polar Instrument Solution for Delta-L 4.0 Measurement Based on Atlas SI Software with Anritsu 4-Port Benchtop VNAs Solution Flyer（产品手册）、ShockLine Vector Network Analyzer Family Product Brochure（产品手册）、ShockLine Modular Vector Network Analyzer MS46131A Quick Fact Sheet（产品手册）、ShockLine Modular 2-Port VNA ME7868A Technical Data Sheet（技术指标）、ShockLine Modular 2-port PhaseLync VNA ME7869A Technical Datasheet（技术指标）
注：以上内容与指标取自安立官网该产品详情页。
