CT500SA 有源电流探头|横河测试测量 (在产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
横河测试测量 YOKOGAWA

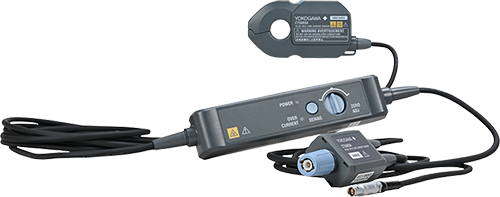

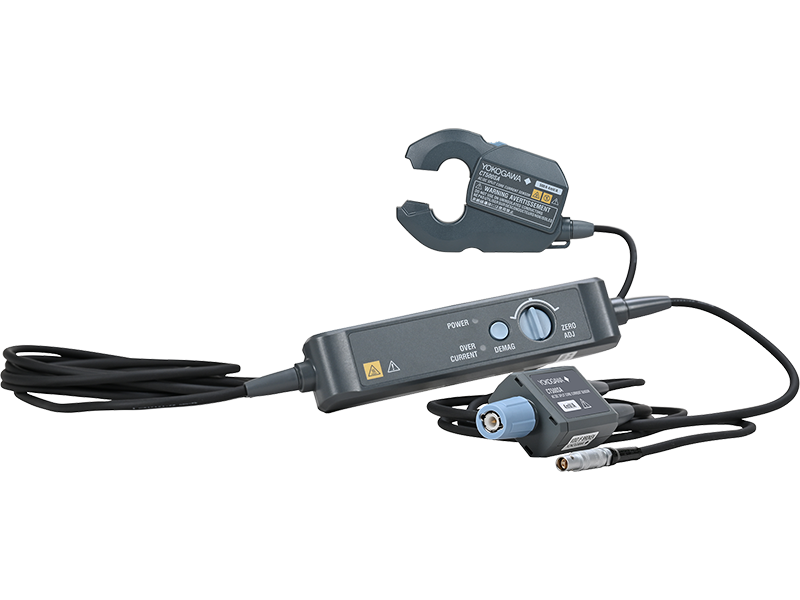

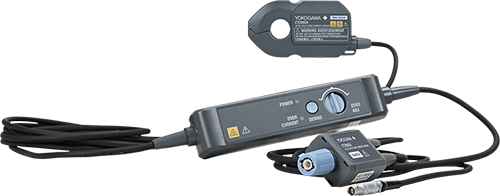

AC/DC Split Core Current Sensor CT500SA/ CT200SA
This AC/DC split core current sensor is designed for measuring large DC and AC currents in applications such as electric vehicles, renewable energy systems, inverters, and motors. It facilitates high-current measurements by clamping around existing current connections. Leveraging fluxgate sensor architecture instead of Hall effect, Yokogawa’s splitcore current sensors achieve industry-leading accuracy across both AC and DC currents, making them ideal for high-precision power measurement applications. The CT500SA and CT200SA are compact current sensors ideal for measurements in confined spaces, yet they combine high accuracy with a frequency range and noise immunity suitable for use in both power analyzer and waveform measurement instrument. With its voltage output, this sensor is compatible with power analyzers (WT series and PX8000) and waveform measurement instruments (ScopeCorders and DLM series).
产品简介
AC/DC Split Core Current Sensor CT500SA/ CT200SA 属于 探头 类别，面向 探头 应用场景。更完整的性能说明见本页下方「核心参数」与配套的详细指标页。
官方定位：This AC/DC split core current sensor is designed for measuring large DC and AC currents in applications such as electric…
核心参数
• Supply voltage：±12V
• Connector type：BNC
产品特点
Accurately Measure Large Currents Without Rewiring
This split core current sensor offers superior noise immunity, providing stable measurement of large currents over a wide bandwidth.

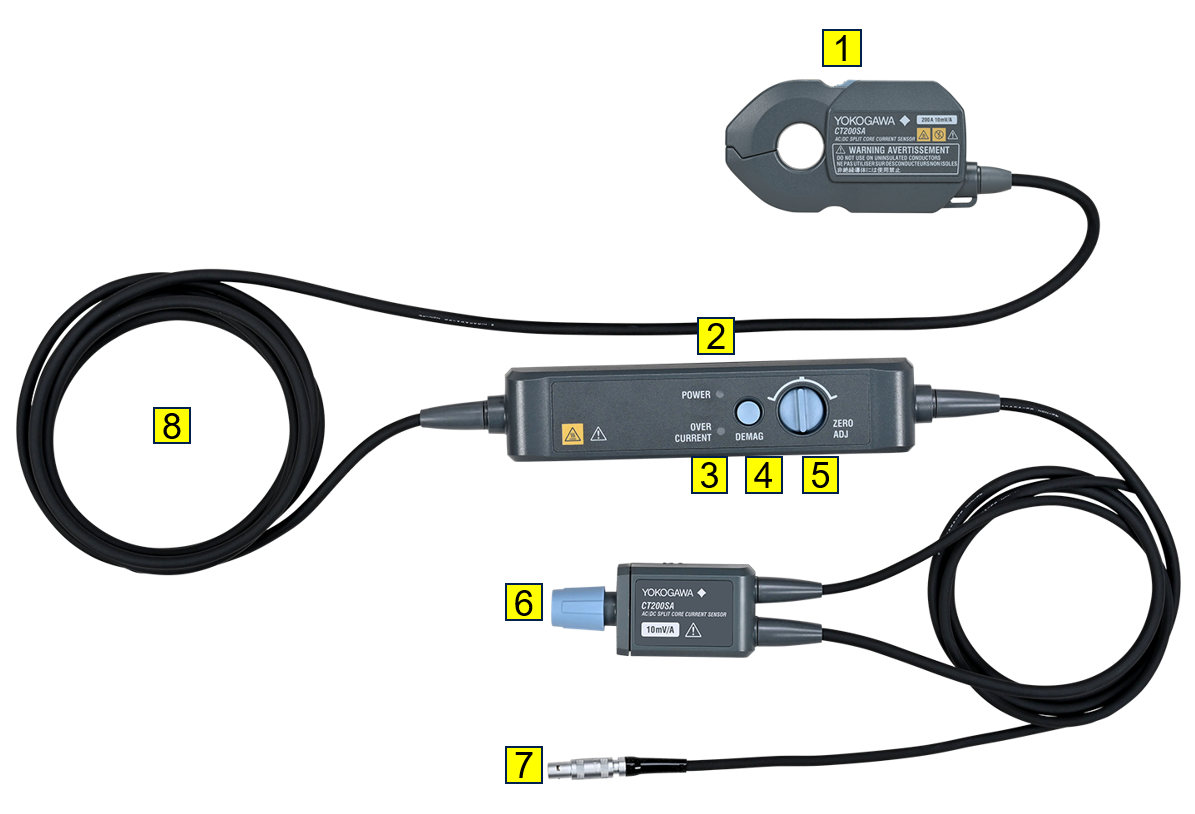

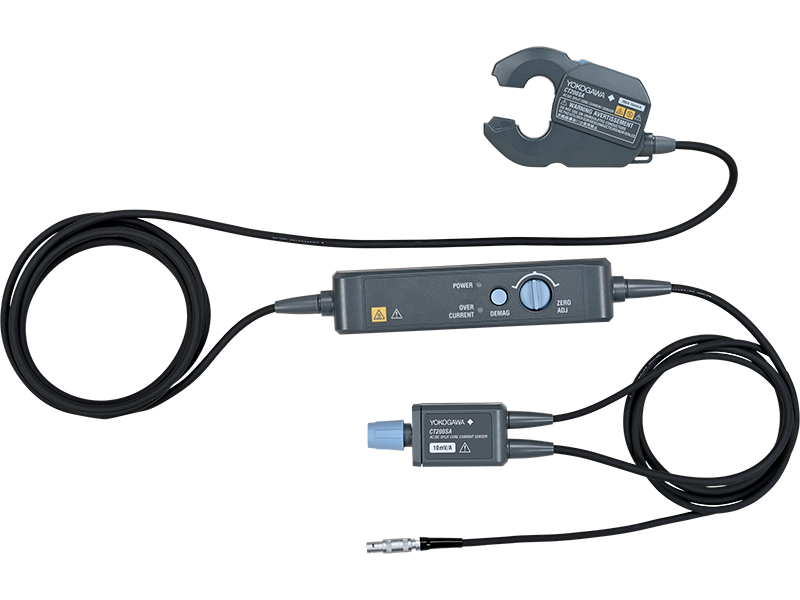

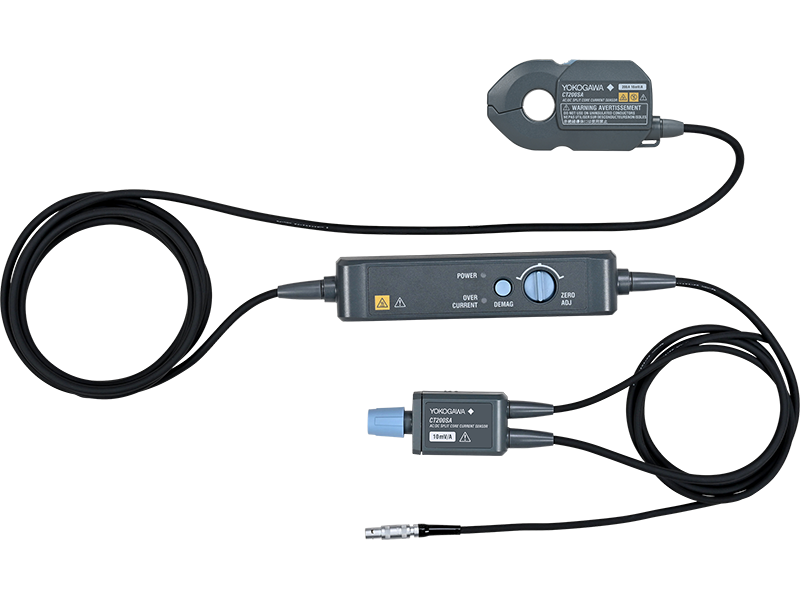

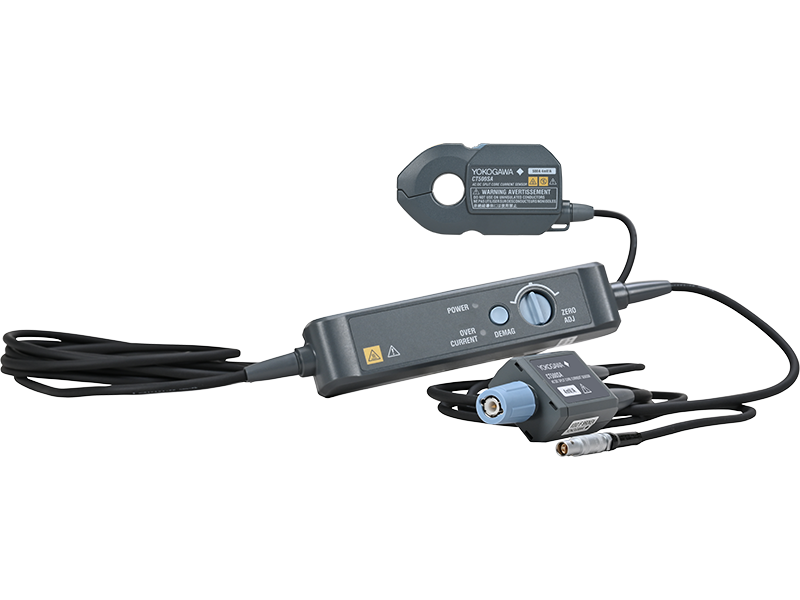

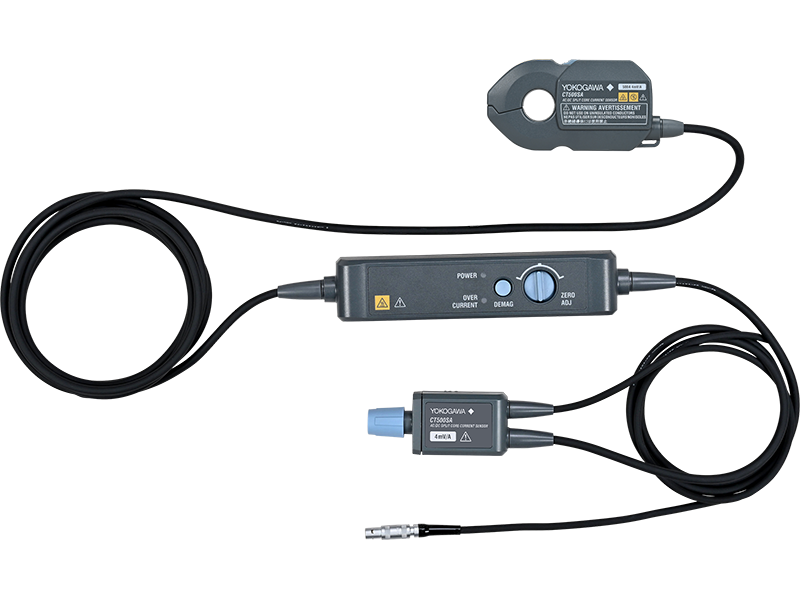

Main Unit 1：Lock lever Sub unit 2：Power LED 3：Overcurrent LED 4：Demag button 5：Offset adjust knob IV unit 6：Output connector Power supply 7：Power connector Cable 8：Cable length Select from 3m, 5m, 10m

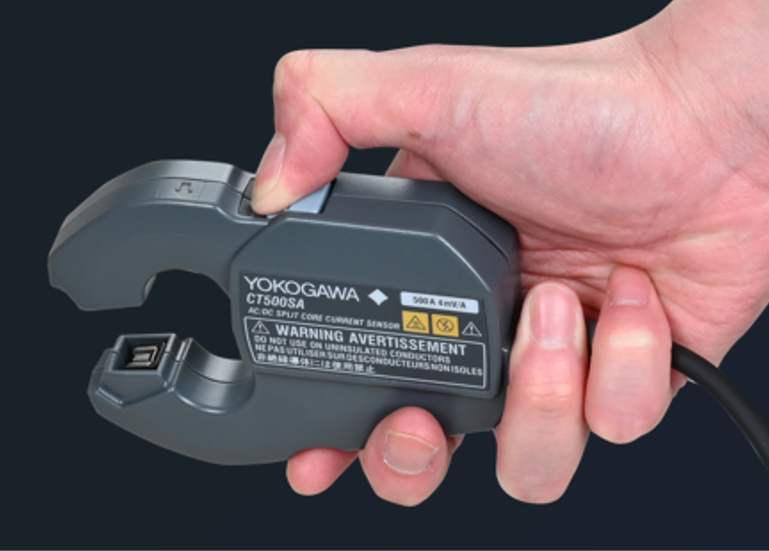

The CT500SA and CT200SA are designed for measurements in confined spaces and can be operated with one hand. The main unit of the current sensor, which connects to the measurement target, is compact—about the size of the palm of your hand. Furthermore, the locking mechanism is designed so that it can be unlocked with a single finger, even when performing measurements in tight spaces where both hands cannot fit.
In addition to development applications, the current sensor is designed to be secured during testing of finished products, taking into account the operation of the device being measured. Securing the sensor using the screw holes (M4) on the sensor body or cable ties prevents the measurement point from shifting. Using this securing feature improves measurement accuracy and reproducibility.
• Model Name：CT500SA / CT200SA / CT1000S
• Rated current：500Arms / 200Arms / 1000Arms
• Accuracy /（50/60Hz）：±（0.09% of reading ＋ 0.01% of full scale）* / ±（0.1% of reading ＋ 0.01% of full scale） / ±（0.2% of rdg ＋0.01% of f.s.）
• Bandwidth /（-3㏈）：DC to 500kHz / DC to 1MHz / DC to 300kHz
• Operating temperature / Main unit:－40℃ to 85℃ / Sub unit:5℃ to 40℃ / IV unit:5℃ to 40℃
• Operating Humidity：20% to 80%RH below /（no condensation）
• Dimensions /（W×H×D）㎜：Main unit:110×62×25 / Sub unit:177.5×33×41 / IV unit:60×24×40 / Main unit:190×153×52 / Sub unit:177.5×33×41 / IV unit:60×24×40
• Measurable conductors / Φ20㎜ / Φ50㎜
• Supply voltage：±12V
• Maximum supply current / ±0.8A（maximum） / ±0.7A（maximum） / ±0.8A（maximum）
• Output voltage：4mV/A / 10mV/A / 2mV/A
• Connector type：BNC
• * Under the following temperature conditions / Main unit: 23 °C ± 5 °C, sub-unit: 23 °C ± 5 °C, IV unit: 23 °C ± 5 °C
Accurately Measure Large Currents Without Rewiring
Accurately Measure Large Currents Without Rewiring

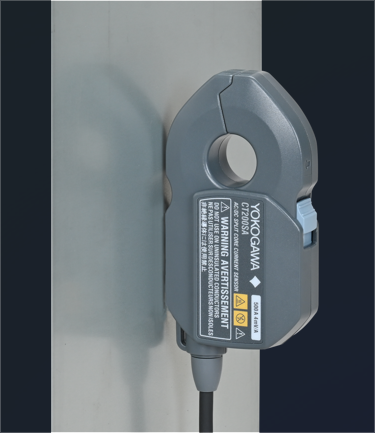

Features_2

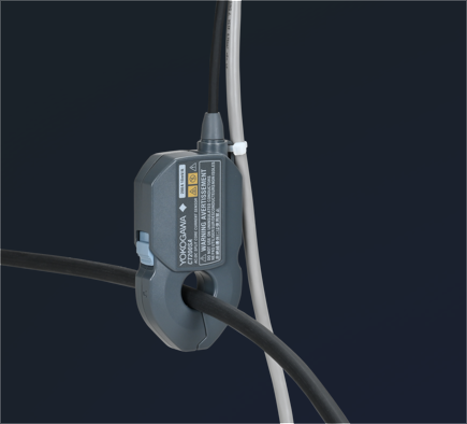

Features_3

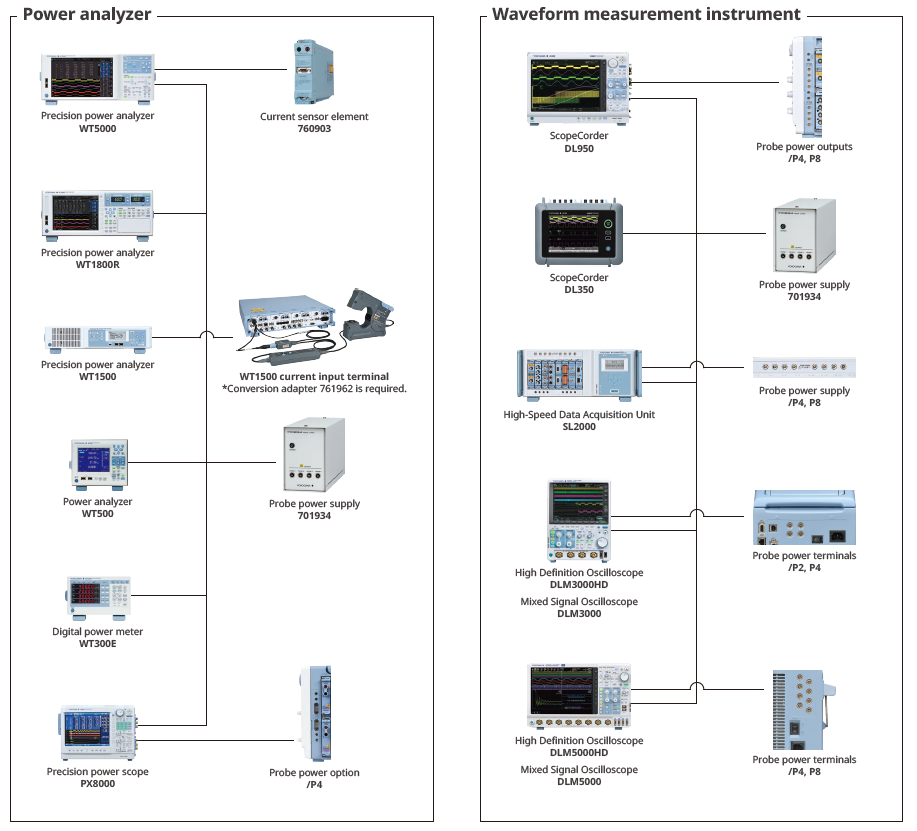

Compatibile Configurations with Measurement Instruments
The CT500SA/ CT200SA is compatible with various power analyzers and waveform measurement instruments. To operate the current sensor, a power supply is necessary. You can utilize the power supply option available on the measuring instrument, or connect an external power supply. It's important to note that depending on the power supply type, there may be a maximum limit to the number of current sensors that can be operated with a single power supply. Please refer to the list below for the specific number of sensors that can be used.
Compatibile Configurations with Measurement Instruments
Pairing with the WT1800R
The 761961 Power Adapter for Current Sensor allows the optional power supply (/PD2) of the Precision Power Analyzer WT1800R to supply power to the Split core current sensor. Up to six Split core current sensor can be used with a single WT1800R. This eliminates the need for an external probe power supply, resulting in less and simple wiring, and integrating the instrument with the power supply suppresses noise and ensures reliable measurements even in harsh noise environments.

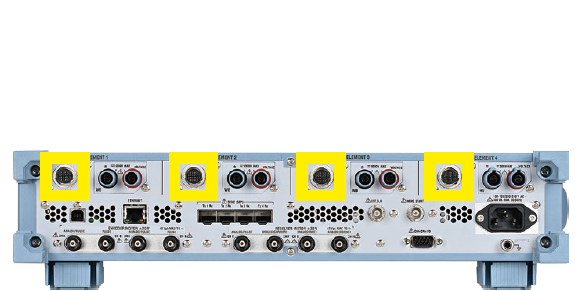

Connection of the WT1800R and the Split core current sensor*1

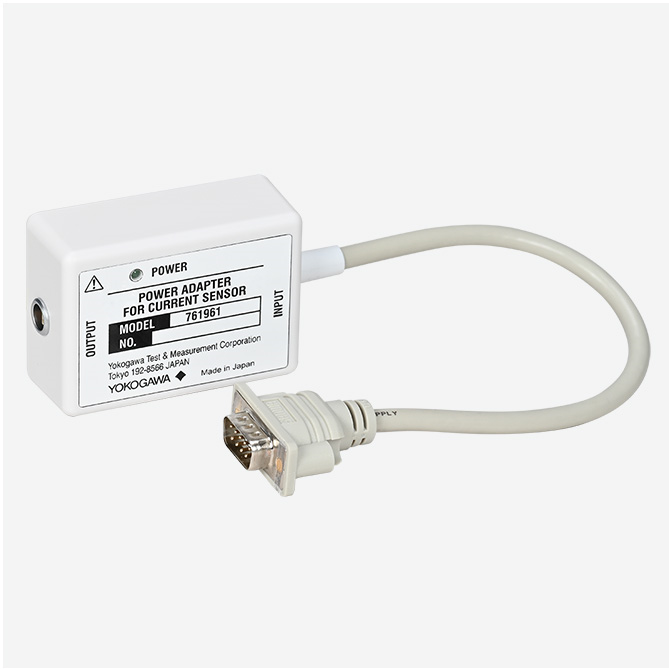

761961 Power Adapter for Current Sensor
*1: 761961 Power Adapter for Current Sensor is used. /PD2 option and /EX1 to /EX6 options must be installed in the WT1800R.

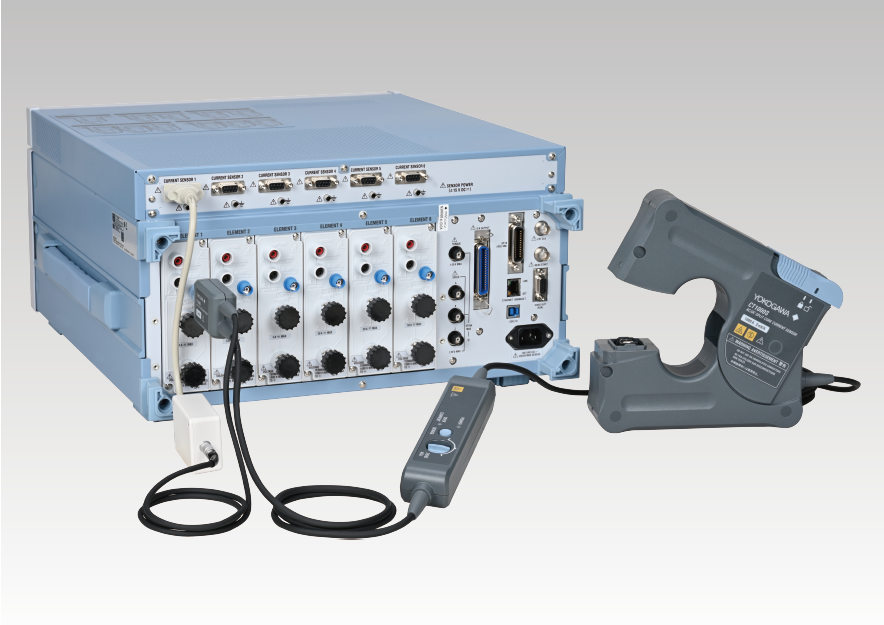

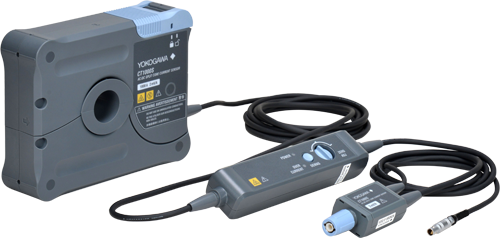

Connection of the WT1800R with the CT1000S
761961 Power Adapter for Current Sensor

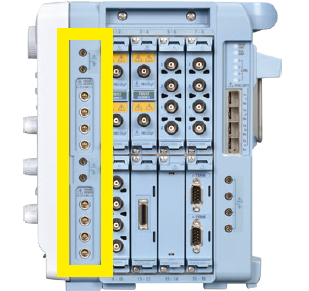

Number of available sensors for each power supply
• Model：760903 / PX8000 / P4 / WT1500
• Rated current：±12 V / ±0.8 A / ±12 V / ±1A / 4 ch total / ±12 V / ±0.8 A (1 ch)
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×1 / ×1 / ×4
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)

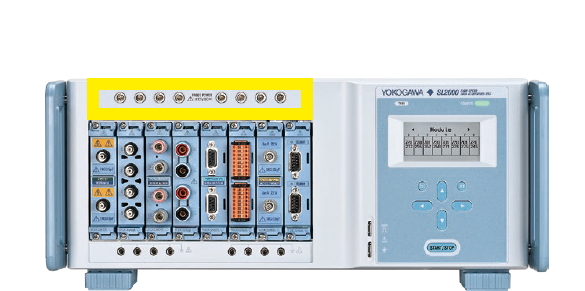

• Model：DL950 / P4 / DL950 / P8 / SL2000 / P4, /P8
• Rated current：±12 V, ±2.4 A, 4 ch total / ±12 V, ±2.4 A × 2, 4 ch total × 2 / ±12 V, ±2.4 A × 2, 4 ch total × 2
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×3 / ×3 / ×3 / ×3 / ×3
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)
• Model：DLM3000 / P4, /P8 / DLM5000HD/DLM5000 / P4, /P8 / 701934
• Rated current：±12 V, ±1.2 A, 4 ch total / ±12 V, ±2.0 A, 8 ch total / ±12 V, ±2.5 A, 4 ch total
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×1 / ×2 / ×3
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)
资源下载
详细指标请见 AC/DC Split Core Current Sensor CT500SA/ CT200SA 详细指标页。
横河测试测量 · onetest 仪器资源库
横河测试测量 YOKOGAWA
AC/DC Split Core Current Sensor CT500SA/ CT200SA 详细指标
AC/DC Split Core Current Sensor CT500SA/ CT200SA（探头）关键指标汇总。数据整理自厂商官方产品页与手册资料。
产品简介
This AC/DC split core current sensor is designed for measuring large DC and AC currents in applications such as electric vehicles, renewable energy systems, inverters, and motors. It facilitates high-current measurements by clamping around existing current connections. Leveraging fluxgate sensor architecture instead of Hall effect, Yokogawa’s splitcore current sensors achieve industry-leading accuracy across both AC and DC currents, making them ideal for high-precision power measurement applications. The CT500SA and CT200SA are compact current sensors ideal for measurements in confined spaces, yet they combine high accuracy with a frequency range and noise immunity suitable for use in both power analyzer and waveform measurement instrument. With its voltage output, this sensor is compatible with power analyzers (WT series and PX8000) and waveform measurement instruments (ScopeCorders and DLM series).
详细指标
Accurately Measure Large Currents Without Rewiring
• This split core current sensor offers superior noise immunity, providing stable measurement of large currents over a wide bandwidth.
• Main Unit 1：Lock lever Sub unit 2：Power LED 3：Overcurrent LED 4：Demag button 5：Offset adjust knob IV unit 6：Output connector Power supply 7：Power connector Cable 8：Cable length Select from 3m, 5m, 10m
• The CT500SA and CT200SA are designed for measurements in confined spaces and can be operated with one hand. The main unit of the current sensor, which connects to the measurement target, is compact—about the size of the palm of your hand. Furthermore, the locking mechanism is designed so that it can be unlocked with a single finger, even when performing measurements in tight spaces where both hands cannot fit.
• In addition to development applications, the current sensor is designed to be secured during testing of finished products, taking into account the operation of the device being measured. Securing the sensor using the screw holes (M4) on the sensor body or cable ties prevents the measurement point from shifting. Using this securing feature improves measurement accuracy and reproducibility.
• Model Name：CT500SA / CT200SA / CT1000S
• Rated current：500Arms / 200Arms / 1000Arms
• Accuracy /（50/60Hz）：±（0.09% of reading ＋ 0.01% of full scale）* / ±（0.1% of reading ＋ 0.01% of full scale） / ±（0.2% of rdg ＋0.01% of f.s.）
• Bandwidth /（-3㏈）：DC to 500kHz / DC to 1MHz / DC to 300kHz
• Operating temperature / Main unit:－40℃ to 85℃ / Sub unit:5℃ to 40℃ / IV unit:5℃ to 40℃
• Operating Humidity：20% to 80%RH below /（no condensation）
• Dimensions /（W×H×D）㎜：Main unit:110×62×25 / Sub unit:177.5×33×41 / IV unit:60×24×40 / Main unit:190×153×52 / Sub unit:177.5×33×41 / IV unit:60×24×40
• Measurable conductors / Φ20㎜ / Φ50㎜
• Supply voltage：±12V
• Maximum supply current / ±0.8A（maximum） / ±0.7A（maximum） / ±0.8A（maximum）
• Output voltage：4mV/A / 10mV/A / 2mV/A
• Connector type：BNC
• * Under the following temperature conditions / Main unit: 23 °C ± 5 °C, sub-unit: 23 °C ± 5 °C, IV unit: 23 °C ± 5 °C
Compatibile Configurations with Measurement Instruments
• The CT500SA/ CT200SA is compatible with various power analyzers and waveform measurement instruments. To operate the current sensor, a power supply is necessary. You can utilize the power supply option available on the measuring instrument, or connect an external power supply. It's important to note that depending on the power supply type, there may be a maximum limit to the number of current sensors that can be operated with a single power supply. Please refer to the list below for the specific number of sensors that can be used.
Pairing with the WT1800R
• The 761961 Power Adapter for Current Sensor allows the optional power supply (/PD2) of the Precision Power Analyzer WT1800R to supply power to the Split core current sensor. Up to six Split core current sensor can be used with a single WT1800R. This eliminates the need for an external probe power supply, resulting in less and simple wiring, and integrating the instrument with the power supply suppresses noise and ensures reliable measurements even in harsh noise environments.
• Connection of the WT1800R and the Split core current sensor*1
• 761961 Power Adapter for Current Sensor
• *1: 761961 Power Adapter for Current Sensor is used. /PD2 option and /EX1 to /EX6 options must be installed in the WT1800R.
Number of available sensors for each power supply
• Model：760903 / PX8000 / P4 / WT1500
• Rated current：±12 V / ±0.8 A / ±12 V / ±1A / 4 ch total / ±12 V / ±0.8 A (1 ch)
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×1 / ×1 / ×4
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)
• Model：DL950 / P4 / DL950 / P8 / SL2000 / P4, /P8
• Rated current：±12 V, ±2.4 A, 4 ch total / ±12 V, ±2.4 A × 2, 4 ch total × 2 / ±12 V, ±2.4 A × 2, 4 ch total × 2
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×3 / ×3 / ×3 / ×3 / ×3
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)
• Model：DLM3000 / P4, /P8 / DLM5000HD/DLM5000 / P4, /P8 / 701934
• Rated current：±12 V, ±1.2 A, 4 ch total / ±12 V, ±2.0 A, 8 ch total / ±12 V, ±2.5 A, 4 ch total
• Number of CT1000S / available / *±0.8 A / (Maximum supply) / ×1 / ×2 / ×3
• Number of CT500SA / available / *±0.8 A / (Maximum supply)
• Number of CT200SA / available / *±0.7 A / (Maximum supply)
手册与资料
说明
以上指标摘自厂商官方产品页与公开手册，若与随机文件不一致，以随箱文件为准。
