    Fluke Corporation · 网络测试仪

    MS2-100 线缆验证仪

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品定位

    The MicroScanner2 Cable Verifier helps find common errors quickly,

    displaying results from what were four different test modes all at once on its oversized,

    backlit LCD display: graphical wire map, pair lengths, distance to fault, cable ID,

    and far-end device. Its integrated RJ11, RJ45,

    and coax test ports support virtually any type of low-voltage cable testing,

    with no need for awkward adapters. The end result is reduced test time and technician error — which makes high-quality installations more efficient and troubleshooting easier.

    核心参数
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Test connectors
    – Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner 2 : F-connector for coaxial cable.
    功能与特点
    · Wire map, length, cable ID, distance to fault on one screen
    · Tests common media types, such as RJ11, RJ45, and coax, without adapters
    · VDV Service Detection verifies 10/100/1000 Ethernet, POTS, and PoE
    典型应用
    · 链路故障排查
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 ms2-100-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 网络测试仪

    MS2-100 线缆验证仪 · 详细指标

    IEC 61010-1 3rd Edition · IEC 61326-1
    产品简介

    The MicroScanner2 Cable Verifier helps find common errors quickly,

    displaying results from what were four different test modes all at once on its oversized,

    完整技术指标
    环境条件
    · Operating temperature：32 °F to 113 °F (0 °C to 45 °C)
    · Storage temperature：-4 °F to +140 °F (-20 °C to +60 °C)
    · Operating relative humidity (% RH without condensation)
    – 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)
    · Shock and Vibration
    – Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached
    · Safety：IEC 61010-1 3rd Edition
    · Altitude：4, 000 m; Storage: 12, 000 m
    · EMC：IEC 61326-1
    一般规格
    · Test connectors
    – Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner 2 : F-connector for coaxial cable.
    · Power
    – Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
    · Dimensions and weight (with batteries installed and wiremap adapter attached)
    – 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner 2 : 10.6 oz (300 g)

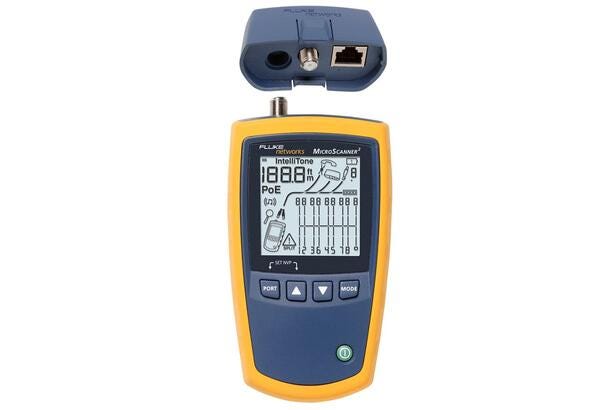

    · Display：Monochrome LCD with backlight
    Test modes
    · Cable test
    – Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
    · PoE
    – MicroScanner 2 : Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
    Performance specifications
    · Length test
    – Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner 2 ). Can determine actual NVP with known length of cable.
    · Wiremap test
    – Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
    · Ethernet port detection
    – MicroScanner 2 : Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps.
    · Tone generator
    – Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe. Generates four tones compatible with typical analog probes. SmartTone feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
