松田精密|Matsusada Precision Inc.
DRJ500 交流电源
台式可编程交流 POWER SOURCE 500W
产品简介
DRJ500 是松田精密（Matsusada Precision）DRJ 系列的一款交流电源，最大输出功率 500W。
Compact AC/DC Power Source with Multifunctionality
The DRJ series is an ultra-compact programmable AC power source providing high-precision, stable sine wave output. Engineered for space-constrained environments, it delivers high-quality power for R&D experiments, evaluation testing, and production lines.
Despite its compact footprint, the DRJ series features worldwide voltage input and a front-panel universal outlet, making it an ideal choice for global applications. The intuitive interface ensures simple operation, even for first-time users.
Additionally, the series supports optional momentary power interruption testing, allowing for the evaluation of devices under unstable power conditions.
核心参数
• Maximum output power（交流 / Lo (0 to 150 V) range）：500 VA
• Maximum output power（直流 / Lo (0 to +212 V/-212 V) range）：330 W
• 输入电压：90 to 132/180 to 250 Vac, 50/60 Hz, Single-phase
• Output range (Hi/Lo)：[Local] Hi/Lo selectable RANGE switch on the front panel
[Analog remote] Short/Open or TTL (Low/High)
[Digital remote] Command
• 输出电压控制：[Local] VLT/FRQ selectable switch and rotary encoder on the front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
• Output frequency control：[Local] VLT/FRQ selectable switch and rotary encoder on the front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
• -LGb * 5：Built-in GPIB interface (Scheduled for discontinuation in December 2028)
External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor
• -LGob * 5：Optical interface board
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomena caused by surges, inductive lightning, external noise, etc.
-LGob: Optical interface board + optical cable 2 meters
-LGob(Fc5) : Optical interface board + optical cable 5 meters
-LGob(Fc10): Optical interface board + optical cable 10 meters
-LGob(Fc20): Optical interface board + optical cable 20 meters
-LGob(Fc40): Optical interface board + optical cable 40 meters
For isolated control with optical communication External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor, for Optical conversion of various I / Fs (LAN, USB, RS-232C, RS-485, and GPIB), please see the catalog for digital controller “CO/USB series.”
• -LMsm, -LMss * 1 * 2：Parallel connection
The output power can be increased by connecting in parallel. The optional configuration will allow the connection of 1 slave unit (-LMss) to 1 master unit (-LMsm). (to change the combination, it must be adjusted in our factory.) Each unit can also be used as a single-phase output AC power source.
• -LN：Output state auto-recovery (former: no power failure protection)
The output will automatically be ON with power restored without resetting.
• -LNh：No handle
Select this option when installing in a rack-mount shelf.
• -LPfl * 3 * 4：Simple momentary power interruption testing function
It is able to set the time of momentary power interruption from 10 ms to 5.00 s. (Setting resolution: 10 ms)
功能特性
• Compact：With its switching amplifier design, this bipolar power supply saves valuable bench space. Our advanced switching technology reduces its size to about one-sixth that of comparable linear amplifier models. In addition, its compact design with only 5.5 inches (140 mm) width and approximately 5 kg weight allows it to be installed anywhere. The handle makes it easy to carry.
• Wide Range of Output Voltage and Frequency：DRJ series can be used for various AC input devices. It is also capable of DC output , and thus, it can be used in various applications. AC output Voltage: 0 to 150 V/300 V, Frequency: 1 Hz to 550 Hz DC output Voltage: 0 to +212 V/-212 V/0 to +424 V/-424 V
• Momentary Power Interruption Mode ( -LPfl Option )：It is possible to conduct momentary power interruption testing of the AC Input devices simply. This option enables simplified simulation of power line instabilities and momentary power interruptions for AC-powered devices. Users can easily reproduce unstable grid conditions to verify the behavior of the device under test (DUT). When the momentary power failure operation is needed in three-phase ou

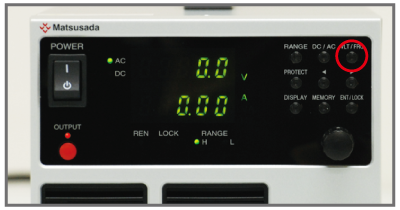

• Setting time of momentary power interruption：When this button is pressed for more than 1 sec, a display is switched over to the indication which sets the time of the momentary power interruption. It is able to set the time of momentary power interruption with a 10 ms unit in 10 ms to 5 s by turning the rotary encoder. [AC output] Setting time: 10 ms to 5 s Setting resolution: 10 ms
• 交流 Output ON/OFF in accordance with The Input 交流 Supply ON/OFF ( -LN Option )：This allows users to output state auto-recovery prevention (former: power failure protection) after input AC supply's recovery from stoppage without pressing the OUTPUT button on the front panel. Thus, remote re-activation without touching/accessing the power supply can be realized.
• High Peak Current：It delivers a peak current of up to 20 A, making it ideal for driving capacitive input loads.
• Universal Type Outlet：Power supply has the universal output outlet on the front panel so that various types of worldwide plugs can be used without adapter. Streamline your global product development. This feature makes testing more convenient and truly borderless.
• Safety Features：The DRJ series incorporates robust safety features to protect both the power supply and the connected load. The output specifically shuts down immediately upon detecting abnormal currents, such as short circuits. Note: Loads with high inrush currents may trigger the overcurrent protection mechanism. For such applications, please select a model with sufficient current margin or consider the DRK ser
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
DRJ500 交流电源 详细指标
台式可编程交流 POWER SOURCE 500W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 DRJ 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• Maximum output power（交流 / Lo (0 to 150 V) range）：500 VA
• Maximum output power（直流 / Lo (0 to +212 V/-212 V) range）：330 W
系列共用规格
• 输入电压：90 to 132/180 to 250 Vac, 50/60 Hz, Single-phase
• Output range (Hi/Lo)：[Local] Hi/Lo selectable RANGE switch on the front panel
[Analog remote] Short/Open or TTL (Low/High)
[Digital remote] Command
• 输出电压控制：[Local] VLT/FRQ selectable switch and rotary encoder on the front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
• Output frequency control：[Local] VLT/FRQ selectable switch and rotary encoder on the front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
• -LGb * 5：Built-in GPIB interface (Scheduled for discontinuation in December 2028)
External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor
• -LGob * 5：Optical interface board
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomena caused by surges, inductive lightning, external noise, etc.
-LGob: Optical interface board + optical cable 2 meters
-LGob(Fc5) : Optical interface board + optical cable 5 meters
-LGob(Fc10): Optical interface board + optical cable 10 meters
-LGob(Fc20): Optical interface board + optical cable 20 meters
-LGob(Fc40): Optical interface board + optical cable 40 meters
For isolated control with optical communication External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor, for Optical conversion of various I / Fs (LAN, USB, RS-232C, RS-485, and GPIB), please see the catalog for digital controller “CO/USB series.”
• -LMsm, -LMss * 1 * 2：Parallel connection
The output power can be increased by connecting in parallel. The optional configuration will allow the connection of 1 slave unit (-LMss) to 1 master unit (-LMsm). (to change the combination, it must be adjusted in our factory.) Each unit can also be used as a single-phase output AC power source.
• -LN：Output state auto-recovery (former: no power failure protection)
The output will automatically be ON with power restored without resetting.
• -LNh：No handle
Select this option when installing in a rack-mount shelf.
• -LPfl * 3 * 4：Simple momentary power interruption testing function
It is able to set the time of momentary power interruption from 10 ms to 5.00 s. (Setting resolution: 10 ms)
• -LPhu, -LPhv, -LPhw * 1 * 2 * 3：Multi-phase connection
A three-phase output mode is available. Each DRJ requires the three-phase output mode option. Each unit can also be used as a single-phase output AC power source.
• -LUs1 * 5：USB interface board
Digital control is enabled through USB.
[The item which can be controlled]
External output ON/OFF, Voltage range switching, Voltage control, Variable frequency, Status, Voltage, and Current monitor OS for USB driver: Microsoft Windows XP/Vista/7/8/10/11 (Both 32-bit and 64-bit are applicable.)
(Microsoft and Windows are registered trademark of Microsoft Corp. in USA and other.)
• L1p3wm, -L1p3ws * 1 * 2：Single-phase three-wire connection
A single-phase, three-wire output mode is available. Each unit can also be used as a single-phase output AC power source.
• 应用软件：PSS2en series: Remote control, Test workflow design, and Data logging
PSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
Click here for the PSS2en series
选件 / 附件
• -LGb * 5：Built-in GPIB interface (Scheduled for discontinuation in December 2028)
External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor
• -LGob * 5：Optical interface board
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomena caused by surges, inductive lightning, external noise, etc.
-LGob: Optical interface board + optical cable 2 meters
-LGob(Fc5) : Optical interface board + optical cable 5 meters
-LGob(Fc10): Optical interface board + optical cable 10 meters
-LGob(Fc20): Optical interface board + optical cable 20 meters
-LGob(Fc40): Optical interface board + optical cable 40 meters
For isolated control with optical communication External output ON/OFF, Voltage range switching, Variable voltage, Variable frequency, Status, Voltage and Current monitor, for Optical conversion of various I / Fs (LAN, USB, RS-232C, RS-485, and GPIB), please see the catalog for digital controller “CO/USB series.”
• -LMsm, -LMss * 1 * 2：Parallel connection
The output power can be increased by connecting in parallel. The optional configuration will allow the connection of 1 slave unit (-LMss) to 1 master unit (-LMsm). (to change the combination, it must be adjusted in our factory.) Each unit can also be used as a single-phase output AC power source.
• -LN：Output state auto-recovery (former: no power failure protection)
The output will automatically be ON with power restored without resetting.
• -LNh：No handle
Select this option when installing in a rack-mount shelf.
• -LPfl * 3 * 4：Simple momentary power interruption testing function
It is able to set the time of momentary power interruption from 10 ms to 5.00 s. (Setting resolution: 10 ms)
• -LPhu, -LPhv, -LPhw * 1 * 2 * 3：Multi-phase connection
A three-phase output mode is available. Each DRJ requires the three-phase output mode option. Each unit can also be used as a single-phase output AC power source.
• -LUs1 * 5：USB interface board
Digital control is enabled through USB.
[The item which can be controlled]
External output ON/OFF, Voltage range switching, Voltage control, Variable frequency, Status, Voltage, and Current monitor OS for USB driver: Microsoft Windows XP/Vista/7/8/10/11 (Both 32-bit and 64-bit are applicable.)
(Microsoft and Windows are registered trademark of Microsoft Corp. in USA and other.)
• L1p3wm, -L1p3ws * 1 * 2：Single-phase three-wire connection
A single-phase, three-wire output mode is available. Each unit can also be used as a single-phase output AC power source.
• 应用软件：PSS2en series: Remote control, Test workflow design, and Data logging
PSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
Click here for the PSS2en series
资源下载
以上规格取自松田精密（Matsusada Precision）官网 DRJ 系列产品页（https://www.matsusada.com/product/ac-power-sources/benchtop/drj/）。
松田精密（Matsusada Precision） · onetest 仪器资源库
