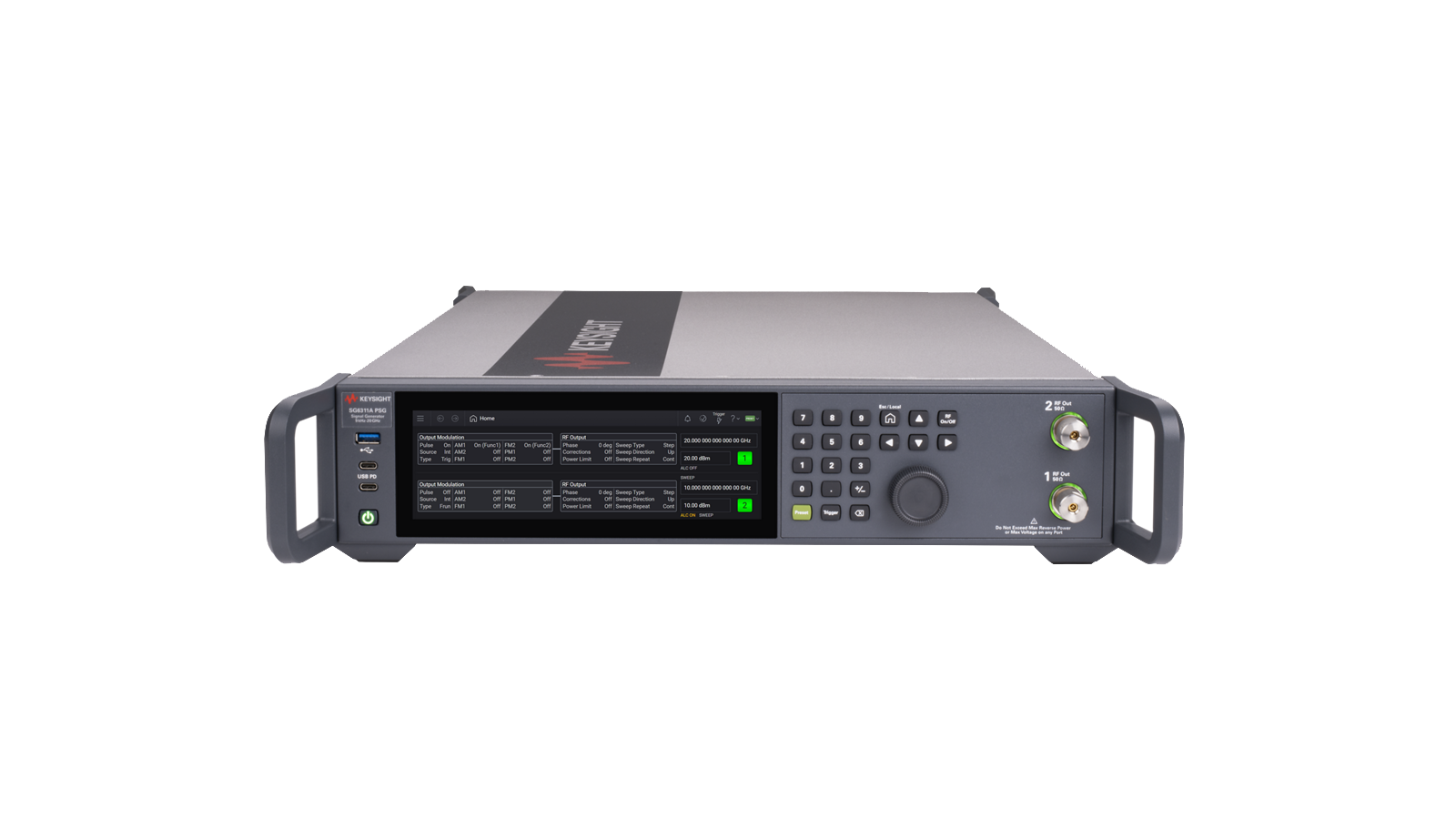

AP5032A 1kHz至51GHz 信号发生器 18dBm 详细指标
Analog Signal Generators
条件：Parameter Nominal (unless otherwise indicated) Note
1 to 4
适用型号 AP5032A AP5032A-512…-551
Frequency Ranges 1 kHz to 12.75 GHz 1 kHz to 20 GHz
1 kHz to 40 GHz
1 kHz to 51 GHz
1 kHz to 90 GHz
Phase Adjustment Range
0 to 360° Individually adjustable per channel
Internal Reference Frequency
100 MHz
10 MHz
Option LN1
Option LN2
Temperature stability 0 to 50 ºC
±100 ppb
±20 ppb
Option LN1
Option LN2
Frequency accuracy
1000 ppb (spec)
20 ppb (spec)
Option LN1
Option LN2
< 0.5 ppb
after
30 days of operation
Option LN1
Option LN2
Internal reference output 10
100 MHz Selectable
High frequency clock output
3 GHz
Output power level range
+10 to +13 dBm
3 GHz
10/100 MHz
External Reference Frequency 10, 100 MHz 1 to 250 MHz
3 GHz
Locking the internal
10 MHz (option LN2) or 100 MHz (option LN1)
Option 1ER: Locking the internal
10 MHz (option LN2) or 100 MHz (option LN1)
CLK IN, bypass internal reference and accepts sine wave and square wave
Reference input level range
-10 to +10 dBm
+10 to +13 dBm
1 to 250 MHz
3 GHz CLK IN
Lock Range ±0.3 ppm ±1.5 ppm
±100 ppm
LN2 or LN2 with 1ER
LN1 or LN1 with 1ER
CLK IN, bypass internal reference
Reference Ports Impedances
50 Ohm
条件：Specified values in plain text, nominal values in parentheses. CW, output power +10 dBm
Absolute SSB Phase Noise with LN1 Option, dBc/Hz
条件：Specified values in plain text, nominal values in parentheses. CW, output power +10 dBm
Frequency 10 Hz 100 Hz
1 kHz
Offset 10 kHz 100 kHz
1 MHz
10 MHz
100 MHz -100 (-105) -130 (-135) -144 -150 -153 -153
-153
1 GHz -80 (-85) -110 (-115) -140 (-142) -147 (-150) -150 (-152) -150 (-153)
-150 (-153)
4 GHz -68 (-73) -98 (-103) -130 (-132) -137 (-139) -144(-146) -145 (-148)
-145 (-148)
6 GHz -64 (-69) -95 (-100) -127 (-130) -136 (-139) -141 (-143) -147 (-149)
-147 (-150)
10 GHz -60 (-65) -90 (-95) -123 (-125) -133 (-135) -138 (-140) -144 (-145)
-144 (-145)
20 GHz -54 (-59) -84 (-89) -117 (-119) -127 (-129) -133 (-134) -138 (-139)
-138 (-139)
40 GHz -48 (-53) -78 (-83) -111 (-113) -121 (-123) -127 (-128) -132 (-133)
-132 (-133)
50 GHz -46 (-51) -76 (-81) -109 (-111) -119 (-121) -125 (-126) -130 (-131)
-130 (-131)
90 GHz (-46) (-76) (-106) (-116) (-121) (-126) (-126)
Absolute SSB Phase Noise with LN2 Option, dBc/Hz
Frequency 10 Hz 100 Hz
1 kHz
Offset 10 kHz 100 kHz
1 MHz
10 MHz
100 MHz -120 (-123) -130 (-135) -144 -150 -153 -153
-153
1 GHz -100 (-103) -110 (-115) -140 (-142) -147 (-150) -150 (-152) -150 (-153)
-150 (-153)
4 GHz -88 (-91) -98 (-103) -130 (-132) -137 (-139) -144(-146) -145 (-148)
-145 (-148)
6 GHz -84 (-87) -95 (-100) -127 (-130) -136 (-139) -141 (-143) -147 (-149)
-147 (-150)
10 GHz -80 (-83) -90 (-95) -123 (-125) -133 (-135) -138 (-140) -144 (-145)
-144 (-145)
20 GHz -74 (-77) -84 (-89) -117 (-119) -127 (-129) -133 (-134) -138 (-139)
-138 (-139)
40 GHz -68 (-71) -78 (-83) -111 (-113) -121 (-123) -127 (-128) -132 (-133)
-132 (-133)
50 GHz -66 (-69) -76 (-81) -109 (-111) -119 (-121) -125 (-126) -130 (-131)
-130 (-131)
90 GHz (-64) (-76) (-106) (-116) (-121) (-126) (-126)
Figure 1. SSB phase noise vs. offset frequency. Option LN1, output power
+10 dBm
Figure 2. SSB phase noise vs. offset frequency. Option LN2, output power
+10 dBm
Figure 3. Amplitude noise vs. offset frequency. output power
+10 dBm
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
10 100 1 000 10 000 100 000 1 000 000 10 000 000 100 000
000
Offset frequency, Hz 90 GHz 50 GHz
40 GHz
20 GHz
10 GHz
6 GHz
3 GHz
1 GHz
100 MHz
-160
-150
-140
-130
-120
-110
-100
-90
-80
-70
-60
-50
10 100 1 000 10 000 100 000 1 000 000 10 000 000 100 000
000
Offset frequency, Hz 90 GHz 50 GHz
40 GHz
20 GHz
10 GHz
6 GHz
3 GHz
1 GHz
100 MHz
-170
-160
-150
-140
-130
-120
-110
-100
10 100 1 000 10 000 100 000 1 000 000 10 000
000
Offset frequency, Hz 10 GHz
1 GHz
条件：1 kHz to <350 MHz -35 dBc -30 dBc (50 MHz to 350 MHz; at -10 dBm output power, nominal harmonics are -50 dBc)
22 GHz to <30 GHz -60 dBc -50 dBc Option 1EH, available only with Option 540
Note: Performance data are nominal for harmonics beyond specified frequency range.
Harmonics At +10 dBm output power
350 MHz to <8 GHz -60 dBc
-50 dBc
8 GHz to <22 GHz -65 dBc
-50 dBc
22 GHz to <30 GHz -25 dBc
-20 dBc
30 GHz to <90 GHz
-60 dBc
Sub-Harmonics At +10 dBm output power
1 kHz to <350 MHz
-80 dBc
350 MHz to <12.84 GHz -75 dBc
-55 dBc Incl. high-order subharmonics
12.84 GHz to <51 GHz -70 dBc
-50 dBc
51 GHz to <80 GHz -65 dBc
-55 dBc
80 GHz to <90 GHz -50 dBc
-40 dBc
Non-Harmonic Spurious At +10 dBm
10 kHz to 0.35 GHz offset from carrier
1 kHz to <350 MHz -70 dBc
-60 dBc
350 MHz to <6.42 GHz -85 dBc
-75 dBc
6.42 GHz to <12.84 GHz -80 dBc
-70 dBc
12.84 GHz to <22 GHz -75 dBc
-65 dBc
22 GHz to <51 GHz -70 dBc
-55 dBc
51 GHz to <90 GHz -65 dBc
-50 dBc
Figure 4. Harmonics at 10 dBm, without option
1EH
Relative Phase Stability See figure
5
Between channels 2 deg p-p Measured 0.36 deg RMS over
10 hours
Between synchronized devices 2 deg p-p Measured 0.36 deg RMS over
10 hours
Channel-to-Channel Isolation 110 dB 9 kHz to 50 GHz
10 dBm, outputs are terminated with 50 Ohm
Figure 5. Relative phase drift for 50 GHz, 0 dBm output in temperature-controlled environment over
10 hours
-90
-80
-70
-60
-50
-40
-30
-20
-10
0 5 000 10 000 15 000 20 000 25
000
Frequency, MHz 2nd Harmonic
3rd Harmonic
-2
-1.5
-1
-0.5 0.5 1.5
条件：Reverse Power Protection Nominal
Output Power Level Options 512, 520, 540
551
1 kHz to <1 MHz -20 dBm
+10 dBm
1 MHz to <10 MHz -20 dBm
+12 dBm
10 MHz to <2.5 GHz -20 dBm
+18 dBm
2.5 GHz to <40 GHz -20 dBm
+18 dBm
40 GHz to 51 GHz -20 dBm
+15 dBm
Output Power Level Option
590
1 kHz to <1 MHz -20 dBm
+10 dBm
1 MHz to <10 MHz -20 dBm
+12 dBm
10 MHz to <12.84 GHz -20 dBm
+14 dBm
12.84 GHz to <40 GHz -20 dBm
+10 dBm
40 GHz to <51 GHz -20 dBm
+7 dBm
51 GHz to <67 GHz -20 dBm
+10 dBm
67 GHz to <85 GHz -20 dBm
+6 dBm
85 GHz to 90 GHz -20 dBm
+3 dBm
Output Power Level Options 512, 520
540 and 1E1
1 kHz to <1 MHz -120 dBm
+10 dBm
1 MHz to <10 MHz -120 dBm
+12 dBm
10 MHz to <2.5 GHz -120 dBm
+16 dBm
2.5 GHz to <20 GHz -120 dBm
+17 dBm
20 GHz to 40 GHz -120 dBm
+16 dBm
Output Power Level Option 540
1E1 and 1EH
1 kHz to <1 MHz -120 dBm
+10 dBm
1 MHz to <10 MHz -120 dBm
+12 dBm
10 MHz to <2.5 GHz -120 dBm
+16 dBm
2.5 GHz to <20 GHz -120 dBm
+17 dBm
20 GHz to <30 GHz -120 dBm
+16 dBm
30 GHz to 40 GHz -120 dBm
+15 dBm
Output Power Level Options 512, 520, 540
551 and 2E1
1 kHz to <1 MHz -110 dBm
+10 dBm
1 MHz to <10 MHz -110 dBm
+12 dBm
10 MHz to <2.5 GHz -110 dBm
+16 dBm
2.5 GHz to <40 GHz -110 dBm
+16 dBm
40 GHz to 51 GHz -110 dBm
+12 dBm
Maximum permissible RF Power
26 dBm
< 15 GHz
15 to <48 GHz
48 to 51 GHz
1.3 (nominal)
1.3 (nominal)
1.4 (nominal)
< 15 GHz
15 to <48 GHz
48 to 51 GHz
1.1 (nominal)
1.5 (nominal)
1.6 (nominal)
< 15 GHz
15 to <48 GHz
48 to <50 GHz
50 to 90 GHz
1.3 (nominal)
1.3 (nominal)
1.4 (nominal)
2.2 (nominal)
Figure 6. Measured maximum output power
10 MHz to 51/90 GHz
Figure 7. Measured maximum output power, 10 MHz to 51 GHz (Option
2E1)
0 10 000 20 000 30 000 40 000 50 000 60 000 70 000 80 000 90
000
0 10 000 20 000 30 000 40 000 50
000
条件：Absolute power level accuracy. Options 590. Specified values in plain text, nominal values in parentheses
Frequency Range
-110 to <-50 dBm
-50 to <-20 dBm
Option 1E1 or 2E1 -20 to <+15 dBm
+15 dBm to max power
1 kHz to <10 MHz (±2.2 dB) ±1 dB (±0.5 dB) ±0.8 dB (±0.15 dB)
±1.5 dB (±0.3 dB)
10 MHz to <1 GHz (±2.2 dB) ±1 dB (±0.5 dB) ±0.8 dB (±0.15 dB)
±1.5 dB (±0.3 dB)
1 to <22 GHz (±2.2 dB) ±1 dB (±0.6 dB) ±0.5 dB (±0.2 dB)
±1.5 dB (±0.3 dB)
22 to <40 GHz (±2.5 dB) ±2 dB (±1.2 dB) ±1.2 dB (±0.4 dB)
±1.5 dB (±0.4 dB)
40 to 51 GHz (±2.5 dB) (±2 dB) ±1.3 dB (±0.4 dB)
±1.5 dB (±0.5 dB)
Frequency Range -20 to <-10 dBm -10 to <+5 dBm +5 to <+10 dBm
+10 dBm to <+15 dBm
1 kHz to < 10 MHz ±0.8 dB (±0.15 dB) ±0.8 dB (±0.15 dB) ±0.8 dB (±0.15 dB)
±0.8 dB (±0.15 dB)
10 MHz to <1 GHz ±0.8 dB (±0.15 dB) ±0.8 dB (±0.15 dB) ±0.8 dB (±0.15 dB)
±0.8 dB (±0.15 dB)
1 to < 20 GHz ±0.5 dB (±0.2 dB) ±0.5 dB (±0.2 dB) ±0.5 dB (±0.2 dB)
±0.5 dB (±0.2 dB)
20 to < 40 GHz ±1.2 dB (±0.4 dB) ±1.2 dB (±0.4 dB) ±1.2 dB (±0.4 dB)
±3 dB (±1.5 dB)
40 to <50 GHz ±1.3 dB (±0.4 dB) ±1.3 dB (±0.4 dB)
±1.3 dB (±0.4 dB)
50 to 90 GHz ±2 dB (±0.8 dB)
±1.5 dB (±0.8 dB)
条件：Options 512…551. Step of 0.1 dB. Values listed are nominal.
Options 590. Step of 0.1 dB. Values listed are nominal.
Frequency Range
-110 to <-90 dBm
-90 to <-20 dBm
Option 1E1 or 2E1 -20 to <+15 dBm
+15 dBm to Max Power
1 kHz to <10 MHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
10 MHz to <1 GHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
1 GHz to 51 GHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
Frequency Range -20 to <-10 dBm -10 to <+5 dBm +5 to <+10 dBm
+10 dBm to <+15 dBm
1 kHz to <10 MHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
10 MHz to <1 GHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
1 GHz to <50 GHz (< 0.1 dB) (< 0.1 dB) (< 0.1 dB) (<
0.1 dB)
50 GHz to 90 GHz (<
0.1 dB)
Figure 8. Absolute power level accuracy between -20 and +15 dBm over frequency (Option
551)
Figure 9. Absolute power level accuracy at different frequencies (Option
551)
Figure 10. Relative power level accuracy at 20 GHz (Options
520 and 1E1)
Pulse rise/fall time
5 ns (spec)
On/off ratio 80 dB Power >=
+10 dBm
Repetition frequency (PRF) 0.1 Hz to 50 MHz = 1/T (pulse period
20 ns to 10,000 s)
Duty cycle
1 % to 99 % in 1% steps within specified minimum pulse width
PRF using internal pattern generator
-1
-0.5 0.5
0 10 000 20 000 30 000 40 000 50
000
-1
-0.5 0.5
-20 -15 -10 -5 0 5 10 15
20
Power level, dBm 1000 7000 12500 18500 25000 30000 36000 42000 48000
51000
-1
-0.5 0.5
-90 -80 -70 -60 -50 -40 -30 -20
-10
Programmable pattern length
2 to 65536
Duty cycle
0.05% to 99.95%
Pulse width resolution
5 ns
Pulse period (T) accuracy 5·10-6·T+
3ns
Pulse width accuracy 5·10-6·T+
5ns
Figure
11. Pulse on/off ratio
Figure 12.
10 GHz pulse-modulated
Figure 13.
50 GHz pulse-modulated
0 5 000 10 000 15 000 20 000 25 000 30 000 35 000 40 000 45 000 50
000
Carrier frequency, MHz 5 dBm 10 dBm
20 dBm
-0.3
-0.2
-0.1 0.1 0.2 0.3
0 5 10 15 20 25 30 35 40 45
50
-0.3
-0.2
-0.1 0.1 0.2 0.3
0 5 10 15 20 25 30 35 40 45
50
Modulation depth
0 to 100%
Depth accuracy 0.05·DEPTH+2% (spec) 1 kHz rate, 30% depth
>10 MHz for -10 to +10 dBm
0.05·DEPTH+2% (spec) 1 kHz rate, 30% depth >10 MHz for -10 to +10 dBm and ≤
-20
dBm with options xE1
Distortion (THD) 3% (spec) 1 kHz rate
30% depth
Modulation rate
0.1 Hz to 30 kHz
Deviation accuracy
0.01·DEVIATION+2 Hz
Distortion (THD) 3% (spec) 1 kHz rate
10 kHz deviation
Modulation rate
0.1 Hz to 30 kHz
Phase deviation (peak) N·100 rad For N values see below
Deviation accuracy
0.01·DEVIATION+10-3 rads
Modulation rate
0.1 Hz to 30 kHz
Distortion (THD) 3% (spec) 1 kHz rate
10·N rad deviation
N=1 for frequencies
1 kHz to <350 MHz
N=1/32 for frequencies
350 MHz to <401.25 MHz
N=1/16 for frequencies
401.25 MHz to <802.5 MHz
N=1/8 for frequencies
802.5 MHz to <1705 MHz
N=1/4 for frequencies 1.7
05 GHz to <3.21 GHz
N=1/2 for frequencies
3.21 GHz to <6.42 GHz
N=1 for frequencies 6.42 GHz to <12.
84 GHz
N=2 for frequencies 12. 84 GHz to <25.
68 GHz
N=4 for frequencies 25.
68 GHz to 51 .36 GHz
N=8 for frequencies
51.36 GHz to 90 GHz
Sweeps can be performed with combined internal or external AM/FM/PM/pulse modulation running. With modulation
enabled, the minimum switching time increases to 2 ms.
Sweep Types Linear, logarithmic, random
Trigger delay (tdelay)
50 ns Standard and UNZ
Settling time (tsettling)
3 μs Standard and UNZ
Switching time (tswitch)1= tdelay + tsettling
≤ 10 μs (spec)
≤ 20 ms
500 μs to 19998 s
10 μs to 19998 s
10 ms to 19998 s
Only when crossing Option xE1 power ranges including manual xE1 selection via SCPI command2
条件：1 Switching time is defined as the time it takes, after receipt of trigger, to change frequency or amplitude and settle to 0.1 ppm of
its final value. 2 With manual 1E1 selection, the user can move the fast dynamic range (down to 10 μs with Option UNZ) to a power range lower than -20 dBm, as long as attenuator power ranges are not being crossed during the signal change.
Only when crossing Option xE1 power ranges including manual xE1 selection via SCPI command2
Timing accuracy per point
5 ns Standard and UNZ
Sweep list length
2 to 10000 Per channel
External trigger delay
50 ns to 40 s settable
External delay resolution
5 ns
Trigger modulo
1 to 255 execute only on Nth trigger event
Trigger polarity Rising, Falling
External trigger input threshold
0.9 V TTL compatible
External trigger input voltage range
-0.5V to +5.5V TTL compatible
External trigger input hysteresis
60 mV
条件：1. Power switch
2. Rotary knob
3. RF outputs:
1. PULSE IN: Pulse modulation input: BNC female
2. Trigger output (TRIG OUT): BNC female
3. Trigger input (TRIG IN): BNC female
4. Reference output (REF OUT): BNC female
5. Reference input (REF IN): BNC female
6. High stability reference output (CLK OUT, 3 GHz): SMA female
7. High stability reference input (CLK IN, 3 GHz): SMA female
8. GPIB: IEEE-488.2, 1987 with listen and talk (option GPB)
9. LAN connection: RJ-45
10. USB 2.0
11. 100-240V AC power plug
12. Ground reference screw (earth) M4
Single-channel AP5031A front panel (Desktop enclosure)
• AP5031A-512: N female
• AP5031A-520 or AP5031A-540
2.92 mm male hand-tight
• AP5031A-551
1.85 mm male hand-tight
• AP5031A-590
1 mm NMD male
Single-channel AP5031A rear panel (Desktop enclosure)
Multi-channel AP5032A front panel (19"
2 HU)
条件：1. Channel 1, 2, 3, 4 PULM input: BNC female
2. High stability reference input (CLK IN, 3 GHz): SMA female
3. High stability reference output (CLK OUT, 3 GHz): SMA female
4. Trigger input (TRIG IN): BNC female
5. Trigger output (TRIG OUT): BNC female
6. Reference input (REF IN): BNC female
7. Reference output (REF OUT): BNC female
8. GPIB: IEEE-488.2, 1987 with listen and talk (option GPB)
9. LAN connection: RJ-45
10. USB 2.0
11. FUSE (3.15 A)
12. 100-240V AC power plug
13. Power switch
14. Ground reference screw (earth) M4
• AP5032A-512 or AP5032A-520: SMA female
• AP5032A-540
2.92 mm female
• AP5032A-551
1.85 mm female
Multi-channel AP5032A rear panel (19"
2 HU)
AP5031A Desktop Enclosure: Dimensions and Weight
Including connectors W x L x H = 232 x 393 x 96.75 mm [9.1 x 15.5 x 3.8 in]
≤10 kg [22 lbs]
AP5032A 19"
2 HU: Dimensions and Weight
Including connectors W x L x H = 444 x 594 x 88 mm [17.5 x 23.4 x 3.5 in]
18 kg [39.7 lbs]
Keysight enables innovators to push the boundaries of engineering by quickly solving
design, emulation, and test challenges to create the best product experiences. Start your
This information is subject to change without notice. © Keysight Technologies, 202
5 - 2026
Published in USA, August 14, 2026, 3125
-1262 .EN
• 10/100/1000 Mbit Ethernet interface
• GPIB (IEEE-488.2,1987) with listen and talk (Option GPB)
• Control Language SCPI Version
1999.0
Power requirements: 100 - 240 VAC
50 or 60 Hz
AP5031A 100 W max; AP5032A 200 W max (80 W +
30 W per channel)
Operating ambient temperature range
0 to +45 °C
Storage ambient temperature range
-40 to +70 °C
Relative humidity range: 20 to 85 % (desktop models)
20 to 90 % (rack mount models)
Operating and storage altitude up to 15,000 ft/4600 m (AP5032A), up to 6560 ft/2000 m (AP5031A)
Recommended calibration cycle
24 months
Safety / EMC comply with applicable Safety (IEC 61010-1:2010, IEC
61010-1:2010/AMD1:2016) and
EMC (IEC
61326-1:2020) regulations and directives.
Multi-channel: 19'' 2HU enclosure and 4 channels
18 kg [39.7 lbs]
Single-channel: Desktop enclosure
≤10 kg [22 lbs]
Multi-channel: 19'' 2HU enclosure W x L x H = 444 x 594 x 88 mm [17.5 x 23.4 x
3.5 in]
Single-channel: Desktop enclosure W x L x H = 232 x 393 x 96.75 mm [9.1 x 15.5 x
3.8 in]
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
客服
粤公网安备44030902003758
