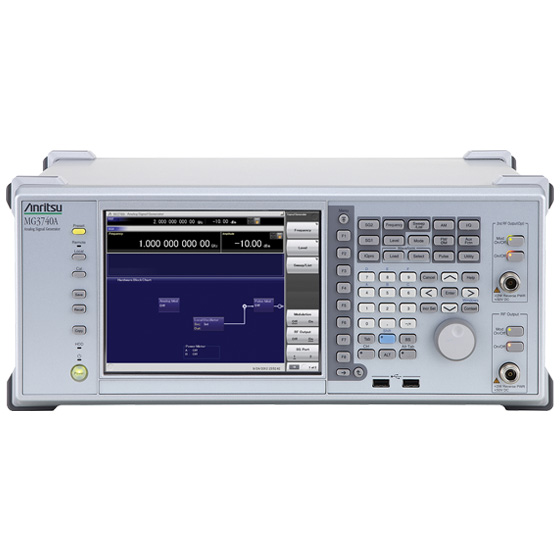

    MG3740A 模拟信号发生器（100kHz至2.7GHz，高功率输出 +23 dBm，切换速度 <600 µs）。模拟信号发生器，频率覆盖100kHz至6GHz，标配AM/FM/ΦM/脉冲调制，SSB相位噪声典型值-131dBc/Hz（1GHz、20kHz偏移、CW），适用于模拟射频接收机测试。

    MG362x1A 9kHz至70GHz射频微波信号发生器|安立 (在产)

    MG362x1A 射频微波信号发生器（9kHz至70GHz，频率分辨率 0.001 Hz，相位偏移 0.1 度步进可调）。信号纯度决定了雷达、收发机、ADC/DAC与元器件测试等多种应用的测量质量。Rubidium以更低的相位噪声推高了性能上限，可选内置铷频标实现原子钟级的频率稳定度与准确度。

    参考价格 ：

    厂家：安立|Anritsu （收录99个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    安立

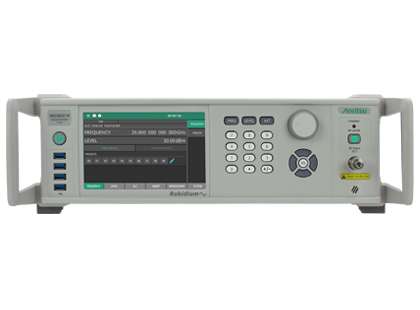

    MG362x1A Rubidium 射频/微波信号发生器
    Rubidium 射频/微波信号发生器，覆盖 9 kHz 至 70 GHz，具备高信号纯度、输出功率与频率稳定度，可选内置铷原子钟参考。
    产品简介
    信号纯度决定了雷达、收发机、ADC/DAC 与元器件测试等多种应用的测量质量。Rubidium 以更低的相位噪声推高了性能上限，可选内置铷频标实现原子钟级的频率稳定度与准确度。
    Rubidium 具备 AM、FM/PM、脉冲与脉冲串调制能力，可生成多种复杂模拟调制信号；支持 FM/脉冲同时调制。前面板配 7 英寸触摸屏、键盘与旋钮，并提供 4 个 USB 3.0 端口。
    核心特点
    • 近端与远端俱佳的超低相位噪声
    • 原子钟级频率稳定度与准确度（选件 66 时输出频率准确度可实时溯源 至 国家标准实验室参考）
    • 可对高分辨率 Gbit ADC/DAC 进行真实的 ENOB 测量
    • 作为低噪声本振源用于脉冲雷达接收机与通信收发机测试
    • 作为低抖动高频时钟源
    • 频率老化可忽略，支持现场电平与频率校准
    • 7 英寸触摸屏 + 键盘/旋钮前面板，4 个 USB 3.0 端口
    • AM、FM/PM、脉冲与脉冲串调制，支持 FM/脉冲同时调制
    型号与主要参数
    • Parameter：Specification
    • Frequency Range：9 kHz 至 20/43.5 GHz/70 GHz Operable up to 72 GHz
    • Frequency Resolution：0.001 Hz
    • Phase Offset：Adjustable in 0.1 degree steps
    • SSB phase noise：-136 dBc/Hz (typ) and -140 dBc/Hz (measured) @ 10 GHz output, 10 kHz offset
    • Internal time base stability - Aging：< ±2 x 10E-8 per year with Option 3 < ±1 x 10E-9 per year with Option 56
    • Reference frequency input/output：10 MHz, 100 MHz and 1.6 GHz
    • Output power：-130 dBm 至 +20 dBm (MG36221A standard output, with Option 2) -130 dBm 至 +16 dBm (MG36241A, standard output, with Option 2) -90 dBm 至 +6 dBm (MG36271A, standard output, with Option 2)
    功能与结构
    Cables and Adapters
    Adapters
    Model Number
    Description
    1091-26-R
    SMA(m) to N(m), DC to 18 GHz, 50 Ω
    1091-27-R
    SMA(f) to N(m), DC to 18 GHz, 50 Ω
    1091-80-R
    SMA(m) to N(f), DC to 18 GHz, 50 Ω
    1091-81-R
    SMA(f) to N(f), DC to 18 GHz, 50 Ω
    34NK50
    Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
    34NKF50
    Precision Adapter, N(m) to K(m), DC to 18 GHz, 50 Ω
    34NKF50
    Precision Adapter, N(m) to K(f), DC to 18 GHz, 50 Ω
    34NFK50
    Precision Adapter, N(f) to K(m), DC to 18 GHz, 50 Ω
    34NFKF50
    Precision Adapter, N(f) to K(f), DC to 18 GHz, 50 Ω
    K220B
    Precision Adapter, K(m) to K(m), DC to 40 GHz, 50 Ω
    K222B
    Precision Adapter, K(f) to K(f), DC to 40 GHz, 50 Ω
    K224B
    Precision Adapter, K(m) to K(f), DC to 40 GHz, 50 Ω
    33KK50C
    Calibration Grade Adapter, K(m) to K(m), DC to 43.5 GHz, 50 Ω
    33KKF50C
    Calibration Grade Adapter, K(m) to K(f), DC to 43.5 GHz, 50 Ω
    33KFKF50C
    Calibration Grade Adapter, K(f) to K(f), DC to 43.5 GHz, 50 Ω
    34VFK50A
    Precision Adapter, V(f) to K(m), DC to 43.5 GHz, 50 Ω
    34VFKF50A
    Precision Adapter, V(f) to K(f), DC to 43.5 GHz, 50 Ω
    34VK50A
    Precision Adapter, V(m) to K(m), DC to 43.5 GHz, 50 Ω
    34VKF50A
    Precision Adapter, V(m) to K(f), DC to 43.5 GHz, 50 Ω
    Test Port Cables, Flexible, Ruggedized, Phase Stable
    N120-6
    RF Cables, Semi-Rigid, N(m) to N(m), 1 each, 0.01 至 18 GHz, 50 Ω, 15 cm (5.9 in)
    NS120MF-6
    RF Cables, Semi-Rigid, N(f) to N(f), 1 each, 0.01 至 18 GHz, 50 Ω, 15 cm (5.9 in)
    15NNF50-1.0B
    Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(f) to N(m), 50 Ω
    15NNF50-1.5B
    Test Port Cable, Flexible, Phase Stable, 1.5 m (59”), DC to 18 GHz, N(f) to N(m), 50 Ω
    15NN50-1.0B
    Test Port Cable, Flexible, Phase Stable, 1.0 m (39”), DC to 18 GHz, N(m) to N(m), 50 Ω
    15LLF50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, 3.5 mm(m) to 3.5 mm(f), 50 Ω
    15KKF50-1.0A
    Test Port Cable, Armored, Phase Stable, 1.0 m (39”), DC to 20 GHz, K(m) to K(f), 50 Ω
    3671KFS50-60
    Test Port Cable, Flexible, Phase Stable, DC to 26.5 GHz, K(f) to 3.5 mm(m), 63.5 cm, 50 Ω
    3671KFK50-60
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 63.5 cm (25 in), 50 Ω
    3671KFKF50-60
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(f), 63.5 cm (25 in), 50 Ω
    3671KFK50-100
    Test Port Cable, Flexible, Phase Stable, DC to 40 GHz, K(f) to K(m), 1 m (38 in), 50 Ω
    806-206-R
    Flexible Phase Stable Cable, DC to 70 GHz, 24 in (61 cm), V(m) – V(f), 50Ω
    806-209-R
    Flexible Phase Stable Cable, DC to 70 GHz, 36 in (91.5 cm), V(m) – V(f), 50Ω
    806-304-R
    Flexible Phase Stable Cable, DC to 40 GHz, 36 in (91.5 cm), K(m) – K(f), 50Ω
    806-396-R
    Flexible Low Loss Phase Stable Cable, DC to 70 GHz, 36 in (91.5 cm), V(m)-V(f), 50Ω
    Phase-Stable 18 GHz, 40 GHz and 43.5 GHz Semi-Rigid Cables (Armored)
    3670N50-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
    3670N50-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(f), 50 Ω
    3670NN50-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
    3670NN50-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 18 GHz, N(m) to N(m), 50 Ω
    3670K50A-1
    Test Port Cable, Armored, Semi-rigid, 30.48 cm (1 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
    3670K50A-2
    Test Port Cable, Armored, Semi-rigid, 60.96 cm (2 ft), DC to 43.5 GHz, K(m) to K(f), 50 Ω
    Accessories
    Model Number
    Description
    01-200
    Calibrated Torque End Wrench, GPC-7 and Type N
    01-201
    Torque End Wrench, 5/16 in, 0.9 N.m (8 lbf·in) (for tightening male devices, for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
    01-203
    Torque End Wrench, 13/16 in, 0.9 N.m (8 lbf·in) (for tightening ruggedized SMA, 2.4 mm, K and V test port connectors)
    01-204
    End Wrench, 5/16 in, Universal, Circular, Open-ended (for SMA, 3.5 mm, 2.4 mm, K, and V connectors)
    Industries
    Avionics and Aircraft Manufacturing
    Radar and Electronics Peacekeeping
    典型应用

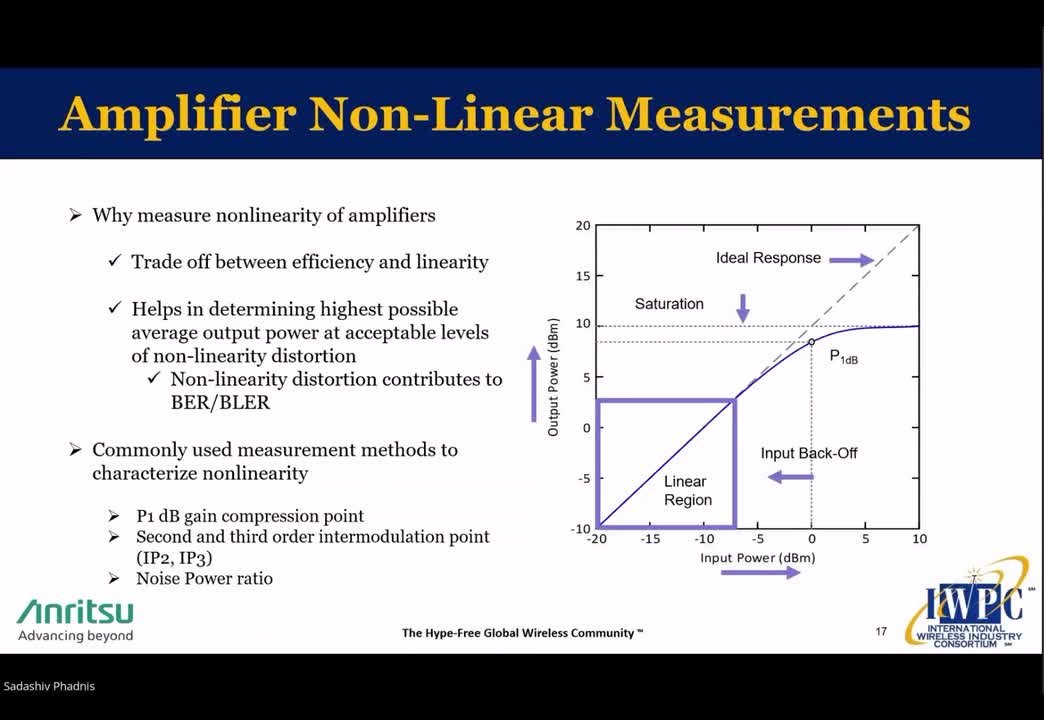

    • 非线性测量：单音失真 P1dB 压缩点、双音互调 IP2/IP3、带内与带外干扰（C/I、阻塞）
    • 器件与系统表征
    • 脉冲调制信号源用于雷达系统测试
    • 纯 CW 源用于收发链路本振替换测试
    型号与选件
    • MG362x1A-0001：Rack Mount with Slides (Cannot be ordered with Option 11)
    • MG362x1A-0002：Mechanical Step Attenuator, 110 dB (MG36221A/MG36241A) Mechanical Step Attenuator, 90 dB (MG36271A)
    • MG362x1A-0003：Low Phase Noise and High Stability (Required for Option 13)
    • MG36221A-0006：Analog Sweep, Frequency
    • MG36241A-0006：Analog Sweep, Frequency
    • MG362x1A-0009：Rear Panel K(m) Connector RF Output (for MG36221A and MG36241A)
    • MG362x1A-0010：User Defined Modulation (Requires Option 12, Option 26, and Option 27 when ordering without Option 15. Requires Option 12, Option 27, and Option 45 when ordering with Option 15.)
    • MG362x1A-0011：Rack Mount without Slides (Shelf Mount)
    • MG362x1A-0012：Amplitude, Frequency and Phase Modulation, Internal/External (Requires Option 27 )
    • MG362x1A-0013：Ultra Low Phase Noise (Requires Option 3)
    • MG362x1A-0015：High Power Output (Cannot be ordered with Option 26 Choose Option 45 when ordering with Option 26)
    • MG362x1A-0016：Analog Power Sweep
    • MG362x1A-0017：Delete Front Panel (Requires Option 1 or 11 Cannot be ordered with Option 29)
    • MG362x1A-0018：On-site User Level Calibration (Requires 2000-2166-R accessory kit and MA243x0A USB Power Sensor, sold separately)
    • MG362x1A-0023：Premium Phase Noise, CW (Requires Options 3 and 13) (Available on model MG36221A only)
    • MG362x1A-0025：Pulse Train Modulation (Always Requires Option 27. Also requires Option 26, or When ordered with Option 15, requires Option 45)
    • MG362x1A-0026：Pulse Modulation, Internal/External ( Always requires Option 27. When ordered with Option 15, choose Option 45 instead of Option 26)
    • MG362x1A-0027：Modulation Hardware (Requires at least one of Option 12 and/or Option 26, or Option 45)
    • MG362x1A-0029：Front Panel Modulation Input/Output Access (Always requires Option 27. Requires either Option 12 and/or Option 26. When ordered with Option 15 requires Option 45 and/or Option 12. Cannot order with Option 17)
    • MG362x1A-0030：600 ohms External AM/FM Input Impedance (Requires Option 12 and 27)
    • MG362x1A-0033：Phase Noise, Export Option (Cannot be ordered with Options 3, 13, 23 or 56 for MG36221A. Cannot be ordered with Options 3, 13, or 56 for MG36241A or MG36271A. )
    • MG362x1A-0037：Removable SDIO Memory
    • MG362x1A-0045：High Power Pulse Modulation ( Requires Option 27, Cannot be Ordered with Option 15 or Option 17)
    • MG362x1A-0056：Ultra Stability Time Base (Requires Option 3 or 13)
    资源下载
    • MG362x1A Rubidium 射频/微波信号发生器 详细指标见 MG362x1A Rubidium 射频/微波信号发生器 详细指标页。
    • 官方资料：Atomic Clock Stability Frequency Source Product Flyer（产品手册）、Rubidium Low Noise RF and Microwave Signal Generator MG362x1A Product Brochure（产品手册）、Rubidium RF/Microwave Signal Generator MG362x1A Quick Fact Sheet（产品手册）、Rubidium RF/Microwave Signal Generator MG362x1A Technical Data Sheet（技术指标）、Rubidium MG362x1A Product Information, Compliance, and Safety（技术指标）、UK Rubidium Signal Generator Declaration of Conformity（技术指标）
    注：以上内容与指标取自安立官网该产品详情页。
    安立 · onetest 仪器资源库





    安立
    MG362x1A Rubidium 射频/微波信号发生器 详细指标
    Rubidium 射频/微波信号发生器，覆盖 9 kHz 至 70 GHz，具备高信号纯度、输出功率与频率稳定度，可选内置铷原子钟参考。
    详细指标
    • 频率范围：9 kHz 至 20/43.5 GHz/70 GHz，最高可工作 至 72 GHz
    • 频率分辨率：0.001 Hz
    • 相位偏移：0.1 度步进可调
    • SSB 相位噪声：-136 dBc/Hz（典型）、-140 dBc/Hz（实测）@ 10 GHz 输出、10 kHz 频偏
    • 内部时基稳定度（老化，选件 3）：< ±2 × 10⁻⁸ /年
    • 内部时基稳定度（老化，选件 56）：< ±1 × 10⁻⁹ /年
    • 参考频率输入/输出：10 MHz、100 MHz、1.6 GHz
    • 输出功率（MG36221A，选件 2）：-130 dBm 至 +20 dBm
    • 输出功率（MG36241A）：-130 dBm 至 +16 dBm
    • 电平精度与平坦度：±1.4 dB（MG36221A/MG36241A）、±2.5 dB（MG36271A）
    • 谐波（20/43.5/70 GHz）：-58 dBc（MG36221A）、-55 dBc（MG36241A 与 MG36271A）
    • 分谐波：-83 dBc（MG36221A 与 MG36241A）、-63 dBc（MG36271A）
    • 非谐波（20/43.5/70 GHz）：-63 dBc
    • 调制方式：AM、FM、PM、脉冲与脉冲串
    • 脉冲调制最小脉宽：<50 ns（未稳幅）
    • 脉冲调制上升/下降时间：5 ns（典型）
    • 低频信号发生器波形：正弦、方波、脉冲、三角、斜坡、高斯/均匀噪声
    • 频率扫描模式：步进、列表、模拟（仅 MG36221A 与 MG36241A）
    • 频率扫描宽度：9 kHz 至 全频段（步进/列表）、100 MHz 至 全频段（模拟）
    • 功率扫描：步进、列表与模拟
    • 功率扫描分辨率：0.01 dB/步
    型号与选件
    • MG362x1A-0001：Rack Mount with Slides (Cannot be ordered with Option 11)
    • MG362x1A-0002：Mechanical Step Attenuator, 110 dB (MG36221A/MG36241A) Mechanical Step Attenuator, 90 dB (MG36271A)
    • MG362x1A-0003：Low Phase Noise and High Stability (Required for Option 13)
    • MG36221A-0006：Analog Sweep, Frequency
    • MG36241A-0006：Analog Sweep, Frequency
    • MG362x1A-0009：Rear Panel K(m) Connector RF Output (for MG36221A and MG36241A)
    • MG362x1A-0010：User Defined Modulation (Requires Option 12, Option 26, and Option 27 when ordering without Option 15. Requires Option 12, Option 27, and Option 45 when ordering with Option 15.)
    • MG362x1A-0011：Rack Mount without Slides (Shelf Mount)
    • MG362x1A-0012：Amplitude, Frequency and Phase Modulation, Internal/External (Requires Option 27 )
    • MG362x1A-0013：Ultra Low Phase Noise (Requires Option 3)
    • MG362x1A-0015：High Power Output (Cannot be ordered with Option 26 Choose Option 45 when ordering with Option 26)
    • MG362x1A-0016：Analog Power Sweep
    • MG362x1A-0017：Delete Front Panel (Requires Option 1 or 11 Cannot be ordered with Option 29)
    • MG362x1A-0018：On-site User Level Calibration (Requires 2000-2166-R accessory kit and MA243x0A USB Power Sensor, sold separately)
    • MG362x1A-0023：Premium Phase Noise, CW (Requires Options 3 and 13) (Available on model MG36221A only)
    • MG362x1A-0025：Pulse Train Modulation (Always Requires Option 27. Also requires Option 26, or When ordered with Option 15, requires Option 45)
    • MG362x1A-0026：Pulse Modulation, Internal/External ( Always requires Option 27. When ordered with Option 15, choose Option 45 instead of Option 26)
    • MG362x1A-0027：Modulation Hardware (Requires at least one of Option 12 and/or Option 26, or Option 45)
    • MG362x1A-0029：Front Panel Modulation Input/Output Access (Always requires Option 27. Requires either Option 12 and/or Option 26. When ordered with Option 15 requires Option 45 and/or Option 12. Cannot order with Option 17)
    • MG362x1A-0030：600 ohms External AM/FM Input Impedance (Requires Option 12 and 27)
    • MG362x1A-0033：Phase Noise, Export Option (Cannot be ordered with Options 3, 13, 23 or 56 for MG36221A. Cannot be ordered with Options 3, 13, or 56 for MG36241A or MG36271A. )
    • MG362x1A-0037：Removable SDIO Memory
    • MG362x1A-0045：High Power Pulse Modulation ( Requires Option 27, Cannot be Ordered with Option 15 or Option 17)
    • MG362x1A-0056：Ultra Stability Time Base (Requires Option 3 or 13)
    • MG362x1A-0066：GNSS Atomic Clock Receiver (Requires option 3 or 13)
    • MG362x1A-0082：K(f) Connector
    • MG36241A-0082：K(f) Connector
    • MG362x1A-0097：Accredited Calibration to ISO17025 and ANSI/NCSL Z540-1, includes calibration certificate, test report, and uncertainty data
    资源下载
    • MG362x1A Rubidium 射频/微波信号发生器 产品介绍见 MG362x1A Rubidium 射频/微波信号发生器 产品介绍页。
    • 官方资料：Atomic Clock Stability Frequency Source Product Flyer（产品手册）、Rubidium Low Noise RF and Microwave Signal Generator MG362x1A Product Brochure（产品手册）、Rubidium RF/Microwave Signal Generator MG362x1A Quick Fact Sheet（产品手册）、Rubidium RF/Microwave Signal Generator MG362x1A Technical Data Sheet（技术指标）、Rubidium MG362x1A Product Information, Compliance, and Safety（技术指标）、UK Rubidium Signal Generator Declaration of Conformity（技术指标）
    注：以上内容与指标取自安立官网该产品详情页。
