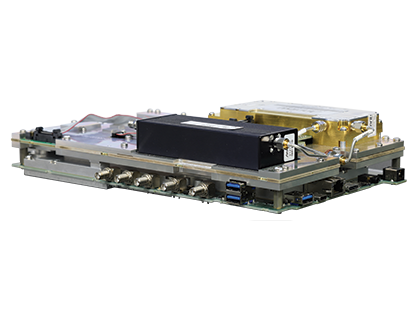

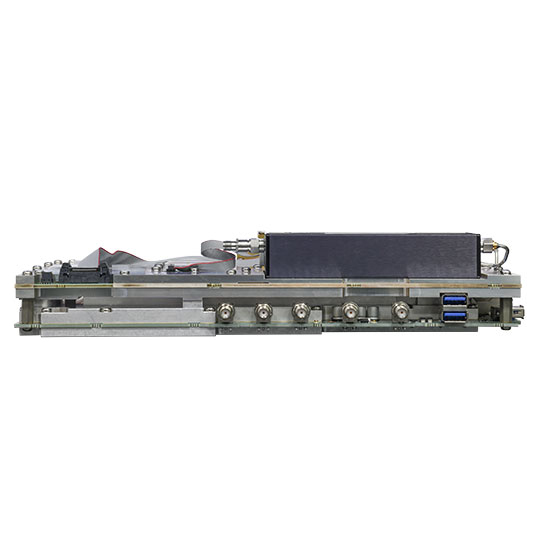

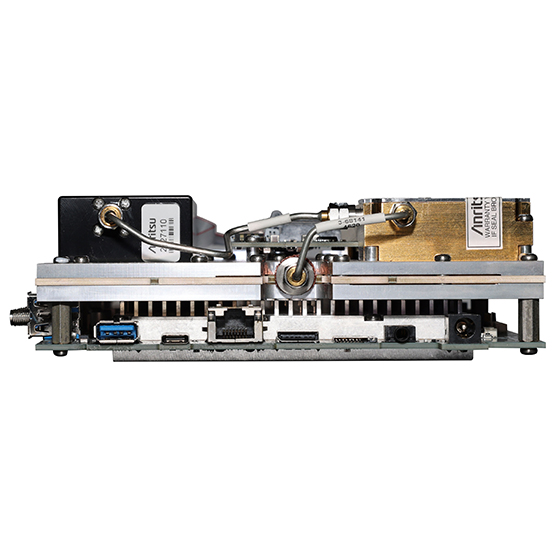

MS27200A 微波频谱监测模块
9 kHz 至 54 GHz 的微波频谱监测模块，外形紧凑便于集成，DANL -164 dBm、TOI +20 dBm、分析带宽 110 MHz。
产品简介
MS27200A 微波频谱监测模块凝聚了安立数十年频谱分析经验，可集成到任意系统，并内置 5G、LTE 等先进分析能力。
其 DANL 达 -164 dBm、三阶截获点典型 +20 dBm，可提供高水平的射频性能；紧凑的外形便于集成到各类平台与系统，无需自行开发频谱分析模块，特别适合 SIGINT、TSCM、干扰查找与无人机探测等应用。
核心特点
• 频率范围 9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
• DANL -164 dBm（开前置放大器）
• TOI +20 dBm（典型）
• 分析带宽 110 MHz
• 幅度范围 DANL 至 +30 dBm
• 1 GHz 处相位噪声 -110 dBc/Hz @ 100 kHz 频偏（典型）
• 解调：5G NR、LTE FDD/TDD、RF 与调制质量，以及 SSB 信号分析
• 分辨率带宽（RBW）1 Hz 至 10 MHz
• 实时频谱分析（RTSA）110 MHz 带宽
• IQ 捕获与流式传输
• AM/FM 调制质量测量
功能与结构
Mobile InterferenceHunter
Anritsu Mobile Interference Hunting System — Quick. Reliable. Multi-Emitter.
Anritsu’s Mobile InterferenceHunter MX280007A is a quick and reliable way to find single or multiple sources of interference. The ability to work with multiple signal sources, reflections, RF shadows, drifting signals, bursty signals, and multi-path distinguish the Mobile InterferenceHunter MX280007A from more expensive solutions targeted at single fixed frequency interference sources.
The Mobile InterferenceHunter’s post-capture analysis capability allows users to modify search parameters without re-driving the route. This allows re-analysis of the captured data as well as consulting with experts.
The Mobile InterferenceHunter works with the broad array of Anritsu’s handheld spectrum analyzers, providing interference hunting and spectrum clearing capability from 9 kHz 至 54 GHz. The Mobile InterferenceHunter is a quick, reliable, and multi-emitter enabled solution to your interference hunting and spectrum clearing needs.
Mobile InterferenceHunter

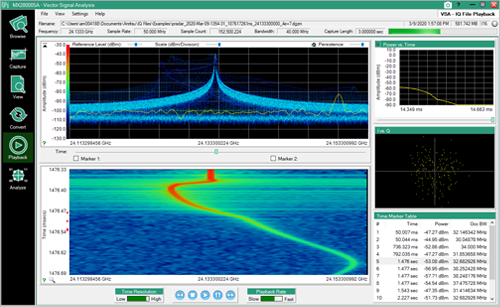

IQ Capture and Analysis
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer
IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Remote Spectrum Analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements and playback IQ data with high frequency and time resolution.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software

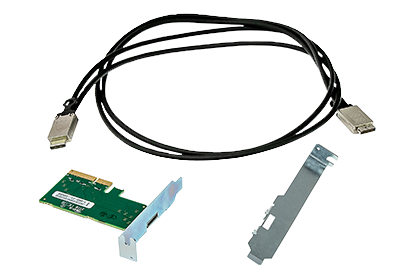

IQ Data can be captured or streamed to a PC via USB, Ethernet, or PCIe interface using the MA25101A IQ Streaming PCIe kit.

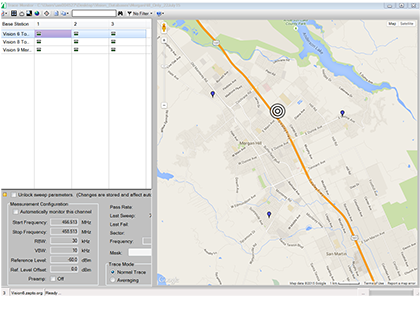

Vision Software
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.
Vision Monitor
Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software
典型应用
• 信号情报（SIGINT）
• 技术反监视（TSCM）
• 干扰查找
• 生产制造环境中的射频监测
型号与选件
• MS27200A-0709：Frequency Range 9 kHz 至 9 GHz
• MS27200A-0714：Frequency Range 9 kHz 至 14 GHz
• MS27200A-0720：Frequency Range 9 kHz 至 20 GHz
• MS27200A-0726：Frequency Range 9 kHz 至 26.5 GHz
• MS27200A-0732：Frequency Range 9 kHz 至 32 GHz
• MS27200A-0743：Frequency Range 9 kHz 至 43.5 GHz
• MS27200A-0754：Frequency Range 9 kHz 至 54 GHz
• MS27200A-0005：Wi-Fi Connectivity
• MS27200A-0006：Remove Wi-Fi and Bluetooth
• MS27200A-0007：Secure Data
• MS27200A-0017：Secure Communication
• MS27200A-0024：Interference Finder
• MS27200A-0027：Channel Scanner
• MS27200A-0031：GNSS Receiver (requires GNSS antenna, sold separately)
• MS27200A-0089：Zero Span IF Output
• MS27200A-0090：Gated Sweep
• MS27200A-0103：55 MHz Analysis Bandwidth
• MS27200A-0104：110 MHz Analysis Bandwidth
• MS27200A-0105：150 MHz Analysis Bandwidth
• MS27200A-0124：IQ Waveform Capture (includes MX280005A IQ Signal Master base feature set)
• MS27200A-0125：IQ Waveform Streaming (includes MX280005A IQ Signal Master base feature set) (Requires Option 124)
• MS27200A-0126：IQ Waveform Capture (includes MX280005A IQ Signal Master base feature set) (Non-Export Controlled)
• MS27200A-0127：IQ Waveform Streaming (includes MX280005A IQ Signal Master base feature set) (Requires Option 126, Non-Export Controlled)
• MS27200A-0128：Enable Vector Signal Analysis (requires Option126)
资源下载
• MS27200A 微波频谱监测模块 详细指标见 MS27200A 微波频谱监测模块 详细指标页。
• 官方资料：Microwave Spectrum Monitor Module Product Brochure（产品手册）、Microwave Spectrum Monitor Module Quick Fact Sheet（产品手册）、Microwave Spectrum Monitor Module Technical Data Sheet（技术指标）、Remote Spectrum Monitors Product Information, Compliance, and Safety（技术指标）、Millimeter Wave Measurement Solutions（产品简介）、Microwave Spectrum Monitor Module User Guide（用户手册）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS27200A 微波频谱监测模块 详细指标
9 kHz 至 54 GHz 的微波频谱监测模块，外形紧凑便于集成，DANL -164 dBm、TOI +20 dBm、分析带宽 110 MHz。
详细指标
以下为该产品公布的关键指标。
• 频率范围 9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
• DANL -164 dBm（开前置放大器）
• TOI +20 dBm（典型）
• 分析带宽 110 MHz
• 幅度范围 DANL 至 +30 dBm
• 1 GHz 处相位噪声 -110 dBc/Hz @ 100 kHz 频偏（典型）
• 解调：5G NR、LTE FDD/TDD、RF 与调制质量，以及 SSB 信号分析
• 分辨率带宽（RBW）1 Hz 至 10 MHz
• 实时频谱分析（RTSA）110 MHz 带宽
型号与选件
• MS27200A-0709：Frequency Range 9 kHz 至 9 GHz
• MS27200A-0714：Frequency Range 9 kHz 至 14 GHz
• MS27200A-0720：Frequency Range 9 kHz 至 20 GHz
• MS27200A-0726：Frequency Range 9 kHz 至 26.5 GHz
• MS27200A-0732：Frequency Range 9 kHz 至 32 GHz
• MS27200A-0743：Frequency Range 9 kHz 至 43.5 GHz
• MS27200A-0754：Frequency Range 9 kHz 至 54 GHz
• MS27200A-0005：Wi-Fi Connectivity
• MS27200A-0006：Remove Wi-Fi and Bluetooth
• MS27200A-0007：Secure Data
• MS27200A-0017：Secure Communication
• MS27200A-0024：Interference Finder
• MS27200A-0027：Channel Scanner
• MS27200A-0031：GNSS Receiver (requires GNSS antenna, sold separately)
• MS27200A-0089：Zero Span IF Output
• MS27200A-0090：Gated Sweep
• MS27200A-0103：55 MHz Analysis Bandwidth
• MS27200A-0104：110 MHz Analysis Bandwidth
• MS27200A-0105：150 MHz Analysis Bandwidth
• MS27200A-0124：IQ Waveform Capture (includes MX280005A IQ Signal Master base feature set)
• MS27200A-0125：IQ Waveform Streaming (includes MX280005A IQ Signal Master base feature set) (Requires Option 124)
• MS27200A-0126：IQ Waveform Capture (includes MX280005A IQ Signal Master base feature set) (Non-Export Controlled)
• MS27200A-0127：IQ Waveform Streaming (includes MX280005A IQ Signal Master base feature set) (Requires Option 126, Non-Export Controlled)
• MS27200A-0128：Enable Vector Signal Analysis (requires Option126)
• MS27200A-0199：Real-Time Spectrum Analysis (RTSA)
• MS27200A-0400：Enable Vision Monitor
• MS27200A-0401：Enable Vision Locate (Option 400 Required)
• MS27200A-0407：Enable Vision High-Speed Port Scanner
资源下载
• MS27200A 微波频谱监测模块 产品介绍见 MS27200A 微波频谱监测模块 产品介绍页。
• 官方资料：Microwave Spectrum Monitor Module Product Brochure（产品手册）、Microwave Spectrum Monitor Module Quick Fact Sheet（产品手册）、Microwave Spectrum Monitor Module Technical Data Sheet（技术指标）、Remote Spectrum Monitors Product Information, Compliance, and Safety（技术指标）、Millimeter Wave Measurement Solutions（产品简介）、Microwave Spectrum Monitor Module User Guide（用户手册）
注：以上内容与指标取自安立官网该产品详情页。
