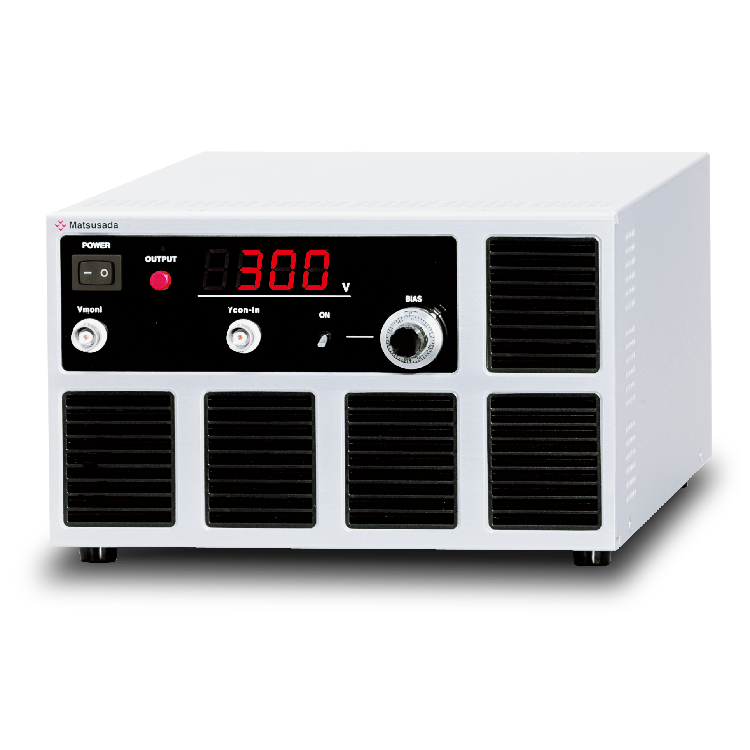

    The PZJR series consists of benchtop high-power piezo drivers designed to drive high-capacitance piezoelectric elements. They are optimized for applications requiring high output current, such as driving multiple elements in paral。
    The PZJE Series consists of benchtop bipolar piezo drivers designed to drive high-capacitance piezoelectric elements requiring high output current. These drivers are optimized for driving multiple elements in parallel and supporti。

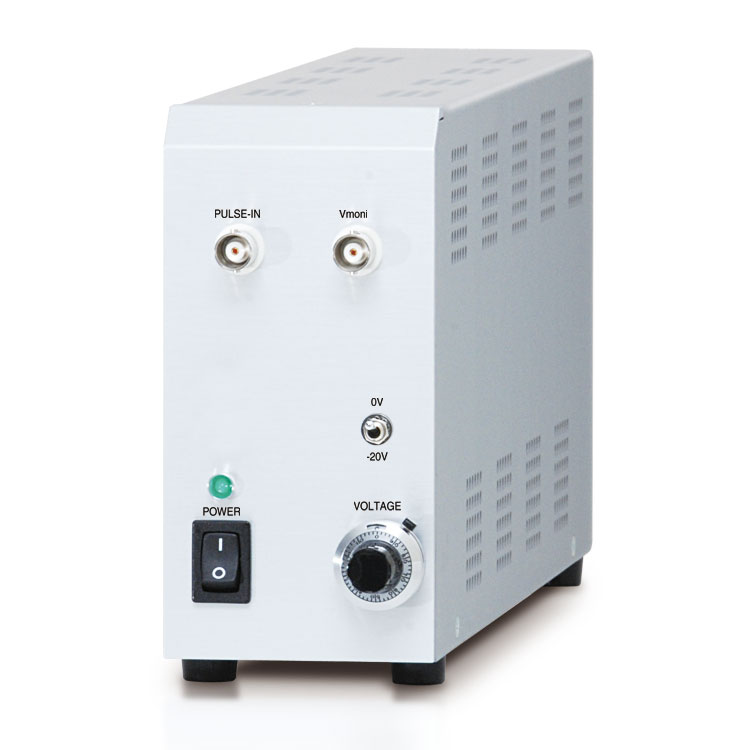

    The PZJD-0.15 series is a high-performance pulse piezo driver designed to drive piezoelectric elements at high speeds. It outputs a driving voltage with a pulse width that corresponds to the input signal, enabling large displaceme。
    • «
    • 1

    PZJ-S 压电驱动器|松田精密 (在产)

    The PZJ-S series is a compact benchtop piezo driver designed for high-precision positioning. Featuring a built-in sensor amplifier, it enables closed-loop control to correct the hysteresis typical of piezoelectric elements. The dr。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录2330个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 放大器

    PZJ-S 压电驱动器

    产品定位

    The PZJ-S series is a compact benchtop piezo driver designed for high-precision positioning. Featuring a built-in sensor amplifier,

    it enables closed-loop control to correct the hysteresis typical of piezoelectric elements. The driver supports high-speed operation with a peak current capacity three times the rated output,

    making it ideal for dynamic stage positioning applications. When combined with our strain gauge sensors,

    it easily enables precise micro-positioning systems.

    核心参数
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3dB]
    – Rise time *2
    ·
    – Rated Imean *1
    – Peak Ip ≤ 10 ms
    – Load resistance
    – 1 µF Load
    – △V = 100 V
    – 0 to Max. voltage
    · PZJ-0.12BS100
    – -20 to +120 V；100 mA；300 mA；DC to 50 kHz；DC to 300 Hz；0.4 ms；0.5 ms；30 Ω
    · PZJ-0.12BS300
    – -20 to +120 V；300 mA；900 mA；DC to 150 kHz；DC to 900 Hz；0.2 ms；0.2 ms；10 Ω
    · PZJ-0.15PS
    – 0 to +150 V；100 mA；300 mA；DC to 50 kHz；DC to 300 Hz；0.4 ms；0.5 ms；30 Ω
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3dB]
    – Rising time *2
    ·
    – Rated Imean *1
    – Peak Ip ≤ 10 ms
    – Load resistance
    – 1 µF Load
    – △V = 100 V
    – 0 to Max. voltage
    · PZJ-0.3PS
    – 0 to +300 V；50 mA；150 mA；DC to 20 kHz；DC to 75 Hz；0.8 ms；2 ms；100 Ω
    功能与特点
    · High-precision closed-loop control: Integrated sensor amplifier allows for accurate displacement control using strain gauges.
    · High-speed response: Capable of supplying peak current up to three times the rated current for fast positioning.
    · Hysteresis correction: Ensures linear movement and high accuracy.
    · Dual modes: Operates in both closed-loop (displacement) and constant-voltage modes.
    · Compact design: Lightweight benchtop unit suitable for space-constrained environments.
    典型应用
    · 信号放大
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 PZJ-S-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 放大器

    PZJ-S 压电驱动器 · 详细指标

    产品简介

    The PZJ-S series is a compact benchtop piezo driver designed for high-precision positioning. Featuring a built-in sensor amplifier,

    it enables closed-loop control to correct the hysteresis typical of piezoelectric elements. The driver supports high-speed operation with a peak current capacity three times the rated output,

    完整技术指标
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3dB]
    – Rise time *2
    ·
    – Rated Imean *1
    – Peak Ip ≤ 10 ms
    – Load resistance
    – 1 µF Load
    – △V = 100 V
    – 0 to Max. voltage
    · PZJ-0.12BS100
    – -20 to +120 V；100 mA；300 mA；DC to 50 kHz；DC to 300 Hz；0.4 ms；0.5 ms；30 Ω
    · PZJ-0.12BS300
    – -20 to +120 V；300 mA；900 mA；DC to 150 kHz；DC to 900 Hz；0.2 ms；0.2 ms；10 Ω
    · PZJ-0.15PS
    – 0 to +150 V；100 mA；300 mA；DC to 50 kHz；DC to 300 Hz；0.4 ms；0.5 ms；30 Ω
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3dB]
    – Rising time *2
    ·
    – Rated Imean *1
    – Peak Ip ≤ 10 ms
    – Load resistance
    – 1 µF Load
    – △V = 100 V
    – 0 to Max. voltage
    · PZJ-0.3PS
    – 0 to +300 V；50 mA；150 mA；DC to 20 kHz；DC to 75 Hz；0.8 ms；2 ms；100 Ω
    ·
    – Standard for 100 V input, 3-pin plug ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Option Only for -L(230 V) option, flying lead
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
