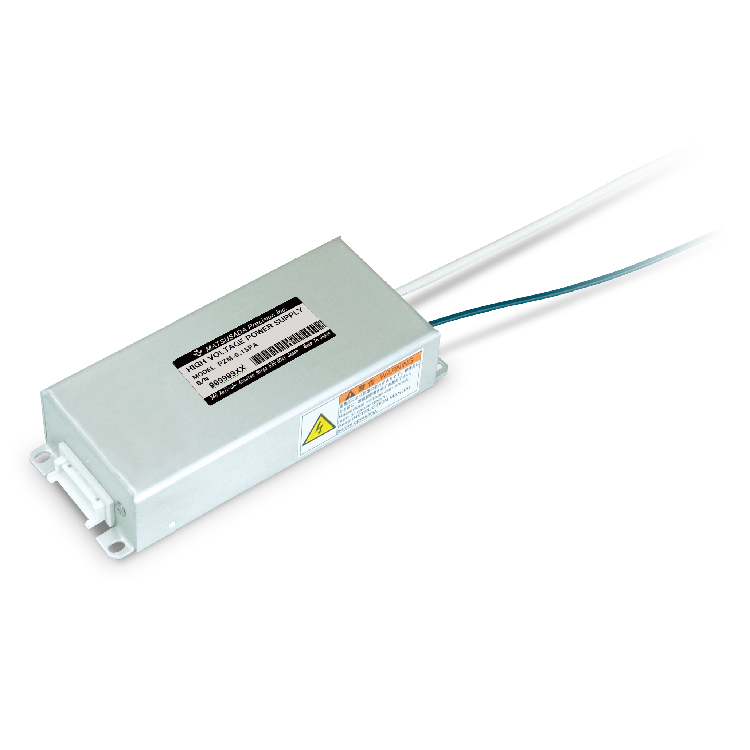

    The PZM Series consists of compact high-voltage power supply modules designed exclusively for driving piezoelectric elements. With output voltage controlled via an external signal, these modules are optimized for precision applica。
    The PZM-A series is a compact piezo driver module designed to drive a wide variety of piezoelectric elements. The lineup includes unipolar (0 to +150 V) and bipolar (-75 V to +75 V) configurations. The series features built-in pro。

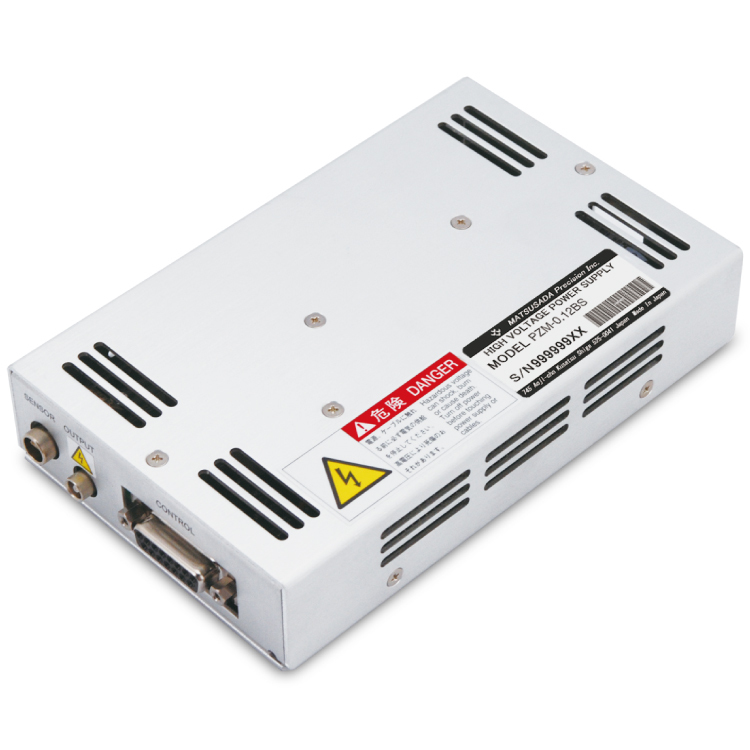

    The PZM-0.12BS series is a compact, embedded piezo driver module featuring a built-in sensor amplifier. It enables linear, high-precision positioning by correcting hysteresis in piezoelectric elements. Despite its compact size, th。
    • «
    • 1

    PZJR 压电驱动器|松田精密 (在产)

    The PZJR series consists of benchtop high-power piezo drivers designed to drive high-capacitance piezoelectric elements. They are optimized for applications requiring high output current, such as driving multiple elements in paral。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录2330个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 放大器

    PZJR 压电驱动器

    Rocker switch
    产品定位

    The PZJR series consists of benchtop high-power piezo drivers designed to drive high-capacitance piezoelectric elements. They are optimized for applications requiring high output current,

    such as driving multiple elements in parallel or performing high-speed sine wave excitation. The series offers a high-speed step response facilitated by high peak current output. It also features a DC bias function,

    allowing for easy setting of the displacement reference point. The PZJR series is suitable for a wide range of applications,

    from R&D requiring stable output to production lines that demand easy operation and high power.

    核心参数
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3 dB]
    – Rising time *2
    ·
    – Rated Imean *1
    – Peak I p≤ 10 ms
    – Load resistance
    – 10 µF load
    – △V = 100 V
    – 0 to Max.voltage
    · PZJR-0.1P12A
    – 0 to +100 V；2.0 A；6.0 A；DC to 75 kHz；DC to 900 Hz；0.16 ms；0.16 ms；0.5 Ω
    · PZJR-0.15P6A
    – 0 to +150 V；1.3 A；3.0 A；DC to 50 kHz；DC to 390 Hz；0.33 ms；0.50 ms；1 Ω
    · PZJR-0.15B6A
    – -30 to +150 V；1.3 A；3.0 A；DC to 35 kHz；DC to 310 Hz；0.33 ms；0.60 ms；1 Ω
    · PZJR-0.3P4A
    – 0 to +300 V；0.67 A；2.0 A；DC to 25 kHz；DC to 100 Hz；0.50 ms；1.50 ms；2 Ω
    Notice of POWER switch changes
    · ：Before ｜After
    · Push button switch：Rocker switch
    功能与特点
    · High-power, broadband piezo drivers
    · High-speed driving of high-capacitance elements (e.g., 10 µF at 900 Hz)
    · Equipped with a DC bias function as standard
    · Comprehensive protection functions for piezoelectric elements
    · Supports closed-loop control using external strain gauge sensors
    典型应用
    · 信号放大
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 PZJR-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 放大器

    PZJR 压电驱动器 · 详细指标

    Rocker switch
    产品简介

    The PZJR series consists of benchtop high-power piezo drivers designed to drive high-capacitance piezoelectric elements. They are optimized for applications requiring high output current,

    such as driving multiple elements in parallel or performing high-speed sine wave excitation. The series offers a high-speed step response facilitated by high peak current output. It also features a DC bias function,

    完整技术指标
    ·
    – Models ｜Output ｜Response speed ｜Output resistance
    ·
    – Voltage [Vdc]
    – Current
    – Sine wave [-3 dB]
    – Rising time *2
    ·
    – Rated Imean *1
    – Peak I p≤ 10 ms
    – Load resistance
    – 10 µF load
    – △V = 100 V
    – 0 to Max.voltage
    · PZJR-0.1P12A
    – 0 to +100 V；2.0 A；6.0 A；DC to 75 kHz；DC to 900 Hz；0.16 ms；0.16 ms；0.5 Ω
    · PZJR-0.15P6A
    – 0 to +150 V；1.3 A；3.0 A；DC to 50 kHz；DC to 390 Hz；0.33 ms；0.50 ms；1 Ω
    · PZJR-0.15B6A
    – -30 to +150 V；1.3 A；3.0 A；DC to 35 kHz；DC to 310 Hz；0.33 ms；0.60 ms；1 Ω
    · PZJR-0.3P4A
    – 0 to +300 V；0.67 A；2.0 A；DC to 25 kHz；DC to 100 Hz；0.50 ms；1.50 ms；2 Ω
    Notice of POWER switch changes
    · ：Before ｜After
    · Push button switch：Rocker switch
    ·
    – Standard for 100 V input, 3-pin plug ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately for 200 V input, flying lead
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · ：Standard ｜CN-BNC-P ｜1.5 meters
