    The PLS H2 rotary laser is designed for the construction job site, offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary。
    The new PLS 6R RBP Kit Red laser levels offer the durability and precision you expect from Pacific Laser Systems. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly. Additionall。
    The PLS 6G RBP point and cross line green laser level kit features the durability and precision you expect from Pacific Laser Systems. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost i。
    • «
    • 1

    PLS 5R 30 m激光标线仪|福禄克 (在产)

    The new PLS 5R red laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settlin。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

    PLS 5R 激光标线仪

    3 x AA Alkaline IEC LR6 · Automatic, Pendulum · 4 ° · ~0.6 kg (1.3 lb.)
    3 x AA Alkaline IEC LR6
    Battery
    Automatic, Pendulum
    Laser Leveling System
    4 °
    Laser Leveling Range
    ~0.6 kg (1.3 lb.)
    Weight
    IEC 60825-1:2014 Class 2
    Laser
    Semiconductor laser diode
    Light Source
    产品定位

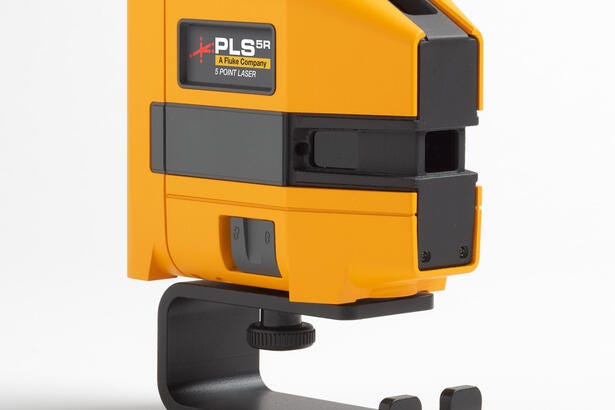

    The new PLS 5R red laser levels offer the durability and precision you expect from PLS,

    a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling,

    self-leveling pendulum gives you accurate point and reference lines almost instantly.

    The PLS 5 is a self-leveling, five-point red laser level (plumb, level,

    and square horizontal and vertical points) equipped for multiple applications.

    核心参数
    技术规格
    · Battery：3 x AA Alkaline IEC LR6
    · Battery Life, Continuous Use Red：≥ 30 hours
    · Battery Life, Continuous Use Green：≥ 9 hours
    · Point Laser Direction：90° up, down, left, right, forward
    · Working Range：≤ 30 m (100 ft.)
    · Accuracy：≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
    · Laser Leveling System：Automatic, Pendulum
    · Laser Leveling Range：4 °
    · Point Laser Diameter：≤ 4 mm at 5 m
    功能与特点
    · Accuracy：≤1/8 in at 30 ft. (≤3 mm @ 10 m)
    · Red laser beam
    · Point laser direction：90° up, down, left, right, forward
    · Durable pendulum lock platform.
    · IP54 rating to limit dust and water entry for years of operation on the job site.
    典型应用
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 5-red-laser-level-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    PLS 5R 激光标线仪 · 详细指标

    3 x AA Alkaline IEC LR6 · Automatic, Pendulum · 4 ° · ~0.6 kg (1.3 lb.)
    产品简介

    The new PLS 5R red laser levels offer the durability and precision you expect from PLS,

    a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling,

    完整技术指标
    技术规格
    · Battery：3 x AA Alkaline IEC LR6
    · Battery Life, Continuous Use Red：≥ 30 hours
    · Battery Life, Continuous Use Green：≥ 9 hours
    · Point Laser Direction：90° up, down, left, right, forward
    · Working Range：≤ 30 m (100 ft.)
    · Accuracy：≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
    · Laser Leveling System：Automatic, Pendulum
    · Laser Leveling Range：4 °
    · Point Laser Diameter：≤ 4 mm at 5 m
    · Temperature Operating：-10 °C to 50 °C (14 °F to 122 °F)
    · Temperature Storage：15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
    · Temperature With Batteries：-18 °C to 50 °C (-0.4 °F to 122 °F)
    · Temperature Without Batteries：-20 °C to 70 °C (-13 °F to 158 °F)
    · Relative Humidity：0 % to 90 % (0 °C to 35 °C)
    · Relative Humidity：0 % to 75 % (35 °C to 40 °C)
    · Relative Humidity：0 % to 45 % (40 °C to 50 °C)
    · Size (H x W X L)
    – 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
    · Weight：~0.6 kg (1.3 lb.)
    · Safety：IEC 61010-1: Pollution Degree 2
    · Laser：IEC 60825-1:2014 Class 2
    · Light Source：Semiconductor laser diode
    · Max Output Power：< 1 mW
    · Wavelength Red：635 nm ± 5 nm
    · Wavelength Green：525 nm ± 5 nm
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
