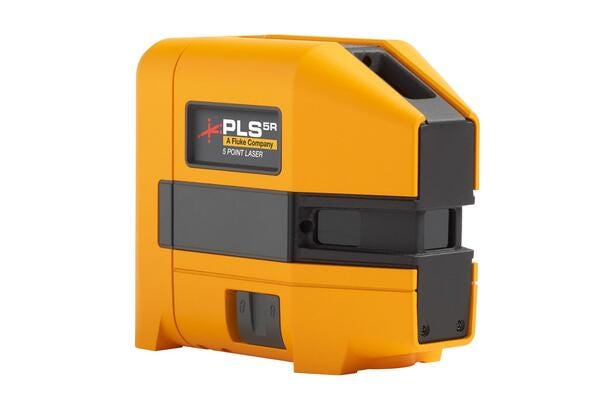

    The new PLS 5R red laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settlin。
    • «
    • 1

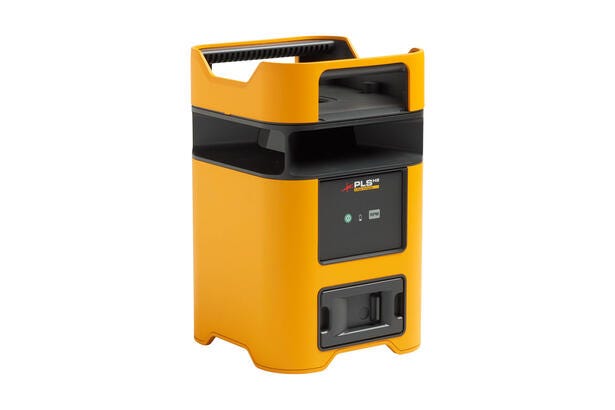

    PLS H2 2.2 mm @ 30 m旋转激光水平仪|福禄克 (在产)

    The PLS H2 rotary laser is designed for the construction job site, offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary。
    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

    PLS H2 旋转激光水平仪

    Class II red · Horizontal only · ± 5-degrees · ± 5-degrees · 2.89 kg (6.4 lb)
    Class II red
    Laser
    Horizontal only
    Laser axis
    ± 5-degrees
    Auto-leveling range
    ± 5-degrees
    Manual slope range
    2.89 kg (6.4 lb)
    Weight
    1 m
    Drop test
    产品定位

    The PLS H2 rotary laser is designed for the construction job site,

    offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary laser is ideal for use by general contractors,

    electricians, plumbers, and landscapers in both interior and exterior applications.

    These professional-grade tools offer the accuracy and durability you can expect from PLS, a Fluke Company.

    核心参数
    技术规格
    · Laser：Class II red
    · Laser axis：Horizontal only
    · Accuracy：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Auto-leveling range：± 5-degrees
    · Manual slope range：± 5-degrees
    · Working range Without XLD laser detector：≤ 30 m (100 ft)
    · Working range With XLD laser detector：≤ 300 m (1000 ft)
    · Weight：2.89 kg (6.4 lb)
    · Drop test：1 m
    功能与特点
    · Accuracy：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Working range：≤ 30 m (100 ft)
    · Working range with XLD：≤ 300 m (1000 ft)
    · 1-meter drop tested
    · IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
    典型应用
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 h2-rotary-laser-level-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    PLS H2 旋转激光水平仪 · 详细指标

    Class II red · Horizontal only · ± 5-degrees · ± 5-degrees · 2.89 kg (6.4 lb)
    产品简介

    The PLS H2 rotary laser is designed for the construction job site,

    offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary laser is ideal for use by general contractors,

    完整技术指标
    技术规格
    · Laser：Class II red
    · Laser axis：Horizontal only
    · Accuracy：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Auto-leveling range：± 5-degrees
    · Manual slope range：± 5-degrees
    · Working range Without XLD laser detector：≤ 30 m (100 ft)
    · Working range With XLD laser detector：≤ 300 m (1000 ft)
    · Weight：2.89 kg (6.4 lb)
    · Drop test：1 m
    · IP rating：IP67
    · Operating temperature：-20 °C to 50 °C (-4 °F to 122 °F)
    · Battery：4 x D Alkaline or NiMH rechargeable
    · Battery life：> 60 hours
    · Working range：300m (1000 ft)
    · Dimensions：135 mm x 69 mm x 25 mm
    · Weight：0.19 kg (0.42 lbs)
    · Drop test：1 m
    · IP rating：IP67
    · Operating temperature：-20 °C to 50 °C (-4 °F to 122 °F)
    · Battery：1 x AA Alkaline
    · Battery life：> 50 hours
    · Visible spectrum：450 nm – 800 nm
    · Accuracy Fine：1 mm (0.05 in)
    · Accuracy Medium：2 mm (0.1 in)
    · Accuracy Coarse：5 mm (0.2 in)
    Electromagnetic Compatibility (EMC)
    · International
    – Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
    · International
    – Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
    · International
    – Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
    · Korea (KCC)
    – Class B Equipment (Broadcast communications equipment for home)
    · USA (FCC)
    – 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
