    Fluke Corporation · 钳形表

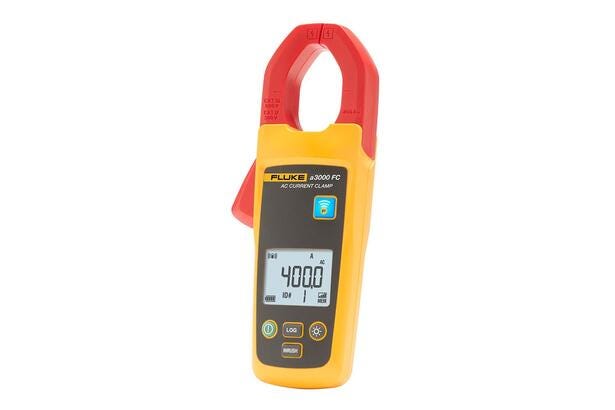

    a3000 FC 无线电流钳模块

    0.5 A to 400.0 A · 0.1 A · 999.9A · 3½ digits · 2 AA, NEDA 15 A, IEC LR6
    0.5 A to 400.0 A
    Range
    0.1 A
    Resolution
    999.9A
    Inrush Max displayed reading
    3½ digits
    LCD w/backlight
    2 AA, NEDA 15 A, IEC LR6
    Battery type
    400 hours
    Battery life
    产品定位

    All the facts,

    right in the field. The Fluke a3000 FC Wireless AC Current Clamp Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect app with ShareLive video call.

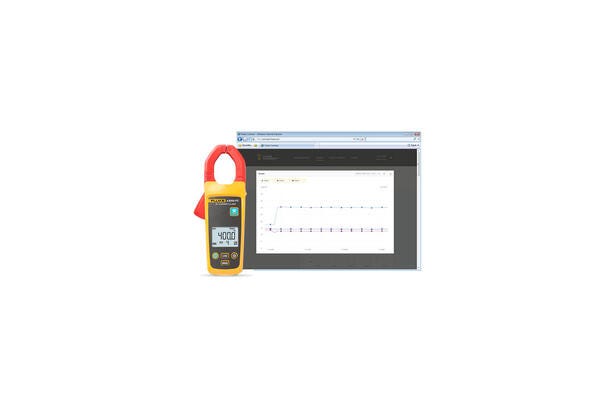

    Fluke Connect Wireless Test Tools put tools, not your body,

    near live electrical panels. It's simple. Connect the a3000 FC current clamp module,

    or any of the other Fluke Connect remote modules,

    and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.

    核心参数
    技术规格
    · Range：0.5 A to 400.0 A
    · Resolution：0.1 A
    · Accuracy
    – 400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz)
    · Inrush Max displayed reading：999.9A
    · Crest factor (50 Hz/60 Hz)
    – 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2 % for C.F. > 2
    · LCD w/backlight：3½ digits
    · Log rate/interval：1 sec minimum/adjustable by PC
    · Battery type：2 AA, NEDA 15 A, IEC LR6
    · Battery life：400 hours
    功能与特点
    · Fluke 3000 FC DMM
    · Fluke Ti200/300/400 Infrared Camera
    · PC via optional pc3000 FC Adapter
    · Fluke Connect Mobile app
    · True-RMS AC clamp meter
    · Measure up to 400 A AC
    · Use as a standalone meter or as part of the system
    · Logging function for recording and saving up to 65,000 readings
    典型应用
    · 电流测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-a3000-fc-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 钳形表

    a3000 FC 无线电流钳模块 · 详细指标

    0.5 A to 400.0 A · 0.1 A · 999.9A · 3½ digits · 2 AA, NEDA 15 A, IEC LR6
    产品简介

    All the facts,

    right in the field. The Fluke a3000 FC Wireless AC Current Clamp Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect app with ShareLive video call.

    完整技术指标
    技术规格
    · Range：0.5 A to 400.0 A
    · Resolution：0.1 A
    · Accuracy
    – 400.0 A: 2% ± 5 digits (10 Hz to 100 Hz), 2.5% ± 5 digits (100 Hz to 500 Hz)
    · Inrush Max displayed reading：999.9A
    · Crest factor (50 Hz/60 Hz)
    – 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2 % for C.F. > 2
    · LCD w/backlight：3½ digits
    · Log rate/interval：1 sec minimum/adjustable by PC
    · Battery type：2 AA, NEDA 15 A, IEC LR6
    · Battery life：400 hours
    · Memory：Record up to 65, 000 readings
    · RF communications：2.4 GHZ ISM Band
    · RF communication range Open air, unobstructed：Up to 20 m
    · RF communication range Obstructed, sheetrock wall：Up to 6.5 m
    · RF communication range
    – Obstructed, concrete wall or steel electrical enclosure；Up to 3.5 m
    · Operating temperature：-10°C to +50°C
    · Storage temperature：-40°C to +60°C
    · Temperature coefficient
    – Add 0.1 x (specified accuracy) / °C ( < 18°C or > 28°C)
    · Operating humidity：90% at 35°C 75% at 40°C 45% at 50°C
    · Altitude Operating：2, 000 m
    · Altitude Storage：12, 000 m
    · EMC：EN 61326-1:2006
    · Safety compliance
    – IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
    · Safety rating：CAT III 600 V
    · Certifications：CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
    · Ingress Protection (IP) rating：IP30
    · Pollution Degree：2
    · Jaw opening：34 mm (1.33 in)
    · Size (HxWxD)
    – 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
    · Weight：.22 kg (8 oz)
    · Warranty：Three years
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
