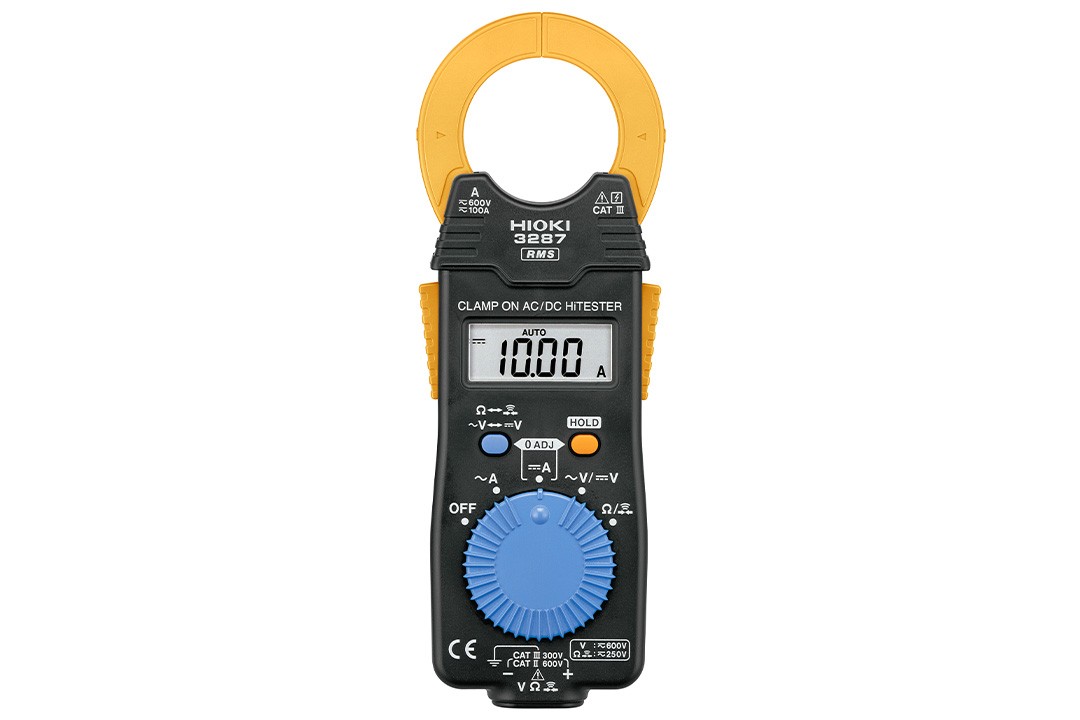

    3287 交/直流钳型表。小巧& 便携, 可单手操作的 AC/DC钳型表。3287 True RMS（真有效值）。使用10A档量程可以测量小电流。虽然是小型钳型表，但配备了电压, 电阻, 导通检查功能。CAT III 600 V(Current)。
    钳式漏电流测试仪 CL360属于钳形表类别。漏电流测量,量程为200mA~1000A
    钳式漏电流测试仪 CL345属于钳形表类别。漏电流测量,量程为40mA~400A
    1 2

    同厂商产品

    All the facts, right in the field. The Fluke a3002 FC Wireless AC/DC Current Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect app with ShareLive video call. Fluke Connect。

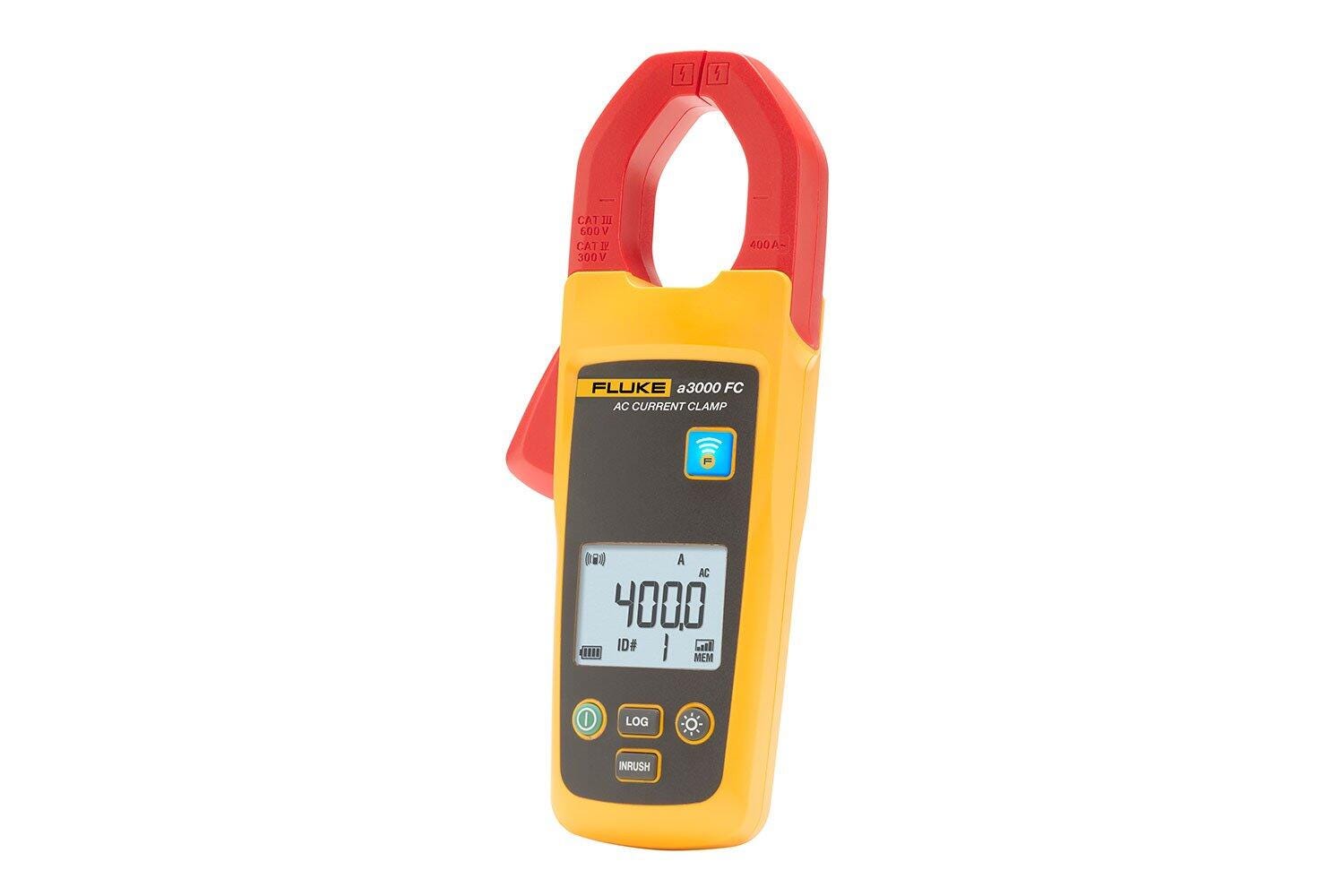

    All the facts, right in the field. The Fluke a3000 FC Wireless AC Current Clamp Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect app with ShareLive video call. Fluke Conn。

    a3001 FC Up to 20 m无线电流钳模块|福禄克 (在产)

    The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect mobile app. The a3001 puts the tool, not your body, near live electrical pan。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 钳形表

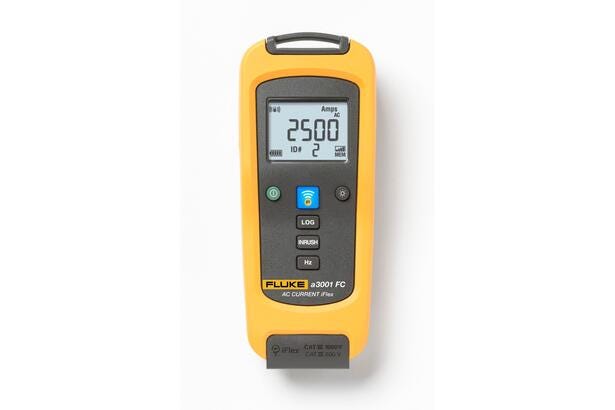

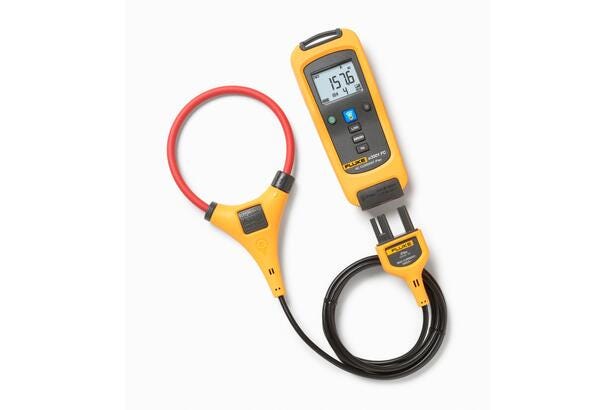

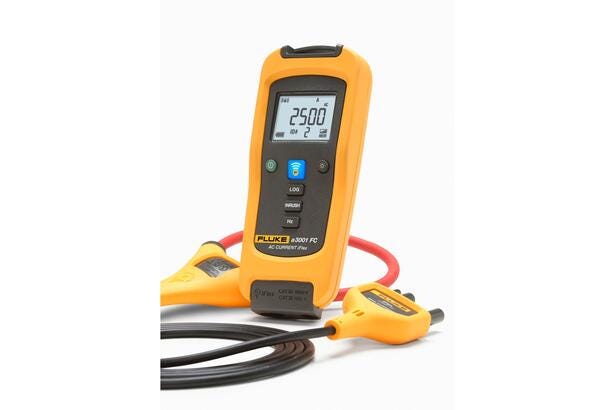

    a3001 FC 无线电流钳模块

    0.5 A to 2500 A AC · 0.1 A · 3½ digits · 2 AA, NEDA 15 A, IEC LR6 · 400 hours
    0.5 A to 2500 A AC
    Range
    0.1 A
    Resolution
    3½ digits
    LCD w/backlight
    2 AA, NEDA 15 A, IEC LR6
    Battery type
    400 hours
    Battery life
    2.4 GHZ ISM Band
    RF communications
    产品定位

    The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect mobile app.

    The a3001 puts the tool, not your body,

    near live electrical panels. Connect the a3001 FC current module and read the results on your smartphone from a safe distance. You can save and share measurements from the field with your team anytime,

    from anywhere.

    核心参数
    技术规格
    · Range：0.5 A to 2500 A AC
    · Resolution：0.1 A
    · Accuracy：3% ± 5 digits (5 Hz to 500 Hz)
    · Crest factor (50 Hz/60 Hz)
    – 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
    · LCD w/backlight：3½ digits
    · Log rate/interval：1 sec minimum/adjustable by PC or front panel
    · Battery type：2 AA, NEDA 15 A, IEC LR6
    · Battery life：400 hours
    · Memory：Record up to 65, 000 readings
    功能与特点
    · Measure and record up to 65,000 readings wirelessly
    · Easier wire access around large conductors in tight spaces

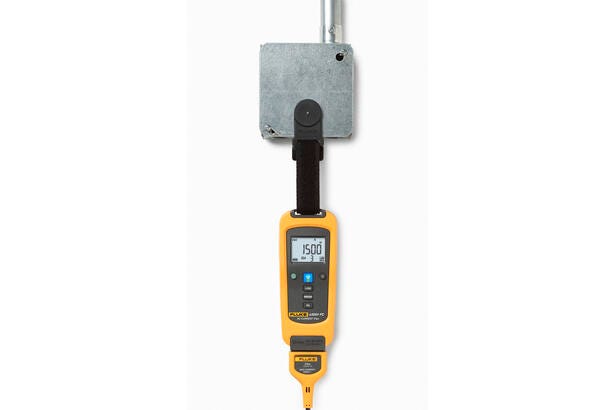

    · Inrush function; magnetic hanging strap
    典型应用
    · 电流测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-a3001-fc-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 钳形表

    a3001 FC 无线电流钳模块 · 详细指标

    0.5 A to 2500 A AC · 0.1 A · 3½ digits · 2 AA, NEDA 15 A, IEC LR6 · 400 hours
    产品简介

    The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect mobile app.

    完整技术指标
    技术规格
    · Range：0.5 A to 2500 A AC
    · Resolution：0.1 A
    · Accuracy：3% ± 5 digits (5 Hz to 500 Hz)
    · Crest factor (50 Hz/60 Hz)
    – 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
    · LCD w/backlight：3½ digits
    · Log rate/interval：1 sec minimum/adjustable by PC or front panel
    · Battery type：2 AA, NEDA 15 A, IEC LR6
    · Battery life：400 hours
    · Memory：Record up to 65, 000 readings
    · RF communications：2.4 GHZ ISM Band
    · RF communication range Open air, unobstructed：Up to 20 m
    · RF communication range Obstructed, sheetrock wall：Up to 6.5 m
    · RF communication range
    – Obstructed, concrete wall or steel electrical enclosure；Up to 3.5 m
    · Operating temperature：-10°C to +50°C
    · Storage temperature：-40°C to +60°C
    · Temperature coefficient
    – Add 0.1 X (specified accuracy) / °C ( < 18°C or > 28°C)
    · Operating humidity：90% at 35°C 75% at 40°C 45% at 50°C
    · Altitude Operating：2, 000 m
    · Altitude Storage：12, 000 m
    · EMC：EN 61326-1:2006
    · Safety compliance
    – IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
    · Safety rating：CAT IV 600 V, CAT III 1000 V
    · Certifications：CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
    · Ingress Protection (IP) rating：IP42
    · Pollution Degree：2
    · Jaw opening：25.4 cm (10 in) coil
    · Size (HxWxD)
    – 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in)
    · Weight：.22 kg (8 oz)
    · Warranty：Three years
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
