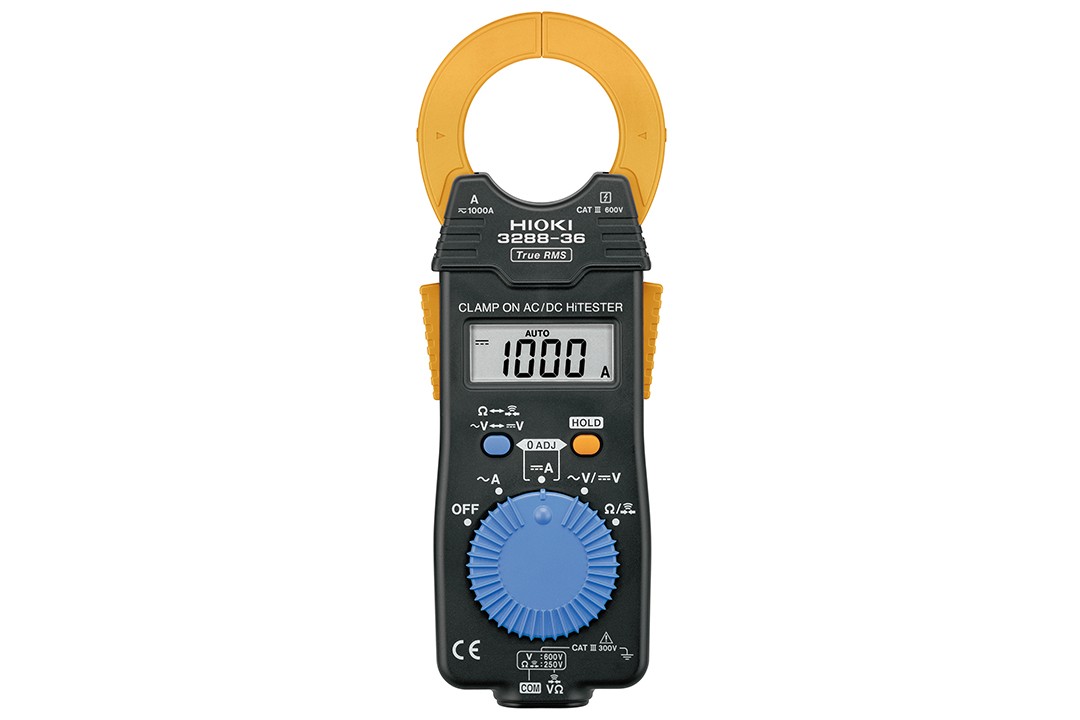

    3288-36 真有效值的交/直流钳形表。安全等级电压 ：CAT III 300 V，电流：CAT III 600V。
    钳式漏电流测试仪 CL360属于钳形表类别。漏电流测量,量程为200mA~1000A
    钳式漏电流测试仪 CL345属于钳形表类别。漏电流测量,量程为40mA~400A
    1 2

    同厂商产品

    The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely co。
    All the facts, right in the field. The Fluke a3003 FC Wireless 2000 A DC Current Clamp Meter is one member of a growing family of Fluke wireless test tools that let you record and log data over time, and share test data using the 。
    The Fluke a3000 FC Wireless AC Current Clamp Kit is part of the Fluke Connect team of wireless test tools Connect the a3000 FC Wireless AC Current Clamp Module to your test point, and view the results up to 20 meters away on the 3。
    • «
    • 1

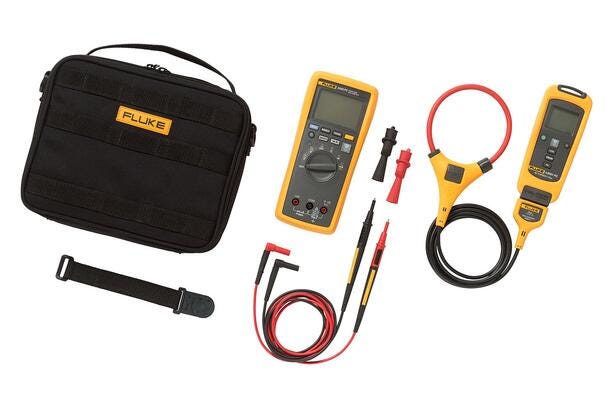

    a3001 FC Up to 20 m真有效值柔性钳形表|福禄克 (在产)

    Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is part of the Fluke Connect team of wireless test tools Connect the a3001 FC Wireless AC Current Module and flexible current probe to your test point, and view the results up to 。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 钳形表

    a3001 FC 真有效值柔性钳形表

    45 Hz to 500 Hz；1.0% + 3 · 500 Hz to 1 kHz；2.0% + 3 · 600.0 mV / 0.1 mV
    45 Hz to 500 Hz；1.0% + 3
    Accuracy 2 3 4
    500 Hz to 1 kHz；2.0% + 3
    Accuracy 2 3 4
    600.0 mV / 0.1 mV
    mV Range / resolution
    0.09% + 2
    mV Accuracy
    0.09% + 2 0.15% + 2
    V Accuracy
    600 Ω / 1 Ω
    ))) Range / resolution
    产品定位

    Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is part of the Fluke Connect team of wireless test tools

    Connect the a3001 FC Wireless AC Current Module and flexible current probe to your test point,

    and view the results up to 20 meters away on the 3000 FC Wireless Digital Multimeter.

    核心参数
    AC Voltage
    · Range¹ / resolution
    – 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
    · Accuracy 2 3 4：45 Hz to 500 Hz；1.0% + 3
    · Accuracy 2 3 4：500 Hz to 1 kHz；2.0% + 3
    DC Voltage, Continuity, Resistance, Diode Test and Capacitance
    · mV Range / resolution：600.0 mV / 0.1 mV
    · mV Accuracy：0.09% + 2
    · V Range / resolution
    – 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
    · V Accuracy：0.09% + 2 0.15% + 2
    · ))) Range / resolution：600 Ω / 1 Ω
    功能与特点
    · AC and DC voltage measurements to 1000V
    · AC and DC current with 0.01 mA resolution
    · Continuity, resistance, diode test, capacitance and frequency measurements
    · MIN/MAX recording
    · CAT III 1000 V, Cat IV 600 V; IP54
    · Measure up to 2500 A AC
    · Use as a standalone meter or as part of the system
    · Logging function for recording and saving up to 65,000 readings
    典型应用
    · 电流测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-a3001-fc-kit-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 钳形表

    a3001 FC 真有效值柔性钳形表 · 详细指标

    45 Hz to 500 Hz；1.0% + 3 · 500 Hz to 1 kHz；2.0% + 3 · 600.0 mV / 0.1 mV
    产品简介

    Fluke a3001 FC Wireless iFlex AC Current Clamp Kit is part of the Fluke Connect team of wireless test tools

    完整技术指标
    AC Voltage
    · Range¹ / resolution
    – 600.0 mV / 0.1 mV 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
    · Accuracy 2 3 4：45 Hz to 500 Hz；1.0% + 3
    · Accuracy 2 3 4：500 Hz to 1 kHz；2.0% + 3
    DC Voltage, Continuity, Resistance, Diode Test and Capacitance
    · mV Range / resolution：600.0 mV / 0.1 mV
    · mV Accuracy：0.09% + 2
    · V Range / resolution
    – 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V
    · V Accuracy：0.09% + 2 0.15% + 2
    · ))) Range / resolution：600 Ω / 1 Ω
    · ))) Accuracy
    – Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
    · Ω Range / resolution
    – 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 60.00 kΩ / 0.1 kΩ 600.0 kΩ / 0.001 MΩ 50.00 MΩ / 0.01 MΩ
    · Ω Accuracy：0.5% + 2 0.5% + 1 1.5% + 3
    · Diode test Range / resolution：2.000 V / 0.001 V
    · Diode test Accuracy：1% + 2
    · µF Range / resolution
    – 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF 1 / 1 μF
    · µF Accuracy：1.2% + 2 10% typical
    AC and DC Current
    · mA AC (45 Hz to 1 kHz) Range 1 / resolution：60.00 mA / 0.01 mA 400.0 mA 3 / 0.1 mA
    · mA AC (45 Hz to 1 kHz) Accuracy：1.5% + 3
    · mA DC 2 Range 1 / resolution：60.00 mA / 0.01 mA 400.0 mA 3 / 0.1 mA
    · mA DC 2 Accuracy：0.5% + 3
    Frequency
    · Range / resolution
    – 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 kHz 99.99 kHz / 0.01 kHz
    · Accuracy 1：0.1% + 1
    Input Characteristics
    · Overload protection：1100 Vrms
    · Input impedance (nominal)：> 10 MΩ < 100 pF
    ·
    – Common mode rejection ratio (1 kΩ unbalance)；> 120 dB at DC, 50 Hz or 60 Hz
    · Normal mode rejection：> 60 dB at 50 Hz or 60 Hz
    · Overload protection：1100 Vrms
    · Input impedance (nominal)：> 10 MΩ < 100 pF
    ·
    – Common mode rejection ratio (1 kΩ unbalance)；> 60 dB, DC to 60 Hz
    · Normal mode rejection：> 60 dB at 50 Hz or 60 Hz
    · Overload protection：1100 Vrms
    · Input impedance (nominal)：> 10 MΩ < 100 pF
    ·
    – Common mode rejection ratio (1 kΩ unbalance)；> 120 dB at DC, 50 Hz or 60 Hz
    · Normal mode rejection：> 60 dB at 50 Hz or 60 Hz
    Open Circuit Test Voltage
    · Overload protection：1100 Vrms
    · Input impedance (nominal)：< 2.7 VDC
    ·
    – Full scale voltage to 6 MΩ Full scale voltage 50 MΩ；< 0.7 VDC < 0.9 VDC
    · Typical short circuit current：< 350 mA
    · Overload protection：1100 Vrms
    · Input impedance (nominal)：< 2.7 VDC
    ·
    – Full scale voltage to 6 MΩ Full scale voltage 50 MΩ；2.000 VDC
    · Typical short circuit current：< 1.1 mA
    mA Function
    · Overload protection：Fused, 44/100 A, 1000 V FAST Fuse
    · Overload
    – 600 mA overload for 2 minutes maximum, 10 minutes rest minimum
    MIN/MAX Recording Accuracy
    · DC functions：±12 counts for changes > 350 mS in duration.
    · AC functions：±40 counts for changes > 900 mS in duration.
    一般规格
    · Maximum voltage between any terminal and earth ground：1000 VDC or AC rms
    · Ω fuse protection from A inputs
    – 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
    · Display (LCD) Update rate：4/sec
    · Display (LCD) Volts, amps, ohms：6000 counts
    · Display (LCD) Frequency：10, 000 counts
    · Capacitance：1, 000 counts
    · Battery type：Three AA Alkaline batteries, NEDA 15A IEC LR6
    · Battery life：250 hours minimum
    · RF communications：2.4 GHZ ISM Band
    · RF communication range Open air, unobstructed：Up to 20 m
    · RF communication range Obstructed, sheetrock wall：Up to 6.5 m
    · Obstructed, concrete wall, or steel electrical enclosure：Up to 3.5 m
    · Temperature Operating：-10°C to 50°C
    · Temperature Storage：-40°C to 60°C
    · Temperature coefficient
    – 0.1 x (specified accuracy) / °C ( < 18°C or > 28°C)
    · Relative humidity
    – 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C)
    · Altitude Operating：2, 000 m
    · Altitude Storage：12, 000 m
    · Electromagnetic compatibility EMI, RFI, EMC, RF
    – EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
    · Safety compliance
    – ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010
    · Certifications：CSA, FCC, CE
    · Ingress Protection (IP) rating：IP54
    · Pollution Degree：2
    · Size (H x W x L)：4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in)
    · Weight：340 g (12 oz)
    · Warranty：Three years
    技术规格
    · Range：0.5 A to 2500 A AC
    · Resolution：0.1 A
    · Accuracy：3% ±5 digits (5 Hz to 500 Hz)
    · Crest factor (50 Hz / 60 Hz)
    – 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2
    · LCD w/ backlight：3½ digits
    · Log rate/interval：1 sec minimum/adjustable by PC or front panel
    · Battery type：2 AA, NEDA 15 A, IEC LR6
    · Battery life：400 hours
    · Memory：Record up to 65, 000 readings
    · RF communications：2.4 GHZ ISM Band
    · RF communication range Open air, unobstructed：Up to 20 m
    · RF communication range Obstructed, sheetrock wall：Up to 6.5 m
    · RF communication range
    – Obstructed, concrete wall or steel electrical enclosure；Up to 3.5 m
    · Operating temperature：-10°C to +50°C
    · Storage temperature：-40°C to +60°C
    · Temperature coefficient
    – Add 0.1 x (specified accuracy) / °C ( < 18°C or > 28°C)
    · Operating humidity：90% at 35°C 75% at 40°C 45% at 50°C
    · Altitude Operating：2, 000 m
    · Altitude Storage：12, 000 m
