    The PLS HV2R red beam rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2R emits a laser line in the horizontal or vertical plane. The HV2R rotary lasers al。
    The PLS H2 rotary laser is designed for the construction job site, offering a rugged ergonomic design and simplified controls. The H2 model is a horizontal only rotary laser that offers a simple one button operation. The H2 rotary。
    The new PLS 6R RBP Kit Red laser levels offer the durability and precision you expect from Pacific Laser Systems. The fast settling, self-leveling pendulum gives you accurate point and reference lines almost instantly. Additionall。
    • «
    • 1

    PLS HV2G 300m旋转激光水平仪|福禄克 (在产)

    The PLS HV2G green beam rotary lasers are designed for the construction job site, offering a rugged ergonomic design and simplified controls. The HV2G emits a laser line in the horizontal or vertical plane. The HV2G rotary lasers 。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

    PLS HV2G 旋转激光水平仪

    PLS HV2R：1 m；PLS HV2G：1 m · 300m (1000 ft) · 135 mm x 69 mm x 25 mm
    PLS HV2R：1 m；PLS HV2G：1 m
    Drop test
    300m (1000 ft)
    Working range
    135 mm x 69 mm x 25 mm
    Dimensions
    0.19 kg (0.42 lbs)
    Weight
    1 m
    Drop test
    IP67
    IP rating
    产品定位

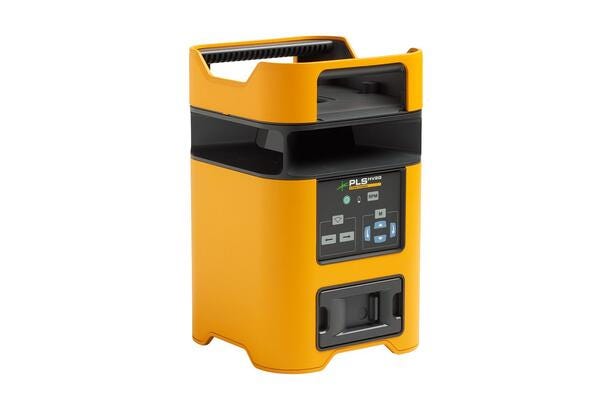

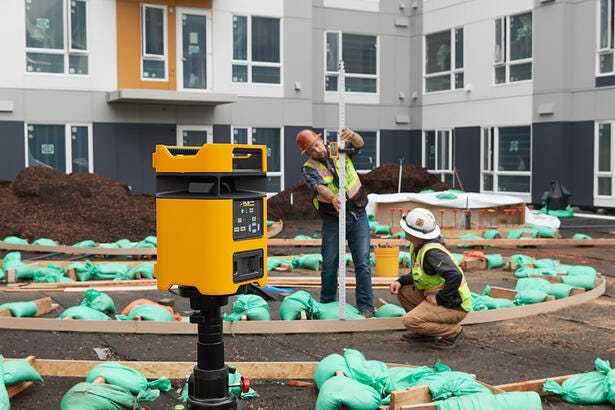

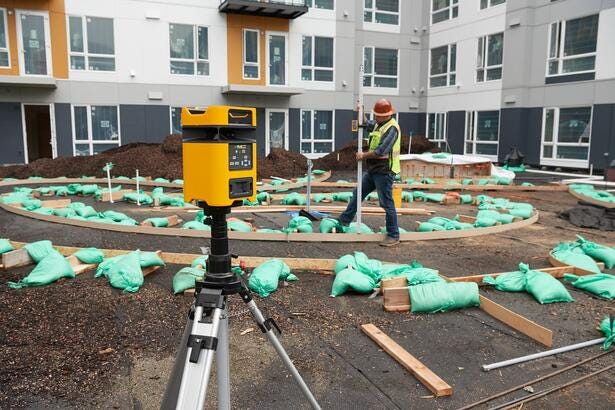

    The PLS HV2G green beam rotary lasers are designed for the construction job site,

    offering a rugged ergonomic design and simplified controls. The HV2G emits a laser line in the horizontal or vertical plane. The HV2G rotary lasers also emit a point from the top when placed in the vertical position. The HV2G lasers are ideal for use by general contractors,

    electricians, plumbers, and landscapers in both interior and exterior applications.

    These professional-grade tools offer the accuracy and durability you can expect from PLS, a Fluke Company.

    核心参数
    技术规格
    · Accessories：PLS XLD Rotary Laser Detector
    Electromagnetic compatibility (EMC)
    · Laser
    – PLS HV2R：Class II red
    – PLS HV2G：Class II green
    · Laser axis
    – PLS HV2R：Horizontal and Vertical
    – PLS HV2G：Horizontal and vertical
    · Accuracy
    – PLS HV2R：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    – PLS HV2G：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Auto-leveling range
    – PLS HV2R：± 5-degrees
    – PLS HV2G：± 5-degrees
    · Manual slope range
    – PLS HV2R：± 5-degrees
    – PLS HV2G：± 5-degrees
    Working range
    · Without XLD laser detector
    – PLS HV2R：≤ 30 m (100 ft)
    – PLS HV2G：≤ 30 m (100 ft)
    功能与特点
    · Accuracy：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Laser Axis：Green Horizontal and Vertical
    · Working range：≤ 30 m (100 ft)
    · Working range with XLD：≤ 300 m (1000 ft radius)
    · 1-meter drop tested
    · IP67 certified protected from dust and immersion in water with a depth of up to 1 m (or 3.3 ft) for up to 30 minutes
    典型应用
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 hv2-green-rotary-laser-level-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    PLS HV2G 旋转激光水平仪 · 详细指标

    PLS HV2R：1 m；PLS HV2G：1 m · 300m (1000 ft) · 135 mm x 69 mm x 25 mm
    产品简介

    The PLS HV2G green beam rotary lasers are designed for the construction job site,

    offering a rugged ergonomic design and simplified controls. The HV2G emits a laser line in the horizontal or vertical plane. The HV2G rotary lasers also emit a point from the top when placed in the vertical position. The HV2G lasers are ideal for use by general contractors,

    完整技术指标
    技术规格
    · Accessories：PLS XLD Rotary Laser Detector
    Electromagnetic compatibility (EMC)
    · Laser
    – PLS HV2R：Class II red
    – PLS HV2G：Class II green
    · Laser axis
    – PLS HV2R：Horizontal and Vertical
    – PLS HV2G：Horizontal and vertical
    · Accuracy
    – PLS HV2R：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    – PLS HV2G：≤ 2.2 mm @ 30 m (≤ 3/32 in @ 100 ft)
    · Auto-leveling range
    – PLS HV2R：± 5-degrees
    – PLS HV2G：± 5-degrees
    · Manual slope range
    – PLS HV2R：± 5-degrees
    – PLS HV2G：± 5-degrees
    Working range
    · Without XLD laser detector
    – PLS HV2R：≤ 30 m (100 ft)
    – PLS HV2G：≤ 30 m (100 ft)
    · With XLD laser detector
    – PLS HV2R：≤ 300 m (1000 ft)
    – PLS HV2G：≤ 300 m (1000 ft)
    · Weight
    – PLS HV2R：3 kg (6.6 lb)
    – PLS HV2G：3 kg (6.6 lb)
    · Drop test
    – PLS HV2R：1 m
    – PLS HV2G：1 m
    · IP rating
    – PLS HV2R：IP67
    – PLS HV2G：IP67
    · Operating temperature
    – PLS HV2R：-20 °C to 50 °C (-4 °F to 122 °F)
    – PLS HV2G：-20 °C to 50 °C (-4 °F to 122 °F)
    · Battery
    – PLS HV2R：4 x D Alkaline or NiMH rechargeable
    – PLS HV2G：4 x D Alkaline or NiMH rechargeable
    · Battery life
    – PLS HV2R：> 60 hours
    – PLS HV2G：> 60 hours
    · Working range：300m (1000 ft)
    · Dimensions：135 mm x 69 mm x 25 mm
    · Weight：0.19 kg (0.42 lbs)
    · Drop test：1 m
    · IP rating：IP67
    · Operating temperature：-20 °C to 50 °C (-4 °F to 122 °F)
    · Battery：1 x AA Alkaline
    · Battery life：> 50 hours
    · Visible spectrum：450 nm – 800 nm
    精度
    · Fine：1 mm (0.05 in)
    · Medium：2 mm (0.1 in)
    · Coarse：5 mm (0.2 in)
    · International
    – IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object
    · Korea (KCC)
    – Class B Equipment (Broadcast communications equipment for home)
    · USA (FCC)
    – 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
