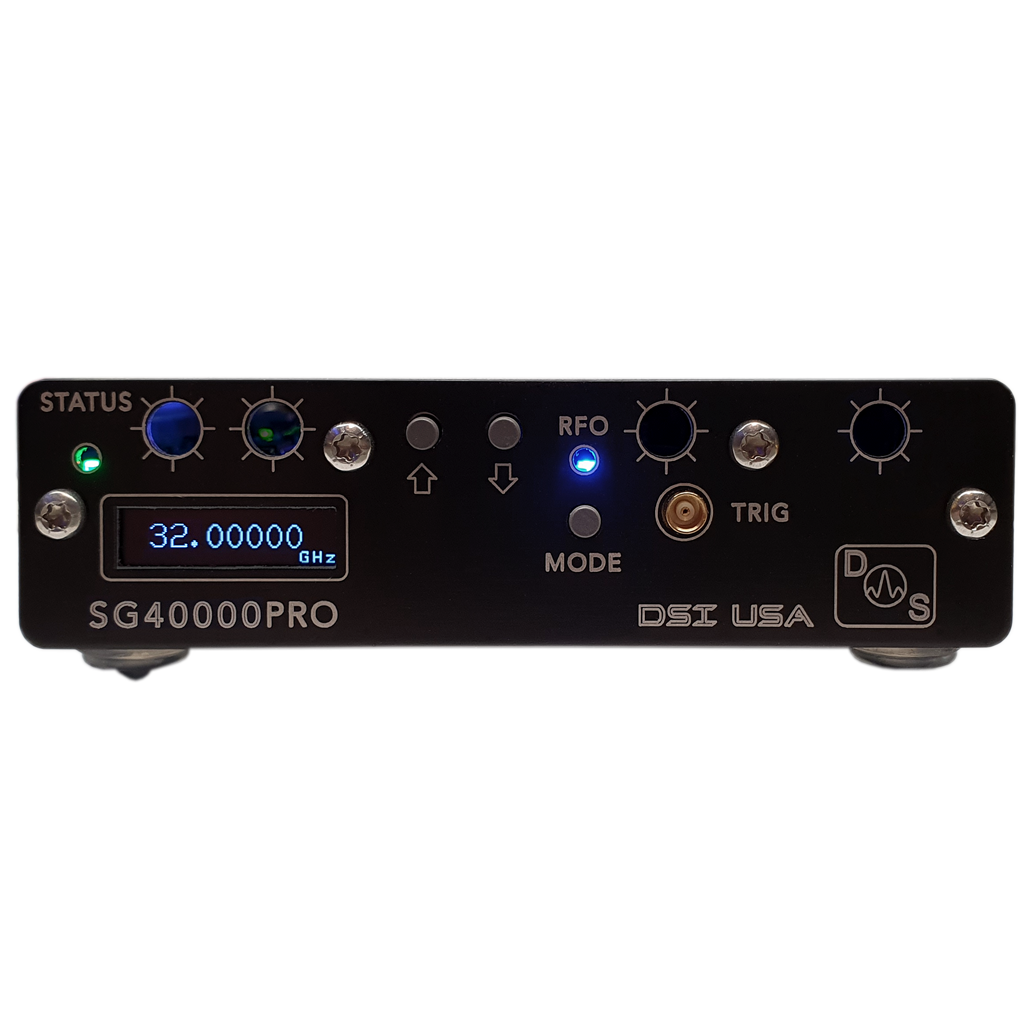

频率范围：9kHz至40GHz大动态输出功率(-120dBm至+17dBm)相位噪声：≤-112dBc/Hz@10kHz(10GHz)
总射频范围覆盖 0.1 – 40GHz频段 1 （SMA）：0.1 至 25GHz频段 2 （2.4mm）：25 至 40GHz校准功率控制频段 1 （LF – 25Ghz）：-25dBm 至 +13dBm校准功率控制频段 2A （25 – 38GHz）：-15dBm 至 +13dBm校准功率控制频段 2B （38 – 40GHz）：-20dBm 至 +10dBm未校准的最大功率：+16dBm（典型值）谐波含量：<-25dBc（典型值）数字衰减器步长：0.5dB可变衰减器分辨率（游标控制）：~0.05dB出色的相位噪声：-90dBc @ 40GHz @ 10KHz偏移极小的频率步长：10Hz温度补偿输出校准功率（LF-25GHz频段）绝对精度：±1.0dB（典型值）校准功率（25-40GHz频段）绝对精度：±2.0dB（典型值）超低噪声 100MHz VCXO 锁定至内部 OCXO 或外部 10MHz 基准内部 10MHz 精密烤箱控制振荡器基准 （±10PPB 稳定性）紧凑型粉末涂层激光蚀刻外壳外部专用扫描触发端口 （MCX）无需主机的便携式频率扫描支持以太网远程操作（DHCP 默认，静态 IP 配置）包括 Windows 控制软件（启用 USB 和网络）通过 USB-C 虚拟 COM 端口识别 SCPI 命令，用于远程控制前置控制和明亮的OLED显示屏，可独立使用完全由双 USB-C 供电，无需 DC 适配器！
频率范围9kHz至12.75/20/40/54GHzOCXO <20 ppb/年的稳定度10GHz时SSB相位噪声-131dBc/Hz@20kHz5μs快速切换（选项FS）最小10ns脉冲宽度的脉冲调制便携经济：W x L x H = 232 x 393 x 96.75 mm/<10kg扫描、触发功能和灵活可设置的1MHz~250MHz外部参考频率支持标配6GHz高频高相位同步时钟输入输出各种机械外壳形式：便携式/台式，19英寸机架安装等本地面板操作，通过通信端口USB、以太网以及可选的GPIB进行PC控制的本地或远程操作，使用GUI软件或ATE命令（SCPI 1999
同厂商产品
频率100 kHz 至13/20/31.8/40GHz1 GHz 时的输出功率：+23 dBm频率转换：600us1 GHz 时的谐波：-33dBc1 GHz 时，20 kHz 频偏处的相位噪声-146 dBc/Hz (10 kHz offset)
XG2系列N5173B 9 kHz 至13/20/31.8/40GHz微波模拟信号发生器|是德/KEYSIGHT (在产)
参考价格 ：
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
是德科技|KEYSIGHT

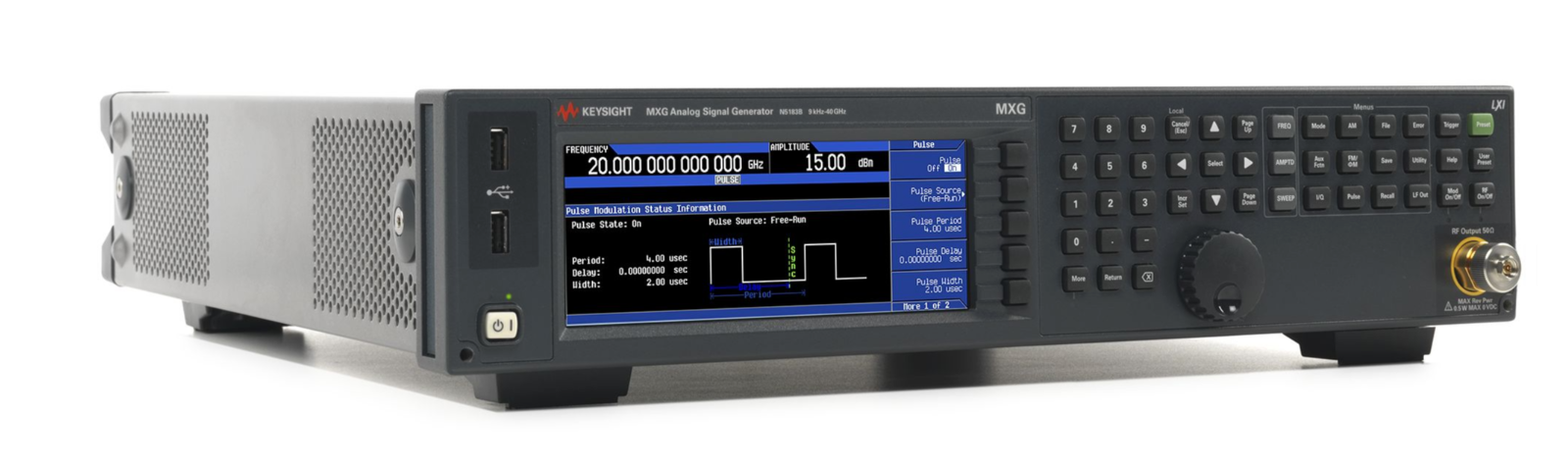

XG2 系列模拟信号发生器，40 GHz
模拟信号发生器
产品简介
若需在预算与性能间取得EXG 。该设备为宽带滤波器、放大器、接收器等器件的参数测试提供必要信号。
核心参数
• 1 GHz 谐波：-33 dBc
• 1 GHz 输出功率：23 dBm
• 1 GHz 相位噪声（20 kHz 偏移）：-122 dBc/Hz
• 最高频率：40 GHz
• 频率切换速度：600 µs
• 输出路数：1
功能特性
• 采用EXG ，在预算与性能之间取得平衡
若需在预算与性能间取得EXG 。
该设备为宽带滤波器、放大器、接收器等器件的参数测试提供必要信号。
凭借低成本与灵活的频率覆盖（13、20、31.8或40 GHz），可执行基本本振上变频或连续波阻塞测试。
大输出功率（20 GHz时为+20 dBm）、低谐波（≤-55 dBc）与完整的步进衰减功能紧密结合，
适用于表征宽带微波元件（如滤波器和放大器）。
其标配高性能OCXO（老化率低于±5 ppb/天）可作为高稳定度系统基准。
兼顾预算与性能，满足微波元件和接收机的参数测试需求
对微波元器件和接收机执行参数测试
为微波回程链路执行低频振荡器上变频，或为接收机测试执行连续波阻塞
600微秒的频率切换速度可进一步提升测试吞吐量
通过大输出功率、低谐波和完整步进衰减的出色组合，准确表征微波滤波器和放大器。
作为高稳定度系统参考使用：标配高性能 OCXO 拥有每天 5×10⁻¹⁰ 的老化率
• 微波信号源是什么？
微波信号源是一种能产生特定频率、幅度和调制类型的电子仪器，通常指300MHz至300GHz的高频电磁波，
相当于一个高度可控且精准的"微波发生器"。
在雷达、卫星通信、无线通信（如5G）、电子对抗以及材料测试等系统中，它扮演着核心角色，为整个系统提供稳定可靠的频率基准和载波信号。
无论是用于本地振荡、信号上/下变频，还是直接作为测试激励源，都是研发、生产和维护过程中不可或缺的关键设备。
• 微波发生器是什么？
微波发生器是一种能产生特定频率微波信号的电子设备，其核心作用在于生成并输出高频电磁波，广泛应用于通信、雷达、医疗及科学研究等领域。
在工作时，它通过振荡电路、频率合成等模块，产生所需频段内稳定且可控的微波能量。
在各类微波发生器中，微波模拟信号发生器属于基础而重要的一类，它能够输出连续或调制的模拟微波信号，用于系统测试、
器件校准以及模拟实际信号环境，是射频与微波实验中不可或缺的测量激励源。
• 微波模拟信号发生器有哪些作用？
微波模拟信号发生器的主要作用是为测试微波部件和系统提供精确可控的模拟高频信号，充当“信号源”或“激励源”。
用于测试与验证。
例如在研发和生产中，为放大器、滤波器、混频器、天线等器件提供输入信号，以测量其增益、带宽、线性度、驻波比等关键参数。
用于系统校准与故障诊断。
作为已知的、纯净的参考信号，注入到雷达、通信链路等系统中，用于校准接收机灵敏度或定位故障点。
用于模拟真实信号环境。
凭借其强大的调制功能（如AM、FM、PM以及脉冲调制），可模拟雷达回波、通信信号乃至复杂的电子战信号，
从而在实验室环境下完成整机或子系统的性能评估。
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
XG2系列N5173B 9 kHz 至13/20/31.8/40GHz微波模拟信号发生器 详细指标
模拟信号发生器
一、频率规格
条件：Phase offset Adjustable in nominal 0.1° increments
Frequency range Option 513
9 kHz to 13 GHz
Option 520
9 kHz to 20 GHz
Option 532
9 kHz to 31.8 GHz
Option 540
9 kHz to 40 GHz
Resolution
0.001 Hz
Frequency switching speed
1 () = typical
Standard Option UNZ 2, 4 Option UZ2, 3
4
CW mode
条件：1. Time from receipt of SCPI command or trigger signal to within 0.1 ppm of final frequency or within 100 Hz, whichever is greater.
2. For export control purposes CW switching speed to within 0.05% of final frequency is 190 µs (meas).
3. For export control purposes CW switching speed to within 0.05% of final frequency is > 400 µs (nom) below 20 GHz and
4. Specifications apply when status register updates are off.
SCPI mode (≤ 5 ms) ≤ 1.15 ms (≤ 750 µs) <
1.65 ms (1 ms)
List/step sweep mode (≤ 5 ms) ≤ 900 µs (≤ 600 µs) <
1.4 ms (850 µs)
> 600 µs (nom) above
20 GHz.
频率参考
Accuracy ± aging rate ± temperature effects ± line voltage effects ± initial setting accuracy
Internal time base reference oscillator aging rate 1 < ± 1 ×10-7/year
2
< ± 5 ×10-10/day after
30 days
Initial achievable calibration accuracy ± 4 ×10-8 or
± 40 ppb
Adjustment resolution < 1 x
10-10 (nom)
Temperature effects < ± 2 x
10-8 from 20 to 30 °C (nom)
Line voltage effects < ± 1 ×10-9 for
± 10% change (nom)
Reference output
Frequency
10 MHz
Amplitude ≥ +4 dBm, (nom) into
50 Ω load
外部 reference 输入
Input frequency standard
10 MHz
Input frequency Option 1ER
1 to 50 MHz (in multiples of 0.1 Hz)
Lock range
± 1 ppm (nom)
Amplitude 5 dBm ± 2 dB (nom)
3
Impedance
50 Ω (nom)
波形 Sine 或 square
Stability Follows the stability of external reference input signal
扫描模式 (频率和幅度)
Operating modes Step sweep (equally spaced frequency and amplitude or logarithmically
List 扫描 (arbitrary list 频率和幅度 steps)
Simultaneously sweep waveforms with N5182B; see baseband
扫描范围 Within instrument 频率范围
Dwell time
100 µs to 100s
Number of points
2 to 65535 (step sweep)
1 to 3201 (list sweep)
Step change Linear or logarithmic
条件：1. Not verified by Keysight N7800A TME Calibration and Adjustment Software. Daily aging rate may be verified as a supplementary
chargeable service, on request. 2. After one year of operation, aging rate drops to < ± 3 x 10 -8 per year or ± 30 ppb/year. 3. Inputs between +3 dBm to +20 dBm are allowed.
Triggering Free run, trigger key, external, timer, bus (GPIB, LAN, USB)
二、幅度规格
输出参数
条件：Settable range (with Option 1E1 and 1EA) +30 to –135 dBm
1. Quoted specifications between 15 and 35 °C. Maximum output power typically decreases by 0.05 dB/°C for temperatures outside
Settable range (without Option 1E1 and 1EA)
+19 to –20 dBm
Resolution
0.01 dB
Step attenuator (1E1)
0 to 115 dB in 10 dB steps mechanical type
Attenuator hold range
–15 dBm to maximum specified output power with step attenuator in 0 dB state; can be offset
using option
1E1 mechanical attenuator
Connector 513/520 = 3.5 SMA male, 532/540 = 2.4 mm male
50 Ω (nom)
(Option 1ED adds Type-N connector to a
513 or 520)
Max output power 1 (dBm, with or without step attenuator, Option
1E1)
Frequency Standard High power Option
1EA
Option 513
520
9 kHz to 3.2 GHz +18
+23
> 3.2 to 13 GHz +18
+20
> 13 to 20 GHz +15
+19
Option 532
540
9 kHz to 3.2 GHz +14
+21
> 3.2 to 17 GHz +14
+16
> 17 to 31.8 GHz +13
+15
> 31.8 to 40 GHz +11
+15
this range
条件：With or without Option 1E1 With Option 1E1
Absolute level accuracy in CW mode
2 (ALC on) () = typical
最大功率至
条件：1. Level accuracy applies between 15 °C and 35 °C. Specifications do not apply above the maximum specified power. For
2. For instruments with Type-N connectors (Option 1ED), specifications are degraded typically 0.2 dB above 18 GHz.
+10 dBm
< +10 to
–10 dBm
< –10 to
– 20dBm
< –20 to
–75 dBm
< –75 to
–90 dBm
< –90 to
–120 dBm
9 kHz to 2 GHz ± 0.6 dB ± 0.6 dB ± 0.7 dB ± 0.7 dB ± 1.4 dB (
± 0.3)
> 2 to 20 GHz ± 0.9 dB ± 0.7 dB ± 0.7 dB ± 0.7 dB ± 1.6 dB (
± 0.3)
> 20 to 40 GHz ± 0.9 dB ± 0.8 dB ± 1.1 dB ± 1.1 dB
± 2.0 dB
temperatures outside this range, absolute level accuracy degrades by 0.01 dB/degree C for frequencies ≤
4.5 GHz and
0.02 dB/degree C for frequencies >
4.5 GHz.
SWR (measured CW mode)
Frequency Attenuator state 0 dB
5 dB and greater
≤ 2 GHz < 1.7:1 <
1.2:1
> 2 to 8 GHz < 1.4:1 <
1.4:1
> 8 to 13 GHz < 1.6:1 <
1.5:1
> 13 to 20 GHz < 1.8:1 <
1.7:1
> 20 to 40 GHz < 1.6:1 <
1.4:1
External detector leveling
1
Range
–0.2 mV to –0.5 V (nom)
Bandwidth
10 kHz (typ)
Amplitude switching speed
2
SCPI mode ≤
2 ms (typ)
Power search SCPI mode 3 <
12 ms (meas)
List/step sweep mode ≤
2 ms (typ)
User flatness correction
Number of points
3201
Number of tables Dependent on available free memory in instrument
10,000 maximum
Entry modes USB/LAN direct power meter control, LAN to GPIB and USB to GPIB, remote bus, and manual
扫描模式
条件：3. When ALC is off and power search mode is disabled amplitude switching is < 250 µs (meas).
See Frequency Specifications section for more detail 1. Not intended for pulsed operation. 2. Time from receipt of SCPI command or trigger signal to amplitude settled within 0.2 dB. Specification does not apply when switching to or from frequencies < 5 MHz, or when ALC level is < 0 dBm, or when frequency crosses 0.002, 0.02, 0.1, 2.0
3.2
5.0, 6.4, 8, 10, 12.8, 16, 20
25.6, or 32 GHz.
三、Spectral Purity Specifications
条件：1. From 0 to 55 °C, measured at +10 dBm.
1. CW mode at +10 dBm for offsets > 10 MHz. In high signal to noise ratio mode (optimize S/N).
2. Specifications apply from +15 to +35 °C an d are nominal for harmonics beyond specified frequency range.
3. Or maximum specified output power, whichever is lower.
1. CW mode at +10 dBm.
2. Power line related non-harmonics: 60 Hz to 300 Hz: < –50 dBc. Measured from 1 MHz to 40 GHz.
1. Calculated from phase noise performance in CW mode at +10 dBm. For other frequencies, data rates, or bandwidths, please
Standard absolute SSB phase noise (dBc/Hz) (CW) [at 20 kHz offset]
1 () = measured
5 to < 250 MHz
–115 (–120)
250 MHz
–129 (–134)
500 MHz
–124 (–128)
1 GHz
–118 (–122)
2 GHz
–111 (–116)
3 GHz
–105 (–110)
4 GHz
–104 (–110)
6 GHz
–99 (–104)
10 GHz
–97 (–101)
20 GHz
–90 (–95)
40 GHz
–84 (–91)
Standard absolute SSB phase noise (dBc/Hz) (CW) [at
100 Hz offset] () = measured
100 MHz (–104)
250 MHz (–115)
500 MHz (–110)
1 GHz (–104)
2 GHz (–97)
3 GHz (–93)
4 GHz (–91)
6 GHz (–89)
10 GHz (–83)
20 GHz (–76)
40 GHz (–70)
Broadband noise
1 () = measured
100 MHz (–143 dBc/Hz)
500 MHz (–155 dBc/Hz)
1 GHz (–163 dBc/Hz)
10 GHz (–150 dBc/Hz)
20 GHz (–143 dBc/Hz)
40 GHz (–135 dBc/Hz)
Residual FM (CW mode, rms) See frequency band table for N value
0.3 to 3 kHz bandwidth < N*
0.5 Hz (meas)
0.05 to 15 kHz bandwidth < N*
3 Hz (meas)
Residual AM (CW mode, +10 dBm
0.3 kHz to 3 kHz bandwidth, rms)
< 2 GHz <
0.01% (meas)
Harmonics [CW mode]
2 () = typical
Range CW mode at +10 dBm CW mode at +20 dBm
3
9 kHz to 200 MHz < –48 dBc (–54) <
–38 dBc (–43)
> 200 MHz to 2 GHz < –33 dBc (–40) <
–25 dBc (–31)
> 2 to 20 GHz < –55 dBc (–65) <
–50 dBc (–55)
Nonharmonics (CW mode)
2
Range >
10 kHz offset
Standard (dBc) 9 kHz to < 5 MHz –65 5 to < 250 MHz –75 250 to < 750 MHz
–78
750 MHz to < 1.5 GHz
–72
1.5 to < 3 GHz
–66
3 to < 20 GHz
–60
20 to 40 GHz
–54
Subharmonics (CW mode)
9 kHz to 1.5 GHz None
> 1.5 to 3.2 GHz
–75
> 3.2 to 5 GHz
–67
> 5 to 10 GHz
–67
> 10 to 20 GHz
–56
> 20 to 40 GHz
–53
Jitter
1 (measured)
Carrier frequency SONET/SDH data rate rms jitter BW μUI rms Picoseconds
155 MHz 155 MB/s 100 Hz to 1.5 MHz 126
0.8
622 MHz 622 MB/s 1 kHz to 5 MHz 62
0.1
2.488 GHz 2488 MB/s 5 kHz to 20 MHz 251
0.1
9.953 GHz 10 kHz to 80 MHz 939
0.094
39.812 GHz 40 kHz to 320 MHz 3408
0.086
四、Analog 调制规格
频率频段
Band # Frequency range N 1 9 kHz to < 5 MHz Digital synthesis 2 5 to < 250 MHz 1 3 250 to < 375 MHz
0.25
4 375 to < 750 MHz
0.5
5 750 MHz to < 1.5 GHz
1
6 1.5 to < 3 GHz
2
7 3 to < 6 GHz
4
8 6 to < 12 GHz
8
9 12 to < 24 GHz
16
10 24 to 40 GHz
32
频率调制 (选件 UNT) (见 N 值 above)
Max deviation N ×10 MHz (nom)
1
Resolution
0.025% of deviation or 1 Hz, whichever is greater (nom)
Deviation accuracy < ± 2% + 20 Hz 2 [1 kHz rate, deviation is N x
50 kHz]
Modulation frequency response @
100 KHz
deviation 1 dB bandwidth DC/5 Hz to 3 MHz (nom)
3 dB bandwidth DC/1 Hz to 7 MHz (nom)
Relative to CW after DC cal
< ± 0.2% of set deviation + (N × 1 Hz)
3
< ± 0.06% of set deviation + (N × 1 Hz) (typ)
4
Distortion < 0.4% [1 kHz rate, deviation is N x
50 kHz]
FM using external inputs 1 or 2 Sensitivity
+1 V peak for indicated deviation (nom)
Input impedance
50 Ω/600 Ω/1 MΩ (nom)
Paths FM path 1 and FM path
2 are summed
相位调制 (选件 UNT) (见 N 值 above)
Maximum deviation Normal bandwidth N ×
5 radians (nom)
High-bandwidth mode N ×
0.5 radians (nom)
Frequency response Normal bandwidth (3 dB) DC to 1 MHz (nom)
High-bandwidth mode (3 dB) DC to 4 MHz (nom)
Resolution
0.1% of deviation
Deviation accuracy < +0.5% +
0.01 rad (typ) [1 kHz rate, normal BW mode]
Distortion < 0.2% (typ) [1 kHz rate, N x
1 radian deviation normal BW mode]
相位调制 (选件 UNT) (见 N 值 above)
条件：internally for composite modulation 1. Digital synthesis band FM deviation is 5 MHz. 2. Specification applies from 15 to 35 °C. 3. Specification valid for temperature changes of less than ± 5 °C since last DC calibration.
4. Typical performance immediately after a DC calibration.
M using external inputs 1 or 2 Sensitivity
+1 V peak for indicated deviation (nom)
Input impedance
50 Ω or 600 Ω or 1 MΩ (nom)
Paths M path 1 and M path
2 are summed
Amplitude modulation (Option UNT)
1
Depth Linear mode Exponential mode
Settable depth ALC ON with deep AM (default) or ALC off 2 0 to 100%
0 to 50 dB
Depth resolution 0.1% (nom)
0.01 dB (nom)
AM depth accuracy ALC on
3
[@ 1KHz rate, <
80% depth]
f < 5 MHz < 1.5% of setting
+1%
(typ 0.5% of setting
+1%)
± 2 dB @ 40 dB depth (typ)
4
5 MHz ≤ f ≤ 3.2 GHz < 4% of setting + 1% ± 2 dB @ 40 dB depth (typ)
4
> 3.2 to 40 GHz (typ 3% of setting +1%) ± 4 dB @ 40 dB depth (typ)
4
Total harmonic distortion (@
1 KHz rate)
f < 5 MHz 30% depth <
0.25% (typ)
80% depth <
0.5% (typ)
5 MHz < f ≤ 40 GHz 30% depth <
2%
80% depth <
3%
Frequency response (30% depth
3 dB BW)
9 kHz to ≤ 3.2 GHz DC/10 Hz to 50 kHz
5
> 3.2 to 40 GHz DC/10 Hz to 100 kHz
5
AM inputs using External Inputs
1 and 2
Sensitivity ± 1 V peak for indicated depth (over-range can be
200% or 2.2 V peak)
Input impedance 50 Ω or 600 Ω or 1 MΩ, damage level
± 5 V max
Paths AM Paths
1 and 2 are summed internally for composite modulation
Simultaneous and composite modulation
条件：output RF. This is useful for simulating signal impairments, FM chirp RADAR, or scan modulation.
modulation. Modulation can be any combination of internal or external sources.
Simultaneous modulation All modulation types (FM, AM, M and pulse modulation) may be simultaneously enabled except: FM and
phase modulation cannot be combined; two modulation types cannot be simultaneously generated using the
same modulation source. For example the Pulse, AM, and FM can run concurrently and all will modulate the
Composite modulation AM, FM, and M each consist of two modulation paths which are summed internally for composite
Pulse + + + –
条件：+ = compatible, – = incompatible 1. AM specifications apply 6 dB below maximum specified power and down to –15 dBm for Option 520 or –20 dBm for Option 540 from 15 to 35 °C with ALC on. 2. ALC off is used for narrow pulse modulation and/or high AM depths with envelope peaks below ALC operating range. Carrier
3. Deep AM with ALC on provides increased AM depths and improved distortion, together with closed -loop internal leveling. This
mode requires a repetitive AM waveform (frequency > 10 Hz) with peaks > –5 dBm (nom), excluding step-attenuator setting).
4. ± 2 dB @ 40 dB, and 50 dB < 31.8 GHz, and ± 4 dB @ 50 dB > 31.8 GHz (meas).
5. From 5 MHz to 50 MHz carrier roll off is < 5 dB at 50 kHz rate. From 50 MHz to 3.2 GHz rate is useable up to 100 kHz. Above
power level will be accurate after a power search is executed.
3.2 GHz rate is useable to 1 MHz.
External modulation inputs (Option UNT required for FM, AM, and phase modulation inputs; Option UNW required for pulse modulation inputs)
EXT1 AM, FM, PM
EXT2 AM, FM, PM
PULSE Pulse (50 Ω only)
Input impedance 50 Ω, 1 MΩ
600 Ω, DC and AC coupled
Standard internal analog modulation source (Waveform generator for use with AM, FM, phase modulation, and LF out; requires Option UNT)
Waveform Sine, square, triangle, positive ramp, negative ramp
Rate range
0.1 Hz to 2 MHz (tunable to 3 MHz)
Resolution
0.1 Hz
Frequency accuracy Same as RF reference source (nom)
LF audio output 0 to 5 V peak into 50 Ω
–5 V to 5 V offset (nom)
Multifunction generator (Option
303)
The multifunction generator option (Option
303) consists of 7 waveform generators that can be set independently with up to 5
simultaneously using the composite modulation features in AM, FM/PM plus LF out
Function generator
1 Sine, triangle, square, pos ramp, neg ramp, pulse
Function generator
2 Sine, triangle, square, pos ramp, neg ramp, pulse
Dual function generator Sine, triangle, square, pos ramp, neg ramp, pulse, phase offset and amplitude ratio
for Tone2 relative to Tone1
Swept function generator Sine, triangle, square, pos ramp, neg ramp
Trigger: free run, trigger key, bus, external, internal, timer trigger
Noise generator
1 Uniform, Gaussian
Noise generator
2 Uniform, Gaussian
DC 仅 · LF 输出
Sine wave
0.1 Hz to 10 MHz
Triangle, square, ramp, pulse
0.1 Hz to 1 MHz
Noise bandwidth
10 MHz
Resolution
0.1 Hz
Frequency accuracy Same as RF reference source (nom)
条件：1. Pulse specifications apply to frequencies > 100 MHz. and power set to > –3 dBm. Operable down to 9 kHz.
2. Above 35 GHz vernier > 0 dBm.
3. For export control purposes option UW2 limits minimum pulse width above 31.8 GHz to ≥ 500 ns.
4. With power search on.
Video delay (external input to video) 40 ns, nominal
RF delay (video to RF output) 45 ns, nominal
Narrow pulse modulation (Option UNW or UW2)
1
On/off ratio > 80 dB (typ)
2
Rise/fall times (Tr, Tf) < 10 ns
7 ns (typ)
Minimum pulse width ALC on/off 3 ≥ 1 µs (500 ns typ) / ≥
20 ns
Repetition frequency ALC on/off
10 Hz to 500 kHz / DC to 10 MHz
Level accuracy (relative to CW) ALC on/off 4 ± 0.7 dB (± 0.5 typ) / (<
± 0.75 dB typ)
Width compression (RF width relative to video out) <
5ns (typ)
Video feed-through 1 < 3.2 / > 3.2GHz < 50 mV (typ) / <
3 mV (typ)
Pulse overshoot <
10% (typ)
Input level +1 V peak = RF On into
50 Ω (nom)
Vf video feedthrough
条件：Internal pulse generator (included with Option UNW or UW2)
Resolution (delay, width, period) 10 ns, nominal
1. Video feed through applies to power levels < +10 dBm.
2. For export control purposes option UW2 limits minimum pulse width above 31.8 GHz to ≥ 500 ns.
Modes Free-run, square, triggered, adjustable doublet, trigger doublet, gated, and external pulse
Square wave rate 0.1 Hz to 10 MHz
0.1 Hz resolution (nom)
Pulse period
30 ns to 42 s (nom)
Pulse width 2 20 ns to pulse period
–10 ns (nom)
Resolution
10 ns
Adjustable trigger delay (–pulse period +10 ns) to (pulse width
–10 ns)
Settable delay Free run
-3.99 to 3.97 µs
Triggered
0 to 40 s
Pulse doublets 1st pulse delay (Relative to sync out)
0 to 42 s – pulse width – 10 ns
1st pulse width
20 ns to 42 s – delay – 10 ns
2nd pulse delay
0 to 42 s – (delay1 + width2) – 10 ns
2nd pulse width
20 ns to 42 s – (delay1 + delay2) – 10 ns
Pulse train generator Option
320 (requires Option UNW or UW2)
Number of pulse patterns
2047
On/off time range
20 ns to 42 s
五、通用规格
远程编程
Interfaces GPIB IEEE-488.2
1987 with listen and talk
LAN
1000BaseT LAN interface, LXI Class C compliant
USB Version
2.0
Control languages SCPI Version
1997.0
Compatibility languages Keysight: N5181A\61A, N5182A\62A, N5183A, E4438C, E4428C, E442xB, E443xB,
适用型号 E8241A, E8244A, E8251A, E8254A, E8247C, E8257C/D, E8267C/D, 8648 series,
8656B, E8663B, 83711B/12B, 83731B/32B, 83751B/52B, 8340B/41B
836xx series
8664A, 8665A/B, 8644A
8662A/63A
Aeroflex Incorporated
3410 series
适用型号 Rohde & Schwarz: SMR, SMF100A, SMB100A, SMBV100A, SMU200A, SMJ100A,
SMATE200A, SMIQ, SML, SMV
Anritsu: MG369xA/B/C
Power requirements 100/120 VAC, 50/60/400 Hz 220/240 VAC, 50/60 Hz
280 Watts maximum
Operating temperature range
0 to 55 °C
存储温度范围
–40 to 70 °C
工作和存储海拔
Up to 4,600 m
Environmental stress
条件：temperature, humidity, shock, vibration, altitude, and power line conditions. Test Methods are aligned with IEC 60068-2 and levels are similar
Samples of this product have been type tested in accordance with the Keysight Technologies, Inc. Environmental Test Manual and verified to
be robust against the environmental stresses of storage, transport ation, and end -use; those stresses include but are not limited to
to MIL-PRF-28800F Class
3.
Complies with the essential requirements of the European Low Voltage Directive as well as current editions of the following standards (dates
and editions are cited in the Declaration of Conformity)
• IEC/EN
61010-1
• Canada: CSA C22.2 No.
61010-1
• USA: UL std no.
61010-1
Complies with European EMC Directive
2004/108/EC
• IEC/EN
61326
• CISPR Pub 11 Group
1, class A
• AS/NZS CISPR
11
• ICES/NMB-001
条件：Option 006 “Removable memory card & Instrument security” allows the following:
Memory is shared by instrument states, user data files, sweep list files, and other files. Option
006 instrument security allows storage of up to
8 GB. Depending on how the memory is utilized, a maximum of 1000 instrument states can be saved.
Security (Option
006)
• Removable 8 GB solid state memory (SD card) from rear pane.
• User can force all files to be stored only on external memory card including instrument states, user data files, sweep list files, and
other files
• Memory sanitizing, memory sanitizing on power on, and display blanking
N5173B-513/520: ≤ 14.5 kg (32 lb.) net, ≤
29.5 kg (65 lb.) shipping
N5173B-532/540: ≤ 15.0 kg (33 lb.) net, ≤
29.9 kg (66 lb.) shipping
Dimensions 88 mm H x 426 mm W x 489 mm L (length includes rear panel feet) (3.5 in H x 16.8 in W x
19.2 in L)
Max length (L) including RF connector tip to end of rear panel feet is
508 mm (20 in)
Recommended calibration cycle
36 months
输入和输出
条件：Front panel connectors (all connectors are BNC unless otherwise stated)
Option 513/520 Precision APC-3.5 male, or Type- N with Option 1ED
into or out of the instrument. Also used with U2000 Series USB average power sensors.
RF output Output impedance
50 Ω (nom)
Option 532/540 Precision 2.4 mm male; plus
2.4—2.4 mm and 2.4-2.9 mm female adapters
Maximum reverse power 0.5 W
0 Vdc
USB
2.0 Used with a memory stick for transferring instrument states, licenses and other files

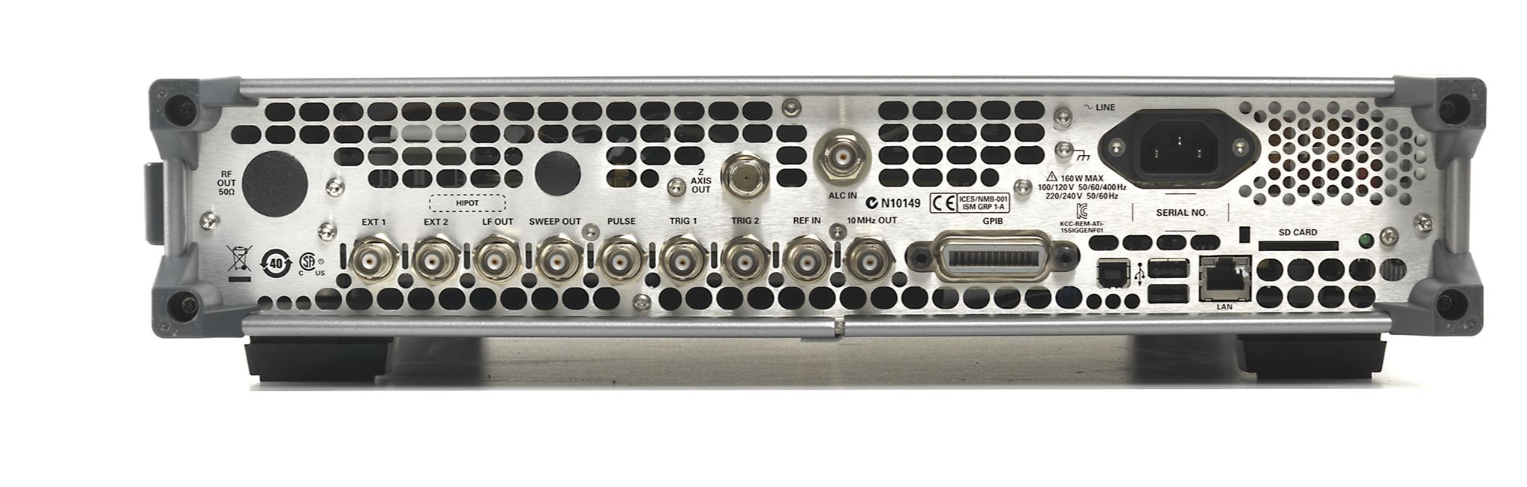

后面板面板连接器
Rear panel inputs and outputs are 3.3 V CMOS, unless indicated otherwise. CMOS inputs will accept 5 V CMOS
3 V CMOS, or TTL
电压电平
条件：• Option 513/520: Precision APC-3.5 male, or Type- N with option 1ED
RF output (1EM) • Output impedance
50 Ω (nom)
• Option 532/540: Precision 2.4 mm male; plus
2.4—2.4 mm and 2.4-2.9 mm
female adapters
条件：Ext1 External AM/FM/PM #1 input: Nominal input impedance is 50 Ω/600 Ω/1MΩ nominal:
Ext2 External AM/FM/PM #2 input: Nominal input impedance is 50 Ω/600 Ω/1MΩ nominal:
levels are 0 V and high logic levels are +1 V. Nominal input impedance is 50 Ω. Input
Trigger 1 (in) Accepts TTL and CMOS level signals for triggering point -to-point in sweep mode.
pulse synchronization, or pulse video. Outputs a 2.5V into 50 Ω nominal. Input
Reference input Accepts a 10 MHz reference signal used to frequency lock the internal time base.
Option 1ER adds the capability to lock to a frequency from 1 MHz to 50 MHz.
Nominal input level –3.5 to +20 dBm, impedance 50 Ω, sine or square waveform.
+5 dBm. Nominal output impedance 50 Ω. Input damage level is +16 dBm.
ALC in This female BNC connector is used for negative external detector leveling.
• Input impedance: 100 kΩ (nominal)
Sweep out Generates output voltage
0 to +10 V when the signal generator is sweeping. This
output can also be programmed to indicate when the source is settled or output
pulse video and is TTL and CMOS compatible in this mode. Output impedance <
1 Ω
can drive 2 kΩ. Damage levels are
± 15 V.
Damage levels are
± 5 V.
Damage levels are
± 5 V.
Pulse External pulse modulation input. This input is TTL and CMOS compatible. Low logic
damage levels are ≤ –0.3 V and ≥
+5.3 V.
Damage levels are ≤ –0.3 V and ≥
+5.3 V.
Trigger 2 (out) Default use is with sweep mode. The signal is high at start of dwell, or when waiting
for point trigger in manual sweep mode; low when dwell is over or point trigger is
received. This output can also be programmed to indicate when the source is settled,
damage levels are ≤ –0.3 V and ≥
+5.3 V.
10 MHz out Outputs the
10 MHz reference signal used by internal timebase. Level nominally
• Signal levels
–0.2 mV to –0.5 V
• Damage levels: < –12 V and >
1 V
Keysight X-Series Signal Generators
MXG Microwave Signal Generator Data Sheet
5991-3131EN
X-Series Signal Generator Technical Overview
5990-9957EN
后面板面板连接器
Rear panel inputs and outputs are 3.3 V CMOS, unless indicated otherwise. CMOS inputs will accept 5 V CMOS
3 V CMOS, or TTL
电压电平
条件：Z-Axis output This female BNC connector supplies a +5 V (nominal) level during retrace and band
supplies a –5 V (nominal) level when the RF frequency is at a marker frequency and
switch intervals of a step or list sweep. During step or list sweep, this connector
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
General Performance Features
| N5173B-UW2 | Narrow pulse modulation up to 31.8 GHz | |
| N5173B-UNZ | Fast frequency switching | |
| N5173B-UNW | Narrow pulse modulation | |
| N5173B-UNT | AM, FM, phase modulation | |
| N5173B-303 | Multifunction generator | |
| N5173B-1ER | Flexible reference input (1-50 MHz) | |
| N5173B-1EA | High output power | |
| N5173B-1E1 | Step attenuator, 115 dB | |
| N5173B-UZ2 | Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency | |
| N5173B-006 | Instrument security and removable memory card | |
| N5173B-SD0 | No internal non-volatile memory/solid state drive |
Frequency Range
| N5173B-513 | Frequency range, 9 kHz to 13 GHz | |
| N5173B-520 | Frequency range, 9 kHz to 20 GHz | |
| N5173B-532 | Frequency range, 9 kHz to 31.8 GHz | |
| N5173B-540 | Frequency range, 9 kHz to 40 GHz |
Connector Type
| N5173B-1ED | Type-N (f) RF output connector |
Connector Configuration
| N5173B-1EM | Move all connectors to rear panel |
Calibration Documentation
| N5173B-UK6 | Commercial calibration certificate with test data | |
| N5173B-A6J | ANSI Z540-1-1994 Calibration | |
| N5173B-AMG | Calibration + Uncertainties + Guardbanding (Accredited) |
Accessories
| N5173B-AXT | Hard transit case | |
| U2053XA | USB wide dynamic range average power sensor 10MHz - 33GHz | |
| U2054XA | USB Average Power Sensor 10MHz - 40GHz | |
| U2052XA | USB Wide Dynamic Range Average Power Sensor 10MHz - 18GHz | |
| N5173B-CVR | Front panel cover |
Software with Subscription
| N5180320B | Pulse train generator |
Bundle Adjustment Option
| N5173B-010 | Good Value Bundle Discount: Includes Options 1EA, UNW, UNZ |
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
