    Fluke Corporation · 振动/动态信号和频谱分析仪

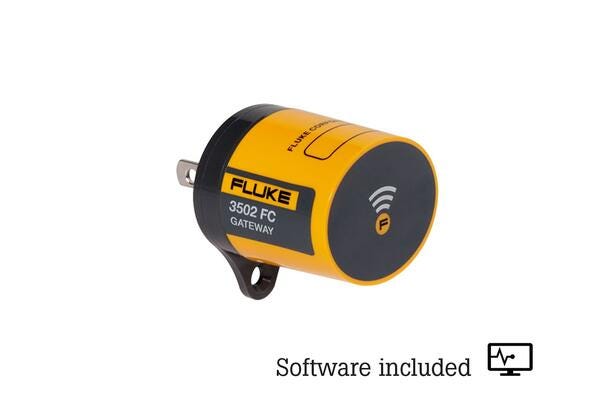

    3502 FC 状态监测网关

    2000 m · 12000 m · 1.2 oz (35 g) · Low Energy 4.1 · 2405 MHz to 2480 MHz
    2000 m
    Altitude Operating
    12000 m
    Altitude Storage
    1.2 oz (35 g)
    Weight
    Low Energy 4.1
    Bluetooth Type
    2405 MHz to 2480 MHz
    Bluetooth Frequency range
    < 10 mW
    Bluetooth Output power
    产品定位

    Catch common faults by deploying a network of vibration screening sensors. When used together,

    the 3502 FC and 3561 FC provide a non-invasive vibration monitoring solution that allows teams to decrease maintenance routes. Screening techniques help personnel triage equipment health and extend asset life. Compact,

    wireless gateways and sensors offer a scalable and affordable screening option.

    The number of sensors per gateway is determined by two factors: Line of sight

    核心参数
    一般规格
    · Temperature Operating range：-25 °C to +65 °C (-13 °F to +149 °F)
    · Temperature Storage range：-25 °C to +65 °C (-13 °F to +149 °F)
    · Relative humidity：10 % to 95 % non-condensing
    · Altitude Operating：2000 m
    · Altitude Storage：12000 m
    · Size (H x W x L)：2.26 x 1.55 x 1.82 in (57.3 x 39.3 x 46.1 mm)
    · Weight：1.2 oz (35 g)
    · Power AC Input：100 V ac to 240 V ac, 50/60 Hz
    · Bluetooth Type：Low Energy 4.1
    功能与特点
    · Aggregates data via Bluetooth of up to 20 Fluke 3561 FC Vibration Sensors.
    · Streams the sensor data to the FCCM software via a Wi-Fi connection.

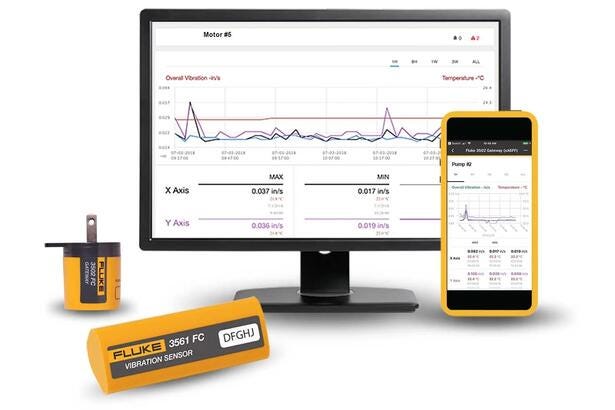

    · Remote monitoring：View continuous stream of real-time and historical vibration data from remote assets.
    · Bluetooth type：Low Energy 4.1
    · IP Rating：IP 67
    · Wi-Fi connection required.
    · AC power required.
    典型应用

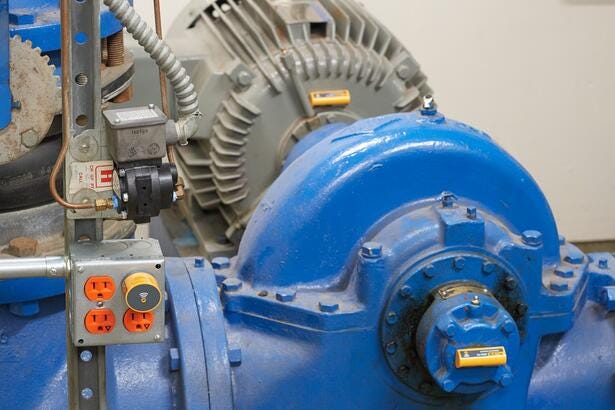

    · 旋转机械监测
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 3502-gateway-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 振动/动态信号和频谱分析仪

    3502 FC 状态监测网关 · 详细指标

    2000 m · 12000 m · 1.2 oz (35 g) · Low Energy 4.1 · 2405 MHz to 2480 MHz
    产品简介

    Catch common faults by deploying a network of vibration screening sensors. When used together,

    the 3502 FC and 3561 FC provide a non-invasive vibration monitoring solution that allows teams to decrease maintenance routes. Screening techniques help personnel triage equipment health and extend asset life. Compact,

    完整技术指标
    一般规格
    · Temperature Operating range：-25 °C to +65 °C (-13 °F to +149 °F)
    · Temperature Storage range：-25 °C to +65 °C (-13 °F to +149 °F)
    · Relative humidity：10 % to 95 % non-condensing
    · Altitude Operating：2000 m
    · Altitude Storage：12000 m
    · Size (H x W x L)：2.26 x 1.55 x 1.82 in (57.3 x 39.3 x 46.1 mm)
    · Weight：1.2 oz (35 g)
    · Power AC Input：100 V ac to 240 V ac, 50/60 Hz
    · Bluetooth Type：Low Energy 4.1
    · Bluetooth Frequency range：2405 MHz to 2480 MHz
    · Bluetooth Output power：< 10 mW
    · Bluetooth Antenna：-3 dBm Single Antenna
    · Wi-Fi Type：802.11 b/g/n
    · Wi-Fi Frequency band：2.4 GHz ISM Band
    · Wi-Fi Frequency range：2412 MHz to 2462 MHz
    · Wi-Fi Output power：< 100 mW
    · Wi-Fi Security：WEP/WPA/WPA2
    · Wi-Fi Antenna：0 dBm Single Antenna, Omni Directional
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
