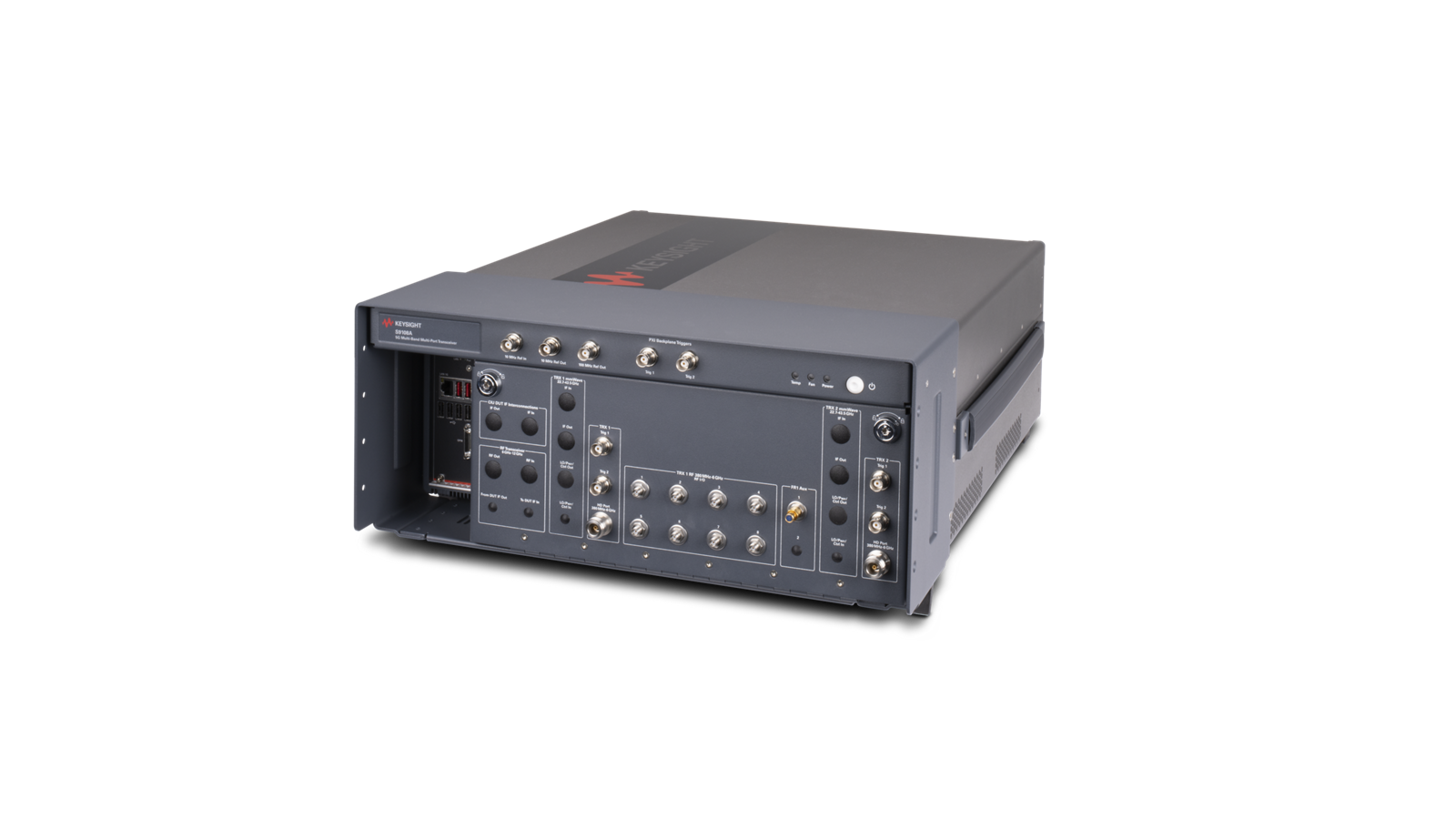

M8920B 6GHz 测试组件 300MHz 详细指标
Modular PXI RF Vector Transceivers
条件：document are specifications under the following conditions unless otherwise noted.
module, and 20° to 35 °C for environment temperature unless otherwise noted
Specifications describe the warranted performance of calibrated instruments. Data represented in this
• Specifications are valid from 45° to 75 °C for individual module temperature, as reported by the
• Calibrated instrument has been stored for a minimum of 2 hours within the allowed operating range
• If instrument has previously been stored at a temperature range inside the allowed storage range,
but outside the allowed operating range, instrument must have been stored for a minimum of 2 hours
within the allowed operating range before turn-on
• 45-minute warm-up time
条件：Typical describes additional product performance information that is not covered by the product warranty.
(approximately 25 °C) after alignment within the stated alignment time and temperature limits.
Nominal values indicate expected performance or describe product performance that is useful in the
application of the product but are not covered by the product warranty.
• The RF, IF, and Source Alignments have been run within the previous
7 days
• An “Align ALL” has been run within the previous
8 hours
• If the temperature has changed more than
5 °C from the previous “Align ALL”
It is performance beyond specifications that 80% of the units exhibit with a
95% confidence level. This
data, shown in italics, does not include measurement uncertainty, and is valid only at room temperature
Recommended best practices
• Use slot blockers and EMC filler panels in empty module slots to ensure proper operating
temperatures. Keysight chassis and slot blockers optimize module temperature performance and
• Set chassis fan to high at environmental temperatures above
45 °C
• Testing radios >
50 watts should be done in a climate-controlled environment to minimize thermal
条件：1. Instantaneous bandwidth (1 dB bandwidth) available around a center frequency over which the input signal can be digitized for
further analysis or processing in the time, frequency, or modulation domain.
Option 506
100 kHz to 6 GHz
Analysis bandwidth
1 Center frequency (CF) Analysis bandwidth
Option B3X (standard)
100 kHz – 1MHz
1 MHz – 10 MHz
10 MHz – 20 MHz
20 MHz – 60 MHz
60 MHz – 80 MHz
80 MHz – 380 MHz
380 to 550 MHz
550 to 1310 MHz
1310 to 6000 MHz
50 kHz
500 kHz
5 MHz
10 MHz
20 MHz
40 MHz
100 MHz
200 MHz
300 MHz
RF analyzer
0.01 Hz (nominal)
Resolution Bandwidth (RBW) Auto
1 Hz to 8 MHz, I/Q Analyzer up to 300 MHz
Frequency accuracy – same as accuracy of internal timebase or external reference input
Internal timebase accuracy
1 ± [(time since last adjustment x aging rate) ±
条件：Residual FM ≤ 0.25 Hz p-p in 20 ms nominal
1. Calibration accuracy depends on how accurately the frequency standard was adjusted to 10 MHz. If the adjustment procedure
is followed, the calibration accuracy is given by the specification. Achievable Initial Calibration Accuracy.
Yearly aging rate < ± 0.1 ppm/year (± 1 x
10-7)
Achievable initial calibration accuracy ± 4 x
10-8
Temperature effects 20 to 30 °C < ± 1.5 x
10-8
Trigger Free run, external 1, external
2, RF burst, video, periodic
Trigger delay range
-150 to 500 ms
Amplitude range and accuracy specifications (T/R input port and antenna input port)
Antenna input port Range
-70 to +23 dBm
100 kHz to 1 MHz
± 0.6 dB typical
1 MHz to 2 GHz ± 1.25 dB
± 0.6 dB typical
2 GHz to 3.9 GHZ ± 1.5 dB
± 0.8 dB typical
3.9 GHz to 6 GHz ± 1.6 dB
± 0.9 dB typical
100 kHz to 1 MHz
± 0.4 dB typical
1 MHz to 2 GHz ± 1 dB
± 0.5 dB typical
2 GHz to 3.9 GHz ± 1.2 dB
± 0.5 dB typical
3.9 GHz to 6 GHz ± 1.3 dB
± 0.5 dB typical
条件：100 kHz to 1 MHz ± 0.4 dB nominal
1 MHz to 2 GHz ± 0.6 dB nominal
2 GHz to 3.9 GHz ± 0.8 dB nominal
3.9 GHz to 6 GHz ± 0.9 dB nominal
100 kHz to 1 MHz ± 0.7 dB nominal
1 MHz to 2 GHz ± 0.7 dB nominal
2 GHz to 3.9 GHz ± 0.9 dB nominal
3.9 GHz to 6 GHz ± 1 dB nominal
100 kHz to 1 MHz
± 0.6 dB typical
1 MHz to 2 GHz ± 1 dB
± 0.5 dB typical
2 GHz to 3.9 GHz ± 1.3 dB
± 0.6 dB typical
3.9 GHz to 6 GHz ± 1.4 dB
± 0.6 dB typical
Amplitude range and accuracy specifications (M9472A T/R input port)
High power attenuation ON Range
-30 to +53 dBm
High power attenuation OFF Range
-50 to +36 dBm
M9470A T/R port high power attenuation ON
+47 dBm (50 W)
M9470A T/R port high power attenuation OFF
+33 dBm (2 W)
M9470A RF antenna port
+30 dBm (1 W)
M9472A T/R port high power attenuation ON
+53 dBm (200 W)
最大值 RMS RF specified 性能电平
M9470A T/R port high power attenuation ON +47 dBm (50 W) (< 30°C ambient)
30 W or 5 minutes
on 5 minutes off (> 30 and <
45 °C ambient)
M9470A T/R port high power attenuation OFF
+30 dBm
M9470A RF antenna port
+23 dBm
M9472A T/R port high power attenuation ON
+53 dBm (200 W) in climate-controlled environment (<
25 °C ambient)
1 minute only
Low pass filter 300 Hz ¹, 3 kHz, 15 kHz, 30 kHz, 80 kHz
100 kHz, or 300 kHz
High pass filters 20 Hz, 50 Hz
300 Hz, or 400 Hz ²
CCITT (ITU-T Rec.
041, ITU-T Rec. P.53), A-weighted (ANSI-IEC “A” weighted, per IEC Rec
179), C-weighted (IEEE Std
743-1995), C-message (per IEEE743), CCIR-1k weighted (CCIR
Rec 468), CCIR-2k weighted (Dolby 2 K), CCIR unweighted (CCIR Rec
468)
For either LPF or HPF User Defined ³ 1. 2- pole Butterworth filter to match same filter in HP8920/8903/8901/8902. 2. 10- pole Butterworth filter to attenuate sub- audible signaling tones. Matching the filter on HP8920/8903/8901/8902. 3. 5- pole Butterworth filter, a general- purpose filter. The
3- dB cutoff frequency can be selected for the User- defined audio filters
Phase noise sidebands RF T/R (high power attenuation OFF) port and antenna port (CF =
1 GHz)
1 kHz offset
-110 dBc/Hz typical
10 kHz offset
-129 dBc/Hz typical
100 kHz offset
-132 dBc/Hz typical
1 MHz offset
-134 dBc/Hz typical
Spurious responses – residual response in specified frequency ranges
Frequency range Antenna input port ranged to -70 dBm
OFF, ranged to -70 dBm
条件：M9472A T/R port high power attenuation OFF/ON -65 dBc nominal
< 200 MHz -90 dBm nominal -90 dBm nominal
200 MHz to 6 GHz -90 dBm nominal -90 dBm nominal
ON, ranged to 0 dBm
< 200 MHz -95 dBm typical -90 dBm typical
-90 dBm typical
200 MHz to 6 GHz -95 dBm typical -90 dBm typical
-90 dBm typical
Input related spurs (Input set to -10 dBm range)
Antenna input port
-57 dBc typical
Spurious responses – residual response in specified frequency ranges
Frequency range M9472A T/R port high power attenuation
OFF, ranged to -70 dBm
M9472A T/R port high power attenuation ON,
ranged to 0 dBm
Displayed Average Noise Level (DANL) with analyzer ranged to -70 dBm
ON (dBm/Hz) 100 kHz to 1 MHz -146 typical -135 typical -117 typical 1 to 200 MHz -157, -161 typical -146, -149 typical -126, -131 typical 200 to 900 MHz -158, -161 typical -148, -149 typical -126
-129 typical
900 MHz to 2.1 GHz -155, -159 typical -143, -146 typical -123
-127 typical
2.1 to 3.2 GHz -154, -158 typical -141, -144 typical -121
-125 typical
3.2 to 4.8 GHz -154, -157 typical -139, -142 typical -120
-124 typical
4.8 to 6 GHz -151, -154 typical -135, -138 typical -116
-122 typical
Displayed Average Noise Level (DANL) with analyzer ranged to -70 dBm
Frequency range M9472A T/R port high power attenuation
条件：(dBm/Hz) 100 kHz to 1 MHz -129 nominal -110 nominal 1 to 200 MHz -142 nominal -124 nominal 200 to 900 MHz -142 nominal -123 nominal
900 MHz to 2.1 GHz -140 nominal -120 nominal
2.1 to 3.2 GHz -137 nominal -118 nominal
3.2 to 4.8 GHz -136 nominal -117 nominal
4.8 to 6 GHz -131 nominal -114 nominal
M9470A T/R port < 1.4:1 (nominal)
M9472A T/R port high power attenuation ON
Input Voltage Standing Wave Ratio (VSWR) – attenuator =
0 dB
Antenna port <
1.8:1 (nominal)
Trigger Free run, external 1, external
2, RF burst, video, periodic
Trigger delay range
-150 to 500 ms
Option 506
100 kHz to 6 GHz
Option BX3 (standard)
条件：1. Calibration accuracy depends on how accurately the frequency standard was adjusted to 10 MHz. If the adjustment procedure
is followed, the calibration accuracy is given by the specification, Achievable Initial Calibration Accuracy .
Same as accuracy of internal timebase or external reference input
Internal timebase accuracy
1
± [(time since last adjustment x aging rate) ± temperature effects ± calibration accuracy]
条件：Residual FM ≤ 0.25 Hz p-p in 20 ms nominal
-120 to -130 dBm ±0.8 dB nominal ±0.6 dB
nominal ±0.7 dB nominal ±1.6 dB nominal ±1.5 dB nominal
1. Specifications apply when input port is set to Antenna In.
1. Specifications apply when input port is set to Antenna In.
1. Specifications apply when input port is set to Antenna In.
1. Specifications apply when input port is set to Antenna In.
-20 to -100 dBm ±1.3 dB nominal
1. Specifications apply when input port is set to Antenna In.
Yearly aging rate < ±0.1 ppm/year (±1 x
10-7)
Achievable initial calibration accuracy ±4 x
10-8
Temperature effects 20 to 30 °C < ±1.5 x
10-8
Amplitude level accuracy generator port
1
1 MHz
2.4 GHz
2.4 to 4.5 GHz
4.5 to 6 GHz
13 to 10 dBm ±0.65 dB typical
±1.5 dB
±0.55 dB typical
±1.6 dB,
±0.8 dB typical
±1.6 dB,
±0.65 dB typical
±2 dB,
±1.25 dB typical
10 to -10 dBm ±0.65 dB typical
±1.8 dB
±0.6 dB typical
±1.3 dB,
±0.45 dB typical
±1.5 dB,
±0.55 dB typical
±2 dB,
±1.1 dB typical
-10 to -70 dBm ±0.55 dB typical
±1.65 dB
±0.65 dB typical
±1.4 dB,
±0.6 dB typical
±1.4 dB,
±0.65 dB typical
±1.8 dB,
±0.85 dB typical
-70 to -100 dBm ±0.6 dB typical
±1.6 dB
±0.65 dB typical
±1.15 dB,
±0.35 dB typical
±1.3 dB,
±0.5 dB typical
±1.45 dB,
±0.6 dB typical
-100 to -120 dBm ±0.65 dB typical ±0.6 dB typical ±0.5 dB typical ±0.55 dB typical
±0.65 dB typical
Amplitude level accuracy T/R port high power attenuation OFF
1
Level 100 kHz to 1 MHz 1 to 90 MHz 90 MHz to 2.4 GHz 2.4 to 4.5 GHz
4.5 to 6 GHz
3 to 0 dBm ±0.65 dB typ
±1.15 dB
±0.5 dB typ
±1.35 dB,
±0.5 dB typ
±1.7 dB,
±0.85 dB typ
±2 dB,
±1.3 dB typ
0 to -20 dBm ±0.75 dB typ
±1.3 dB
±0.45 dB typ
±1.3 dB,
±0.45 dB typ
±1.7 dB,
±0.8 dB typ
±2 dB,
±1.15 dB typ
-20 to -70 dBm ±0.7 dB typ
±1.4 dB
±0.65 dB typ
±1.5 dB,
±0.65 dB typ
±1.65 dB,
±0.7 dB typical
±1.65 dB,
±0.85 dB typ
-70 to -110 dBm ±0.6 dB typical
±1.45 dB
±0.55 dB typ
±1.45 dB,
±0.6 dB typ
±1.5 dB,
±0.75 dB typ
±1.6 dB,
±0.75 dB typ
-110 to -120 dBm ±1.5 dB nom ±0.6 dB nom ±0.5 dB nom ±0.9 dB nom
±1 dB nom
Amplitude level accuracy M9472A T/R port high power attenuation OFF
1
-5 to -110 dBm
±1.8 dB nominal
Amplitude level accuracy T/R port high power attenuation ON
1
Level 100 kHz to 1 MHz 1 to 90 MHz 90 MHz to 2.4 GHz 2.4 to 4.5 GHz
4.6 to 6 GHz
-20 to -70 dBm ±0.6 dB typ
±1.6 dB
±0.75 dB typ
±1.35 dB,
±0.5 dB typ
±1.45 dB,
±0.65 dB typ
±1.85 dB,
±0.95 dB typ
-70 to -100 dBm ±0.5 dB typ
±1.45 dB
±0.65 dB typ
±1.4 dB,
±0.65 dB typ
±1.4 dB,
±0.6 dB typ
±1.8 dB,
±0.8 dB typ
-100 to -110 dBm ±2.3 dB nom ±0.6 dB nom ±0.4 dB nom ±0.5 dB nom
±0.7 dB nom
Amplitude level accuracy M9472A T/R port high power attenuation ON
1
Phase noise sidebands (CF =
1 GHz)
Frequency offset 1 kHz –113 dBc/Hz typical 10 kHz –130 dBc/Hz typical 100 kHz
–137 dBc/Hz typical
条件：T/R port high power attenuation ON at -20 dBm 100kHz to 60MHz -34 dBc, -40 dBc nominal -35 dBc, -40 dBc nominal -41 dBc nominal 60 MHZ to 6 GHz -31 dBc, -36 dBc nominal -32 dBc, -37 dBc nominal -37 dBc nominal
100kHz to 60MHz -42 dBc nominal -37 dBc nominal
60 MHZ to 6 GHz -39 dBc nominal -29 dBc nominal
Frequency range Generator port at +10 dBm
(Opt. M8920B-1EA)
T/R port high power attenuation OFF at 0 dBm
Harmonics (M9472A T/R port)
Frequency range High power attenuation OFF at -10 dBm High power attenuation ON at -20 dBm
条件：T/R port high power attenuation ON at -20 dBm 100kHz to 60MHz -56 dBc nominal -56 dBc nominal -56 dBc nominal 60 MHZ to 6 GHz -74 dBc nominal -73 dBc nominal -68 dBc nominal
100kHz to 60MHz -52 dBc nominal -52 dBc nominal
60 MHZ to 6 GHz -62 dBc nominal -62 dBc nominal
Frequency range Generator port at +10 dBm
(Opt. M8920B-1EA)
T/R port high power attenuation OFF at 0 dBm
Non-harmonics (M9472A T/R port)
Frequency range High power attenuation OFF at 0 dBm High power attenuation ON at -20 dBm
条件：M9472A T/R port (-40 dBm output) 100 kHz to 6 GHz -164 dBm/Hz nominal
T/R port and generator port (-40 dBm output)
100 kHz to 60 MHz
-160 dBm/Hz typical
60 MHz to 6 GHz
-165 dBm/Hz typical
T/R port 100 kHz to 6 GHz (high power attenuation OFF) -120 to +3 dBm 100 kHz to 6 GHz (high power attenuation ON)
-110 to -20 dBm, settable to –15 dBm
Generator port 100 kHz to 6 GHz -130 to +3 dBm 100 kHz to 6 GHz (Option M8920B-1EA)
-130 to +13 dBm, settable to +15 dBm
Generator maximum Reverse Power Protection (RPP)
Generator port
10 W for 15 sec. with alarm
Other signaling capabilities
Signaling selection Sine, Square, Rectangle, Triangle, Dual Sine (2-tone,

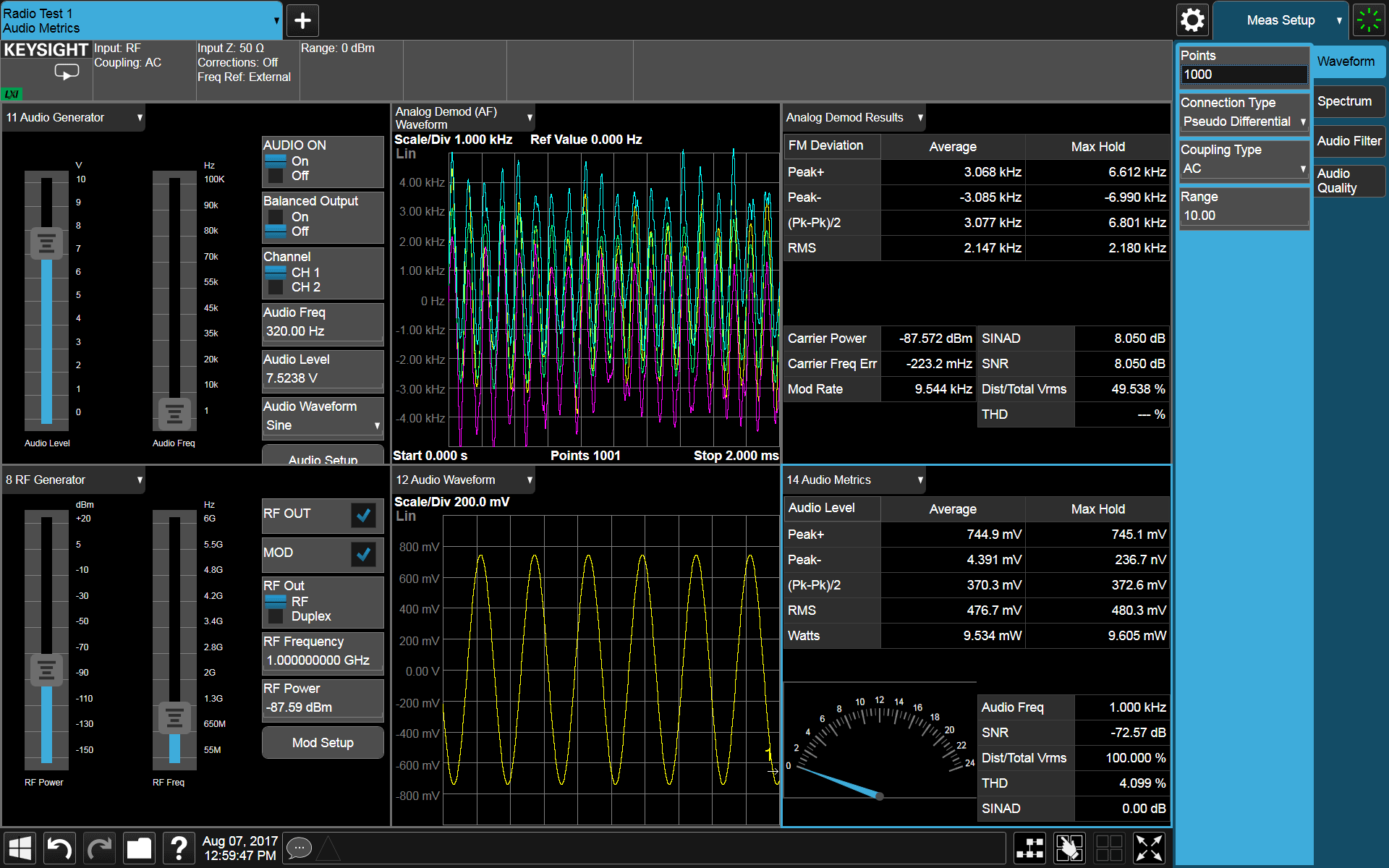

M9260A PXI module Audio generator performance Audio analyzer performance
Channels 2 – Audio generator outputs
2 – Audio analyzer inputs
Built-in waveforms Sine, Dual Sine Sine, Dual Sine
条件：Audio frequency accuracy ¹ ± (2ppm + 100 µHz) nominal ± (2ppm + 100 µHz) nominal
Impedance 50 Ω and 600 Ω 50 Ω
600 Ω, and 1 MΩ
Audio frequency range 5 Hz to 79.8 kHz
10 Hz to 80 kHz
Audio frequency resolution 363.8 µHz
363.8 µHz
Voltage range 10 µVp to 10 Vp
10 µVp to 46Vp
Amplitude resolution 1 µV
1 µV
Channels per module 2 – BNC output channels
2 – BNC input channels
Max voltage amplitude 10 Vp output
46 Vp Input
AC accuracy ±1.0% at 1 kHz
±1.0% at 1 kHz
AC flatness (at 1 kHz), 5 Hz to 80 kHz BW +/- 1% (+/-0.086 dB), all ranges +/-
1% (+/-0.086 dB), all ranges
条件：Range 0 dB to 50 dB (nominal), usable up to 90 dB
Frequency range
100 Hz to 20 kHz
Voltage range
1 mV to 10 V, usable up to 46V (32 Vrms)
条件：Measurement Range 1% to 50% (nominal)
Frequency range
100 Hz to 20 kHz
Voltage range
1 mV to 10 V
条件：Frequency 300 Hz to 3 kHz (nominal)
Frequency 300 Hz to 3 kHz (nominal)
1. Stated frequency accuracy specification is achievable depending on PXI chassis 10 MHz system clock accuracy or applied
external clock reference accuracy. 2. Using two -step RMS Ratio method. Refer to M8920A Measurement Guide, Measuring Rx Hum and Noise. For noisier signals, built -in SNR estimate method is not as accurate.
Range
-90 dB to 0 dB (nominal)
Resolution
0.1 dB (nominal)
Signal to Noise Ratio (SNR) measurement
2
Range
-80 dB to 0 dB (nominal)
Low pass filters 3 kHz, 15 kHz, 30 kHz
80 kHz
High pass filters 20 Hz, 50 Hz
300 Hz, or 400 Hz
条件：Manual select filter Manual User Defined LPF filter¹ 1. The 3- dB cutoff frequency can be selected for the User- Defined audio filters.
CCITT (ITU-T Rec.
041, ITU-T Rec. P.53), A-weighted (ANSI-IEC “A” weighted, per IEC
Rec 179), C-message (C-Message per IEEE743), CCIR-1k weighted (CCIR Rec
468)
CCIR-2k weighted (Dolby
2 K)
五、N9093EM0E basic analog 调制/解调主要指标
Specification Generator modulation performance Analyzer demodulation performance
条件：FM deviation accuracy ±0.3% (nominal), 1 kHz rate,1 kHz to 100
±0.15% (nominal), 1 kHz rate, 1 kHz to
Residual distortion 0.3% (nominal), 1 kHz rate,1 kHz to 100
0.5%(nominal), 1 kHz rate, 1 kHz to 40
FM deviation 100 Hz to 100 kHz (settable to 1 Hz) Peak Dev
1 kHz to 100 kHz
kHz deviation
-10 dBm output power
40 kHz deviation
FM deviation resolution 1 Hz
1 Hz
FM rate (settable range) 10 Hz to 40 kHz
10 Hz to 40 kHz
kHz deviation
-10 dBm output power
条件：AM depth accuracy ±0.6% (nominal), 1 kHz rate, 30% to 90%
±1% (nominal), 100 Hz to 10 kHz rate,
Residual distortion ±0.3% (nominal), 1 kHz rate, 30% to 90%
0.6% (nominal), 100 Hz to 10 kHz rate,
AM depth 1% to 95%
1% to 99%
depth
-10 dBm output power
10% to 95% depth
AM rate (settable range) 10 Hz to 40 kHz
10 Hz to 40 kHz
depth
-10 dBm output power
10% to 95% depth
Single sideband modulation (USB/LSB)
条件：SSB residual distortion 1.5% (nominal) depth 10% to 95%
SSB depth 1% to 90%
1% to 99%
SSB depth resolution 1%
1%
SSB rate range 10 Hz to 40 kHz
10 Hz to 40 kHz
SSB offset range
300 Hz to 3 kHz
SSB suppressed carrier (SSB-SC)
> 80 dB
条件：PM deviation accuracy ±0.6% (nominal), 1 kHz rate, 0.5 to 10
±0.6%(nominal), 100 Hz to 4 kHz rate,
Residual distortion 0.4% (nominal), 1 kHz rate, 0.5 to 10
1.8% (nominal) ,100 Hz to 4 kHz rate, 0.2
PM deviation 0.1 to 10 rad
0.2 to 10 rad
radians
-10 dBm output power
0.2 to 10 radians
Specification Generator modulation performance Analyzer demodulation performance
PM resolution 0.01 rad
0.01 rad
PM rate (settable range) 10 Hz to 40 kHz
50 Hz to 4 kHz
radians
-10 dBm output power
to 10 radians
六、N9093EM1E basic 数字调制/解调主要指标
Gen, T/R port (ATT OFF) at -10 dBm
T/R port (ATT OFF) at -10 dBm
EVM ±0.3% typical
±0.6% typical
Mag error ±0.2% typical
±0.5% typical
FSK error ±0.3% typical
±0.7% typical
Deviation error ±0.1% typical
±1% typical
M9472A T/R port (ATT OFF) at -10 dBm
条件：EVM ±0.3% nominal ±0.4% nominal
Mag error ±0.2% nominal ±0.3% nominal
FSK error ±0.3% nominal ±0.7% nominal
Deviation error ±0.1% nominal ±1% nominal
M9472A T/R port (ATT OFF) at -10 dBm
七、Connectivity test application software Specifications
WLAN 802.11ac (CF =
5.8 GHz)
EVM at antenna input port -20 dBm input BW 80 MHz
-48 dB typical
-20 dBm input BW 160 MHz
-47 dB typical
EVM at generator port -5 to -15 dBm output BW 80 MHz
-47 dB typical
-5 to -15 dBm output BW 160MHz
-45 dB typical
WLAN 802.11ax (CF =
5.8 GHz)
EVM at antenna input port -20 dBm input BW 80 MHz
-48 dB typical
-20 dBm input BW 160 MHz
-47 dB typical
条件：Loopback -20 dBm BW 160 MHz -46 dB nominal
-20 dBm BW 320 MHz -43 dB nominal
EVM at antenna input port -10 dBm input, 20 MHz bandwidth 0.5% typical, 0.3% nominal
-5 to -15 dBm output BW 80 MHz
-47 dB typical
-5 to -15 dBm output BW 160MHz
-45 dB typical
WLAN 802.11be (CF =
5.8 GHz)
LTE-FDD/TDD (CF from 700 MHz to 2.6 GHz)
ACP at antenna input port -10 dBm input, downlink
-55 dBc typical
-10 dBm input, uplink
-57 dBc typical
Composite EVM at generator port -10 dBm output, 20 MHz bandwidth
0.5% typical
ACP at generator port -10 dBm output downlink/uplink
-62 dBc typical
条件：DEVM at generator port at 0 dBm 0.8% nominal
EDR floor at antenna input port at 0 dBm input power
0.5% typical
5GNR
条件：-10 dBm input, CF = 5.8 GHz 0.46% nominal
-10 dBm input, CF = 4 GHz
0.38% typical
-10 dBm input, CF = 5 GHz
0.38% typical
-10 dBm input, CF = 4 GHz
-53 dBc typical
-10 dBm input, CF = 5 GHz
-53 dBc typical
-10 dBm input, CF = 5.8 GHz
-52 dBc typical
-10 dBm input, CF = 4 GHz
-58 dBc typical
-10 dBm input, CF = 5 GHz
-58 dBc typical
-10 dBm input, CF = 5.8 GHz
-55 dBc typical
条件：-10 dBm output, CF = 5.8 GHz 0.4% nominal
-10 dBm output, CF = 4 GHz
0.35% typical
-10 dBm output, CF = 5 GHz
0.35% typical
条件：-10 dBm output, CF = 5.8 GHz -51.5 dBc nominal
-10 dBm output, CF = 4 GHz
-58 dBc typical
-10 dBm output, CF = 5 GHz
-53 dBc typical
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
客服
粤公网安备44030902003758
