是德科技|KEYSIGHT
VT5 系列矢量收发信机，用于 5G 多频段测试
宽带射频收发信机测试
产品简介
S9110A 是一款多频段收发信机系统，用于 5G 和 NTN / 卫星通信非信令测量。
S9110A 系统可与多个是德科技远端射频头（RRH）配合工作，支持 10 GHz 至 32 GHz 或 22.7 GHz 至 49.2 GHz 的测量，以及 sub-6 GHz FR1 能力
核心参数
• 无线制式：FR1, FR2, NTN
• 最高频率：49.2 GHz
• 最大带宽：1.2 GHz
功能特性
• 应用：5G NR 或 NTN/卫星通信网络设备与射频组件的大批量测试
5G NR 基站收发信机系统
5G NR 组件，包括远端射频头（RRH）、分布式单元（DU）、有源天线阵列、放大器、芯片组
NTN 设备，包括终端、用户设备、星载平台、网关
使用熟悉且经过行业验证的应用软件进行功率、SEM、ACLR、
EVM 等测量（N9085EM0E 5G NR 和 N9054EM0E/N9054EM1E VMA 测量应用）
• 优势
与台式仪器相比，占用空间更小且测试吞吐量极高，从而降低测试成本（“云就绪”）
OTA 就绪性通过单个双向远端头节省空间和成本，远端头内切换支持 2 种极化，
覆盖所有 10 GHz 至 32 GHz（M1742A）或 22.7 GHz 至 49.2 GHz（M1749B）频段，
在暗室内提供最佳功率和 EVM
制造效率：1.2 GHz 带宽，具有低 EVM 和 ACLR，作为单一仪器运行（包括：切换、远端头、API、测量），
易于自动化，并具有经过校准的系统精度，可减少返工和误判
在同一系统中支持 FR1 和 FR2/NTN 测量，无需重新连接测试设置线缆
• 功能
对 5G NR（3GPP Release 15 及更高版本）波形进行宽带信号生成和分析，
同时支持：FR1（380 MHz 至 6 GHz）和 FR2（22.7 GHz 至 49.2 GHz）或 NTN（10 GHz 至 32 GHz）
具备“OTA 友好”的可扩展架构：避免切换和长电缆走线带来的高损耗，支持一个或两个远端头和极化，以及多个 Tx/Rx 通道
• 测量应用与软件
S9110A 系统默认包含 5G NR 非信令波形与测量应用（根据配置选择，许可为 Y9085EM0E 或 N9085EM0E）
推荐附加软件：N9054EM0E 矢量调制分析数字解调测量应用、
N9054EM1E 矢量调制分析自定义 OFDM 应用、
N7608EMBC Signal Studio Pro 自定义调制、
N7631EMBC Signal Studio Pro 5G NR、
N7608EMBC 用于自定义 IQ 和 OFDM、89600 VSA 软件，以及 KS8400A 测试自动化平台

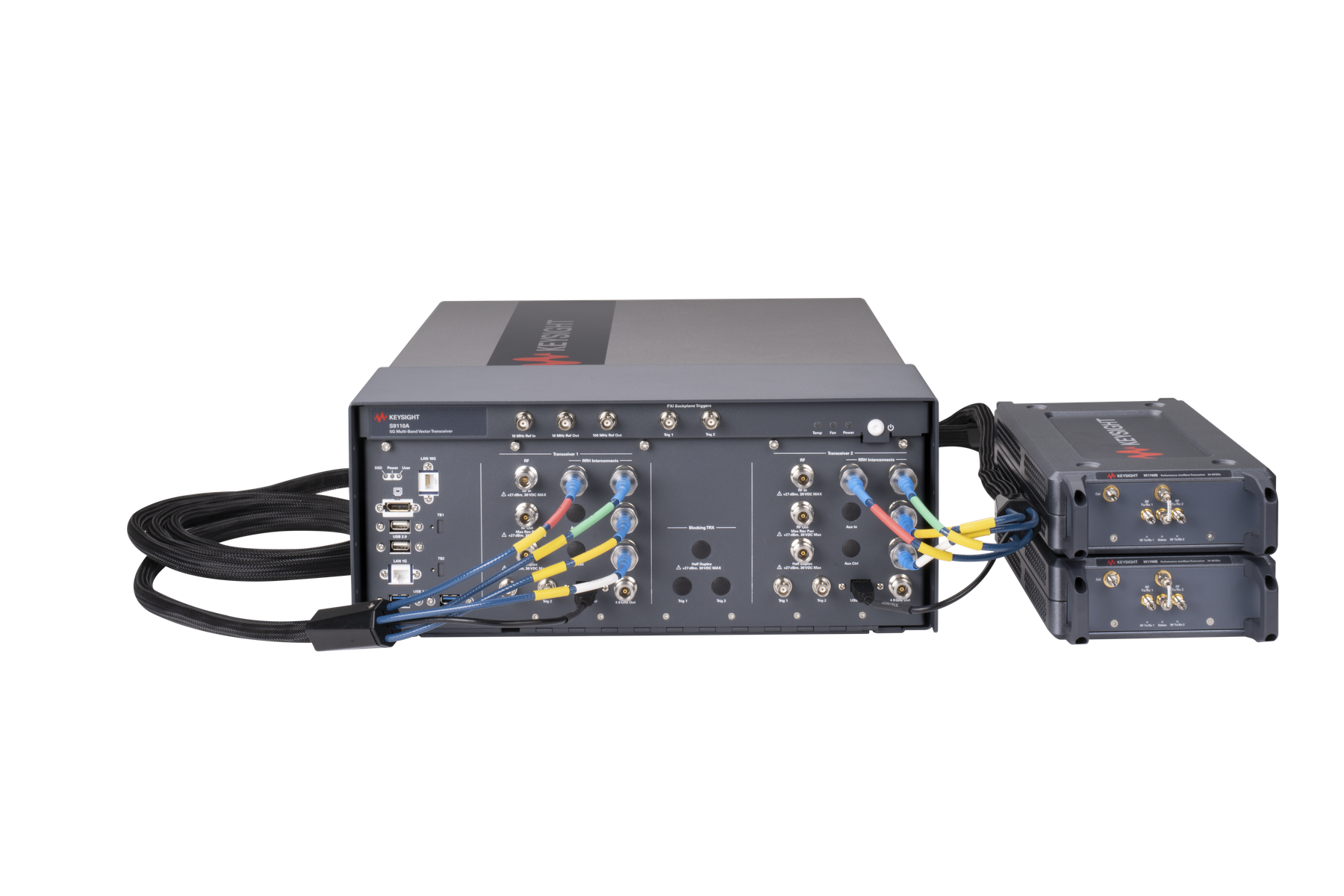

是德科技 S9110A 5G 多频段矢量收发信机配备一个或两个收发信机，
覆盖 FR1（380 MHz 至 6 GHz），并配备一个或两个毫米波/uWave 收发信机，
覆盖 FR2（22.7 GHz 至 49.2 GHz）或 NTN（10 GHz 至 32 GHz）
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
S9110A 49.2GHz 收发信机 1.2GHz 详细指标
Wideband RF transceiver testing
一、Characteristics
条件：S9110A front panel connectors and the M9410A due to the M9155C switch module and cabling.
(interfering signal) for testing the performance of a base station receiver.
the Secondary Transceiver and the S9110A-BK1 front panel RF Out connector.
• The characteristics provided in this data sheet for operation at or below
6 GHz are a subset of the
specifications for the Keysight M9410A PXIe VXT Vector Transceiver module. For the most recent detailed
performance information, refer to the M9410A Data Sheet (publication number.
5992-3331EN). Note that the
performance characteristics in that data sheet apply at the input / output connectors of the M9410A
module, but in the S9110A system, there is approximately
0.25 to 0.5 dB of insertion loss between the
• The S9110A-BK1 system includes both a Primary Transceiver (M9410A PXIe VXT) that generates a
“Wanted” signal and a Secondary Transceiver (M9410A PXIe VXT) that generates a “Blocker” signal
• These RF signals are combined in a hybrid combiner before being routed to the S9110A-BK1 front
panel. In these systems, there is approximately
3 dB of insertion loss between the Primary Transceiver
and the S9110A-BK1 front panel RF Out connector, and there is approximately
18 dB of loss between
• The Sub
6 GHz amplitude characteristics in this data sheet include the effects of the added system
插入损耗
• The M9410A-001 in this S9110A
5G Multi-Band Vector Transceiver is configured with: Option F06
(Frequency Range
380 MHz to 6 GHz), Option B12 (1.2 GHz BW), Option M05 (512 MSa memory)
Option
1EA (High Output Power).
条件：Nominal (nom) Describes the expected mean or average performance, or an attribute whose performance is
by design, such as the 50 Ω connector. This data is measured at room temperature
(approximately 25 °C). Nominal performance is not warranted.
expected performance, such as amplitude drift vs. time. This data is measured at room
temperature (approximately 25 °C). Measured performance is not warranted.
Typical (typ) Describes additional product performance information that is not covered by the product
warranty. It is performance beyond specifications that 95% of the units exhibit with a
95%
confidence level at room temperature (approximately
25 °C). Typical performance does not
include measurement uncertainty. Typical performance is not warranted.
Measured (meas) Describes an attribute measured during the design phase for purposes of communicating
Recommended Best Practices
Set chassis fan to high at environmental temperatures above
45 °C.
S9110A Standard Configurations
This data sheet contains system performance for the S9110A base system that is available in five standard
configurations with multiple input and output connectors. Each configuration is specified with different
μWave / mmWave transceiver frequency ranges
Standard Configuration Frequency Range Option Work with μWave / mmWave Transceiver
适用型号 F43, F49 M1749B
条件：Note: Please refer to figures 1 through 3 below for locations of the referenced connections.
Each S9110A standard configuration has a different set of output and input connectors (ports):
1. The illustration on this page depicts configuration with M1749B mmWave Transceiver. There may be differences in the front panel
• Keysight S9110A-TR1/TN1
5G Multi-Band Vector Transceiver, one channel
• Keysight S9110A-BK1
5G Multi-Band Vector Transceiver TR1 with Blocker
• Keysight S9110A-TR2/TN2
5G Multi-Band Vector Transceiver, two channels
• Option F32: μWave Transceiver Range
10-32 GHz
• Option F43: mmWave Transceiver Range
22.7-43.5 GHz
• Option F49: mmWave Transceiver Range
22.7-49.2 GHz
S9110A Connectors (Ports
1 to 6)
• All S9110A-TR1/TN1 and S9110A-BK1 standard configurations have μWave / mmWave ports on the
μWave / mmWave Transceiver that are RF Tx/Rx 1 and RF Tx/Rx
2
• All S9110A-TR1/TN1 standard configurations have RF Transceiver RF ports RF Out and RF In
• All S9110A-BK1 standard configurations have RF Transceiver RF ports RF Out and RF In
Although output and input ports RF Out and RF In with a Blocker on an S9110A-BK1 have the
same name on the external labeling as ports RF Out and RF In without a Blocker on an S9110A-
TR1, they have different system performance.
The differences are because the S9110A-BK1 has different source system performance than an
S9110A-TR1/TN1. On an S9110A-BK1, the Transmit (Tx) RF Out
380 MHz to 6 GHz, signal path is
routed through a hybrid combiner with additional cabling and switching that combines the RF Out of a
Primary Transceiver (M9410A PXIe VXT), “Wanted” signal, with the RF Out of a Secondary Transceiver
(M9410A PXIe VXT), “Blocker” signal.
The RF In path is not affected by the Blocker on an S9110A-BK1.
• All S9110A-TR2/TN2 standard configurations have two sets of μWave / mmWave ports and two sets RF
ports: o M1742A/M1749B μWave / mmWave Transceiver 1 has ports RF Tx/Rx 1 and RF Tx/Rx 2 o RF Transceiver 1 has ports RF Out and RF In o M1742A/M1749B μWave / mmWave Transceiver 2 has ports RF Tx/Rx 1 and RF Tx/Rx
2
- RF Transceiver
2 has ports RF Out and RF In
Figure 1. S9110A-TR1/TN1 (with F32, F43 or F49 options) 5G Multi-Band Vector Transceiver configuration
1
Figure 2. S9110A-BK1 (with F43 or F49 options)
5G Multi-Band Vector Transceiver TR1 with Blocker configuration
and rear panel connectors of M1742A. For accurate information regarding the illustration of M1742A and M1749B, refer to S9110A
User’s Guide
条件：1. The illustration on this page depicts configuration with M1749B mmWave Transceiver. There may be differences in the front panel
Figure 3. S9110A-TR2/TN2 (with F32, F43 or F49 options) 5G Multi-Band Vector Transceiver configuration
1
and rear panel connectors of M1742A. For accurate information regarding the illustration of M1742A and M1749B, refer to S9110A
矢量信号分析仪 (Rx) 性能
When working with M1749B, the following specs reflect the F49 Option. For the F43 option all instances of
49.2 GHz are limited to 43.5 GHz.
Capture depth
512 MSa
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 32 GHz, settable
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 49.2 GHz, settable
All S9110A standard configurations
RF Transceiver connectors
RF In or RF In
380 to 6000 MHz
信号分析带宽
条件：Center Frequency Maximum Bandwidth (Nominal)
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 10.6 GHz (Center frequency – 10000 MHz) x
2 MHz
10.6 to 31.4 GHz
1.2 GHz
31.4 to 32 GHz (32000 MHz – Center frequency) x
2 MHz
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 24.2 GHz
100 MHz
24.2 to 24.3 GHz
800 MHz
24.3 to 49.2 GHz
1.2 GHz
All S9110A Standard Configurations
RF Transceiver Connectors
RF In or RF In 380 to 550 MHz 100 MHz 550 to 1310 MHz 200 MHz 1310 to 2000 MHz
600 MHz
2000 to 5480 MHz
1200 MHz
5480 to 6000 MHz (6080 MHz – Center frequency) x
2 MHz
频率范围 Settable 输入电平范围
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 32 GHz -100 dBm to +100 dBm
1
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 GHz - 49.2 GHz -100 dBm to +100 dBm
1
All S9110A standard configurations
RF Transceiver connectors
条件：“RF Tx / Rx 1 and RF Tx / Rx 2” section of M1742A and M1749B on page 18, 19.
RF In or RF In 380 to 6000 MHz
-150 dBm to +27 dBm
Half duplex connector (Option HD1, HD2) 380 to 6000 MHz -150 dBm to +27 dBm 1. This is settable input range in instrument software. For actual maximum allowed input level, refer to “Amplitude” specification of
Absolute Amplitude Accuracy (CW Mode)
20 to 35 °C
RF Tx/Rx
1 and
RF Tx/Rx
2
Frequency Range Level Accuracy 10 to 20 GHz –50 dBm to 0 dBm ≤ ± 1.55 dB, ± 0.70 dB typical 20 to 32 GHz –50 dBm to 0 dBm ≤ ± 1.85 dB, ± 0.95 dB typical 25
± 3 °C
RF Tx/Rx
1 and
RF Tx/Rx
2
Frequency Range Level Accuracy 22.7 to 43.5 GHz –50 dBm to –10 dBm ≤ ± 1.90 dB
± 1.20 dB typical
–10 dBm to –5 dBm ≤ ±1.95 dB
± 1.20 dB typical
43.5 to 49.2 GHz –50 dBm to –10 dBm ≤ ± 2.15 dB
± 1.35 dB typical
–10 dBm to –5 dBm ≤ ± 2.05 dB
± 1.30 dB typical
All S9110A standard
RF In or RF In
条件：Frequency Range Level Accuracy (nominal) 380 to 680 MHz –70 to +27 dBm ≤ ± 0.45 dB 680 to 910 MHz –70 to –8 dBm ≤ ± 0.45 dB
–8 to +27 dBm ≤
± 0.50 dB
910 to 1310 MHz –70 to –8 dBm ≤
± 0.55 dB
–8 to +27 dBm ≤
± 0.6 dB
1310 to 2000 MHz –70 to –30 dBm ≤
± 0.6 dB
–30 to +27 dBm ≤
± 0.65 dB
2000 to 3500 MHz –70 to –30 dBm ≤
± 0.7dB
–30 to –8 dBm ≤
± 0.8 dB
–8 to +27 dBm ≤
± 0.6 dB
3500 to 4500 MHz –70 to –30 dBm ≤
± 0.65 dB
–30 to –8 dBm ≤
± 0.70 dB
–8 to +27 dBm ≤
± 0.75 dB
4500 to 5400 MHz –70 to –30 dBm ≤
± 0.90 dB
–30 to –8 dBm ≤
± 0.95 dB
–8 to +27 dBm ≤
± 0.85 dB
5400 to 6000 MHz –70 to –30 dBm ≤
± 1.20 dB
–30 to –8 dBm ≤
± 1.15 dB
–8 to +27 dBm ≤
± 1.05 dB
Half duplex connector (Option HD1, HD2,
条件：Frequency Range Level Accuracy (Nominal) 380 to 910 MHz –70 to –30 dBm ≤ ± 0.5 dB
–30 to –8 dBm ≤
± 0.35 dB
–8 to +27 dBm ≤
± 0.45 dB
910 to 1310 MHz –70 to –30 dBm ≤
± 0.60 dB
–30 to –8 dBm ≤
± 0.45 dB
–8 to +27 dBm ≤
± 0.55 dB
1310 to 3500 MHz –70 to –30 dBm ≤
± 0.75 dB
–30 to –8 dBm ≤
± 0.70 dB
–8 to +27 dBm ≤
± 0.65 dB
3500 to 4500 MHz –70 to –30 dBm ≤
± 0.50 dB
–30 to +27 dBm ≤
± 0.80 dB
4500 to 5400 MHz –70 to –30 dBm ≤
± 1.15 dB
–30 to –8 dBm ≤
± 0.95 dB
–8 to +27 dBm ≤
± 1.00 dB
5400 to 6000 MHz –70 to –30 dBm ≤
±1.35 dB
–30 to –8 dBm ≤
± 1.10 dB
–8 to +27 dBm ≤
± 1.05 dB
Linearity (CW Mode) (Reference Power Level is
–5 dBm)
条件：Frequency Range Input Level Linearity (Nominal) 10 to 32 GHz –50 to –10 dBm ≤ ± 1.0 dB
RF Tx/Rx
1 and
RF Tx/Rx
2
–10 to 0 dBm ≤
± 0.7 dB
条件：Frequency Range Input Level Linearity (Nominal) 24.0 to 49.2 GHz –50 to –20 dBm ≤ ± 1.0 dB
RF Tx/Rx
1 and
RF Tx/Rx
2
–20 to –5 dBm ≤
± 0.75 dB
条件：Frequency Range Input Level Scale Fidelity (Nominal) 10 to 32 GHz –50 to –40 dBm ≤ ± 0.5 dB
RF Tx/Rx
1 and
RF Tx/Rx
2
–40 to 0 dBm ≤
± 0.3 dB
条件：Frequency Range Input Level Scale Fidelity (Nominal) 24.0 to 49.2 GHz –50 to –40 dBm ≤ ± 0.6 dB
RF Tx/Rx
1 and
RF Tx/Rx
2
–40 to –5 dBm ≤
± 0.3 dB
中频平坦度
条件：M1742A: The center frequency can be set > than 31.4 GHz, but bandwidth will be reduced as 32 GHz is approached.
M1749B: The center frequency can be set > than 48.6 GHz, but bandwidth will be reduced as
49.2 GHz is
RF Tx/Rx
1 and
RF Tx/Rx
2
10.6 to 31.4 GHz 1200 MHz
± 1.0 dB
RF Tx/Rx
1 and
RF Tx/Rx
2
22.7 to 24.2 GHz 100 MHz
± 1.25 dB
24.2 to 24.3 GHz 800 MHz
± 1.25 dB
24.3 to 48.6 GHz 1200 MHz
± 1.25 dB
All S9110A standard
RF In or RF In
条件：Frequency Range Bandwidth Flatness (Nominal) 380 to 6000 MHz 100 MHz ± 1.1 dB 200 MHz ± 1.35 dB 400 MHz ± 1.25 dB
800 MHz
± 1.45 dB
1200 MHz
± 1.8 dB
误差矢量幅度 (EVM)
Test signal: FR1: 5G NR, 30 kHz subcarrier spacing
256 QAM
Test signal: FR2: 5G NR, 120 kHz subcarrier spacing
256 QAM
RF Tx/Rx
1 and
RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
100 MHz BW ≤ –37 dB
–40 to –30 dBm input power
≤ –45 dB
–30 to 0 dBm input power
400 MHz BW ≤ –32 dB
–40 to –30 dBm input power
≤ –40 dB
–30 to –20 dBm input power
≤ –44 dB
–20 to 0 dBm input power
8 x 100 MHz ≤ –28 dB
–40 to –30 dBm input power
≤ –37 dB
–30 to –20 dBm input power
≤ –39 dB
–20 to 0 dBm input power
条件：Frequency Range 24.5 to 48.7 GHz EVM (Nominal)
RF Tx/Rx
1 and
RF Tx/Rx
2
100 MHz BW ≤ –37 dB
–40 to –30 dBm input power
≤ –43 dB
–30 to –5 dBm input power
400 MHz BW ≤ –32 dB
–40 to –25 dBm input power
≤ –42 dB
–25 to –5 dBm input power
8 x 100 MHz ≤ –30 dB
–40 to –25 dBm input power
≤ –42 dB
–25 to –5 dBm input power
All S9110A standard
RF In or RF In
FR1 (Sub
6 GHz) EVM (Nominal)
100 MHz BW signal at 5000 MHz <
0.3% at –10 dBm input power
测试信号: Custom DFT–S OFDM
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
1000 MHz BW ≤ –27 dB
–40 to –35 dBm input power
≤ –32 dB
–35 to –30 dBm input power
≤ –36 dB
–30 to –25 dBm input power
≤ –39 dB
–25 to –20 dBm input power
≤ –41 dB
–20 to –15 dBm input power
≤ –42 dB
–15 to 0 dBm input power
Test signal: DVB–S2X
Equalizer filter length
51
EVM normalization reference: Reference RMS
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
500 MHz BW ≤ –30 dB
–40 to –35 dBm input power
≤ –35 dB
–35 to –30 dBm input power
≤ –40 dB
–30 to –25 dBm input power
≤ –43 dB
–25 to –20 dBm input power
≤ –44 dB
–20 to 0 dBm input power
Adjacent Channel Leakage Ration (ACLR)
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz ACLR (Nominal)
Frequency Range 22.7 to 48.6 GHz ACLR (Nominal)
100 MHz BW ≤ –51 dBc
–40 to 0 dBm input power
400 MHz BW ≤ –42 dBc
–40 to 0 dBm input power
8 x 100 MHz ≤ –40 dBc
–40 to 0 dBm input power
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
100 MHz BW ≤ –43 dBc
–10 to –5 dBm input power
≤ –50 dBc
–30 to –10 dBm input power
≤ –47 dBc
–40 to –30 dBm input power
400 MHz BW ≤ –44 dBc
–30 to –5 dBm input power
≤ –41 dBc
–40 to –30 dBm input power
8 x 100 MHz ≤ –42 dBc
–30 to –5 dBm input power
≤ –37 dBc
–40 to –30 dBm input power
All S9110A standard configurations
RF In or RF In
FR1 (Sub
6 GHz) ACLR (Nominal)
100 MHz BW signal at 5000 MHz <
–63 dBc at 0 dBm input power
ARB depth
512 MSa
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 32 GHz, settable
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 49.2 GHz, settable
All S9110A standard configurations RF
Transceiver connectors
RF Out or RF Out
380 to 6000 MHz
信号发生带宽
条件：Center Frequency Maximum Bandwidth (Nominal)
Center Frequency Maximum Bandwidth (Nominal)
Center Frequency Maximum Bandwidth (Nominal)
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 10.6 GHz (Center frequency – 10000 MHz) x
2 MHz
10.6 to 31.4 GHz
1.2 GHz
31.4 to 32 GHz (32000 MHz – Center frequency) x
2 MHz
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 24.2 GHz
100 MHz
24.2 to 24.3 GHz
800 MHz
24.3 to 49.2 GHz
1.2 GHz
All S9110A standard configurations
RF Transceiver connectors
RF Out or RF Out 380 to 550 MHz 100 MHz 550 to 1310 MHz 200 MHz 1310 to 2000 MHz
600 MHz
2000 to 5480 MHz
1200 MHz
5480 to 6000 MHz (6080 MHz – Center frequency) x
2 MHz
频率范围最大值幅度
M1742A μWave connectors
RF Tx/Rx
1
10 to 32 GHz CW
–70 dBm to +10 dBm
Modulated
–40 dBm to +5 dBm
M1742A μWave connectors
RF Tx/Rx
2
10 to 32 GHz CW
–70 dBm to +8 dBm
Modulated
–40 dBm to +3 dBm
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 49.2 GHz CW
–70 dBm to +10 dBm
Modulated
–40 dBm to +5 dBm
S9110A option TR1 or TR2
RF transceiver connectors
RF Out 380 to 6000 MHz CW
–120 dBm to +20 dBm
Modulated: Depends on Crest Factor
S9110A option BK1
CW: Primary Transceiver
"wanted" signal
–120 dBm to +7 dBm
Secondary Transceiver
"Blocker: signal
–120 dBm to +2 dBm
Modulated: Depends on Crest Factor
Option HD1 (RFHD), HD2, HDB 380 to 6000 MHz CW
–120 dBm to +5 dBm
绝对幅度精度 (CW 模式)
Frequency Range Level Accuracy
20 to 35°C
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 22 GHz –50 to 0 dBm ≤ ± 1.90 dB
± 0.85 dB typical
22 to 27 GHz –50 to 0 dBm ≤ ± 2.15 dB
± 1.05 dB typical
27 to 29 GHz –50 to 0 dBm ≤ ± 2.45 dB
± 1.30 dB typical
29 to 32 GHz –50 to 0 dBm ≤ ± 3.20 dB
± 1.80 dB typical
25±3°C
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 43.5 GHz –50 to –10 dBm ≤ ± 2.20 dB
± 1.35 dB typical
–10 to –5 dBm ≤ ± 2.05 dB
± 1.30 dB typical
43.5 to 49.2 GHz –50 to –10 dBm ≤ ± 2.70 dB
± 1.75 dB typical
–10 to –5 dBm ≤ ± 2.25 dB
±1.40 dB typical
S9110A Option TR1 or TR2 RF
RF Out
条件：Frequency Range Level Accuracy (Nominal) 380 to 550 MHz ≤ +20 to –80 dBm ≤ ± 0.55 dB
≤ –80 to –120 dBm ≤
± 0.80 dB
550 to 2000 MHz ≤ +20 to –15 dBm ≤
± 0.70 dB
≤ –15 to –80 dBm ≤
± 0.55 dB
≤ –80 to –110 dBm ≤
± 0.85 dB
2000 to 3900 MHz ≤ +20 to –15 dBm ≤
± 0.60 dB
≤ –15 to –80 dBm ≤
± 0.70 dB
≤ –80 to –110 dBm ≤
± 1.30 dB
3900 to 5700 MHz ≤ +20 to –15 dBm ≤
± 0.80 dB
≤ –15 to –80 dBm ≤
± 1.10 dB
≤ –80 to –100 dBm ≤
± 1.20 dB
5700 to 6000 MHz ≤ +20 to –15 dBm ≤
± 0.80 dB
≤ –15 to –80 dBm ≤
± 1.10 dB
≤ –80 to –90 dBm ≤
± 1.20 dB
S9110A Option BK1 RF transceiver
RF Out
Primary transceiver, “Wanted” signal 380 to 550 MHz ≤ +17 to –83 dBm ≤
± 0.55 dB
≤ –83 to –120 dBm ≤
± 0.80 dB
550 to 2000 MHz ≤ +17 to –18 dBm ≤
± 0.70 dB
≤ –18 to –83 dBm ≤
± 0.55 dB
≤ –83 to –113 dBm ≤
± 0.85 dB
2000 to 3900 MHz ≤ +17 to –18 dBm ≤
± 0.60 dB
≤ –18 to –83 dBm ≤
± 0.70 dB
≤ –83 to –113 dBm ≤
± 1.30 dB
3900 to 5700 MHz ≤ +17 to –18 dBm ≤
± 0.80 dB
≤ –18 to –83 dBm ≤
± 1.10 dB
≤ –83 to –103 dBm ≤
± 1.20 dB
5700 to 6000 MHz ≤ +17 to –18 dBm ≤
± 0.80 dB
≤ –18 to –83 dBm ≤
± 1.10 dB
≤ –83 to –93 dBm ≤
± 1.20 dB
S9110A Option BK1 RF
RF Out
条件：Frequency Range Level Accuracy (Nominal) 380 to 550 MHz ≤ +5 to –80 dBm ≤ ± 0.50 dB
Frequency Range Input Level Linearity (Nominal)
Secondary transceiver, “Blocker” signal 380 to 550 MHz ≤ +2 to –98 dBm ≤
± 0.55 dB
≤ –98 to –120 dBm ≤
± 0.80 dB
550 to 2000 MHz ≤ +2 to –33 dBm ≤
± 0.70 dB
≤ –33 to –98 dBm ≤
± 0.55 dB
≤ –98 to –120 dBm ≤
± 0.85 dB
2000 to 3900 MHz ≤ +2 to –33 dBm ≤
± 0.60 dB
≤ –33 to –98 dBm ≤
± 0.70 dB
≤ –98 to –120 dBm ≤
± 1.30 dB
3900 to 5700 MHz ≤ +2 to –33 dBm ≤
± 0.80 dB
≤ –33 to –98 dBm ≤
± 1.10 dB
≤ –98 to –118 dBm ≤
± 1.20 dB
5700 to 6000 MHz ≤ +2 to –33 dBm ≤
± 0.80 dB
≤ –33 to –98 dBm ≤
± 1.10 dB
≤ –98 to –108 dBm ≤
± 1.20 dB
Half duplex connector (Option HD1, HD2, HDB)
≤ –80 to –90 dBm ≤
± 0.65 dB
550 to 2000 MHz ≤ +5 to –15 dBm ≤
± 0.55 dB
≤ –15 to –80 dBm ≤
± 0.60 dB
≤ –80 to –90 dBm ≤
± 0.75 dB
2000 to 3900 MHz ≤ +5 to –15 dBm ≤
± 0.50 dB
≤ –15 to –80 dBm ≤
± 0.80 dB
≤ –80 to –90 dBm ≤
± 1.10 dB
3900 to 6000 MHz ≤ +5 to –15 dBm ≤
± 0.90 dB
≤ –80 to –90 dBm ≤
± 1.25 dB
Linearity (CW Mode) (Reference Power Level is
–5 dBm)
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10 to 32 GHz –50 to 0 dBm ≤
± 0.9 dB
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
22.7 to 49.2 GHz –50 to –30 dBm ≤
± 1.5 dB
–30 to –5 dBm ≤
± 1.0 dB
中频平坦度
When working with M1749B, the center frequency can be set > than
48.6 GHz, but bandwidth will be reduced as
49.2 GHz is approached.
When working with M1742A, the center frequency can be set > than
31.4 GHz, but bandwidth will be reduced as
32 GHz is approached.
频率范围带宽 Flatness (典型值)
M1742A μWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
10.6 to 31.4 GHz 1200 MHz
± 1.2 dB
M1749B mmWave connectors
RF Tx/Rx 1 and RF Tx/Rx
2
24.3 to 48.6 GHz 1200 MHz
± 1.5 dB
All S9110A standard configurations
RF Transceiver connectors
RF Out or RF Out 380 to 6000 MHz 100 MHz ± 0.5 dB 200 MHz ± 0.8 dB 400 MHz
± 1.0 dB
800 MHz
± 1.0 dB
1200 MHz
± 1.5 dB
误差矢量幅度 (EVM)
Test signal for FR1: 5G NR, 30 kHz subcarrier spacing
256 QAM
Test signal for FR2: 5G NR, 120 kHz subcarrier spacing
256 QAM
M1742A μWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
Frequency Range 22.7 to 49.2 GHz EVM (Nominal)
100 MHz BW ≤ –37 dB
–40 to –30 dBm input power
≤ –45 dB
–30 to 0 dBm input power
400 MHz BW ≤ –32 dB
–40 to –30 dBm input power
≤ –40 dB
–30 to –20 dBm input power
≤ –44 dB
–20 to 0 dBm input power
8 x 100 MHz ≤ –28 dB
–40 to –30 dBm input power
≤ –37 dB
–30 to –20 dBm input power
≤ –39 dB
–20 to 0 dBm input power
M1749B mmWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
100 MHz BW ≤ –33 dB
–40 to –30 dBm input power
≤ –42 dB
–30 to –5 dBm input power
400 MHz BW ≤ –28 dB
–40 to –30 dBm input power
≤ –37 dB
–30 to –25 dBm input power
≤ –41 dB
–25 to –5 dBm input power
8 x 100 MHz ≤ –30 dB
–35 to –25 dBm input power
≤ –38 dB
–25 to –5 dBm input power
All S9110A standard
RF Out or RF Out
FR1 (Sub
6 GHz) EVM (Nominal)
100 MHz BW signal at 4000 MHz <
0.4% at –10 dBm output power
100 MHz BW signal at 5000 MHz <
0.6% at –10 dBm output power
测试信号: Custom DFT–S OFDM
M1742A μWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
1000 MHz ≤ –27 dB
–40 to –35 dBm input power
≤ –32 dB
–35 to –30 dBm input power
≤ –36 dB
–30 to –25 dBm input power
≤ –39 dB
–25 to –20 dBm input power
≤ –41 dB
–20 to –15 dBm input power
≤ –42 dB
–15 to 0 dBm input power
Test Signal: DVB–S2X
Equalizer filter length
51
EVM Normalization Reference: Reference RMS
M1742A μWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
Measured in loopback
条件：Frequency Range 10.6 to 31.4 GHz EVM (Nominal)
500 MHz ≤ –30 dB
–40 to –35 dBm input power
≤ –35 dB
–35 to –30 dBm input power
≤ –40 dB
–30 to –25 dBm input power
≤ –43 dB
–25 to –20 dBm input power
≤ –44 dB
–20 to 0 dBm input power
Adjacent Channel Leakage Ration (ACLR)
条件：Frequency Range 10.6 to 31.4 GHz ACLR (Nominal)
Frequency range 22.7 to 49.2 GHz ACLR (nominal)
Test signal for FR1: 5G NR, 30 kHz subcarrier spacing
256 QAM
Test signal for FR2: 5G NR, 120 kHz subcarrier spacing
256 QAM
M1742A μWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
Measured in loopback 100 MHz BW ≤ –51 dBc, –40 to 0 dBm input power 400 MHz BW ≤ –42 dBc, –40 to 0 dBm input power 8 x 100 MHz ≤ –40 dBc
–40 to 0 dBm input power
M1749B mmWave connectors
RF Tx/Rx
1 and
RF Tx/Rx
2
100 MHz BW ≤ –48 dBc
–25 to –5 dBm input power
≤ –43 dBc
–40 to –25 dBm input power
400 MHz BW ≤ –43 dBc
–30 to –5 dBm input power
≤ –42 dBc
–35 to –30 dBm input power
≤ –40 dBc
–40 to –35 dBm input power
8 x 100 MHz ≤ –37 dBc
–30 to –5 dBm input power
≤ –36 dBc
–40 to –30 dBm input power
All S9110A standard
RF Out or RF Out
Note: The S9110A–BK1
systems include both a
Primary Transceiver (M9410A
FR1 (Sub
6 GHz) ACLR (nominal)
100 MHz BW signal at 4000 MHz <
–57 dBc at 0 dBm input power
100 MHz BW signal at 5000 MHz <
–55 dBc at 0 dBm input power
二、环境规格
S9110A
5G multi–band vector
For indoor use only
Altitude up to 6,561.68 ft (2,000 m)
Operating temperature
15 to 35 °C maximum relative humidity (non–
condensing)
85% RH
电压和频率功耗
S9110A base system (PXIe
chassis with modules, rugged panel, and cables) 100 / 120 V, 50 / 60 Hz 220 / 240 V
50 / 60 Hz
1200 W Max (lower range)
1300 W Max (upper range)
M1742A 120 VAC (via supplied
0950-6166
AC / DC adapter)
103 W
M1749B 120 VAC (via supplied
0950-6166
AC / DC adapter)
105 W
S9110A base system Height
197.8 mm (7.79 in); with feet installed
Width
449.5 mm (17.70 in); with rugged panel
Depth 568.9 mm (22.40 in); with rugged panel (from back bumper to front
M1742A Height
70 mm (2.76 in)
Width
175 mm (6.89 in)
Depth
345 mm (13.58 in)
M1749B Height
70 mm (2.76 in)
Width
175 mm (6.89 in)
Depth
345 mm (13.58 in)
S9101A rack space 2 x 2U x
1 rack width
S9110A–TR1/TN1 base system
20.4 kg (45.0 lbs)
S9110A–TR2/TN2 base system
22.6 kg (49.8 lbs)
S9110A–BK1 base system
24.0 kg (53.0 lbs)
M1742A
3.5 kg (7.7 lbs)
M1749B
3.5 kg (7.7 lbs)
远程编程
Interface LAN RJ-45
Standard
1–year warranty
校准周期
The recommended calibration cycle is one year; calibration services are available through Keysight service
LAN, Display Port, and USB Connectors, M9038A
PXIe Embedded Controller
LAN
1 and LAN2 (TCP / IP Interface)
Connectors (Ethernet) One
10 / 100 / 1000 BASE–T (RJ–45)
One
100 / 1000 / 10 GB BASE–T (RJ–45)
Connectors (video) One, DisplayPort++
USB
2.0 and 3.0
Connectors Two, USB
2.0 (Type A)
Connectors Two, USB
3.0 (Type A)
S9110A Base System Front Panel
(（含） Rugged 前面板面板)
条件：Accuracy ± 16 Hz, typical, within 1 year since last calibration, from 20 to 30°C.
Frequency Reference
100 MHz Ref Out and 10 MHz Ref In/Out Connectors Above the Rugged Front Panel
100 MHz Ref Out, Frequency Reference (If Available)
Refer to the Keysight M9300A PXIe Frequency Reference Data
Sheet · details 开精度, 老化率, 和稳定度
Recommended calibration cycle
1 year
连接器 BNC (f)
条件：Accuracy ± 1.6 Hz, typical, within 1 year since last calibration, from 20 to 30°C.
Amplitude
9.5 dBm (nominal)
10 MHz Ref Out, Frequency Reference
Refer to the Keysight M9300A PXIe Frequency Reference Data
Sheet · details 开精度, 老化率, 和稳定度
Recommended calibration cycle
1 year
连接器 BNC (f)
Amplitude
9.5 dBm (nominal)
10 MHz Ref In
Connects behind rugged panel to M9300A PXIe Reference Ref In and locks to another reference with a value from
1 to 110 MHz.
连接器 BNC (f)
条件：Input amplitude 0 to 10 dBm (nominal)
Frequency
1 MHz to 110 MHz, sine wave
Lock range
± 1 ppm (nominal)
Impedance
50 Ω (nominal)
Trig 1 and Trig
2 Connectors Above the Rugged Front Panel
Trig 1 and Trig
2
Connects behind rugged panel to M9019A PXIe Chassis Trig 1 and Trig
2. These two front panel trigger
connectors (Trig 1 and Trig 2) above the rugged front panel connect to the PXI [0:7] backplane trigger bus in the
M9019A chassis and can be configured as Input or Output.
Direction control Input or output (configurable)
Output level 3.3 V CMOS (TTL compatible
5 V tolerant)
Output impedance
50 Ω (typical)
Output trigger source PXI_Trig0 - PXI_Trig7 (Segment
2 or 3)
Input level 3.3 V CMOS (TTL compatible
5 V tolerant)
Input impedance
3 kΩ (typical)
Input trigger destination PXI_Trig0 - PXI_Trig7 (Segment
2 or 3)
Input threshold
1.65 V (typical)
Minimum swing
250 mV (typical)
Minimum pulse width
100 ns (typical)
Transceiver Connectors, RF
380 MHz to 6 GHz on the Rugged Front Panel
RF In
条件：Connector Type-N (f), 50 Ω (nominal)
Frequency range
380 MHz to 6 GHz
Amplitude 0 VDC
+27 dBm maximum safe input power
RF Out
条件：Connector Type-N (f), 50 Ω (nominal)
Connector Type-N (f), 50 Ω (nominal)
Frequency range
380 MHz to 6 GHz
Amplitude 0 VDC
+30 dBm maximum applied reverse input power
Half duplex, Option HD1, HD2
Frequency range
380 MHz to 6 GHz
Amplitude 0 VDC
+30 dBm maximum safe input power
Trig 1 and Trig
2
Direction control 输入或输出
条件：Input impedance 1 kΩ or 50 Ω nominal
IF In, IF Out, and LO / Pwr / Ctrl Out connect to the M1742A or M1749B.
Input level Range
0 to +3.3V
Output impedance
50 Ω nominal
Output Level
+3.3V LVTTL, LVDS
Transceiver Connectors, Head μWave / mmWave
10 to 32 GHz or 22.7 to 49.2 GHz on the Rugged Front Panel
IF In
条件：Connector Type-N (f), 50 Ω (nominal)
Frequency range
380 MHz to 6 GHz
Amplitude ± 10 VDC
+33 dBm maximum
IF Out
条件：Connector Type-N (f), 50 Ω (nominal)
Connector Type-N (f), 50 Ω (nominal)
Frequency range
380 MHz to 6 GHz
Amplitude ± 10 VDC
+33 dBm maximum
LO1 and LO2 Out
Frequency range
380 MHz to 6 GHz
USB Control
条件：Connector Type-N (f), 50 Ω (nominal)
S9110A is only provided for the frequency bands called out in this Data Sheet.
Connector 2.4 mm (f), 50 Ω (nominal)
Connector USB
2.0 (Type A)
4.8 GHz Out (Not Used with F43 / F49 Options)
M1742A μWave Transceiver
Although the M1742A μWave Transceiver is operational from 10 to 32 GHz, the performance information for the
RF Tx / Rx 1 and RF Tx / Rx
2
These ports can be configured either to supply a μWave signal to a Device Under Test (DUT) or to
receive a μWave signal from a DUT
Amplitude 30 VDC
+25 dBm maximum input
Tx LO In / Rx LO In
Connector
3.5 mm (f)
Ref In
Connector
3.5 mm (f)
Ref Out
Connector
3.5 mm (f)
连接器 USB micro-B (f)
Trig 1 / Trig
2
连接器 SMB (m)
Control (Not Used with S9110A)
条件：for the S9110A is only provided for the frequency bands called out in this Data Sheet.
Connector 2.4 mm (f), 50 Ω (nominal)
Connector
19 V DC power supply input
M1749B mmWave Transceiver
Although the M1749B mmWave Transceiver is operational from 22.7 to 49.2 GHz, the performance information
RF Tx / Rx 1 and RF Tx / Rx
2
These ports can be configured either to supply a mmWave signal to a Device Under Test (DUT) or to
receive a mmWave signal from a DUT
Amplitude 10 VDC
+10 dBm maximum input
LO In
Connector
3.5 mm (f)
9.6 GHz In
Connector
3.5 mm (f)
9.6 GHz Out
Connector
3.5 mm (f)
连接器 USB micro-B (f)
Trig 1 / Trig
2
连接器 SMB (m)
Control (Not Used with S9110A)
Connector
19 V DC power supply input
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
