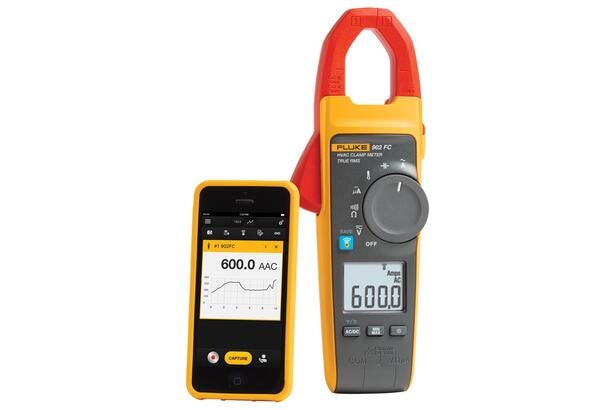

    Fluke 902 FC True-RMS HVAC Clamp Meter helps HVAC technicians work more efficiently on the work site. The Fluke 902 FC Clamp Meter, with Fluke Connect wireless connectivity, can help HVAC technicians improve productivity in the fi。
    • «
    • 1

    393 FC/IRRSOL Solar Kit 999.9 A光伏测试组合套件|福禄克 (在产)

    The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely co。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 钳形表

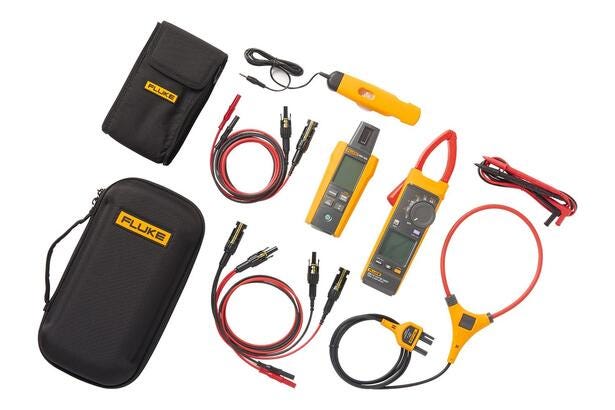

    393 FC/IRRSOL Solar Kit 光伏测试组合套件

    1000 V · 1500 V · 2 AA IEC LR6 alkaline · 20 minutes · 999.9 A · 0.1 A
    1000 V
    AC
    1500 V
    DC
    2 AA IEC LR6 alkaline
    Batteries
    20 minutes
    Automatic Power Off
    999.9 A
    Range
    0.1 A
    Resolution
    产品定位

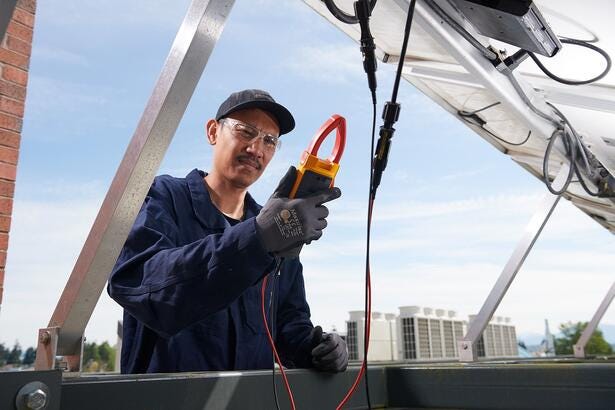

    The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely connect the Solar PV test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array. The inline capabilities of the Solar PV PVLEAD3 leads allow the system to remain online and generating power while testing without needing to pierce the line. Use the IRR1-SOL to obtain the amount of solar irradiance necessary to calculate the IV curve of the power output. Validate that the panel or string of panels are outputting the correct voltage.

    Key functions of the solar clamp meter, irradiance meter and Solar PV test leads:

    核心参数
    Maximum voltage between any Terminal and Earth Ground
    · AC：1000 V
    · DC：1500 V
    · Batteries：2 AA IEC LR6 alkaline
    · Display：Dual display with backlight
    · Automatic Power Off：20 minutes
    精度
    · Temperature Coefficients
    – Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
    AC Current: Jaw
    · Range：999.9 A
    功能与特点
    · This product is eligible for a promotion. Learn more
    · Measure safely with CAT III 1500 V rated clamp meter
    · Thin jaw for access to cables in crowded combiner boxes
    · Work efficiently with dc power measurement, audio polarity and visual continuity
    · Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles

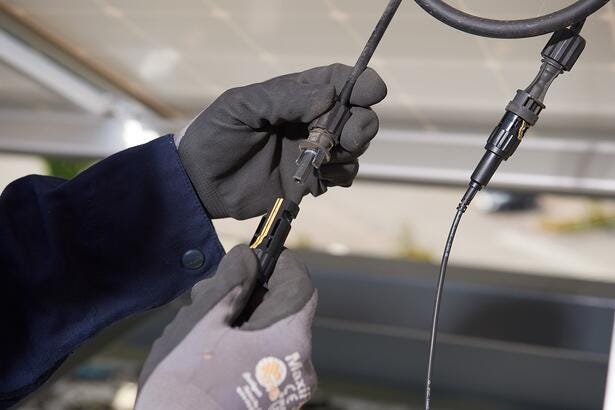

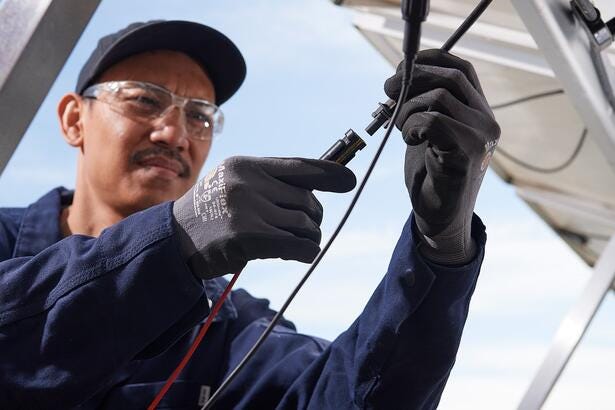

    · Solar PV test lead sets are designed for use with solar clamp meters that accept 4mm banana plugs, rated to CAT III 1000 V / CAT IV 600 V
    典型应用
    · 电气安全检测
    · 现场维护
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 solar-tools-393-irrsol-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 钳形表

    393 FC/IRRSOL Solar Kit 光伏测试组合套件 · 详细指标

    1000 V · 1500 V · 2 AA IEC LR6 alkaline · 20 minutes · 999.9 A · 0.1 A
    产品简介

    The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is an industrial clamp meter designed for solar photovoltaic (PV) installation technicians and maintenance professionals who work in high voltage dc environments. Safely connect the Solar PV test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array. The inline capabilities of the Solar PV PVLEAD3 leads allow the system to remain online and generating power while testing without needing to pierce the line. Use the IRR1-SOL to obtain the amount of solar irradiance necessary to calculate the IV curve of the power output. Validate that the panel or string of panels are outputting the correct voltage.

    完整技术指标
    Maximum voltage between any Terminal and Earth Ground
    · AC：1000 V
    · DC：1500 V
    · Batteries：2 AA IEC LR6 alkaline
    · Display：Dual display with backlight
    · Automatic Power Off：20 minutes
    精度
    · Temperature Coefficients
    – Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
    AC Current: Jaw
    · Range：999.9 A
    · Resolution：0.1 A
    · Accuracy：2 % + 5 digits (10 Hz to 100 Hz)
    · ：2.5 % + 5 digits (100 Hz to 500 Hz)
    · Crest Factor (50/60 Hz)：2.5 @600.0 A
    · ：3.0 @500.0 A
    · ：1.42 @999.9 A
    · ：Add 2 % for C.F. >2
    AC Current: Flexible Current Probe
    · Range：999.9 A
    · ：2500 A
    · Resolution：0.1 A (≤999.9 A)
    · ：1 A (≤2500 A)
    · Accuracy：3 % RD + 5 digits (10 Hz to 500 Hz)
    · Crest Factor (50/60Hz)：2.5 @1400 A
    · ：3.0 @1100 A
    · ：1.42@2500 A
    · ：Add 2 % for C.F. >2
    Position Sensitivity
    · Distance from Optimum i2500-10 Flex：i2500-18 Flex；Error
    · A
    – 0.5 in (12.7 mm)
    – 1.4 in (35.6 mm)
    – ±0.5 %
    · B
    – 0.8 in (20.3 mm)
    – 2.0 in (50.8 mm)
    – ±1.0 %
    · C
    – 1.4 in (35.6 mm)
    – 2.5 in (63.5 mm)
    – ±2.0 %
    DC Current
    · Range：999.9 A
    · Resolution：0.1 A
    · Accuracy：2 % RD + 5 digits [1]
    ·
    – [1] When using the ZERO (B) function to compensate for offsets.
    AC Voltage
    · Range：600.0 V
    · ：1000 V
    · Resolution：0.1 V (≤600.0 V)
    · ：1 V (≤1000 V)
    · Accuracy：1 % RD + 5 digits (20 Hz to 500 Hz)
    DC Voltage
    · Range：600.0 V
    · ：1500 V
    · Resolution：0.1 V (≤600.0 V)
    · ：1 V (≤1500 V)
    · Accuracy：1 % RD + 5 digits
    mV dc
    · Range：500.0 mV
    · Resolution：0.1 mV
    · Accuracy：1 % RD + 5 digits
    Amps Frequency: Jaw
    · Range：5.0 Hz to 500.0 Hz
    · Resolution：0.1 Hz
    · Accuracy：0.5 % RD + 5 digits
    · Trigger Level：5 Hz to 10 Hz, ≥10 A
    · ：10 Hz to 100 Hz, ≥5 A
    · ：100 Hz to 500 Hz, ≥10 A
    Amps Frequency: Flexible Current Probe
    · Range：5.0 Hz to 500.0 Hz
    · Resolution：0.1 Hz
    · Accuracy：0.5 % RD + 5 digits
    · Trigger Level：5 Hz to 20 Hz, ≥25 A
    · ：20 Hz to 100 Hz, ≥20 A
    · ：100 Hz to 500 Hz, ≥25 A
    Voltage Frequency
    · Range：5.0 Hz to 500.0 Hz
    · Resolution：0.1 Hz
    · Accuracy：0.5 % RD + 5 digits
    · Trigger Level：5 Hz to 20 Hz, ≥5 V
    · ：20 Hz to 100 Hz, ≥5 V
    · ：100 Hz to 500 Hz, ≥10 V
    DC Power
    · Range：600.0 kVA (600.0 V dc range)
    · ：1500 kVA (1500 V dc range)
    · Resolution：0.1 kVA
    · ：1 kVA
    · Accuracy：2 % RD + 2.0 kVA
    · ：2 % RD + 20 kVA
    Resistance
    · Range：600.0 Ω
    · ：6000 Ω
    · ：60.00 kΩ
    · Resolution：0.1 Ω (≤600.0 Ω)
    · ：1 Ω (≤6000 Ω)
    · ：0.01 kΩ (≤60.00 kΩ)
    · Accuracy：1 % RD + 5 digits
    Capacitance
    · Range：100.0 μF
    · ：1000 μF
    · Resolution：0.1 μF (≤100.0 μF)
    · ：1 μF (≤1000 μF)
    · Accuracy：1 % RD + 5 digits
    · Inrush Trigger Level：5 A
    Mechanical
    · Size (L x W x H)：281 mm x 84 mm x 49 mm
    · Weight (with batteries)：520 g
    · Jaw Opening：34 mm
    · Flexible Current Probe Diameter：7.5 mm
    Flexible Current Probe Cable Length
    · (head to electronics connector)：1.8 m
    环境条件
    · Operating Temperature：-10 °C to 50 °C
    · Storage Temperature：-40 °C to 60 °C
    · Operating Humidity：Non condensing ( < 10°C)
    · ：≤90 % RH (at 10 °C to 30 °C)
    · ：≤75 % RH (at 30 °C to 40 °C)
    · ：≤45 % RH (at 40 °C to 50 °C)
    · Operating Altitude：2000 m
    · Storage Altitude：12 000 m
    · Ingress Protection (IP) Rating：IEC 60529: IP54 non-operating
    Electromagnetic Compatibility (EMC)
    · International
    – IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
    ·
