    Fluke Corporation · 钳形表

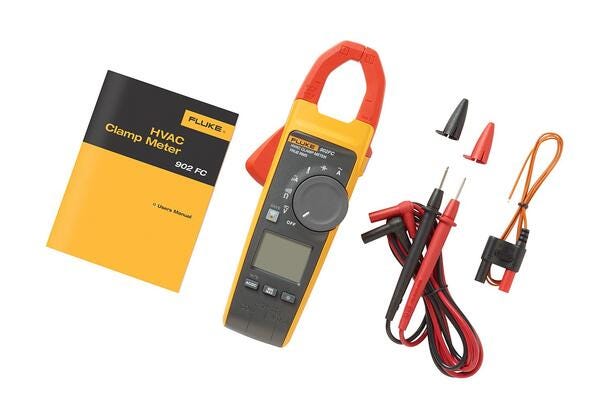

    902 FC 暖通空调钳形表

    0.1 A · 2.0% ±5 digit (45-65 Hz) · 2.5% ±5 digit (65-400 Hz) · 600.0 A · 0.1 V
    0.1 A
    A ac (via Jaw) Resolution
    2.0% ±5 digit (45-65 Hz)
    A ac (via Jaw) Accuracy
    2.5% ±5 digit (65-400 Hz)
    A ac (via Jaw) Accuracy
    600.0 A
    A ac (via Jaw) Range
    0.1 V
    V ac Resolution
    1.5% ±5 digits
    V ac Accuracy
    产品定位

    Fluke 902 FC True-RMS HVAC Clamp Meter helps HVAC technicians work more efficiently on the work site.

    The Fluke 902 FC Clamp Meter, with Fluke Connect wireless connectivity,

    can help HVAC technicians improve productivity in the field. The rugged dual-rated CAT III 600 V,

    CAT IV 300 V meter equips you to perform many essential HVAC system measurements: microamps for testing pilot light sensors;

    resistance up to 60 kΩ; AC current and AC/DC voltage; capacitance; and contact temperature,

    all with just one tool. Plus its small form factor makes it easy to hang on to and navigate in tight work spaces.

    核心参数
    A ac (via Jaw)
    · A ac (via Jaw) Resolution：0.1 A
    · A ac (via Jaw) Accuracy：2.0% ±5 digit (45-65 Hz)
    · A ac (via Jaw) Accuracy：2.5% ±5 digit (65-400 Hz)
    · A ac (via Jaw) Range：600.0 A
    · A ac (via Jaw) Crest Factor (50Hz or 60Hz)
    – 2.5 MIN@220 A > 1.4 MIN@600 A Add 2% for CF>400 A
    · V ac：Crest Factor (50Hz or 60Hz)
    · V ac Resolution：0.1 V
    · V ac Accuracy：1.5% ±5 digits
    · V ac Range：600.0 V
    功能与特点
    · A wireless Fluke Connect-enabled clamp meter designed specifically for the needs of HVAC technicians
    · Offers 200 µA DC current measurements to measure flame rod
    · Extends resistance range to measure thermistors up to 60kΩ
    · Captures flue gas temperature
    · Measures start and run motor capacitors
    · Measures variable frequency drive performance
    典型应用
    · 现场维护
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-902-fc-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 钳形表

    902 FC 暖通空调钳形表 · 详细指标

    0.1 A · 2.0% ±5 digit (45-65 Hz) · 2.5% ±5 digit (65-400 Hz) · 600.0 A · 0.1 V
    产品简介

    Fluke 902 FC True-RMS HVAC Clamp Meter helps HVAC technicians work more efficiently on the work site.

    完整技术指标
    A ac (via Jaw)
    · A ac (via Jaw) Resolution：0.1 A
    · A ac (via Jaw) Accuracy：2.0% ±5 digit (45-65 Hz)
    · A ac (via Jaw) Accuracy：2.5% ±5 digit (65-400 Hz)
    · A ac (via Jaw) Range：600.0 A
    · A ac (via Jaw) Crest Factor (50Hz or 60Hz)
    – 2.5 MIN@220 A > 1.4 MIN@600 A Add 2% for CF>400 A
    · V ac：Crest Factor (50Hz or 60Hz)
    · V ac Resolution：0.1 V
    · V ac Accuracy：1.5% ±5 digits
    · V ac Range：600.0 V
    V dc
    · V dc Resolution：0.1 V
    · V dc Accuracy：1.5% ±5 digits
    · V dc Range：600.0 V
    Ohms
    · Ohms Resolution：0.1/1/10
    · Ohms Accuracy：1% ±5 digits
    · Ohms Range：600/6000/60.00 kΩ
    Capacitance
    · Capacitance Resolution：0.1/1 µF
    · Capacitance Accuracy：1% ±4 digits
    · Capacitance Range：100.0/1000 µF
    µA
    · µA Resolution：0.1 µA
    · µA Accuracy：1% ±5 digits
    · µA Range：200 µA
    Contact temperature
    · Contact temperature Resolution：0.1 C/F
    · Contact temperature Accuracy：1% ±8 digits
    · Contact temperature Range：-40 to 400 °C (-40 °F to 752 °F)
    Continuity beeper
    · Continuity beeper Beeper volume：75 dBA nom. 15 cm. from case front
    · Continuity beeper On threshold：< =30 Ω
    机械与一般规格
    · Maximum voltage between any terminal and earth ground：600 V
    · Battery type：2 AA alkaline batteries, NEDA 15A, IEC LR6
    · Temperature
    – Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F)
    · Operating humidity
    – Non condensing ( < 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))
    · Altitude
    – Operating: 3, 000 m (9, 842 ft) Storage: 12, 000 m (39, 370 ft)
    · Dimensions：230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
    · Weight (meter only)：419 g (15 oz)
    · Safety
    – IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 600 V / CAT IV 300 V IEC 61010-2-033: CAT III 600 V / CAT IV 300 V
    · IP Rating：IEC 60529: IP30, non-operating
    · Radio Frequency Certification：FCC ID:T68-FBLE IC:6627A-FBLE
    · Electromagnetic Compatibility (EMC)
    – International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
    · Temperature coefficients
    – Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
