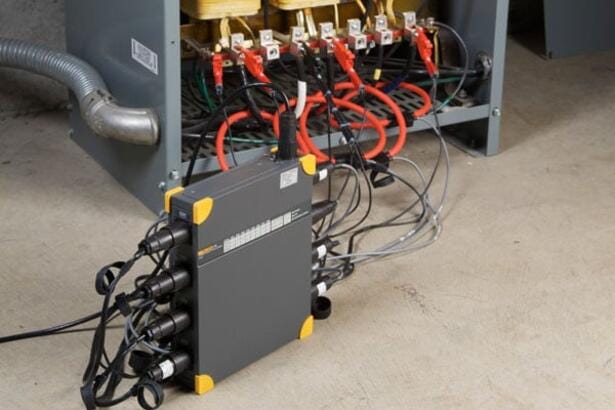

    1760TR Basic 三相电能质量记录仪|福禄克 (在产)

    The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribut。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 功率分析仪

    1760TR Basic 三相电能质量记录仪

    23°C ± 2 K; 74°F ± 2 K · 1. Depending on sensor · 23°C ± 2 K; 74°F ± 2 K
    23°C ± 2 K; 74°F ± 2 K
    Environment conditions Reference temperature
    1. Depending on sensor
    Environment conditions Max. operating altitude
    23°C ± 2 K; 74°F ± 2 K
    Reference conditions Environment temp.
    230 V ± 10%
    Reference conditions Power supply
    50 Hz / 60 Hz
    Reference conditions Power frequency
    10 minute intervals
    Reference conditions Averaging
    产品定位

    The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A,

    for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems,

    in medium- and low-voltage networks. The Fluke 1760 provides exceptional flexibility with the ability to customize thresholds,

    algorithms,

    and measurement selections. The 1760 power recorder captures the most comprehensive details on user-selected parameters;

    the supplied PQAnalyze application software enables users uses the in depth measurement and produce sophisticated analysis and reports.

    Detailed disturbance analysis – Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance. The fast transient option,

    with its 6000 V measurement range,

    allows capture of very short impulses such as capacitor switching and lightning strikes.

    核心参数
    Overview of Measurement Functions
    · Event list
    – Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.
    · Event list
    – The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.
    · Event list
    – RMS values, transients and fast transients can be stored if a trigger fires
    · Continuous recording
    – Fluke 1760 records rms values together with corresponding minimum and maximum values for: • Voltage • Current • Power P, Q, S • Power Factor • kWh • Flicker • Unbalance • Frequency • Harmonics/Interharmonics Continuously with the following time aggregations: Day 10 min Free Interval, e.g.: 15 min, 2 h
    · Triggered recordings rms
    – Aggregation time is adjustable between 10 ms (1/2 cycle), 20 ms (1 cycle), 200 ms (10/12 cycles) or 3 sec (150/180 cycles).
    · Triggered recordings rms
    – Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.
    · Triggered recordings rms
    – Basic aggregation for harmonics and interharmonics is 200ms
    · Triggered recordings Oscilloscope :：Sample rate is 10.24 kHz for all 8 channels
    · Triggered recordings Mains signalling：Phases and N-conductor, Voltage and current
    功能与特点
    · Fully Class-A compliant：Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
    · GPS time synchronization：Correlate data with events or datasets from other instruments with precision
    · Flexible and fully configurable thresholds and scale factors: Allows user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
    · Uninterrupted power supply (40 minutes): Never miss important events - even record the beginning and end of interruptions and outages to help determine the cause
    · 10 MHz, 6000 Vpk waveform capture: Get a detailed picture of even the shortest event
    · 2 GB data memory：Enables detailed, simultaneous recording of numerous power parameters for long periods of time
    · Comprehensive software included: Provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
    · Plug and play：Allows quick setup with automatic sensor detection; sensors are instrument powered, eliminating the need for batteries
    典型应用
    · 功率测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 1760tr-basic-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 功率分析仪

    1760TR Basic 三相电能质量记录仪 · 详细指标

    23°C ± 2 K; 74°F ± 2 K · 1. Depending on sensor · 23°C ± 2 K; 74°F ± 2 K
    产品简介

    The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A,

    for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribution systems,

    完整技术指标
    Overview of Measurement Functions
    · Event list
    – Dips, swells and interruptions are detected and stored in the event list. Also any trigger which fires generates an event added to this list.
    · Event list
    – The Event list shows the exact time when the event occurred as well as the duration and magnitude. Sorting by several attributes of these events is possible to select one for further root cause analysis.
    · Event list
    – RMS values, transients and fast transients can be stored if a trigger fires
    · Continuous recording
    – Fluke 1760 records rms values together with corresponding minimum and maximum values for: • Voltage • Current • Power P, Q, S • Power Factor • kWh • Flicker • Unbalance • Frequency • Harmonics/Interharmonics Continuously with the following time aggregations: Day 10 min Free Interval, e.g.: 15 min, 2 h
    · Triggered recordings rms
    – Aggregation time is adjustable between 10 ms (1/2 cycle), 20 ms (1 cycle), 200 ms (10/12 cycles) or 3 sec (150/180 cycles).
    · Triggered recordings rms
    – Calculating rms values, Harmonics and Interharmonics is performed synchronous to the power frequency.
    · Triggered recordings rms
    – Basic aggregation for harmonics and interharmonics is 200ms
    · Triggered recordings Oscilloscope :：Sample rate is 10.24 kHz for all 8 channels
    · Triggered recordings Mains signalling：Phases and N-conductor, Voltage and current
    · Online mode
    – Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.
    General Data
    · Intrinsic uncertainty
    – refers to reference conditions and is guaranteed for two years
    · Quality system：developed, manufactured as per ISO 9001: 2000
    · Environment conditions Operating temp. range：0°C to +50°C; 32°F to +122°F
    · Environment conditions Working temp. range：-20°C to +50°C; -4°F to +122°F
    · Environment conditions Storage temp. range：20°C to +60°C; -4°F to 140°F
    · Environment conditions Reference temperature：23°C ± 2 K; 74°F ± 2 K
    · Environment conditions Climatic class：B2 (IEC 654-1), -20°C to +50°C; -4°F to +122°F
    · Environment conditions Max. operating altitude
    – 2000 m: max. 600 V CAT IV 1, power supply: 300 V CAT III 5000 m: max 600 V CAT III 1, power supply: 300 V CAT II
    · Environment conditions Max. operating altitude：1. Depending on sensor
    · Reference conditions Environment temp.：23°C ± 2 K; 74°F ± 2 K
    · Reference conditions Power supply：230 V ± 10%
    · Reference conditions Power frequency：50 Hz / 60 Hz
    · Reference conditions Signal：declared input voltage Udin
    · Reference conditions Averaging：10 minute intervals
    · Housing：Insulated, robust plastics housing
    · EMC Emission：Class-A as per IEC/EN 61326-1
    · EMC Immunity：IEC/EN 61326-1
    · Power supply Range：AC: 83 V to 264 V, 45 to 65 Hz
    · Power supply Range：DC: 100 V to 375 V
    · Power supply Safety：IEC/EN 61010-1 2nd edition
    · Power supply Safety：300 V CAT III
    · Power supply Power consumption：NIMH, 7.2 V, 2.7 Ah
    · Power supply Battery pack
    – In case of a power supply failure an internal battery maintains the supply for up to 40 minutes. Afterwards, or in case of discharged accumulators the Fluke 1760 is turned off and continues the measurements with the latest settings as soon as the supply voltage returns. The battery can be replaced by the user.
    · Display
    – Fluke 1760 features LED indicators for the status of the 8 channels, phase sequence, power supply (mains or accumulator), memory usage, time synchronization, and data transfer.
    · Display Power LED
    – Permanent light: normal power supply from mains. OFF: supply via internal accumulator in case of a power failure.
    · Display Channel LEDs
    – 3-color LEDs per channel for: Overload condition Under load condition
    · Data memory：2 GB Flash memory depending on model
    · Memory model：Linear
    · Interfaces
    – Ethernet (100 MB/s), compatible to Windows 98/ME/NT/2000/XP RS 232, external modem via RS 232
    · Baud rate for RS 232：9600 Baud to 115 kBaud
    · Dimensions (H x W x D)：325 x 300 x 65 mm (2.8 x 11.8 x 2.6 in)
    · Weight：appr. 4.9 kg; 10.8 lbs (without accessories)
    · Warranty：2 years
    · Calibration interval
    – 1 year recommended for Class-A, otherwise 2 years
    Signal Conditioning
    · Range for 50 Hz systems：50 Hz ±15% (42.5 Hz to 57.5 Hz)
    · Range for 60 Hz systems：60 Hz ±15% (51 Hz to 69 Hz)
    · Resolution：16 ppm
    · Sampling frequency for 50 Hz power frequency
    – 10.24 kHz, The sampling rate is synchronized to mains frequency.
    · Uncertainty for frequency measurements：< 20 ppm
    · Uncertainty of internal clock：< 1 s/day
    · Measurement intervals
    – Aggregation of the interval values as per IEC 61000-4-30 Class-A
    · Measurement intervals Min-, Max-values：Half cycle, e.g.: 10 ms rms values at 50 Hz
    · Measurement intervals Transients：Sample rate 100 kHz to 10 MHz per channel
    · Harmonics：as per IEC 61000-4-7:2002: 200 ms
    · Flicker
    – as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)
    Measurement Inputs
    · Number of inputs
    – 8 galvanically isolated inputs for voltage and current measurements.
    · Sensor safety：up to 600 V CAT IV depending on sensor
    · Basic safety：300 V CAT III
    · Nominal voltage (rms)：100 mV
    · Range (peak value)：280 mV
    · Overload capacity (rms)：1000 V, continuously
    · Voltage rise rate：max. 15 kV/µs
    · Input resistance：1 MΩ
    · Input capacitance：5 pF
    · Input filter
    – Each channel is equipped with a passive low-pass filter, an anti-aliasing filter and a 16-bit A/D converter. All channels are sampled synchronously with a common quartz-controlled clock pulse. The filters protect against voltage transients and limit the signal rise rate, reduce high frequency components and especially the noise voltage above half the sampling rate of the A/D converter by 80 dB, thus achieving very small measuring errors in an exceptionally large amplitude range. This is also valid under extreme operating conditions like transient voltages at the output of converters.
    Uncertainties
    · Uncertainty at reference conditions
    – Uncertainty including the voltage sensors is in compliance with IEC 61000-4-30 Class-A. All voltage sensors are suitable for DC up to 5 kHz
    · Uncertainty at reference conditions With Sensor 1000 V：0, 1% at Udin = 480 V and 600 V P-N
    · Uncertainty at reference conditions Sensor 600 V：0, 1% at Udin = 230 V P-N
    · Intrinsic uncertainty for harmonics：Class I as per EN 61000-4-7:2002
    · Reference conditions：23°C ±2 K < 60% rH; 74°F ±2 K < 60% rH
    · Reference conditions：Warmed up instrument > 3h
    · Reference conditions：Power supply: 100 V to 250 VAC
    · Temperature drift：100 ppm / K
    · Aging：< 0.05% / year
    · Common mode rejection：> 100 dB at 50 Hz
    · Temperature drift
    – Change of amplification through temperature: < 0.005% / K
    · Aging
    – Change of amplification due to ageing: < 0.04% / year
    · Noise：Noise voltage, input short-circuited: < 40 µV
    · DC：±(0.2% rdg + 0.1% sensor)
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
