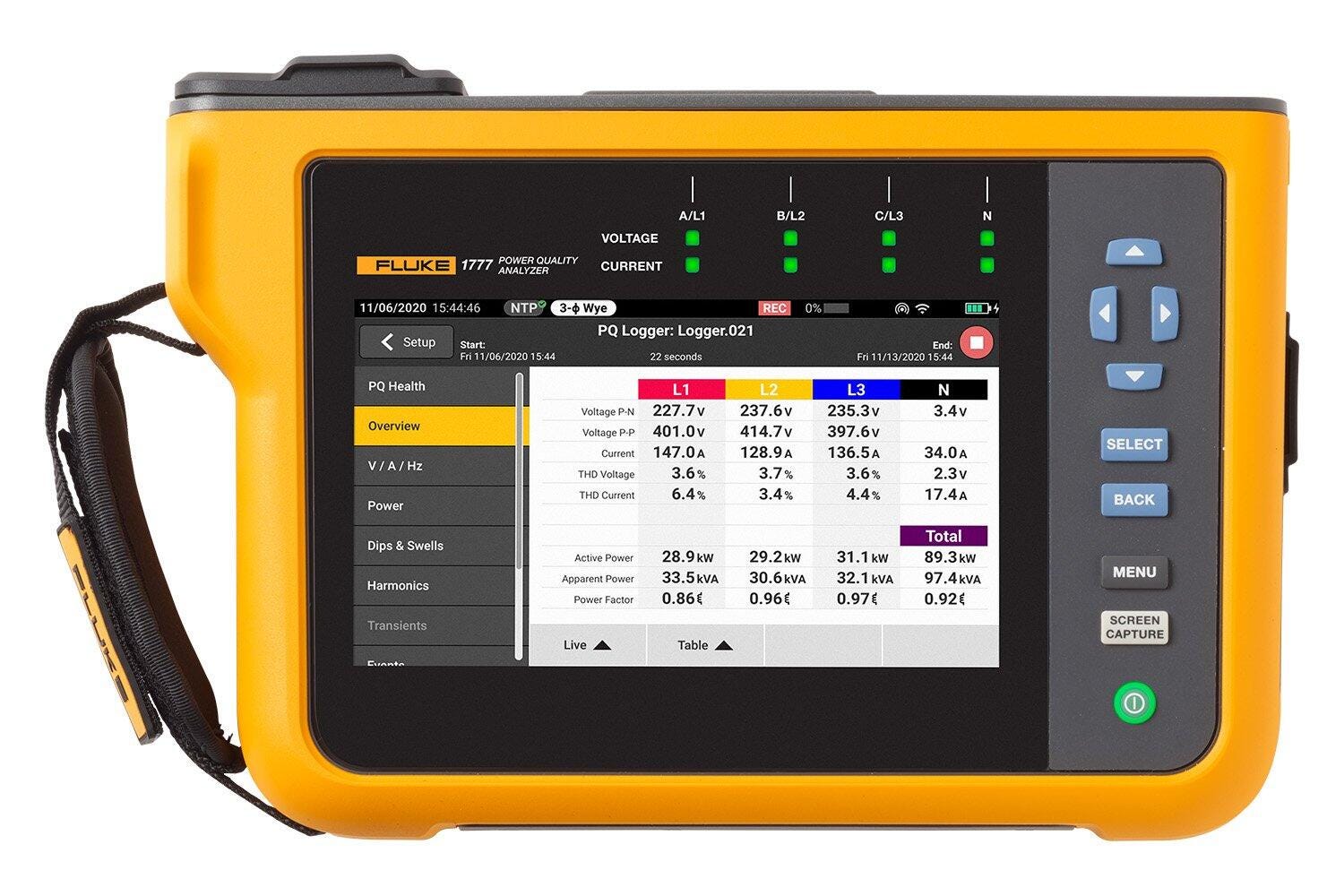

    Fluke 1770 Series Three-Phase Power Quality Analyzers eliminate the complexities of power quality logging, troubleshooting, and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series of。

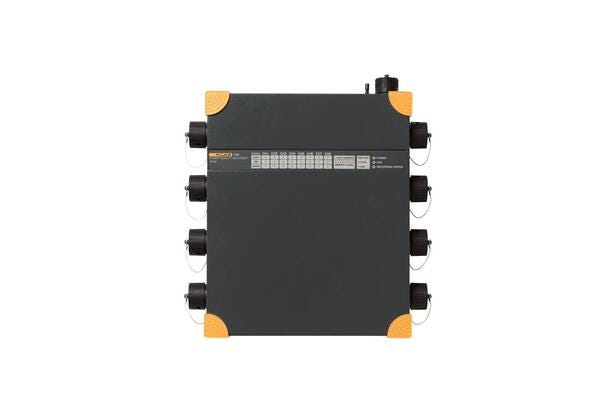

    The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribut。
    The Fluke 1760 Three-Phase Power Quality Recorder is fully compliant to IEC 61000-4-30 Class-A, for advanced power quality analysis and consistent compliance testing. Designed for analysis of utility and industrial power distribut。
    • «
    • 1

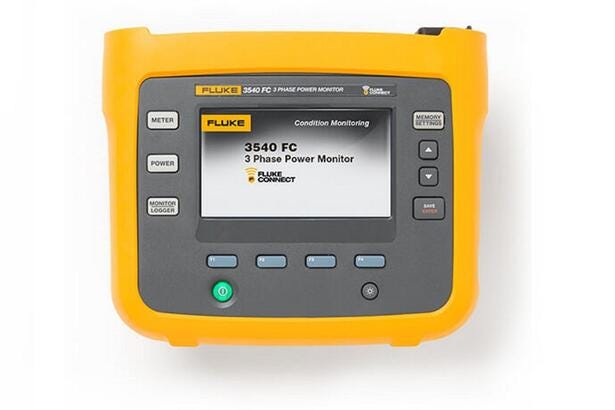

    3540 FC 三相电力监测仪|福禄克 (在产)

    The Fluke 3540 FC monitors equipment for changes in key electrical variables. Current, voltage, frequency, and energy consumption fluctuate when machinery experiences excess load. Screen assets for performance or premature wear us。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 功率分析仪

    3540 FC 三相电力监测仪

    1 year · 2 years · 3540 FC；1.1kg (2.5 lb) · 1.1kg (2.5 lb) · Kensington lock
    1 year
    Warranty Accessories
    2 years
    Calibration cycle
    3540 FC；1.1kg (2.5 lb)
    Weight
    1.1kg (2.5 lb)
    Weight Power supply
    Kensington lock
    Tamper protection
    12, 000 m (39, 000 ft)
    Storage altitude
    产品定位

    The Fluke 3540 FC monitors equipment for changes in key electrical variables. Current, voltage, frequency,

    and energy consumption fluctuate when machinery experiences excess load. Screen assets for performance or premature wear using the non-invasive 3540 FC.

    核心参数
    一般规格
    · Warranty
    – 3540 FC and built-in power supply；2 years (battery not included)
    · Warranty Accessories：1 year
    · Calibration cycle：2 years
    · Dimensions (WxHxD
    – 3540 FC；19.8 x 16.7 x 5.5 cm (7.8 x 6.6 x 2.2 in)
    · Dimensions (WxHxD Detachable power supply：13.0 x 13.0 x 4.5 cm (5.1 x 5.1 x 1.8 in)
    · Dimensions (WxHxD
    – 3540 FC with power supply attached；19.8 cmx 16.7 x 9 cm (7.8 x 6.6 x 4.0 in)
    · Weight：3540 FC；1.1kg (2.5 lb)
    · Weight Power supply：1.1kg (2.5 lb)
    · Tamper protection：Kensington lock
    功能与特点
    · Measures：Single, split, or three phase loads
    · Voltage, current, and frequency
    · Active power, non-active power, and power factor
    · Total harmonic distortion
    · Wireless data collection or internal memory sufficient for 1 week with 1 second data intervals
    · Remotely monitor real-time and historical power variable data
    · Visualize data with software trending, graphing, and timeboxing
    · Auto-generated alarms when power variables deviate from pre-set thresholds
    典型应用
    · 能效测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 3540-power-monitor-sensor-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 功率分析仪

    3540 FC 三相电力监测仪 · 详细指标

    1 year · 2 years · 3540 FC；1.1kg (2.5 lb) · 1.1kg (2.5 lb) · Kensington lock
    产品简介

    The Fluke 3540 FC monitors equipment for changes in key electrical variables. Current, voltage, frequency,

    and energy consumption fluctuate when machinery experiences excess load. Screen assets for performance or premature wear using the non-invasive 3540 FC.

    完整技术指标
    一般规格
    · Warranty
    – 3540 FC and built-in power supply；2 years (battery not included)
    · Warranty Accessories：1 year
    · Calibration cycle：2 years
    · Dimensions (WxHxD
    – 3540 FC；19.8 x 16.7 x 5.5 cm (7.8 x 6.6 x 2.2 in)
    · Dimensions (WxHxD Detachable power supply：13.0 x 13.0 x 4.5 cm (5.1 x 5.1 x 1.8 in)
    · Dimensions (WxHxD
    – 3540 FC with power supply attached；19.8 cmx 16.7 x 9 cm (7.8 x 6.6 x 4.0 in)
    · Weight：3540 FC；1.1kg (2.5 lb)
    · Weight Power supply：1.1kg (2.5 lb)
    · Tamper protection：Kensington lock
    环境条件
    · Operating temperature：0 °C to +45 °C (+32 °F to +113 °F)
    · Storage temperature
    – < 20 °C to +60 °C (-4 °C to +140 °F), with battery: -20 °C to +50 °C (-4 °F to +122 °F)
    · Operating humidity：< 10 °C ( < 50 °F) non condensing
    · Operating humidity：+10 °C to +30 °C (+50 °F to +86 °F) ≤95 %
    · Operating humidity：+30 °C to +40 °C (+86 °F to +104 °F) ≤75 %
    · Operating humidity：+40 °C to +45 °C (+104 °F to +113 °F) ≤45 %
    · Operating altitude
    – 2000 m (6, 500 ft) (up to 4, 000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
    · Storage altitude：12, 000 m (39, 000 ft)
    · IP Rating
    – IEC 60529:IP50, in connected condition with protection caps in place
    · Vibration：MIL-T-28800E, Type 3, Class III, Style B
    安全规格
    · IEC 61010-1 IEC mains input：Overvoltage Category II, Pollution Degree 2
    · IEC 61010-1 Voltage terminals：Overvoltage Category IV, Pollution Degree 2
    Electromagnetic compatibility (EMC)
    · International：IEC 61326-1: Industrial
    · Korea (KCC)
    – Class A Equipment (Industrial Broadcasting & Communication Equipment)
    · USA (FCC)
    – 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
    Wireless radio with adapter
    · Frequency range：2412 MHz to 2462 MHz
    · Output power：< 100 mW
    Single and three-phase topologies
    · Wiring configurations
    – 1-Φ, 1-Φ IT, Split-phase, 3-Φ wye, 3-Φ wye IT, 3-Φ wye balanced, 3-Φ delta, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, 3-Φ high leg delta, 3-Φ delta balanced. Currents only (load studies)
    Voltage inputs
    · Number of inputs：4 (3 phases and neutral)
    · Maximum input voltage：1000 Vrms (1700 Vpk) phase to neutral
    · Input impedance：10 MΩ each phase to neutral
    · Bandwidth：42.5 Hz to 3.5 kHz
    · Scaling：1:1, variable
    Current inputs
    · Number of inputs
    – 3, mode selected automatically for attached sensor
    · Current sensor output voltage Clamp：500 mVrms / 50 mVrms; CF 2.8
    · Current sensor output voltage Rogowski coil
    – 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range
    · Bandwidth (-3 dB)：42.5 Hz to 3.5 kHz
    · Scaling：1:1 and variable
    数据采集
    · Resolution：16-bit synchronous sampling
    · Sampling frequency
    – 10.24 kHz at 50/60Hz, synchronized to mains frequency
    · Input signal frequency：Mains 50/60 Hz (42.5 to 69 Hz)
    · Data storage：Internal flash memory (not user replaceable)
    · Memory size
    – Typical 1 offline logging session of 1 week with 1 second intervals. The number of possible logging sessions and logging period depends on user requirements.
    · Measured parameters
    – Voltage, current, frequency, THD V, THD A, power, power factor, fundamental power, DPF
    · Averaging interval：1 s
    · Total harmonic distortion
    – THD for voltage and current is calculated on 25 harmonics
    Calculated min/max values times
    · Voltage
    – Full cycle RMS (20 ms at 50 Hz, 16.7 ms at 60 HZ)
    · Current
    – Half cycle RMS (10 ms at 50 Hz, 8.3 ms at 60 Hz)
    · Power：200 ms
    接口
    · USB-A：Firmware updates, max. supply current: 120 mA
    WiFi
    · Supported modes
    – Direct connection and connection to infrastructure
    · Security：WPA2-AES with pre-shared key
    供电
    · Voltage range
    – Nominal 100 V to 500 V (85 V min to 550 V max) using safety plug input
    · Mains power
    – Nominal 100 V to 240 V (85 V min to 265 V max) using IEC 60320 C7 input
    · Power consumption
    – Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
    · Standby power
    – < 0.3 W only when powered using IEC 60320 input
    · Efficiency
    – ≥68.2 % (in accordance with energy efficiency regulations)
    · Mains frequency：50/60 Hz ±15 %
    · Battery power：Li-ion 3.7 V, 9.25 Wh, customer-replaceable
    · On-battery runtime
    – Up to 4 hr (up to 5.5 hr in energy saving mode)
    · Charging time：< 6 hr
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
