    Fluke Corporation · 功率分析仪

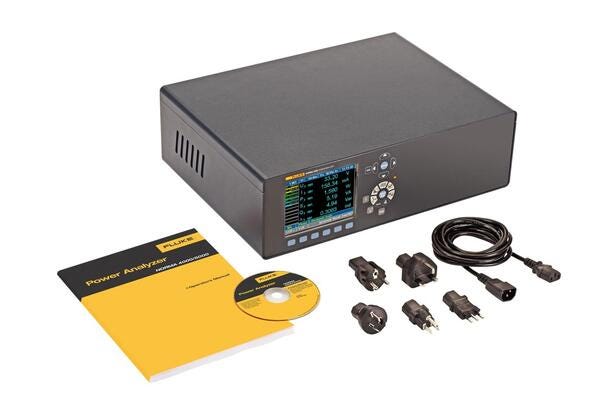

    Norma-5000 功率分析仪

    1 to 3 · 150 x 237 x 315 mm · 5.9 x 9.3 x 12.4 in · No · 0.3 V to 1000 V
    1 to 3
    Number of Phases
    150 x 237 x 315 mm
    Size
    5.9 x 9.3 x 12.4 in
    Size
    No
    On-board Printer
    0.3 V to 1000 V
    Voltage Input Range
    4 MB
    Memory for Configurations
    产品定位

    Reliable, highly accurate measurements for the test and development of power electronics.

    The compact Fluke Norma Series Power Analyzers provide the latest measurement technology to assist engineers with the development and testing of motors,

    inverters, lighting, power supplies, transformers and automotive components.

    核心参数
    一般规格
    · Number of Phases：1 to 3
    · Size：150 x 237 x 315 mm
    · Size：5.9 x 9.3 x 12.4 in
    · On-board Printer：No
    · Display：Color, 5.7 in / 144 mm - 320 x 240 pixel
    · Display
    – User-selectable background lighting and contrast.
    · Bandwidth
    – DC to 3 MHz or DC to 10 MHz depending on input module
    · Basic Accuracy：0.2%, 0.1% or 0.03% depending on input modules
    · Sampling Rate：0.33 MHz or 1 MHz depending on input modules
    功能与特点
    · Six-phase power analyzer for developing frequency converters and lighting equipment
    · Features the highest bandwidth on the market
    · Measures voltage, current, and power harmonics up to the 40th harmonic
    · Features a simple user interface to ensure easy, intuitive operation
    · Offers a variety of standard configurations so users can choose the exact functionality required for their application
    典型应用
    · 功率测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 norma-5000-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 功率分析仪

    Norma-5000 功率分析仪 · 详细指标

    1 to 3 · 150 x 237 x 315 mm · 5.9 x 9.3 x 12.4 in · No · 0.3 V to 1000 V
    产品简介

    Reliable, highly accurate measurements for the test and development of power electronics.

    完整技术指标
    一般规格
    · Number of Phases：1 to 3
    · Size：150 x 237 x 315 mm
    · Size：5.9 x 9.3 x 12.4 in
    · On-board Printer：No
    · Display：Color, 5.7 in / 144 mm - 320 x 240 pixel
    · Display
    – User-selectable background lighting and contrast.
    · Bandwidth
    – DC to 3 MHz or DC to 10 MHz depending on input module
    · Basic Accuracy：0.2%, 0.1% or 0.03% depending on input modules
    · Sampling Rate：0.33 MHz or 1 MHz depending on input modules
    · Voltage Input Range：0.3 V to 1000 V
    · Current Input Range (direct, not via shunt)：0.03 mA to 20 A depending on input module
    · Memory for Configurations：4 MB
    · Memory for Settings：0.5 MB
    · Fast Fourier Transformation (FFT)：To the 40th harmonic
    · RS232/USB Interface：Standard
    · PI1 Process interface (8 analog/impulse inputs and 4 analog outputs)：Optional
    · IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s)：Optional
    · Fluke NormaView PC software (for data download, analysis and report writing)：Standard
    Basic Functions
    · Fast Fourier Transformation (FFT)
    – Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time.
    · Fast Fourier Transformation (FFT)：Measured values: U, I, P per phase
    · Fast Fourier Transformation (FFT)
    – Order: 1st to 40th harmonics, maximum half sample frequency
    · Digital Oscilloscope (DSO)
    – Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion.
    · Integration function (energy)
    – Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available.
    · Vector Display
    – Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal.
    · Recorder
    – Display of average values over time for trend determination.
    · RAM data memory
    – Storing of sample and average values; setting of start and stop conditions.
    · RAM data memory
    – From the RAM approximately 4 MB are available for the storage of measured values.
    · Configuration
    – Set up the analyzer to measure and display data in the format required.
    Ambient Conditions
    · Working Temperature Range：5°C to 35°C (41°F to 95°F)
    · Storage Temperature Range：-20°C to 50°C (-4°F to 122°F)
    · Housing Material
    – Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
    · Climatic Class
    – KYG DIN 40040, max. 85% relative humidity, non-condensing.
    · Power supply
    – 85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models.
    · Measuring Inputs
    – Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
    · Operation
    – Membrane keyboard with cursor – function keys and direct functions.

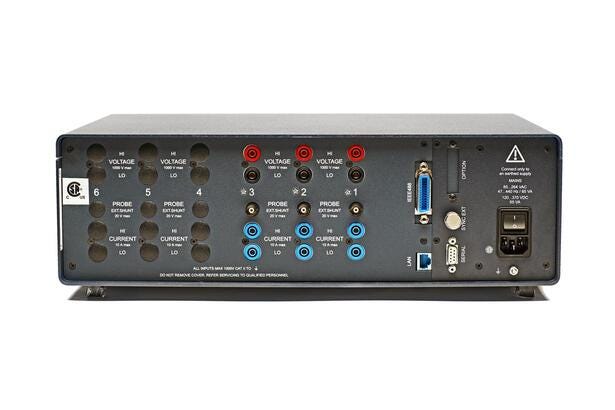

    · Connections：Rear panel of the 3-phase Analyzer
    Measured Values
    ·
    – Non-gapping calculation of averaged values for each phase. In three phase system additionally calculation of total power and averaging of V and I of the three phases. The fundamental H01 will be calculated in synchronous mode also for these values. Urms effective value, Urm rectified mean, Um mean value Up-, Up+, Upp peak values Ucf crest factor Ucf, Uff form factor Ufc fundamental content Uthd distortion factor DIN, IEC Irms effective value, Irm rectified mean, Im mean value Ip-, Ip+, Ipp peak values Icf crest factor Icf, Iff form factor Ifc fundamental content Ithd distortion factor DIN, IEC P active power [W] Q reactive power [Var] S apparent power [VA] ë, cos. phase angular Integral function for active power P, reactive power Q, apparent power S, voltage (Um) and current (Im), Number of digits 4 or 5 dependent on measured value.
    Frequency and Synchronization
    · Range：DC and 0.2 Hz to sample rate
    · Accuracy：±0.01% of measured value (reading)
    ·
    – Channels which can be selected: all U/I or external input. One of three low pass filter with different frequencies can be switched into the signal. The frequency is always visible on the top of the screen. The BNC synchronization socket on backside of the instrument can be used either as input or output. The input signals can be measured up to the sample rate of the power phase. The maximum level must not be higher then 50 V. The output signal is a pulsed 5Volts TTL signal (frequency depends on the measured synch frequency).
    Configuration Memory
    ·
    – Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument.
    接口
    ·
    – RS232 interface for upload of firmware and data exchange with the PC. A printer can be connected over an external converter.
    · Options：IEEE 488.2 / 1 MBit/s
    · Options：Ethernet / 10 MBit/s or 100 Mbit/s
    Standards and Safety
    · Electrical Safety
    – EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III)
    · Electrical Safety：Degree of pollution 2, safety Class I
    · Electrical Safety：EN 61558 for transformer
    · Electrical Safety：EN 61010-2-031/032 for accessories
    · Maximum inputs
    – For voltage inputs Measurement range 1000 Veff, 2 kVpeak
    · Maximum inputs
    – For current inputs Measurement range 10 Aeff, 20 Apeak
    · Test voltage Net input：case (protective conductor): 1.5 KV AC
    · Test voltage Net connection：Measurement input: 5.4 kV AC
    · Test voltage Measurement inputs：Case: 3.3 kV AC
    · Test voltage Measurement input：input: 5.4 kV
    · Electromagnetic susceptibility Emission：IEC 61326-1, EN 50081-1, EN 55011 Class B
    · Electromagnetic susceptibility Immunity
    – IEC 61326-1 / Annex A (industrial sector), EN 50082-1
    Power Phase Channels
    · PP42 Accuracy：0.2% (0.1% rd + 0.1% rg)
    · PP42 Current range：20 A
    · PP42 Sampling rate：341 kHz
    · PP42 Bandwidth：3 MHz
    · PP50 Accuracy：0.1% (0.05% rd + 0.05% rg)
    · PP50 Current range：10 A
    · PP50 Sampling rate：1 MHz
    · PP50 Bandwidth：10 MHz
    · PP54 Accuracy：0.1% (0.05% rd + 0.05% rg)
    · PP54 Current range：10 A
    · PP54 Sampling rate：341 kHz
    · PP54 Bandwidth：3 MHz
    · PP64 Accuracy：0.03% (0.02% rg + 0.01% rg)
    · PP64 Current range：10 A
    · PP64 Sampling rate：341 kHz
    · PP64 Bandwidth：3 MHz
    Planarshunt
    · Continuous load (Imin) Range (Imax)：0.3 A
    · Continuous load (Imin) Range (Imax)：32 A
    · Nominal current (calibration point)：32 A
    · Basic accuracy at calibration point [%]：± 0.03
    · Basic accuracy at nominal current [%]：± 0.03
    · Nominal voltage drop [V]：320 mV
    · Nominal resistance [Ohm]：10 mΩ
    · Short time overrange (5s load 15s interval)：100A/ 1s-5s
    · Overload Wmax：—
    · Bandwidth：DC - 1 MHz
