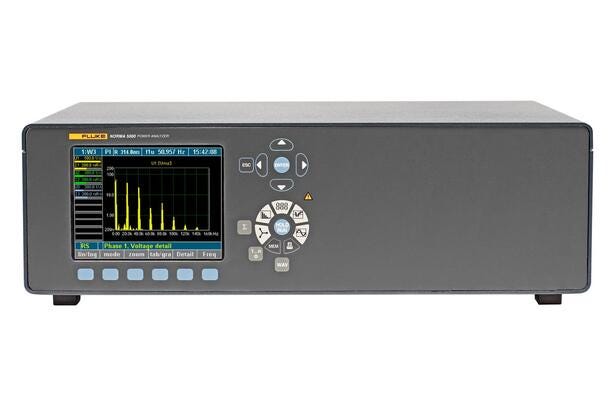

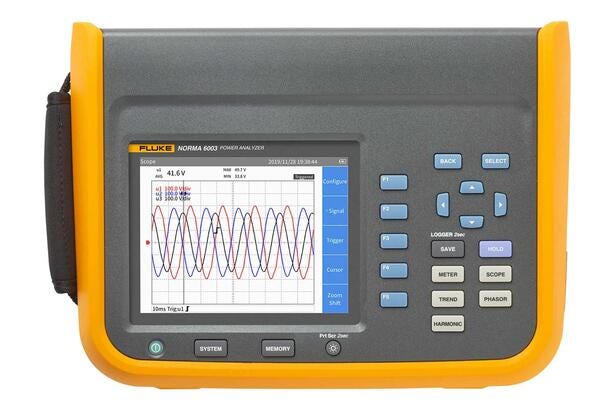

    The Fluke Norma 6000 Series Portable Wideband Precision Power Analyzers give you more freedom than ever before to make high accuracy power measurements wherever you need to—whether in the lab, or in the field. Designed for portabi。
    Reliable, highly accurate measurements for the test and development of power electronics. The compact Fluke Norma Series Power Analyzers provide the latest measurement technology to assist engineers with the development and testin。

    VR1710 电压记录仪|福禄克 (在产)

    The Fluke VR1710 Power Quality Recorder, is a single-phase, plug-in voltage quality recorder that offers an extremely easy-to-use solution for detecting and recording power quality problems, allowing for immediate action and less 。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 功率分析仪

    VR1710 电压记录仪

    70 V to 280 V · 175, 000 · Yes · 5 ms · 0.125 V · Yes
    70 V to 280 V
    Operating voltage
    175, 000
    Number of events
    Yes
    Dips/interruptions
    5 ms
    Time resolution
    0.125 V
    Voltage resolution
    Yes
    Over-voltages
    产品定位

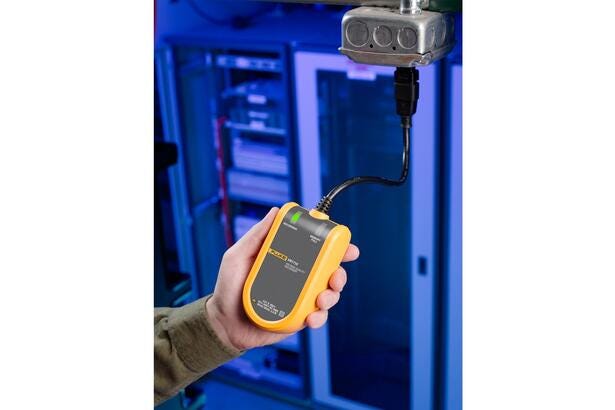

    The Fluke VR1710 Power Quality Recorder, is a single-phase,

    plug-in voltage quality recorder that offers an extremely easy-to-use solution for detecting and recording power quality problems,

    allowing for immediate action and less downtime. The VR1710 single phase recorder satisfies the needs of maintenance and facilities management personnel in industrial,

    utilities,

    and large service organizations where reliable power quality is essential to the operation of the business. Power quality parameters including RMS average,

    transients, flicker,

    and harmonics up to the 32nd are recorded using a user-selected average period from 1 seconds to 20 minutes.

    Offers continuous recording of all values with no gaps to create a complete picture with one instrument

    核心参数
    技术规格
    · Operating voltage：70 V to 280 V
    · Number of events：175, 000
    · Dips/interruptions：Yes
    · Time resolution：5 ms
    · Voltage resolution：0.125 V
    · Over-voltages：Yes
    · Frequency：Yes
    · Harmonics measurement：EN 61000-4-7 (up to 32nd)
    · Flicker measurement：EN 61000-4-15 and Delta V/V%
    功能与特点
    · Single-phase, plug-in voltage quality recorder for detecting and recording power quality problems
    · Records voltage trends, dropouts, and power quality to pinpoint the root cause
    · Plugs directly into the mains power socket to capture data
    · Presents a clear graphical summary of data and a quick overview of key power quality parameters
    典型应用
    · 功率测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 vr1710-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 功率分析仪

    VR1710 电压记录仪 · 详细指标

    70 V to 280 V · 175, 000 · Yes · 5 ms · 0.125 V · Yes
    产品简介

    The Fluke VR1710 Power Quality Recorder, is a single-phase,

    plug-in voltage quality recorder that offers an extremely easy-to-use solution for detecting and recording power quality problems,

    完整技术指标
    技术规格
    · Operating voltage：70 V to 280 V
    · Number of events：175, 000
    · Dips/interruptions：Yes
    · Time resolution：5 ms
    · Voltage resolution：0.125 V
    · Over-voltages：Yes
    · Frequency：Yes
    · Harmonics measurement：EN 61000-4-7 (up to 32nd)
    · Flicker measurement：EN 61000-4-15 and Delta V/V%
    · Number of recording channels：1 Phase to Neutral
    · Number of recording channels：2 Phase/Neutral to Ground
    · Recording time
    – 1 day to 339 days depending on average time from 1 second to 20 minutes
    · Transients：Yes
    · Frequency range：50 Hz ±1 Hz and 60 Hz ±1 Hz
    · Safety category rating：CAT II 300 V
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
