    Fluke Corporation · 功率分析仪

    Norma-6000 功率分析仪

    3 Voltage + 3 Current · 4 Voltage + 4 Current · 200ks/s
    3 Voltage + 3 Current
    Inputs Norma 6003
    4 Voltage + 4 Current
    Inputs Norma 6004
    200ks/s
    Sample rate
    100ms, 200ms, 500ms, 1s
    Measurement update rate
    298mm x 215m x 96mm
    Dimensions (H * W * L)
    3.5 kg (7.7 lbs)
    Weight
    产品定位

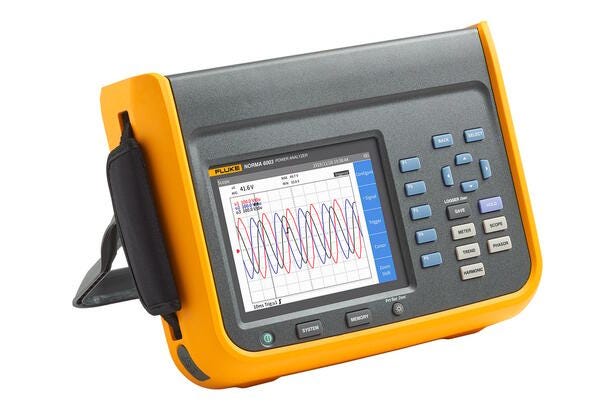

    The Fluke Norma 6000 Series Portable Wideband Precision Power Analyzers give you more freedom than ever before to make high accuracy power measurements wherever you need to—whether in the lab,

    or in the field. Designed for portability the lightweight,

    battery powered Fluke 6000 Series eliminates the need to carry large, fragile,

    expensive analyzers into the field,

    allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load,

    you can discover how the equipment operates under real-world conditions, with real-world variables,

    not just at a test bench or in the lab.

    The Fluke 6003 includes three measurement channels which each consist of a voltage and current input making it ideal for three-phase power measurements.

    核心参数
    技术规格

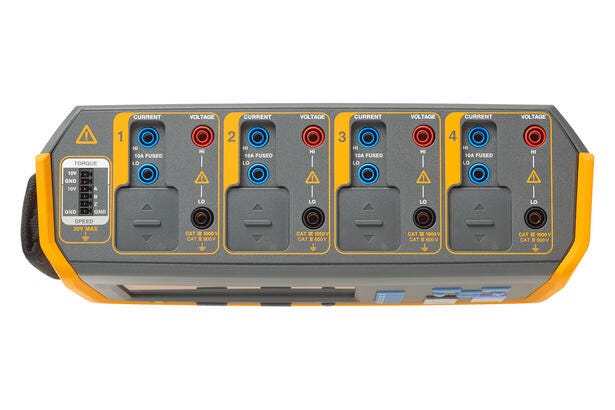

    · Inputs Norma 6003：3 Voltage + 3 Current
    · Inputs Norma 6003+：3 Voltage + 3 Current + 1 Motor
    · Inputs Norma 6004：4 Voltage + 4 Current
    · Inputs Norma 6004+：4 Voltage + 4 Current + 1 Motor
    · Sample rate：200ks/s
    · Measurement update rate：100ms, 200ms, 500ms, 1s
    · Dimensions (H * W * L)：298mm x 215m x 96mm
    · Weight：3.5 kg (7.7 lbs)
    · Display：5.7 inch, TFT LCD, 640x480
    功能与特点
    · Measure voltage, current, active power, reactive power, apparent power, power factor and harmonics with associated values
    · Get accurate, precise results with 0.1% measurement accuracy and a 500kHz bandwidth
    · Take precision power measurements almost anywhere – highly portable, battery powered analyzer weighing only 3.5kg with up to 10 hours of battery life
    典型应用
    · 功率测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 norma-6000-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 功率分析仪

    Norma-6000 功率分析仪 · 详细指标

    3 Voltage + 3 Current · 4 Voltage + 4 Current · 200ks/s
    产品简介

    The Fluke Norma 6000 Series Portable Wideband Precision Power Analyzers give you more freedom than ever before to make high accuracy power measurements wherever you need to—whether in the lab,

    or in the field. Designed for portability the lightweight,

    完整技术指标
    技术规格
    · Inputs Norma 6003：3 Voltage + 3 Current
    · Inputs Norma 6003+：3 Voltage + 3 Current + 1 Motor
    · Inputs Norma 6004：4 Voltage + 4 Current
    · Inputs Norma 6004+：4 Voltage + 4 Current + 1 Motor
    · Sample rate：200ks/s
    · Measurement update rate：100ms, 200ms, 500ms, 1s
    · Dimensions (H * W * L)：298mm x 215m x 96mm
    · Weight：3.5 kg (7.7 lbs)
    · Display：5.7 inch, TFT LCD, 640x480
    · Operating temperature：-10 °C to +50 °C
    · Storage temperature：-30 °C to +60 °C
    · Operating humidity
    – Non-condensing ( < 10 °C ) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)
    · Operating altitude：2000m
    · Storage altitude：12000m
    · Ingress protection
    – IP 50 (Terminals mated) according to IEC 60529:
    · Battery
    – BP 291, 10.8V/5000mAh, 54Wh IEC 62133, UN38.3 Operating time: 10 Hours (on battery)
    · Safety
    – IEC 61010-1: Pollution Degree 2 IEC 61010-2-030: CAT IV 600V, CAT III 1000 V
    · EMC：IEC 61326-1: Industrial IEC 61326-2-2
    · Warranty：1 Year
    · Communication Interface：USB/RS485
    · Dual Analyzer Synchronization Mode
    – Able to extend to 6, 7 or 8 channels (using multiple instruments)
    · PC Software：Fluke Power Analyzer software
    · Storage Capacity：32GB
    · Data trend storage rate：As per display rate
    · Main Function：Meter, Scope, Harmonic, Phasor, Trend
    · Measuring Parameters
    – RMS, DC Component, AC Component, Rectified Mean, Peak Value, Peak-Peak, Crest Factor, Form Factor, Fundamental Component, Fundamental Content, Harmonic Distortion, Harmonic Content, Harmonic Factor for voltages and currents, Active Power, Reactive Power, Apparent Power, Power Factor, Phase Shift, Efficiency, Impedance, Electric Energy, Charge/Discharge capacity (Ah), Frequency, Motor Speed, Torque, Mechanical Power, Mechanical Energy, Summation function
    Voltage
    · Range：10 V, 100 V, 1000 V
    · Maximum Voltage：10 % overload
    · Input Impedance：2M Ω/10pF (Typical)
    · Temperature Coefficient：0.05 * (Spec)/k
    · Bandwidth
    – 1000V range：500kHz
    – 100V range：200 kHz
    – 10V range：100 kHz
    · CMRR：120 dB @ 50/60 Hz
    Accuracy (% reading + % range)
    · Range
    – 0.1 + 0.1：1000 V
    – 0.1 + 0.1：100 V
    – 0.1 + 0.2：10 V
    · AC (10Hz to 1kHz)
    – 0.1 + 0.1：0.1 + 0.1
    – 0.1 + 0.1：0.1 + 0.1
    – 0.1 + 0.2：0.1 + 0.2
    · AC (10kHz)
    – 0.1 + 0.1：5 + 0.5
    – 0.1 + 0.1：5 + 0.5
    – 0.1 + 0.2：5 + 0.5
    · Range
    – 0.1 + 0.2：10 A
    – 0.1 + 0.5：1 A
    – 0.1+2：0.1 A
    – 0.1+0.1：10 V
    – 0.1+0.2：1 V
    – 0.1+1：0.1 V
    · AC (10Hz to 1kHz)
    – 0.1 + 0.2：0.1+0.1
    – 0.1 + 0.5：0.1+0.2
    – 0.1+2：0.1+1
    – 0.1+0.1：0.1+0.1
    – 0.1+0.2：0.1+0.1
    – 0.1+1：0.1+0.5
    · AC (10kHz)
    – 0.1 + 0.2：5+1
    – 0.1 + 0.5：5+1
    – 0.1+2：5+1
    – 0.1+0.1：5+1
    – 0.1+0.2：5+1
    – 0.1+1：5+1
    Current
    · Crest Factor：CF ≤ 2
    · Temperature Coefficient：0.05 x (Spec)/k
    · Overload capacity：10 % overload
    · CMRR：120 dB @ 50/60 Hz
    Shunt (current input)
    · Measuring Range：0.1 A, 1 A, 10 A
    · Input Impedance：0.025 Ω (Typical)
    · Bandwidth
    – 10 A range：500 kHz
    – 1 A range：200 kHz
    – 0.1 A range：100 kHz
    BNC (voltage input)
    · Range：0.1 V, 1 V, 10 V
    · Input Impedance：100k Ω/100pF (Typical)
    · Bandwidth
    – 10 V range：500 kHz
    – 1 V range：200 kHz
    – 0.1 V range：100 kHz
    Motor Module (Torque and Speed)
    · Voltage Range：± 10 V dc, 10 % overload
    · Voltage Channels：2
    · Input Impedance：1.1M Ω (Typical)
    · Accuracy at dc：0.1 % range + 0.1 % reading
    · Pulse Channels：3
    · Pulse Logic High Threshold：2 V (Typical)
    · Pulse Logic Low Threshold：0.8 V (Typical)
    · Maximum Pulse Frequency：100 kHz
    · Frequency Accuracy：0.05 % range + 0.05 % reading
    · Harmonics：100 (50Hz/60Hz)
    · Calculation method：FFT/Interpolation
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
