PQA820 功率分析仪
PQA820 is the innovative proposal by HT to easily analyze all involved components on a three-pha…
产品简介
PQA820 是 HT Italia（HT Instruments，意大利）出品的功率分析仪。官网列出主要指标：量程（V） 10.0 至 265.0；量程（V） 10.0 至 265.0；量程（V） 50.0 至 460。
核心参数
• DC Voltage [Phase (+) – Neutral (-)] · 量程（V）：10.0 至 265.0｜分辨率（V） 0.1；精度 ±(0.7%rdg + 0.4V)
• AC TRMS Voltage (Phase-Neutral, Phase-PE) · 量程（V）：10.0 至 265.0｜频率（Hz） 42.5 至 65.0Hz；分辨率（V） 0.1；精度 ±(0.5%rdg + 0.2V)
• AC TRMS Voltage (Phase- Phase) · 量程（V）：50.0 至 460｜频率（Hz） 42.5 至 65.0Hz；分辨率（V） 0.1；精度 ±(1.0%rdg + 0.2V)
• Maximum crest factor = 1.5, Voltage values <10.0V are zeroed · 量程（V）：15.0 至 265.0｜分辨率（V） 0.2；分辨率（ms） 10ms；精度（V） ±(1.0%rdg + 2dgt)；精度（ms） ± ½ cycle

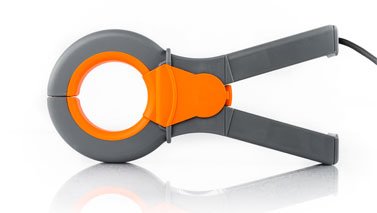

• DC Current – STD transducers clamps · 量程（mV）：5.0 至 219.9｜分辨率（mV） 1；精度 ±(0.7%rdg + 1mV)；Overload protection 10V
• AC TRMS Current – STD transducers clamps · 量程（mV）：5.0 至 219.9｜频率（Hz） 42.5 至 65.0；分辨率（mV） 1；精度 ±(0.5%rdg + 0.6mV)

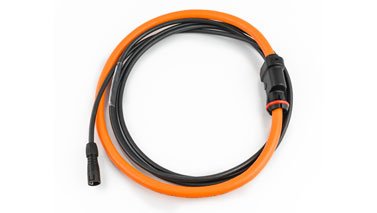

• AC TRMS Current – Flex transducers clamps (100A AC Range – 85µV/A) · 值：Range [mV]｜值 Frequency [Hz]；值 Resolution；值 Accuracy
• AC TRMS Current – Flex transducers clamps (1000A AC Range – 85µV/A) · 量程（mV）：0.425 至 85.0｜频率（Hz） 42.5 至 65.0；分辨率 85µV；精度 ±(0.5%rdg+0.15mV)；值 10V
功能特性
• AC/DC voltage in single-phase/three-phase systems：MAX 415V +/- 10%
• AC/DC current in single-phase/three-phase systems：MAX 1000A
• Max number of simultaneously selectable parameters：383
• Recording with selectable integration period：5s-60m
• Indicative memory duration (in days @ PI=10min @ max number of parameters)：30 days
• Internal memory：8MB
• Saving instant sampled values：Through App HTANALYSIS
• Summary table of main electric parameters：Through App HTANALYSIS
• Voltage/current waveforms：Through App HTANALYSIS
• Tables or histograms of Harmonics and THD%：Through App HTANALYSIS
• Voltage/current vector diagram：Through App HTANALYSIS
• Measurement category：CAT IV 300V
• Measurement with use of external TA and TV (with optional accessory HT903)：Adapter ACONBIN necessary
• Power supply and rechargeable battery recharging：Auto power supplied
• USB port for data download onto Pen Drive：Only PC
• Provided PC interface with software for Windows：Wi-Fi
• Size (LxWx H) (mm)：255x200x115
• Weight in grams (batteries included)：700
• 标配功能（官网 Functions 列表）：Cosphi, Power Factor · Voltage unbalance (NEG%, ZERO%) · Active, reactive, apparent power/energy and DC power · Voltage and current harmonics up to the 49th with THD · Voltage anomalies (dips, peaks) with a resolution of 10ms (@ 50Hz) · Phase sequence · Neutral current · Indication of recording duration · Auto power off
• 适用标准 / 规范（官网 Guidelines）：CE MARK · EMC 2014/30/EU · EMC: IEC/EN61326 · EN50160 · IEC/EN61010-1 · LVD 2014/35/EU
官网原文（英文）
• 官网产品概述（英文原文）：PQA820 is the innovative proposal by HT to easily analyze all involved components on a three-phase or single-phase electric system. · When designing them, HT has taken particular care of three aspects: setting, the operating or storage environment and data transfer. · PQA820 do not need to be set. They simply need to be connected, started and they respectively record 383 and 44 quantities simultaneously. · They are provided with a comfortable IP65 case, which allows working in any kind of environment. · When recording has finished, thanks to the WI-Fi connection, the devices are capable of transferring all data onto a tablet, smart phone or PC. · Further to the Wi-Fi connection, PQA devices are provided with USB connection for transferring data via cable to the PC through the provided TopView software. · They do not need any batteries since they are auto power-supplied from the mains t…
资源下载
以上内容与指标均取自HT Italia（HT Instruments）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
HT Italia SRL · onetest 仪器资源库
HT Italia
PQA820 功率分析仪 详细指标
PQA820 is the innovative proposal by HT to easily analyze all involved components on a three-pha…
详细指标
以下为该型号的技术指标，逐表取自官方《PQA820 用户手册》（英文版）TECHNICAL SPECIFICATIONS 章节、官方《PQA820》数据手册、官网产品页，表内数值按官方表格原样摘录（原文为英文；括号内为单位）。厂家未列出的项目即官网与手册均未给出，未作推测。
技术特性
• 说明：Accuracy indicated as ±[%rdg +(num. dgt * resolution)] referred to 23°C±5°C, < 75%RH
技术特性 · DC Voltage [Phase (+) – Neutral (-)]
• 量程（V）：10.0 至 265.0｜分辨率（V） 0.1；精度 ±(0.7%rdg + 0.4V)
• 说明：Voltage values <10.0V are zeroed
技术特性 · AC TRMS Voltage (Phase-Neutral, Phase-PE)
• 量程（V）：10.0 至 265.0｜频率（Hz） 42.5 至 65.0Hz；分辨率（V） 0.1；精度 ±(0.5%rdg + 0.2V)
• 说明：Maximum crest factor = 1.5, Voltage values <10.0V are zeroed
技术特性 · AC TRMS Voltage (Phase- Phase)
• 量程（V）：50.0 至 460｜频率（Hz） 42.5 至 65.0Hz；分辨率（V） 0.1；精度 ±(1.0%rdg + 0.2V)
技术特性 · Maximum crest factor = 1.5, Voltage values <10.0V are zeroed
• 量程（V）：15.0 至 265.0｜分辨率（V） 0.2；分辨率（ms） 10ms；精度（V） ±(1.0%rdg + 2dgt)；精度（ms） ± ½ cycle
技术特性 · DC Current – STD transducers clamps
• 量程（mV）：5.0 至 219.9｜分辨率（mV） 1；精度 ±(0.7%rdg + 1mV)；Overload protection 10V
• 量程（mV）：220.0 至 999.9｜精度 ±0.7%rdg
• 说明：Current values correspondent to a voltage < 5mV are zeroed
技术特性 · AC TRMS Current – STD transducers clamps
• 量程（mV）：5.0 至 219.9｜频率（Hz） 42.5 至 65.0；分辨率（mV） 1；精度 ±(0.5%rdg + 0.6mV)
• 量程（mV）：220.0 至 999.9｜精度 ±(0.5%rdg)
• 说明：Current values correspondent to a voltage < 5mV are zeroed
技术特性 · AC TRMS Current – Flex transducers clamps (100A AC Range – 85µV/A)
• 值：Range [mV]｜值 Frequency [Hz]；值 Resolution；值 Accuracy
• Overload：protection
• 值：0.085 至 8.50｜值 42.5 至 65.0；值 8.5µV；值 ±(0.5%rdg+0.007mV)；Overload 10V
• 说明：Maximum crest factor = 1.5, Current values <1A are zeroed
技术特性 · AC TRMS Current – Flex transducers clamps (1000A AC Range – 85µV/A)
• 量程（mV）：0.425 至 85.0｜频率（Hz） 42.5 至 65.0；分辨率 85µV；精度 ±(0.5%rdg+0.15mV)；值 10V
• 说明：Maximum crest factor = 1.5; Current values <5A are zeroed
技术特性 · Frequency
• 量程（Hz）：42.5 至 65.0｜分辨率（Hz） 0.1；精度 ±(0.2%rdg + 0.1Hz)
技术特性 · DC Power – (Vmeas > 200V)
• 值：1< FS ≤ 10｜量程（W） 0.000k 至 9.999k；分辨率（W） 0.001k；精度 ±(1.0%rdg + 5W)
• 量程（W）：10.00k 至 99.99k｜分辨率（W） 0.01k；精度 ±(1.0%rdg + 50W)
• 值：10< FS ≤ 200｜量程（W） 0.00k 至 99.99k；分辨率（W） 0.01k；精度 ±(1.0%rdg + 50W)
• 量程（W）：100.0k 至 999.9k｜分辨率（W） 0.1k；精度 ±(1.0% rdg + 500W)
• 值：200< FS ≤ 1000｜量程（W） 0.0k 至 999.9k；分辨率（W） 0.1k；精度 ±(1.0%rdg + 0.5kW)
• 量程（W）：1000k 至 9999k｜分辨率（W） 1k；精度 ±(1.0% rdg + 5kW)
• 说明：Vmeas = Voltage in which the power is measured
• 说明：EN – 20
技术特性 · AC Power/Energy – (Vmeas > 200V, Pf=1)
• 值：1< FS ≤ 10｜量程（W） 0.000k 至 9.999k；值 0.001k；精度 ±(0.7%rdg + 3W/Wh)
• 量程（W）：10.00k 至 99.99k｜值 0.01k；精度 ±(0.7%rdg+30W/Wh)
• 值：10< FS ≤ 200｜量程（W） 0.00k 至 99.99k；值 0.01k；精度 ±(0.7%rdg+30W/Wh)
• 量程（W）：100.0k 至 999.9k｜值 0.1k；精度 ±(0.7%rdg+300W/Wh)
• 值：200< FS ≤ 1000｜量程（W） 0.0k 至 999.9k；值 0.1k；精度 ±(0.7%rdg+0.3kW/kWh)
• 量程（W）：1000k 至 9999k｜值 1k；精度 ±(0.7%rdg+3kW/kWh)
• 说明：Vmeas = Voltage in which the power is measured
技术特性 · Power factor and Cos
• 量程：0.20 至 0.50｜分辨率（°） 0.01；精度（°） 0.6
• 量程：0.50 至 0.80｜精度（°） 0.7
• 量程：0.80 至 1.00｜精度（°） 1.0
技术特性
• 量程：DC 至 25th｜Max resolution 0.3V / 0.1%FS clamp；精度 ±(5.0%rdg + 2dgt)
• 量程：26th 至 33th｜精度 ±(10%rdg + 2dgt)
• 量程：34th 至 49th｜精度 ±(15%rdg + 2dgt)

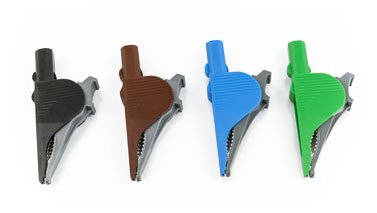

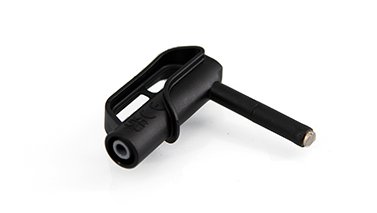

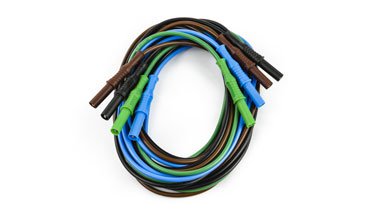

附件
• 说明：The harmonics will be zeroed under the following conditions
• ➢ DC：if the value of DC <0.5% of the value of the fundamental or if the DC value < 0.5% of the FS clamp
• ➢ 1st harmonic：if the value of the 1st harmonic <0.5% of the FS clamp
• ➢ 2nd 至 49th harmonic：if the value of harmonic <0.5% of the value of the fundamental or if <0.5% of the FS clamp
• Safety / EMC：IEC/EN61010-1 / IECEN61326-1
• Quality of voltage supply：EN50160 (voltage / THDV%) and harmonics (PQA820)
• Insulation：double insulation
• Pollution level：2
• Max. height of use：2000m (6562ft)
• Measurement category：CAT IV 300V AC (to ground), Max 460V between inputs
• 说明：Mechanical characteristics:
• Dimensions (L x W x H)：245 x 210 x 110mm (10 x 8 x 4in) / Weight: 1.5kg (3lv)
• Mechanical protection：IP65
• 说明：Power supply
• Internal power supply (rechargeable battery)：>6 hours (WiFi on) ; >15 hours (WiFi off)
• External power supply：Ing. Red-Yellow: 100 至 415V, 50/60Hz
• 说明：45mA@100V, 30mA@230V, 20mA@415V
• 说明：Measurement, memory and Interface
• Number of samples per period：128, (64 in “Real Time” connection)
• Max. simultaneous recordable parameters：383 (PQA820), 44 (PQA819)
• Integration period：5, 10, 30s, 1, 2, 5, 10, 15, 60min
• 说明：> 230 days (@ IP = 15 minutes) (PQA819)
• Memory：8Mbyte
• Communication interface (PC/Tablets)：USB (PC only) / WiFi
• Reference temperature：23°C ± 5°C (73°F ± 41°F)
• Operating temperature：0°C ÷ 40 °C (32°F ÷ 104°F)
• Allowable relative humidity：<80%RH
• Storage temperature：-10°C ÷ 60°C (14°F ÷ 140°F)
• Storage humidity：<80%RH
• 说明：This instrument complies the directive 2014/35/EU (LVD) and of EMC directive 2014/30/EU
• 说明：This instrument complies the directive 2011/65/EU (RoHS) and 2012/19/EU (WEEE) directive
• 说明：Use only the supplied and optional accessories included in the enclosed packing list
• 说明：EN – 21
12.1. VOLTAGE ANOMALIES
• 说明：The instrument catalogs as voltage anomalies (sags, swells) all those RMS values,
• 说明：calculated every 10ms (@ 50Hz), which are out of the thresholds set upon configuration by
• 说明：±1% to ±30% of a set reference value with a 1% step.
• 说明：To prevent recording events attributable to electric noise only, a hysteresis threshold of
• 说明：1% is also present. These limits remain unchanged throughout the whole recording period.
• 说明：The reference voltage value must be set as:
• ➢ Rated voltage Phase-Neutral：for single-phase and three-phase 4-wire systems
• ➢ Rated voltage Phase-Earth：for three-phase 3-wire systems
• Example：Three-phase 4-wire system.
• 说明：Vref = 230V, LIM(+) = 10%, LIM(-) = 10%, => Hysteresis 1%
• 说明：Higher Lim = 230 + 23 = 253V, Lower Lim = 230 - 23 = 207V
• 说明：Recording swells
• 说明：The instrument starts recording an event if voltage exceeds 253V and stops recording if
• 说明：voltage drops below 253 – 2.53 = 250.5V
• 说明：Recording sags
• 说明：The instrument starts recording an event if voltage is lower 207V and stops recording if
• 说明：voltage rises over 207 + 2.07 = 209.1V
• 说明：For each event, the instrument records the following data:
• 说明：• The number corresponding to the phase in which the anomaly occurred.
• • The “direction” of the anomaly：“UP” and “DN” respectively identify voltage swell and
• 说明：sags
• 说明：• The date and time in which the event starts in a format day, month, year, hour, minutes,
• 说明：seconds, hundredth of seconds.
• 说明：• The duration of the event, in seconds with a resolution equal to 10ms.
• 说明：• The minimum (or maximum) value of voltage during the event.
• 说明：EN – 22
12.2. VOLTAGE AND CURRENT HARMONICS
• 说明：Any periodic non-sinusoidal wave may be represented by a sum of sinusoidal waves, each
• 说明：with a frequency which is a whole multiple of the fundamental, according to the
• 说明：relationship:
• 说明：v ( t ) V
• 说明：k 1
• 说明：V
• 说明：k
• 说明：s i n (
• 说明：k
• 说明：t
• 说明：k
• 说明：) = + ∑
• 说明：∞
• 说明：=
• 说明：+
• 说明：(1)
• 说明：where:
• 说明：V = Average value of v(t)
• 说明：V = Amplitude of the fundamental of v(t)
• 说明：V = Amplitude of the k-nth harmonic of v(t)
• 说明：k
• 说明：For network voltage, the fundamental has a frequency of 50 Hz, the second harmonic has
• 说明：a frequency of 100 Hz, the third harmonic has a frequency of 150 Hz and so on. Harmonic
• 说明：distortion is a continuous problem and must not be confused with short-duration
• 说明：phenomena such as peaks, drops or fluctuations. It can be seen how in (1) the index of the
• 说明：summation goes from 1 to infinity. What actually happens is that each signal has an
• unlimited number of harmonics：there is always a sequence number beyond which the
12.2. VOLTAGE AND CURRENT HARMONICS · value of the harmonics is negligible.
• 说明：Effect of the sum of 2 multiple frequencies.
• 说明：Standard EN 50160 suggests cutting the summation in the expression (1) at the 40th
• 说明：harmonic. A fundamental index to detect the presence of harmonics is the THD defined as:
• 说明：EN – 23
• 说明：T H D v =
• 说明：4 0
• 说明：∑h
• 说明：= 2
• 说明：V
• 说明：V 2h
• 说明：This index takes into consideration the presence of all harmonics, and the more distorted
• 说明：is the waveform, the higher is the index.
• 说明<
